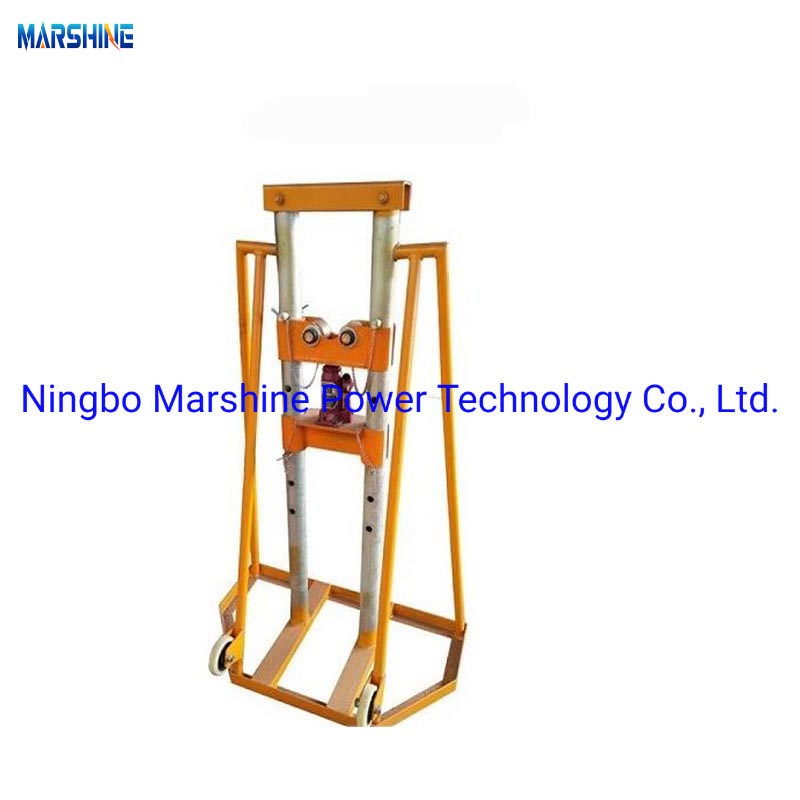

How to Use MARSHINE Hydraulic Reel Stand Elevator

MARSHINE Hydraulic Reel Stand Elevator are highly effective tools for lifting, supporting and distributing large cable reels during cable installation operations. Following proper usage procedures is essential to maximize equipment performance and ensure safe operation.

This guide outlines the key steps for the proper use of the MARSHINE Hydraulic Reel Stand Elevator.

Before Use

Equipment Inspection: Before starting, carefully inspect the hydraulic reel stand for any visible damage, loose parts or oil leaks. Make sure the hydraulic system is functioning properly.

Select a stable work area: Position the stand on firm, level ground to ensure stability during operation. Avoid soft or uneven ground that could cause imbalance.

Select the right model: Verify that the load capacity and size of the hydraulic reel stand match the weight and diameter of the cable reel to be lifted.

Install the Hydraulic Reel Stand

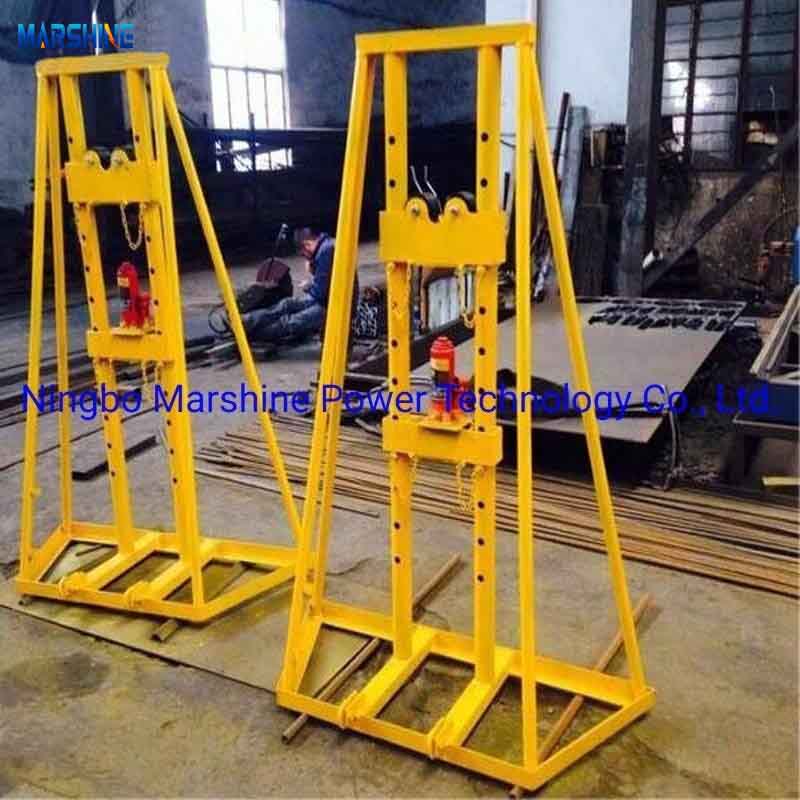

Place the stands: Position two hydraulic stands on either side of the cable reel mounting location, making sure they are aligned and properly spaced according to the reel width.

Insert the shaft/spindle: Insert the support shaft through the center hole of the cable reel. Make sure the shaft is properly centered to maintain balance.

Mounting the reel to the brackets: Carefully place both ends of the shaft into the brackets or grooves on the top of each hydraulic bracket.

Raising the cable reel

Activating the hydraulic system: Use the hydraulic handle (or foot pump, depending on the model) to gradually raise the reel off the ground.

Raising evenly: Slowly and evenly lift both sides of the reel, making sure the reel remains level. Avoid sudden movements that could cause instability.

Checking stability: Once the reel has been raised to the desired height, carefully check that both brackets of MARSHINE Hydraulic Reel Stand Elevator are firmly supporting the reel and that the system is securely locked in place.

Cable payout (unwinding)

Controlling cable unwinding: Make sure the cable rotates smoothly as it is pulled from the reel. Control the pull and avoid any jerky movements that could cause the bracket to become unstable.

Monitoring the installation: Regularly check that the reel is secure during operation, especially when handling large or heavy cables.

After use

Lowering the reel safely: Once the cable is installed, use the hydraulic release valve to gently lower the reel back to the ground.

Removing the shaft and reel: Once safely lowered, remove the shaft and carefully set the reel aside.

Maintenance Check: Inspect the hydraulic system, clean any dirt or debris, and lubricate moving parts of MARSHINE Hydraulic Reel Stand Elevator if necessary for future use.
