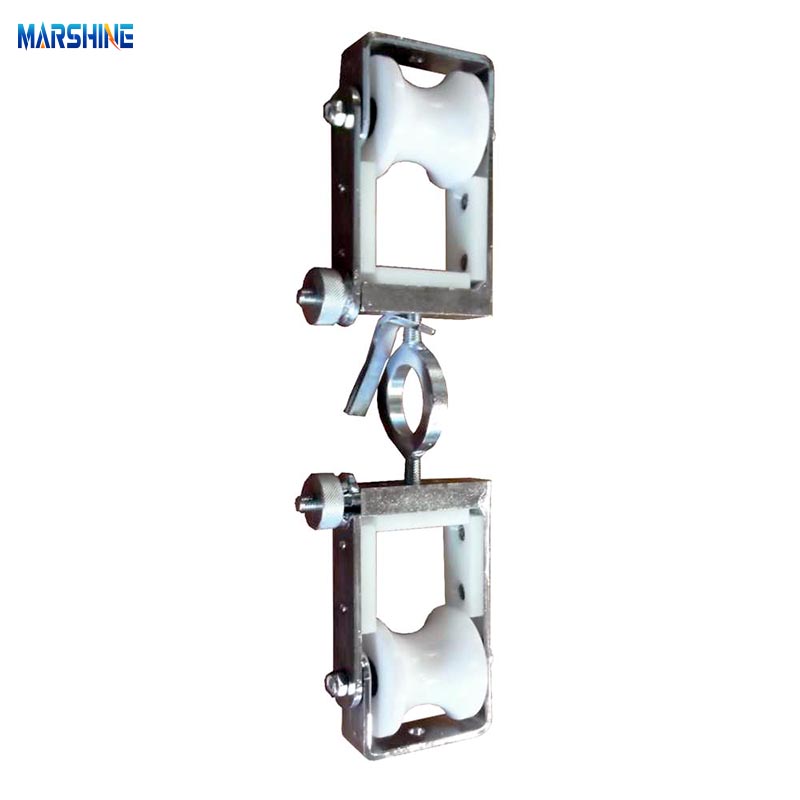

MAR-026RBT2 Double Line Cable Replacing Roller

The MARSHINE MAR-026RBT2 Double Line Cable Replacing Roller is a compact, reliable conductor guidance tool designed specifically for conductor replacement, OPGW (Optical Ground Wire) installation, and overhead line stringing operations. Featuring a dual-wheel configuration, it simultaneously guides the pulling rope and the conductor being installed, ensuring smooth cable movement while minimizing friction and protecting the cable surface.

The MAR-026RBT2 model is equipped with durable nylon sheaves mounted on precision ball bearings, offering low rolling resistance and excellent wear resistance. Its heavy-duty galvanized steel frame is reinforced with nylon side plates, which prevent accidental contact between the conductor and the metal frame while enhancing cable protection. With a working load of 2 kN, a breaking load of 10 kN, and a weight of just 1.8 kg, its lightweight design makes it an ideal choice for overhead transmission line maintenance, ground wire replacement, and OPGW installation projects.

Product Parameter

Product Feature

Dual-Sheave Configuration

The dual-groove design simultaneously guides the pulling rope and the conductor being replaced, optimizing cable routing and enhancing installation efficiency during conductor replacement operations.

High-Strength Nylon Sheaves

Precision-machined nylon sheaves ensure smooth cable movement with minimal friction while effectively protecting the conductor surface from abrasion and mechanical damage.

Precision Ball Bearing System

Each sheave is equipped with high-quality sealed ball bearings, ensuring smooth rotation, reducing pulling resistance, and improving overall stringing performance.

Heavy-Duty Galvanized Steel Frame

The MARSHINE MAR-026RBT2 Double Line Cable Replacing Roller features a robust galvanized steel frame that offers exceptional structural strength and corrosion resistance, making it ideal for long-term outdoor use.

Nylon Protective Side Plates

Integrated nylon protective plates prevent direct contact between the conductor and the steel frame, reducing the risk of cable damage and enhancing safety during stringing operations.

Lightweight and Portable

Weighing only 1.8 kg, the block is easy to transport, install, and reposition on power infrastructure, helping to reduce operator fatigue and improve on-site efficiency.

Compact Design

With overall dimensions of 371 × 113 × 25 mm, the compact design facilitates handling and installation, allowing for easy use even in confined workspaces.

Product Application

The MARSHINE MAR-026RBT2 Double Line Cable Replacing Roller is particularly suitable for replacing existing conductors or earth wires while using a pulling rope to guide the new cable into position. Its dual-roller design enables smooth and controlled cable movement, helping reduce installation time while protecting valuable conductors from unnecessary wear.

Product Details

Brand:MARSHINE.

Condition:New.

Lead Time:15-20days.

Warranty:1 year.

Certification:ISO9001.

Place Of Origin:Ningbo,Zhejiang.

Payment Term:T/T.

MOQ:50pcs.
