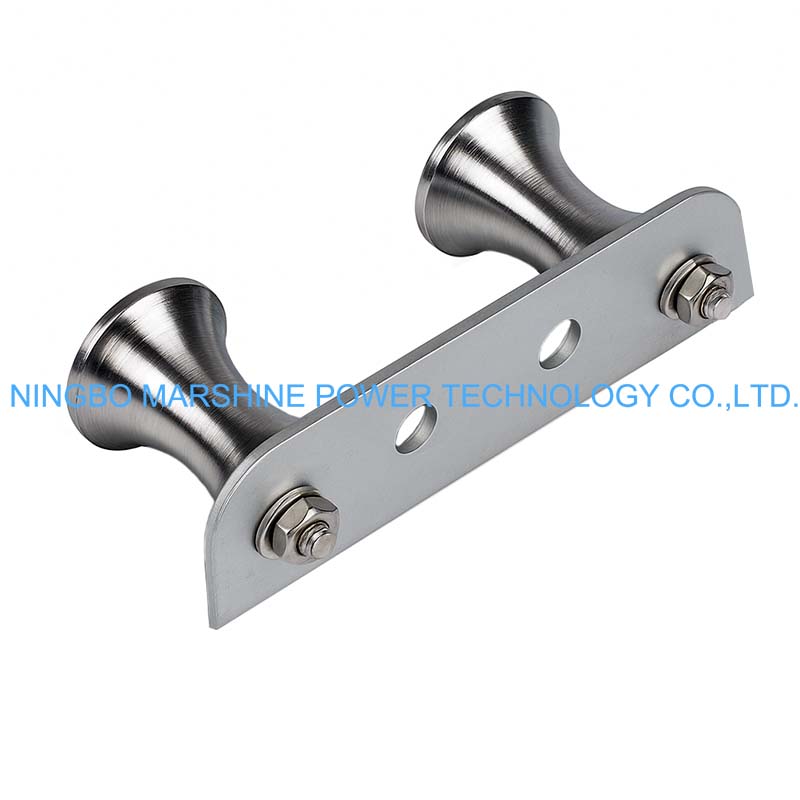

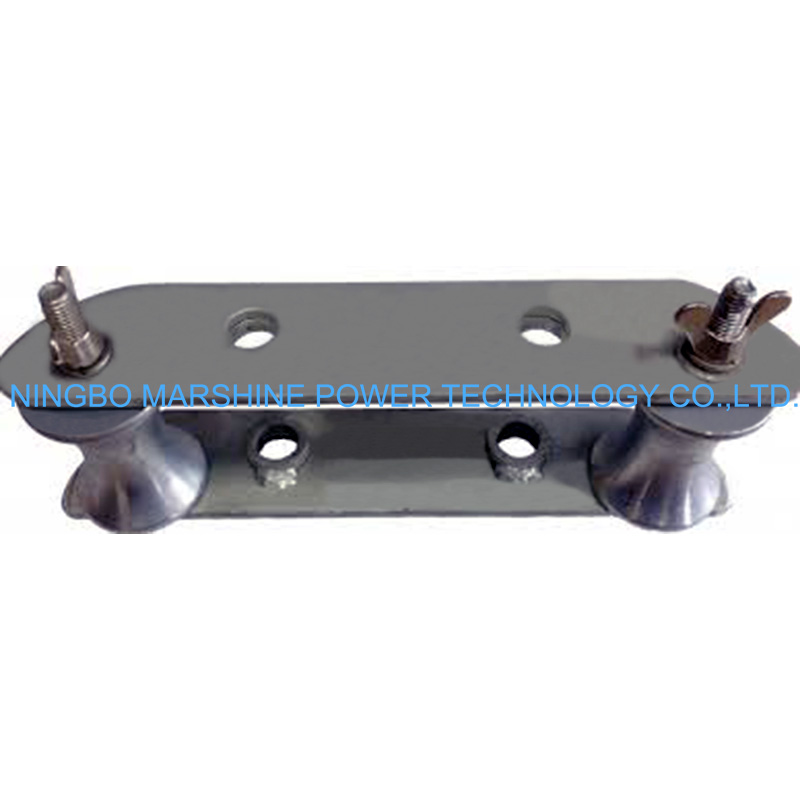

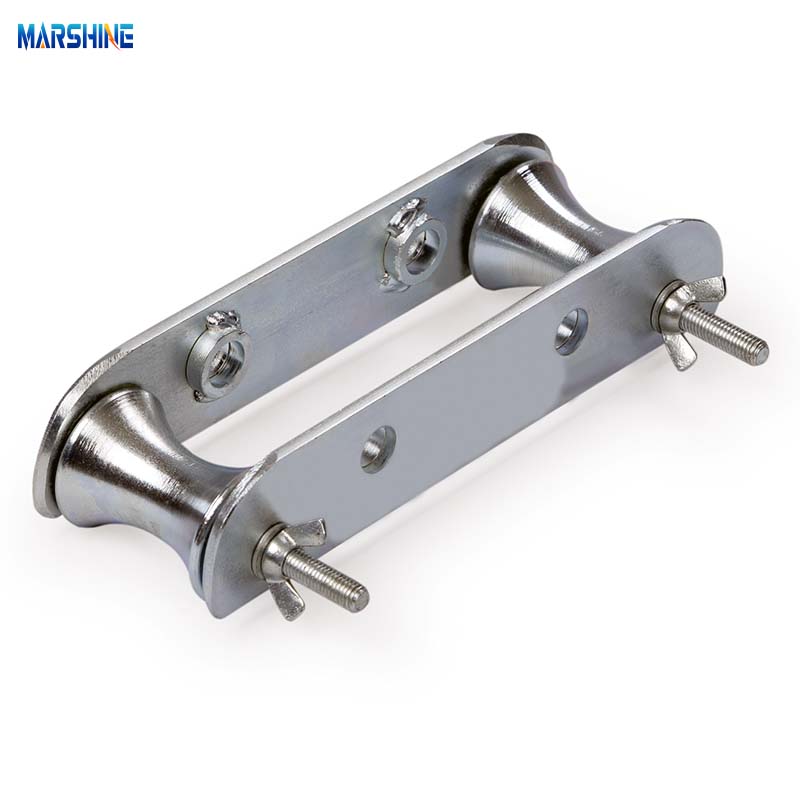

With the robust steel construction to offer the last long durability, our MARSHINE Corner Turned Cable Roller ST26-99 Extension Roller For Angle as a underground cable guiding tool that the roller is been built with aluminum alloy can ensures the smooth laying of power line cables while protecting the cable's insulation from the damage.
With the 69mm groove, this roller is able to deal with the conductors various from 4x25 to 95 with ease. And with the protective coating, this roller can ensures longer service life.
| Model | ST26-99 |
| Applicable conductor size | 4x25–95 |
| Applicable conductor diameter | 18-37mm |

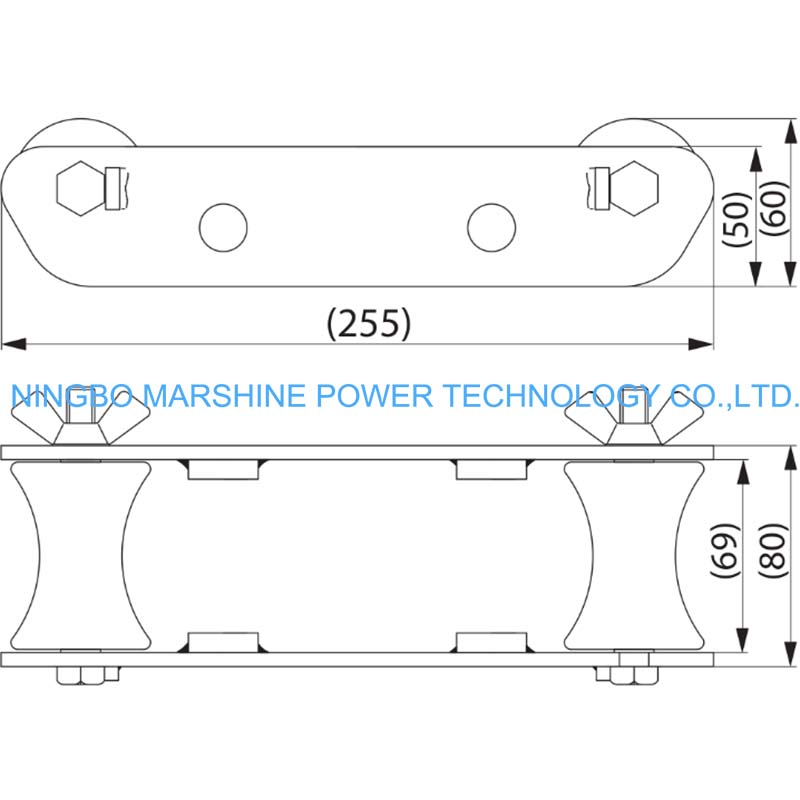

| Length | 255mm |
| Width | 80mm |
| Height | 50mm |
| Weight | 2.24kg |
| ETIM class | EC003007 |
| Body material | Steel |
| Roller material | Aluminum alloy |
With heavy-duty steel frame to provide the strength and stability.

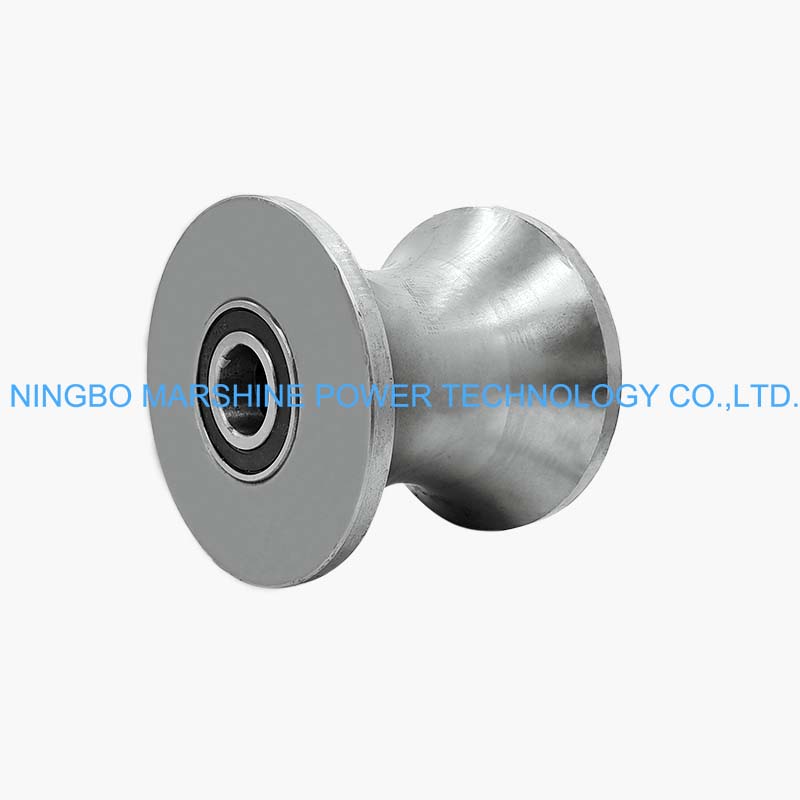

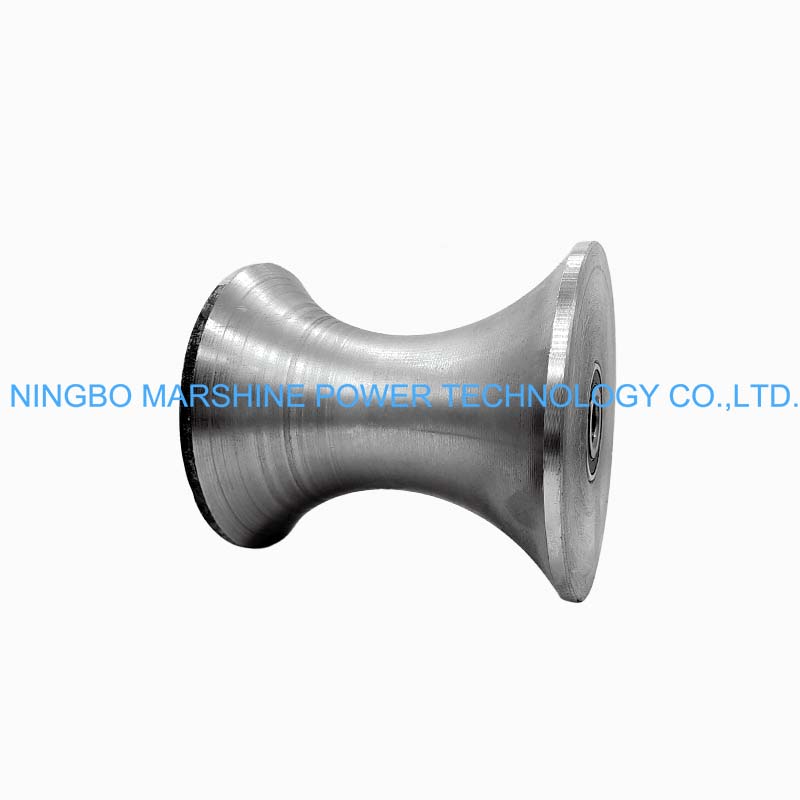

Durable aluminum alloy roller can offers the smooth cable movement and protect the cable insulation.
Corner angle design can guide cables through the corner with less friction, so that to improve the efficiency.
Protective coating suitable for long-term outdoor environment use.
Portable design with simple construction allows this MARSHINE cable guide rollers for easy setup and transportation on the job site.
The MARSHINE Corner Turned Cable Roller ST26-99 Extension Roller For Angle can be used for turning and guiding the underground power line cables during the installation on the job sites.
Directing the optical fiber and communication cables around the corners.
Ideal for laying the cables in the tunnels, trenches, and the conduits that requires for angled cable routing.
Handling the cables in the complex environments with added safety and higher efficiency.
Brand:MARSHINE.
Condition:New.
Lead Time:15-20days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.MOQ:50pcs.
