Telecom cable installation leaves little room for unstable equipment or inconsistent pay-out. A heavy reel of fiber-optic or copper cable can quickly become a source of tension spikes, jacket damage, crew strain, and costly delays if it is not supported correctly. That is where an adjustable cable reel roller becomes a practical field asset. By matching drum size, load capacity, bearing performance, and frame stability to the job, contractors can protect delicate cable while improving installation speed. This guide explains the key selection factors procurement teams and site managers should evaluate before choosing a roller for underground duct pulls, FTTH work, aerial lashing, or trunk-line deployment.
Adjustable Cable Reel Rollers for Telecom Applications
Laying down telecom infrastructure means dealing with heavy, unwieldy spools of fiber-optic or copper cables. To keep things moving efficiently without damaging expensive lines, crews rely on an adjustable cable reel roller—a specialized piece of pay-out equipment designed with movable tracks to accommodate various drum diameters. The purpose of this guide is to help procurement teams and field managers select the right roller system for their operations. By adapting to different spool sizes and maintaining a stable footprint on uneven terrain, a well-chosen roller provides a rugged base for high-stakes pulls, supporting safe and efficient installations.

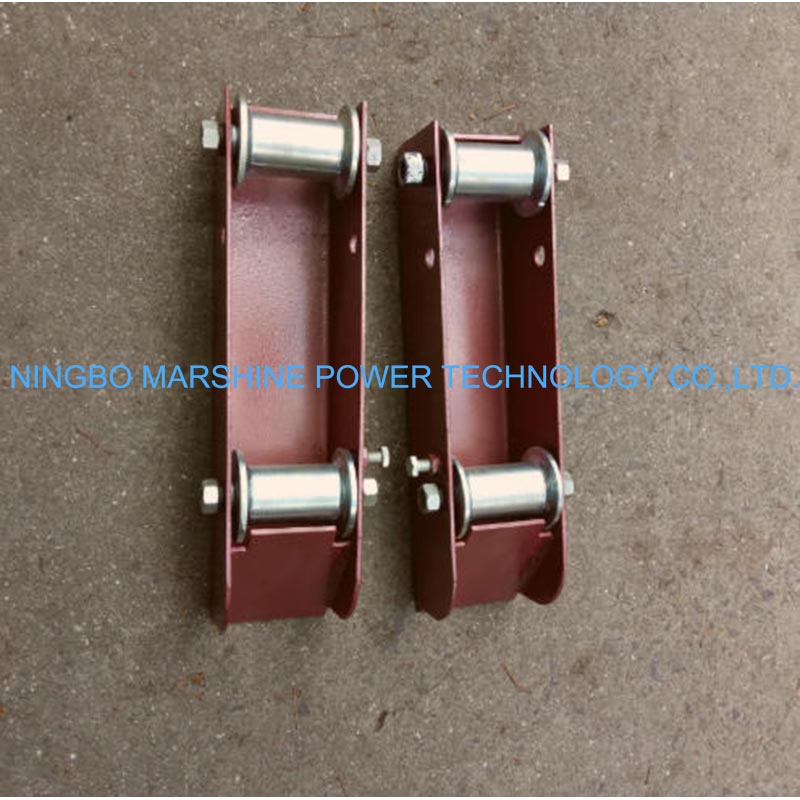

What an adjustable cable reel roller does
At its core, this equipment acts as a dynamic, low-friction base that holds and dispenses cable drums. Unlike static stands that only fit one specific spool size, the adjustable nature means operators can slide the roller tracks closer together or further apart to accommodate different drum diameters. However, the adjustment range of a single roller frame is finite. Buyers must verify both the minimum and maximum drum diameter, as well as the axial barrel width, against the frame's physical dimensions. By using heavy-duty bearings and adjustable spacing, the roller helps the spool spin freely without jerking or snagging. Smooth bearing operation is critical for telecom applications, as it minimizes sudden tension spikes that can cause micro-bending in delicate fiber-optic strands or violate minimum bend radius requirements.
Where it fits in telecom cable installation
In the field, these rollers sit right at the feed point of a trench, manhole, or utility pole. They are integral to diverse telecom scenarios, from aerial lashing for overhead lines to underground duct pulling for Fiber-to-the-Home (FTTH) drops and high-capacity trunk lines. When tension is applied by a winch at the other end of the conduit, the roller allows the cable to pay out smoothly, keeping tension consistent. Utilizing well-engineered industry-standard equipment keeps daily operations smooth, minimizes physical strain on the crew, and reduces the risk of costly jacket damage before the cable even enters the conduit.

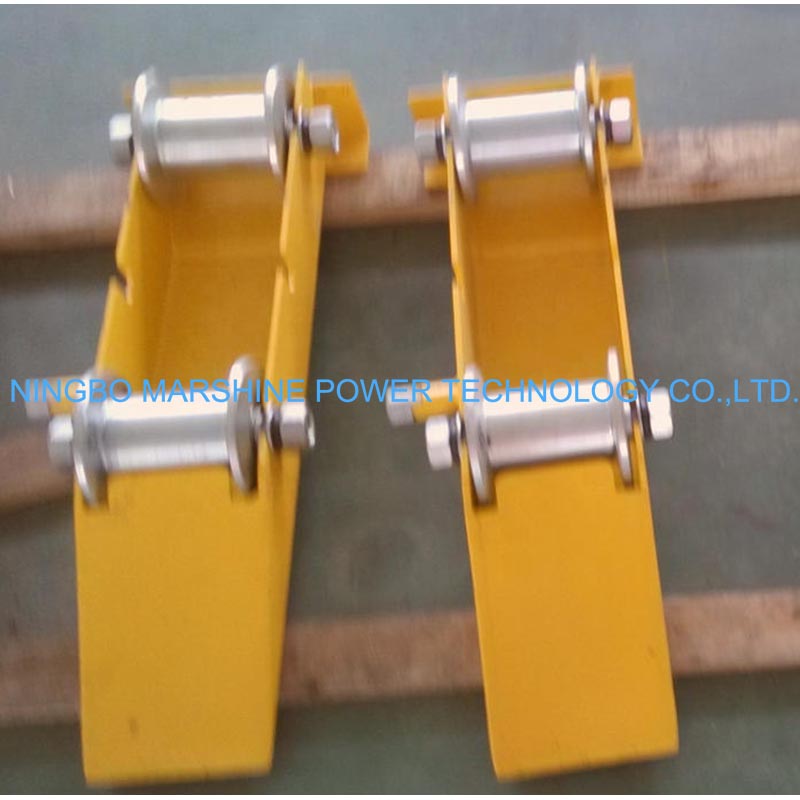

Key Specifications and Comparison Points
When comparing equipment for the job site, raw specifications dictate performance and safety. You want a tool that hits the sweet spot between portability for the crew and raw strength for the payload. Knowing the precise numbers and material features helps separate a temporary fix from a long-term investment.
Load rating, reel size, and adjustment range
Load ratings span from lightweight models designed for short drop cables to heavy-duty units built for massive trunk lines. The adjustment range is just as crucial, as it dictates how many different spool types a single piece of equipment can support. Note that the load capacities and drum diameter ranges in the table below are illustrative examples of typical industry configurations rather than fixed universal classifications:
| Roller Class | Max Load Capacity | Supported Drum Diameter | Typical Frame Weight |
|---|---|---|---|
| Light-Duty | 500 kg | 300 mm - 1,000 mm | 15 kg - 25 kg |
| Medium-Duty | 1,500 kg | 600 mm - 1,500 mm | 45 kg - 60 kg |
| Heavy-Duty | 3,000 kg+ | 1,000 mm - 3,200 mm | 90 kg - 120 kg |
Roller materials, braking, and compliance
Beyond weight limits, the materials used dictate the lifespan of the tool. Top-tier rollers feature heavy-wall steel tubing frames, paired with high-impact nylon, heavy-duty polyurethane, or cast aluminum for the support rollers. Sealed steel bearings are a must to keep dirt and moisture out during muddy underground pulls, while galvanized or powder-coated finishes provide essential corrosion resistance for outdoor telecom sites. Additionally, compliance with quality management systems like ISO 9001 indicates reliable manufacturing processes, though buyers should verify adherence to specific machinery-safety or lifting-equipment regulations to support operational safety. Buyers should also ensure the roller includes reliable brake mechanisms—such as manual friction brakes or automatic tensioning systems—to maintain controlled pay-out and prevent spool over-run.
How to Choose the Right Cable Reel Roller
Picking the right gear isn't just about grabbing the model with the highest weight limit. It is about matching the tool to the specific daily grind of telecom crews, balancing the physical dimensions of the spools with the logistical realities of the job site. A smart choice improves efficiency and drastically cuts down on setup time.
Match roller capacity to reel weight and drum dimensions
To make the selection process actionable, buyers should follow a concrete, step-by-step checklist: 1. Measure loaded drum weight and dimensions: Always check the maximum loaded weight of your standard fiber or copper spools before making a purchase. It is critical to distinguish between the drum diameter (which determines the required roller track spacing) and the axial barrel or flange width (which dictates the physical width the frame must accommodate). Investing in appropriately rated equipment gives you a comfortable and safe working margin. Pushing a lighter frame beyond its limit risks bearing failure, frame warping, and onsite accidents. 2. Verify the adjustment mechanism and containment: Look for a secure locking mechanism on the adjustable tracks, ensuring that once you set the width for a specific drum diameter, the rollers will not shift under the vibration of a fast pay-out. Additionally, check for axial drum containment features to mitigate the risk of drum walk-off during high-tension pulls or when operating on a slope. 3. Assess terrain and anchoring needs: Soft or sloped terrain often requires additional stabilization beyond the frame weight alone. Consider ground anchoring options or the use of load-spreading ground mats to maintain lateral stability when operating on uneven, muddy soil or under heavy load. 4. Consider jobsite logistics and frame types: Evaluate whether a single wide roller frame or paired independent units are needed. Single frames offer quick setup and fixed alignment, but can be bulky.
Further reading:
Key Takeaways
- Verify the roller’s rated load against the heaviest cable drum your crew will use before approving it for field deployment.
- Check both the minimum and maximum supported drum diameter because an adjustable frame still has fixed physical limits.
- Choose rollers with smooth, durable bearings to reduce tension spikes that can damage fiber-optic cable during pay-out.
- Match the roller class to the application, using lighter units for short drop cables and heavier frames for trunk-line reels.
- Prioritize a stable frame and rugged construction when installations involve uneven terrain, manholes, trenches, or aerial feed points.
Frequently Asked Questions
What does an adjustable cable reel roller do in telecom work?
It supports a cable drum and lets it rotate smoothly during pay-out, helping crews feed fiber-optic or copper cable into ducts, trenches, manholes, or aerial routes with controlled tension.
Why is adjustability important for cable reel rollers?
Adjustable tracks allow one roller frame to fit multiple drum diameters and barrel widths, reducing the need for several fixed-size stands and improving job-site flexibility.
What specifications should buyers check first?
Confirm maximum load capacity, minimum and maximum drum diameter, axial barrel width, roller spacing, bearing quality, frame material, and whether the unit is stable on uneven ground.
Can the wrong roller damage fiber-optic cable?
Yes. Poor bearing performance or an unstable frame can create tension spikes, jerking, or snagging, which may cause micro-bending, jacket damage, or minimum bend radius violations.
Is a heavy-duty roller always the best choice?
Not always. Heavy-duty units handle larger trunk-line drums, but lighter rollers may be easier to transport for FTTH drops or short cable runs. Match capacity to the heaviest reel used.
