Product Parameter
| Model | EZ-300 |
| Crimping Force(KN) | 60 |
| Stroke(mm) | 17 |
| Battery Voltage/Capacitance | 18V/5.0Ah |
| Charging Time(H) | 1.5 |
| Weight Including Battery(KG) | 6.4 |
| Crimping Cycle(Depending on cable size) | 6-18s |
| Crimping Die(mm²) | 16,25,35,50,70,95,120,185,240,300 |
Product Feature

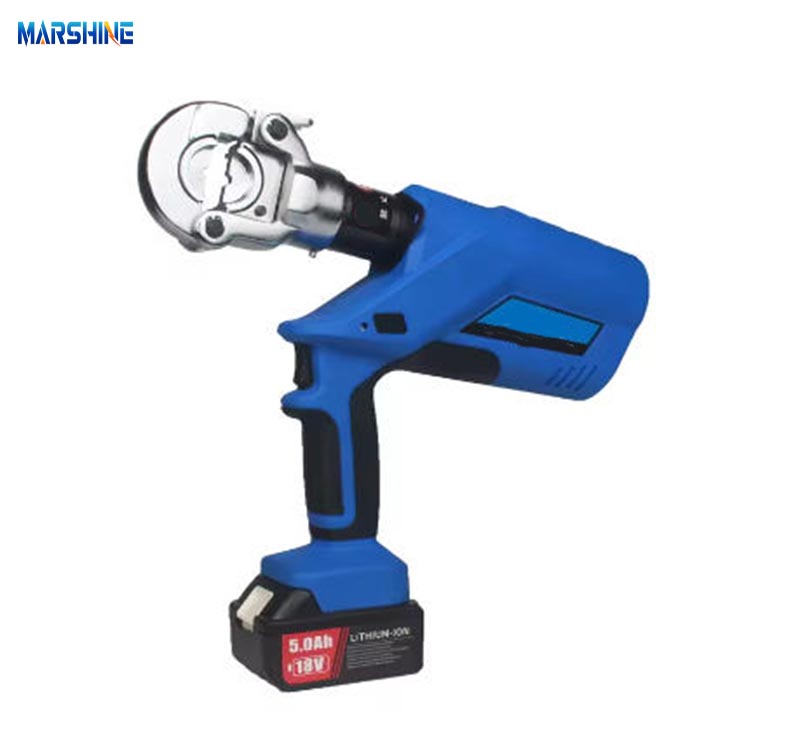

A nominal output power of 60 kN is able to ensure a high-integrity connections, even with the large aluminum or the copper conductors, this is the MARSHINE EZ-300 Battery Hydraulic Crimping Tool. This tool is compatible with the connector sizes from 16 sq mm to 300 sq mm, which mean it can accommodate the cables of the various cross-sections. It has a fast charging time of approximately 1.5 hours, so that to ensure this tool is ready for the multiple crimping jobs per day. The hydraulic crimping tool only weight 4.8 kg, its lightweight design is able to reduce the operator fatigue while maintaining the industrial-grade performance.
Product Application
These hydraulic crimping tool can help the substation maintenance teams frequently replace the terminals on the cables ranging from 16 mm²to 300 mm²during the inspections or the upgrades. It is well-suited for the telecom infrastructure construction. And the MARSHINE EZ-300 Battery Hydraulic Crimping Tool is also suitable for the ships or the offshore platforms, which make it can reduce the clutter of the cables and enhance the mobility of the operations.
Product Detail
The MARSHINE EZ-300 Battery Hydraulic Crimping Tool has a quick-change mold system, which can support a variety of the terminal sizes from 16 mm² to 300 mm² without the needs for the cumbersome tooling reassembly.
Place Of Origin:Ningbo,China.
Warranty:1year.
Certifications:ISO,CE.
Lead Time:10-14days.
