Introduction
For utility and construction crews handling loads around 5 tons, a 50kN diesel capstan winch is often the practical choice when reliable pulling force is needed away from fixed power sources. The right model depends on more than rated capacity alone: engine output, rope speed, drum or capstan design, fuel efficiency, portability, braking, and frame durability all affect jobsite performance. This article explains which specifications matter most for foundation work, cable pulling, and similar field tasks, helping you compare options with a clearer understanding of where a 50kN diesel capstan winch truly fits and what tradeoffs to expect in daily use.
Why a 50kN Diesel Capstan Winch matters for 5-ton jobs
Tackling a 5-ton jobsite requires serious pulling power, and a 50kN diesel capstan winch hits the sweet spot for utility contractors. Whether you are handling foundation construction, tower group lap wiring, or underground cable pulls, these machines provide the standalone grunt needed when grid power is miles away. Manufacturers like Ningbo MARSHINE Power Technology Co., Ltd. have built a solid reputation around these exact scenarios, producing over a thousand kinds of circuitry construction tools across 20 series. Their extensive catalog includes everything from hydraulic puller tensioners and cable conveyors to stringing pulley blocks and cable reel jack stands. The rugged nature of a diesel-powered capstan makes it an essential anchor in this massive equipment lineup.
Key specifications that define performance
When looking at the core specs that define a winch's performance, the 50kN (approximately 5-ton) continuous pulling force is just the baseline metric. A reliable unit typically pairs this output with an air-cooled or water-cooled diesel engine pushing between 8 to 12 horsepower (6 to 9 kW). This optimal power-to-weight ratio ensures that the machine can maintain steady tension without stalling during a tough, prolonged underground pull. Advanced product features, such as a multi-groove capstan head, allow operators to easily manage friction and prevent rope slippage under heavy loads, ensuring the pull remains consistent and safe.
Duty cycle, line speed, and frame requirements
Duty cycle and line speed are where the rubber meets the road on an active site. Most 50kN winches offer variable line speeds ranging from 4 to 12 meters per minute. This flexibility allows crews to slow down for precision tower erection or speed up during long, unobstructed optical cable runs. Frame requirements are equally strict; the chassis must feature reinforced welded steel to handle the extreme torque generated by a continuous 5-ton load. Anti-reversal gearing, automatic safety brakes, and heavy-duty anchoring pins are non-negotiable product features that keep the site safe. For a deeper look at these robust designs, checking out a dedicated Diesel Powered Cable Pulling Winch reveals how these frames are engineered to survive harsh, off-road environments.

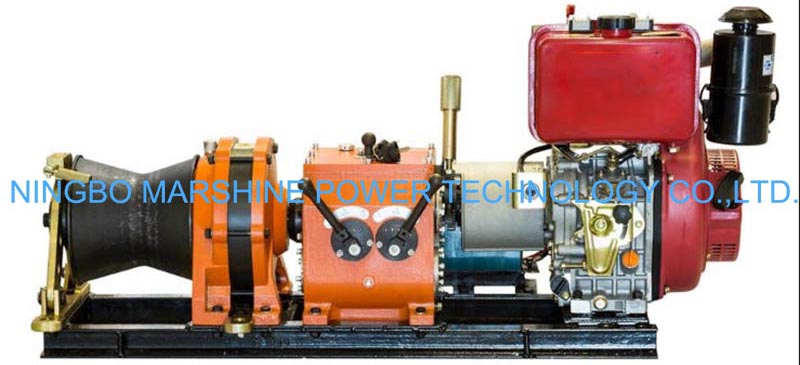

Which 50kN Diesel Capstan Winch specifications buyers should compare
Knowing that you need a 50kN pull is just the starting point. When comparing different diesel capstan winches, contractors have to dig into the mechanical nuances that separate a budget machine from a high-performance workhorse. The specific product features of the capstan head, the gearbox efficiency, and the overall footprint play massive roles in daily operations and site safety.
Rated pull, peak pull, capstan diameter, and rope capacity
While the rated continuous pull sits at 50kN, the peak pull capacity is a crucial metric, often allowing brief surges up to 55kN or 60kN to overcome sudden snags in a trench or conduit. Capstan diameter typically ranges between 200mm and 250mm; a larger diameter reduces the bending fatigue on synthetic or wire ropes, extending their lifespan significantly. Speaking of rope, these winches are generally designed to accommodate rope diameters from 12mm up to 16mm. A standout feature to look for is a high-grade aluminum or hardened steel capstan wheel that dissipates heat quickly, preventing synthetic ropes from melting during high-friction, continuous pulls.
How to compare models side by side
Side-by-side comparisons quickly reveal the operational differences between standard and premium models. Buyers should look closely at the gearbox type, dry weight, and fuel efficiency. A high-quality Tower Erection Winch will feature a sealed, oil-bath gearbox that drastically reduces maintenance compared to older, open-gear systems.
| Specification | Standard 50kN Winch | Premium 50kN Winch |
|---|---|---|
| Engine Output | 6 - 8 kW | 9 - 12 kW |
| Line Speed | Fixed (approx. 8 m/min) | Variable (4 - 12 m/min) |
| Capstan Diameter | 200 mm (Standard Steel) | 250 mm (Hardened Alloy) |
| Dry Weight | 280 kg | 220 kg (Lightweight Frame) |
| Gearbox | Open / Grease lubricated | Sealed Oil-Bath |
How contractors can choose the right 50kN Diesel Capstan Winch
Choosing the right equipment means looking beyond the spec sheet and considering how the winch integrates into your overall daily workflow. Site accessibility, crew experience, and the specific type of circuitry construction all dictate which model will actually pay off in the field.
A practical selection process for jobsite needs
A practical selection process starts with the jobsite's physical constraints. If your crews are helicoptering gear to a remote mountain for tower erection, a dry weight under 250kg is a massive logistical advantage. Fuel capacity is another critical threshold; a standard 5-liter to 6-liter diesel tank usually provides enough runtime for an entire 8-hour shift of intermittent pulling, minimizing the need to haul extra jerry cans through difficult terrain. Furthermore, integrating the winch with existing gear is vital. Your chosen 50kN winch needs to work seamlessly with your other cable construction tools, like the cable drum trailers, aerial cable tools, cable rollers, and heavy-duty pulleys you already deploy.
How to match quality and support to long-term use
Matching quality to long-term use requires evaluating the manufacturer's ecosystem and aftermarket support. A winch with a defect rate of less than 1% and a clear 100-hour oil change interval will keep your projects on schedule without unexpected downtime. Partnering with a comprehensive supplier like MARSHINE makes a noticeable difference. Because they manufacture a full series of reliable equipment—from hydraulic crimping tools, cable strippers, and cable cutters to gin poles, ratchet wrenches, and tip wrenches—they understand how the winch fits into the broader picture of optical cable and transmission stringing block construction. High-technology manufacturing and a strong reputation at home and abroad ensure that when you invest in a 50kN diesel capstan winch, it will survive years of grueling, 5-ton pulls while seamlessly supporting your entire fleet of safety tools and hoisting pulleys.
Further reading:
Key Takeaways
- The most important conclusions and rationale for 50kN Diesel Capstan Winch
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What pull rating suits a 5-ton site job?
Choose a 50kN rated continuous pull winch. For trench snags or startup loads, a model with 55–60kN peak pull gives safer short-term reserve.
What engine size is typical for a 50kN diesel capstan winch?
Look for an 8–12 hp diesel engine, roughly 6–9 kW. This range usually maintains steady pulling without stalling on longer cable or tower work.
Which line speed is best for mixed site work?
A variable 4–12 m/min line speed is the most practical. Slow speeds help precise pulls; faster speeds save time on long, clear runs.
What rope and capstan size should I match?
Most 50kN units fit 12–16 mm rope. A 200–250 mm capstan, especially hardened alloy, reduces rope fatigue and heat during continuous pulling.
