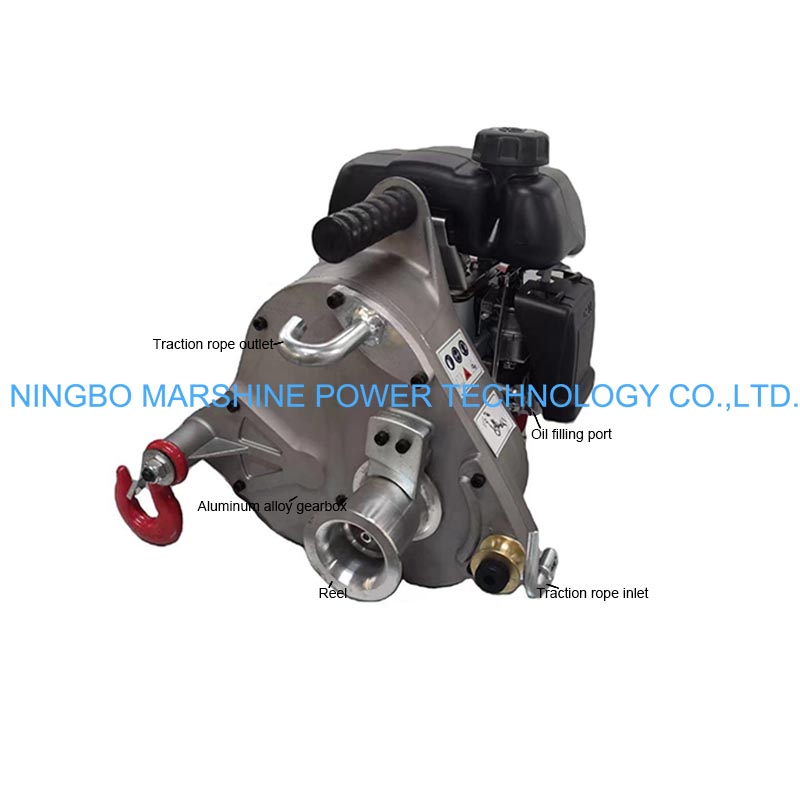

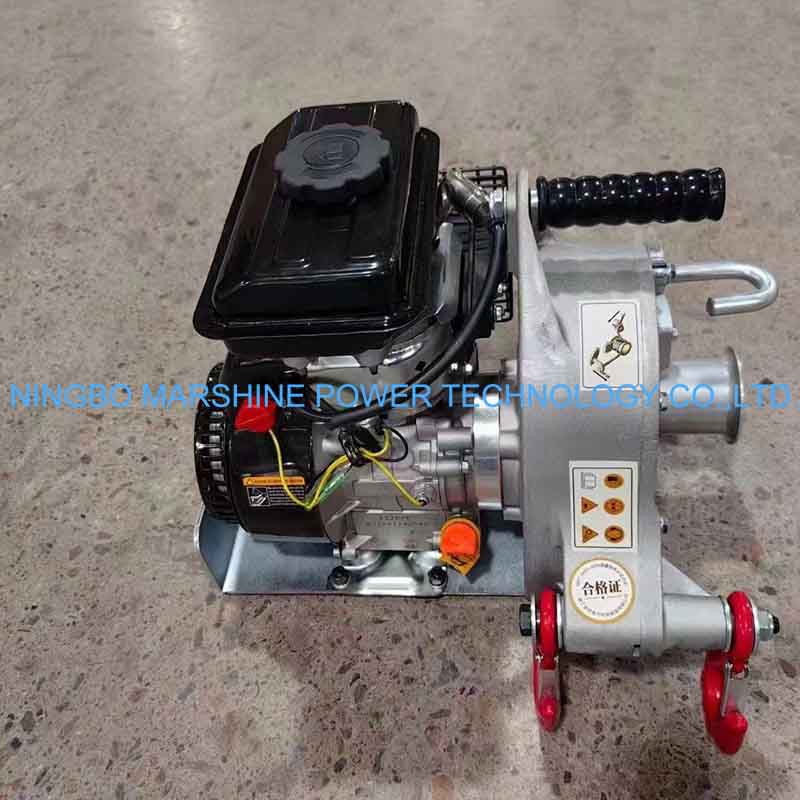

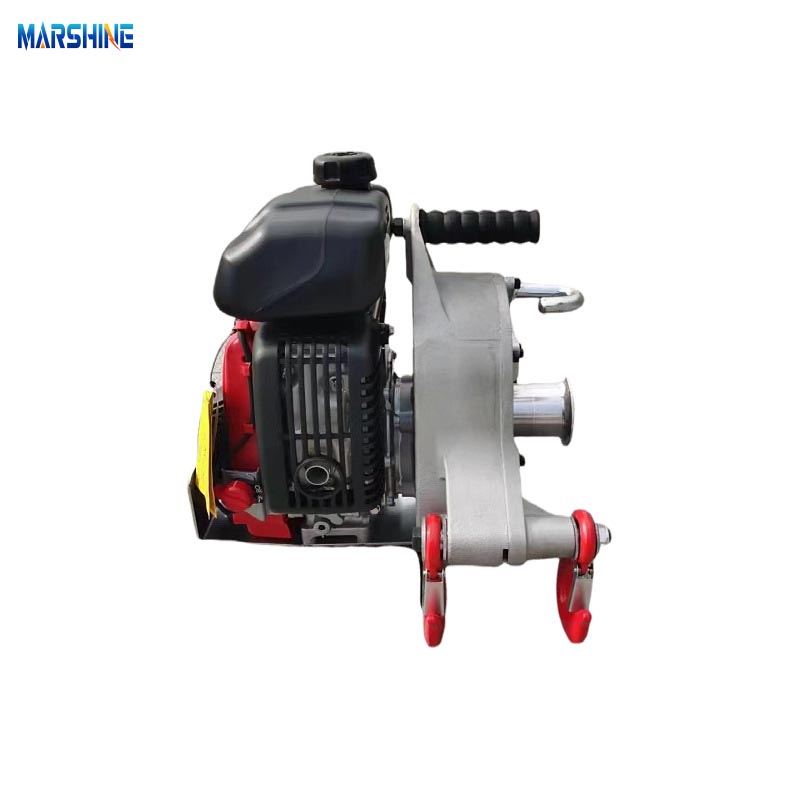

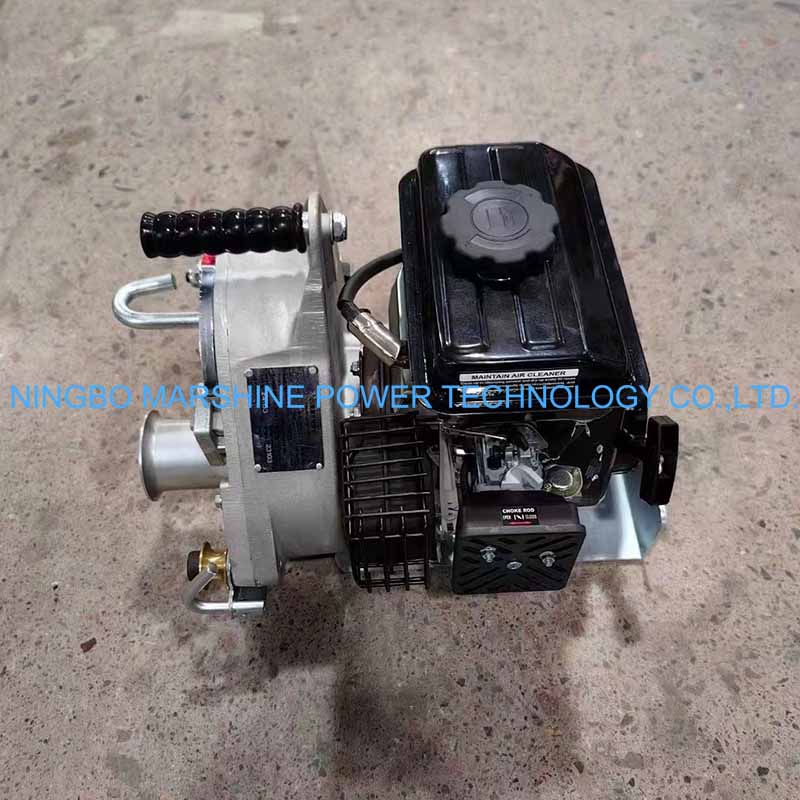

The MARSHINE PCW5000 Portable Gasoline Winch Pulling Machine is a durable yet compact portable winch machine for light weight pulling operations. Powered by a reliable four-stroke gasoline engine, this machine can provides the stable pulling capability in remote, power-off environments. It also works with low-stretch braided high-strength nylon rope like the PCW3000 portable winch.
Product Parameter
| Model | PCW5000 | Gear ratio | 110:1 |
| Engine | GXH-50 (Honda)1.6KW | Dimensions | 37.1X36.6X38cm |
| Reel | 57mm diameter standard | Warranty | 1 year |
| Speed | 12m/min | Minimum breaking force | 2500kg |
| Weight | 17. 5kg | Working frequency | continuous |
| Capacity-Traction | Single line: 1000kg Double line: 2500kg | Reducer and gear | Aluminum alloy gearbox 3-section forged heat treated gear |
| Brake | Anti-reverse drum clutch bearing | Anchorage | 42mmX2m nylon sling |
| Designed for | Small outdoor work (power/telecom/electrified railways, rescue/construction/industry/shipping/forestry/hunting, agriculture) | ||
| Traction rope | Ф10-16mm low ductility braided high strength nylon rope | ||
Product Feature

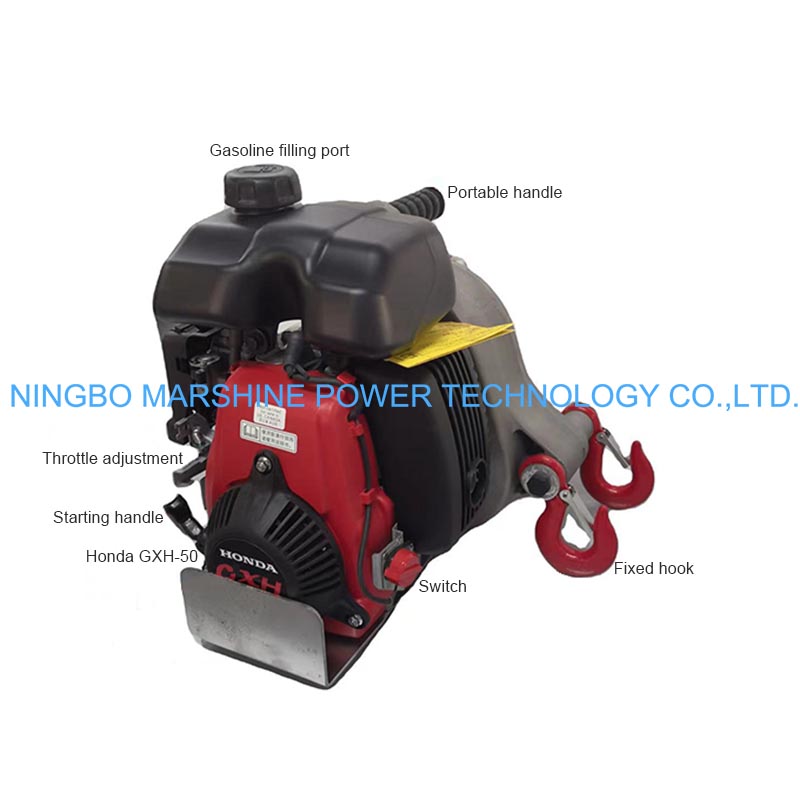

This MARSHINE PCW5000 Portable Gasoline Winch Pulling Machine equipped with a Honda GXH50 4-stroke engine, can delivers up to 1000 kg (2,200 lbs) of pulling force in a single line, and 2500kg(approx 5511lbs) of pulling force in double line. Engineered with a rugged alloy steel frame, durable plastic casing and wear-resistant components to withstand the long-term use, and it is lightweight enough for single-person transport while can offering stable capabilities in the field, make this machine suitable for the outdoor works. This machine uses a capstan drum and low ductility yet high-strength nylon rope, can deal with the continuous pulls over a long distances without resetting. The reliable engine ignition and simple maintenance requires can ensures this machine to offer you higher-efficiency and low lifecycle costs.
Product Application

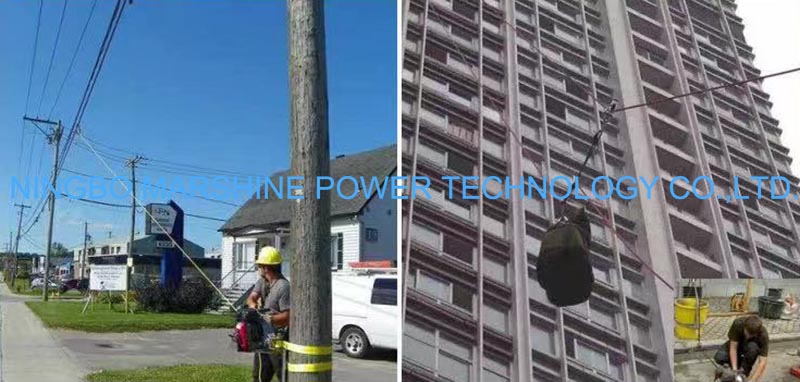

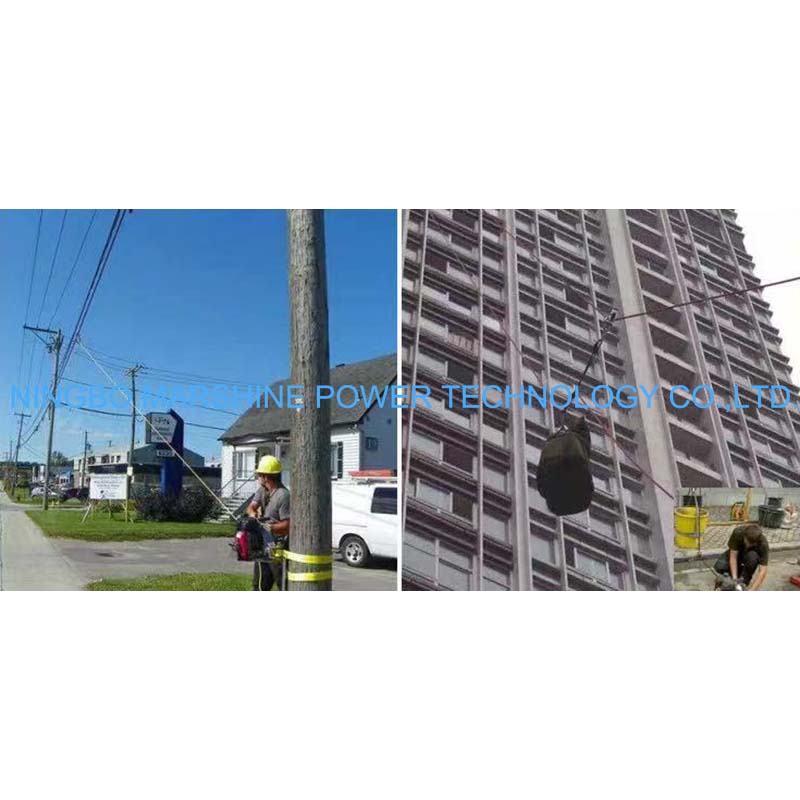

As a winch machine that tough enough to deal with the light outdoor works in forest or other power-off environments, this MARSHINE PCW5000 Portable Gasoline Winch Pulling Machine is suitable for forestry and tree felling operations, or agricultural load movement and fencing works. And for industry use, this winch can also provide excellent performance in power line and telecom cable installation, emergency rescue and recovery missions, construction and industrial equipment handling, etc.
Product Details
The MARSHINE PCW5000 Portable Gasoline Winch Pulling Machine can be a good choice for people who not need to the heavy-duty pulling tasks but want a stable yet durable winch machine for daily use, or the construction teams who need to deal with the long-term light-weight pulling operations.
Place Of Origin: Ningbo, China.
Lead Time: 14-20days(1-50 set).
Certifications: ISO9001.
Warranty: 1year.
