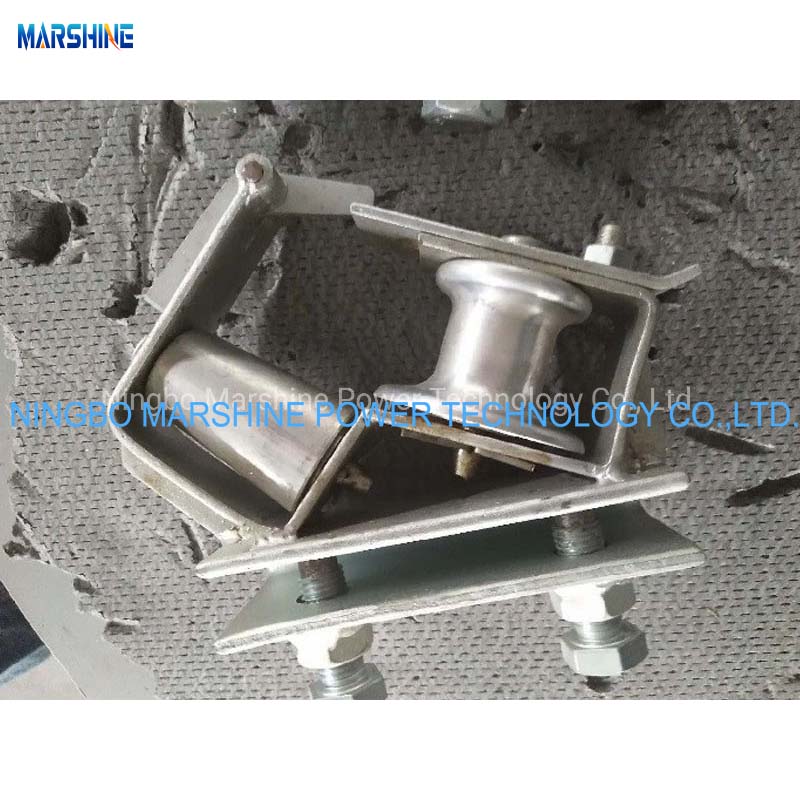

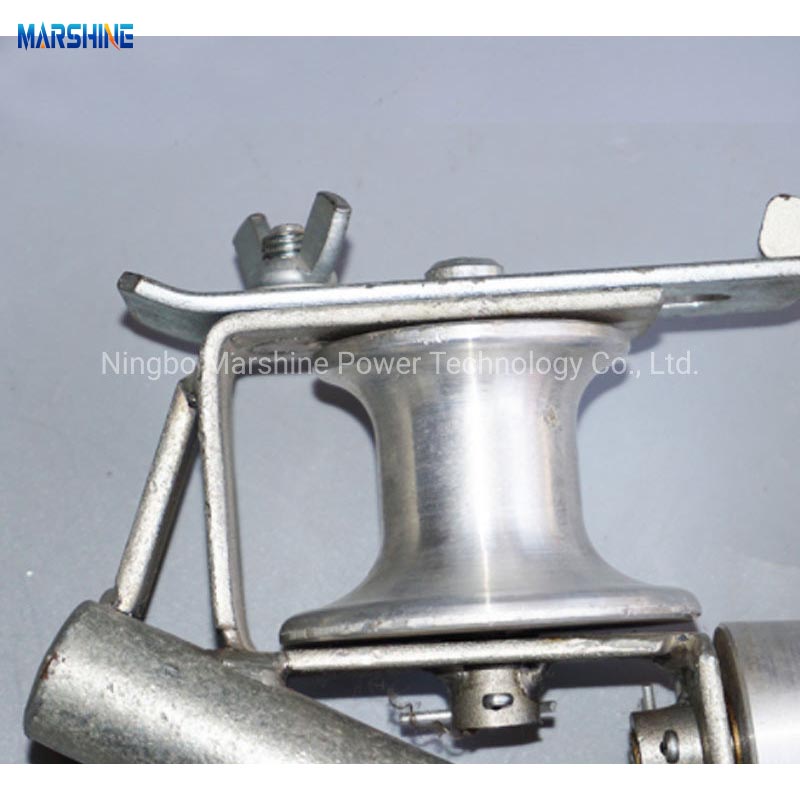

How To Use MARSHINE Angled Crossarm-Mounted Wire Stringing Block

The MARSHINE Angled Crossarm-Mounted Wire Stringing Block is specially designed for efficient and safe conductor stringing on angled crossarms in power line construction. Its robust build and thoughtful design make it ideal for guiding conductors around turns or directional changes, while minimizing friction and preventing damage.


Below is a step-by-step guide on how to correctly and safely use the MARSHINE Angled Crossarm-Mounted Wire Stringing Block.


Step 1: Inspect the Equipment

Before installation, carefully inspect the stringer pulley for any signs of wear, damage, or deformation. Make sure all moving parts, such as pulleys and bearings, rotate smoothly without resistance or noise.


Step 2: Install the Crossarm Bracket

Determine the mounting position for the stringer pulley. The angled design of this MARSHINE Angled Crossarm-Mounted Wire Stringing Block makes it suitable for corner poles or change-of-direction poles. Make sure the crossarm structure is strong and can handle the load.


Step 3: Install the Stringer Pulley

Align the mounting bracket with the edge of the crossarm.


Secure the pulley using the provided bolts or mounting clamps.


Tighten all bolts and fasteners evenly to ensure the pulley is securely attached.


Confirm that the direction of the pulley is consistent with the direction of the wire path.



Step 4: Feed the Wire

Introduce the wire or conductor into the groove of the MARSHINE Angled Crossarm-Mounted Wire Stringing Block.


Use a suitable pulling method to ensure that the wire remains centered in the pulley during tensioning.


The angled position of the pulley allows it to smoothly pass around bends without twisting or overlapping the wire.


Step 5: Monitoring During Pulling

Monitor the steady operation of the pulley throughout the payout process. Ensure there is no excessive sway or unexpected movement. Keep the conductor aligned to reduce wear on the conductor and pulley.


Step 6: Removal after Use

Once the conductor is properly in place and secured, loosen the mounting bolts and carefully remove the payout pulley from the crossarm. Clean and inspect again before storing the MARSHINE Angled Crossarm-Mounted Wire Stringing Block for future use.



Safety Tips

Always wear appropriate personal protective equipment (PPE).


Follow all site safety procedures during installation and operation.


Do not exceed the rated load capacity of the pulley.


Avoid sudden jerk or high-speed pulls to prevent damage.


When properly set up and operated, the MARSHINE Angled Crossarm-Mounted Wire Stringing Block ensures smooth, efficient, and safe line deployment in the most complex line configurations.
