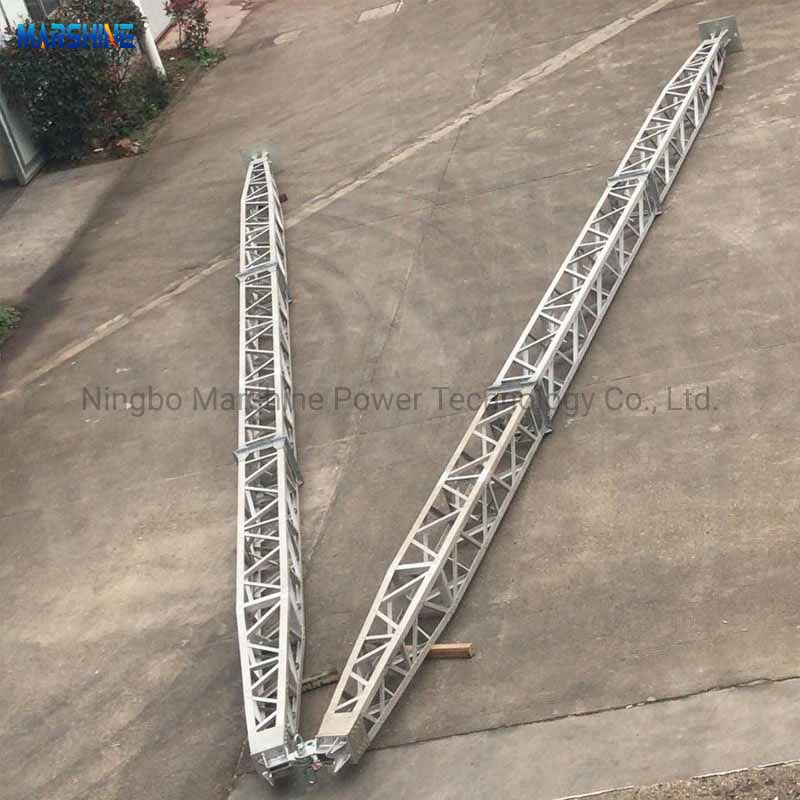

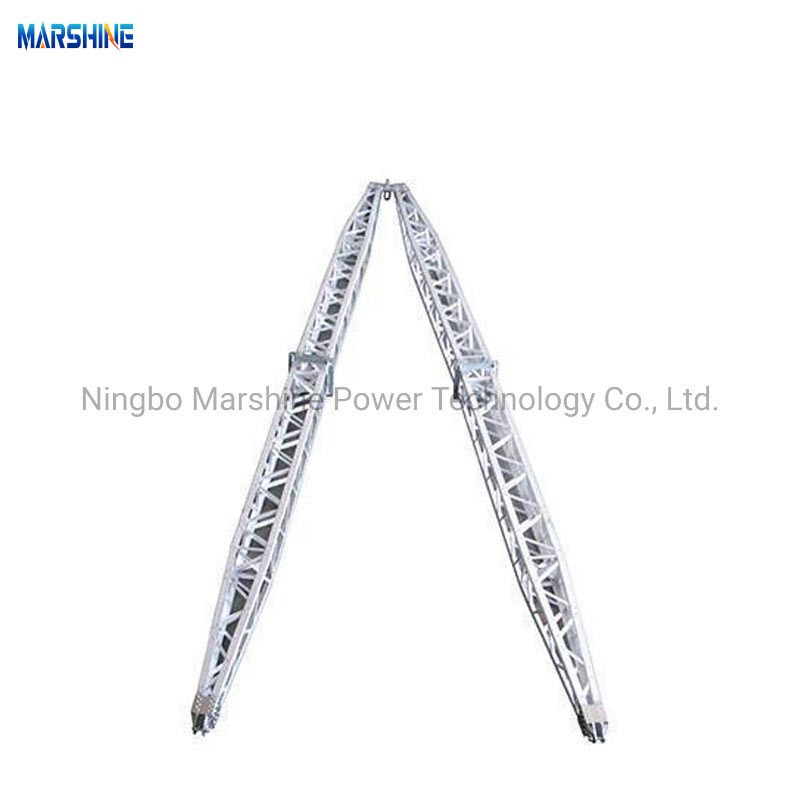

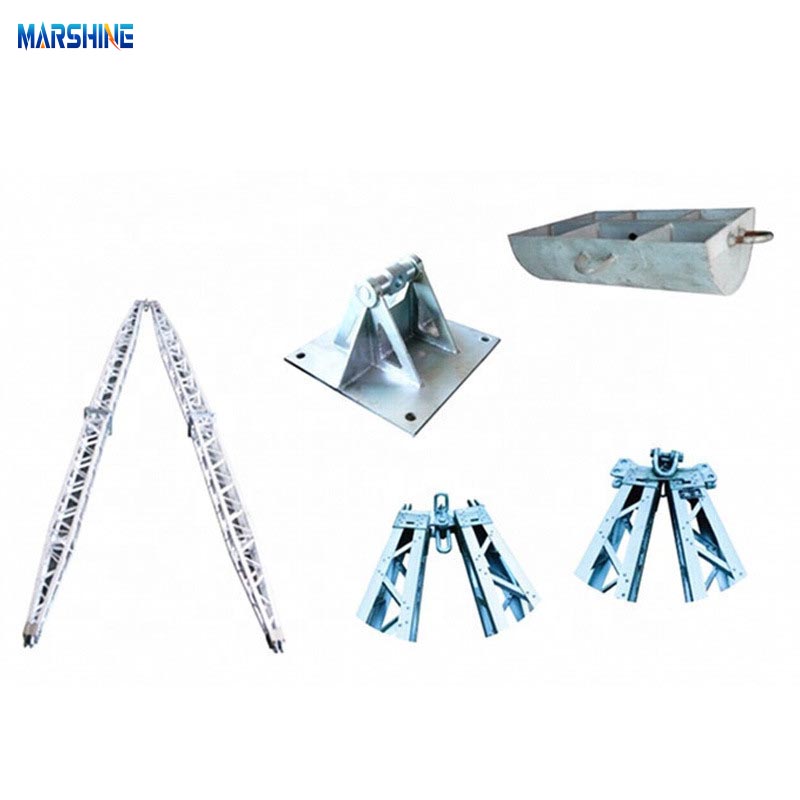

Aluminum Alloy A-Shape Lattice Gin Pole

Model:LBR250-8

As a tool can redefines versatility and power in vertical lifting for telecom, energy, and construction projects which was designed by MARSHINE, who was a large scale Chinese company supply gin pole with competitive price, the MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole is engineered for rapid assembly and disassembly, its modular lattice structure ensures superior load distribution while slashing transport and setup costs by up to 50%. Combining the lightweight agility of aerospace-grade aluminum alloy with the unmatched strength of a lattice design, this gin pole excels in erecting towers, positioning heavy equipment, and executing precision lifts in remote or challenging terrains.

Send Inquiry

Product Description

Aluminum Alloy A-Shape Lattice Gin Pole

The MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole is a specialized tool for vertical lifting in transmission line construction, pole installation and tower assembly. The mast features a lightweight yet strong lattice A-type design that provides excellent stability, load-bearing capacity and wind resistance. Made from high-grade aluminum alloy, it is ideal for field operations where portability, safety and reliability are important.

1.Product Parameter

Itemnumber	Model	Length(m)	Base stroke(m)	Allowablevertical load(KN)	Cross section(m)	Weight(kg/m)
03361	LBR250-8	8	2.8	72	200	10.5
03362	LBR250-9	9	3.1	56
03363	LBR250-10	10	3.5	45
03364	LBR250-11	11	3.8	38
03365	LBR250-12	12	4.2	32
03366	LBR250-13	13	4.5	27
03371	LBR300-8	8	2.8	100	300	11
03372	LBR300-9	9	3.1	87
03373	LBR300-10	10	3.5	70
03374	LBR300-11	11	3.8	56
03375	LBR300-12	12	4.2	47
03376	LBR300-13	13	4.5	40
03377	LBR300-14	14	5.2	35
03378	LBR300-15	15	5.6	31
03379	LBR300-16	16	2.8	26
03381	LBR350-8	8	2.8	120	350	13.5
03382	LBR350-9	9	3.1	105
03383	LBR350-10	10	3.5	94
03384	LBR350-11	11	3.8	78
03385	LBR350-12	12	4.2	65
03386	LBR350-13	13	4.5	58
03387	LBR350-14	14	4.9	46
03388	LBR350-15	15	5.2	42
03389	LBR350-16	16	5.6	37
03391	LBR400-11A	11	3.8	98	400	14.5
03392	LBR400-12A	12	4.2	85
03393	LBR400-13A	13	4.5	75
03394	LBR400-14A	14	19	64
03395	LBR400-15A	15	5.2	56
03396	LBR400-16A	16	5.6	48
03397	LBR400-17A	17	5.9	44
03398	LBR400-18A	18	6.3	38
03401	LBR400-11B	11	3.8	147	400	16.5
03402	LBR400-12B	12	4.2	129
03403	LBR400-13B	13	4.5	113
03404	LBR400-14B	14	4.9	98
03405	LBR400-15B	15	5.2	86
03406	LBR400-16B	16	5.6	75
03407	LBR400-17B	17	5.9	69
03408	LBR400-18B	18	6.3	60

2.Product Feature

High-strength aluminum alloy: Our MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole can provides excellent load-bearing capacity while reducing weight for easier transportation and handling.

A-frame: This structure enhances structural stability while reducing wind resistance, ideal for outdoor work.

Modular design: With this design, it is easy to assemble and disassemble, interchangeable parts, flexible working height adjustment.

Corrosion-resistant surface: Treated surface for durability even in harsh weather conditions.

Rigging compatibility: Compatible with a variety of pulleys, winches and lifting accessories for a wide range of applications.

Corrosion-resistant: Anodized coating and marine-grade fasteners withstand salt spray, moisture and extreme temperatures (-20°C to 90°C).

3.Product Application

The MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole is ideal for tower construction and line maintenance work.

Lifting operations in mountainous, remote or restricted-access work sites.

Temporary lifting support for live line projects.

Erection of telecommunication towers in mountainous areas.

Installation of wind turbine nacelles and blades.

Lifting of substation equipment (transformers, circuit breakers).

Bridge suspension rigging.

Emergency repair of storm-damaged infrastructure.

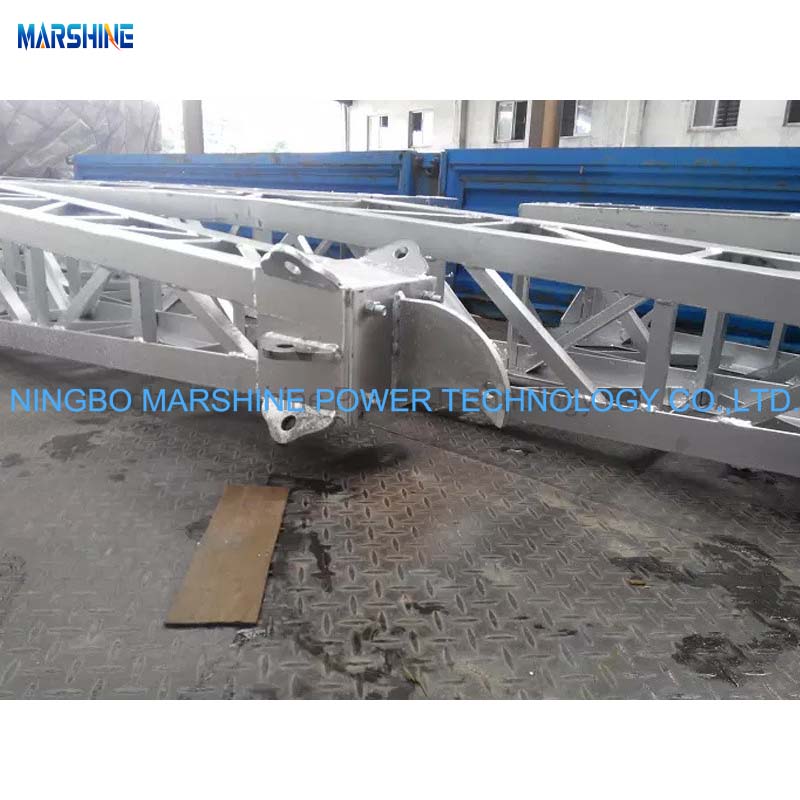

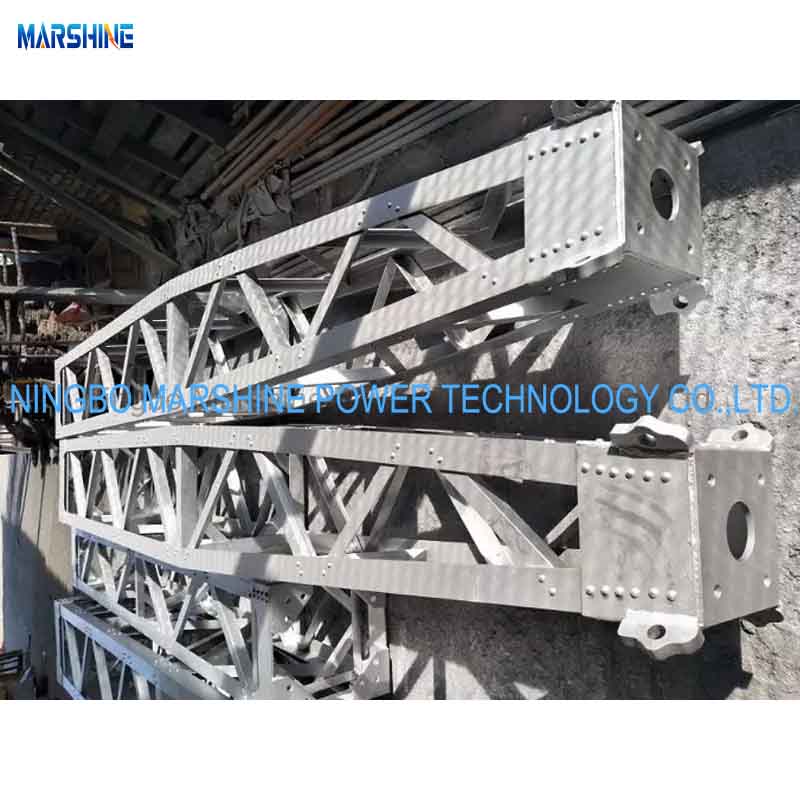

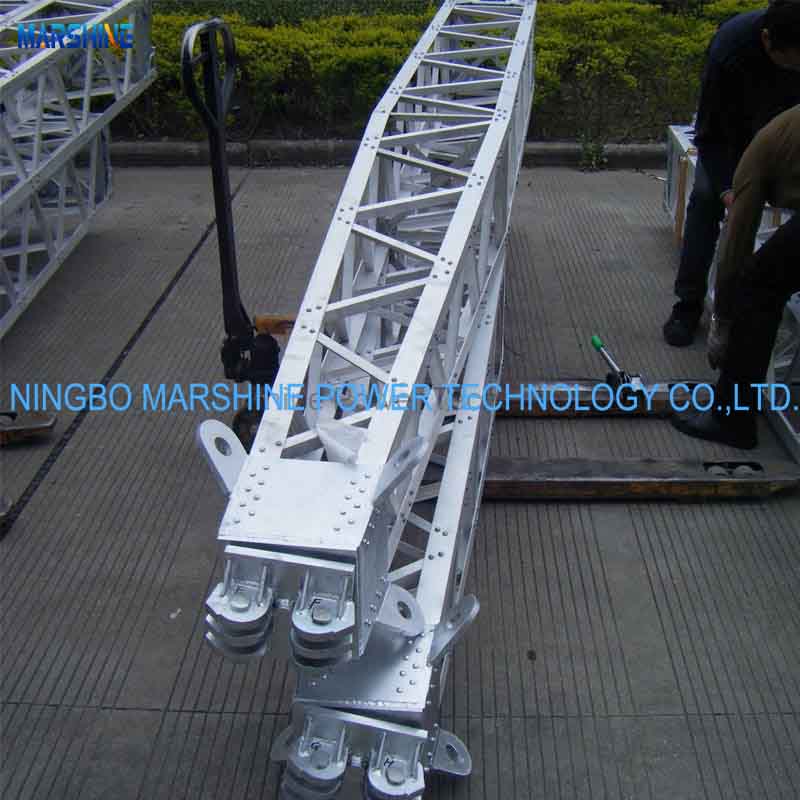

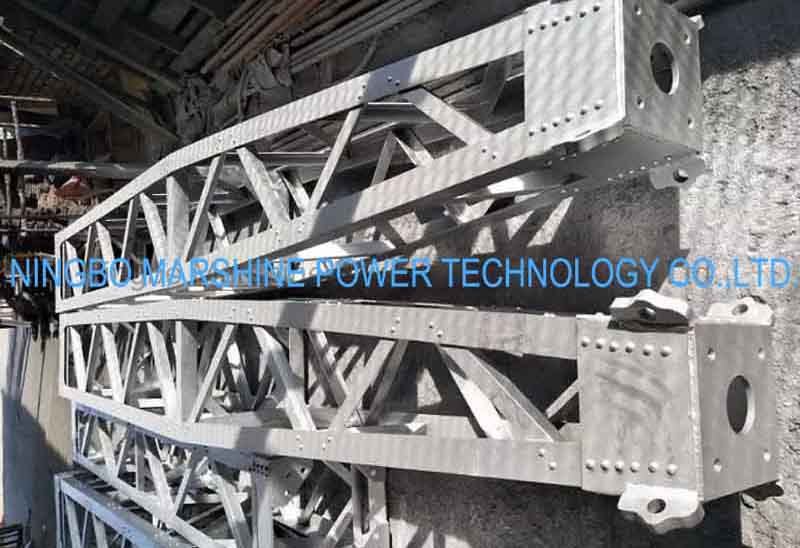

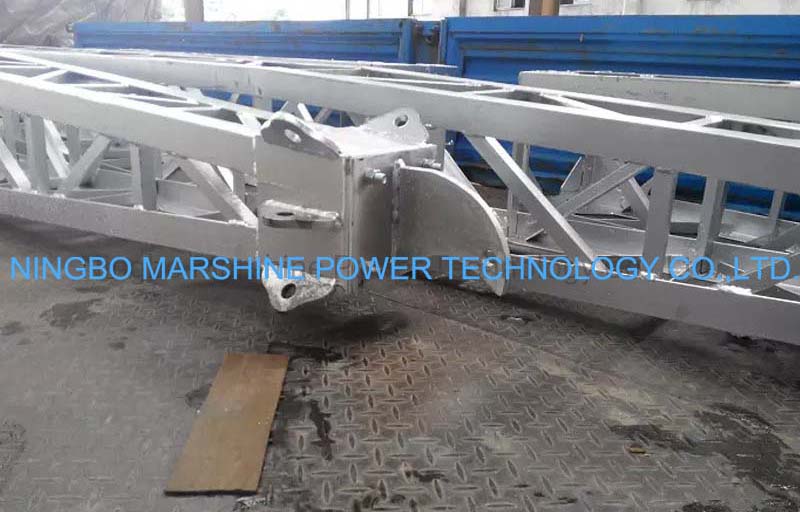

4.Product Details

Its lightweight design, high strength, and easy assembly make MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole an essential tool for modern utility and construction teams. Bellow are some details for this gin pole:

Industry Leader in Line Construction Tools: MARSHINE is a globally trusted brand known for superior quality, safety and performance.

Proven Reliability: Our products are field-tested and approved by utility companies worldwide.

Cost Effectiveness: Reusable components reduce equipment costs by 40%, with no welding or specialized tools required.

Increase Your Lifting Capabilities: Merges industrial-grade power with unmatched portability enables construction crews to accomplish the heaviest lifting tasks in the most inaccessible locations.
