Aluminum Alloy A-Shape Tubular Gin Pole

Model:LBGR100A-6

Designed by MARSHINE, a Chinese leader who offer the gin pole hardware to the professionals with competitive price, the MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole is a durable tool which can redefine the heavy duty lifting and positioning tasks. Combining the lightweight yet high strength of the aluminum alloy with the stable A-frame design, this gin pole can delivers the portability as well as the durability.

Send Inquiry

Product Description

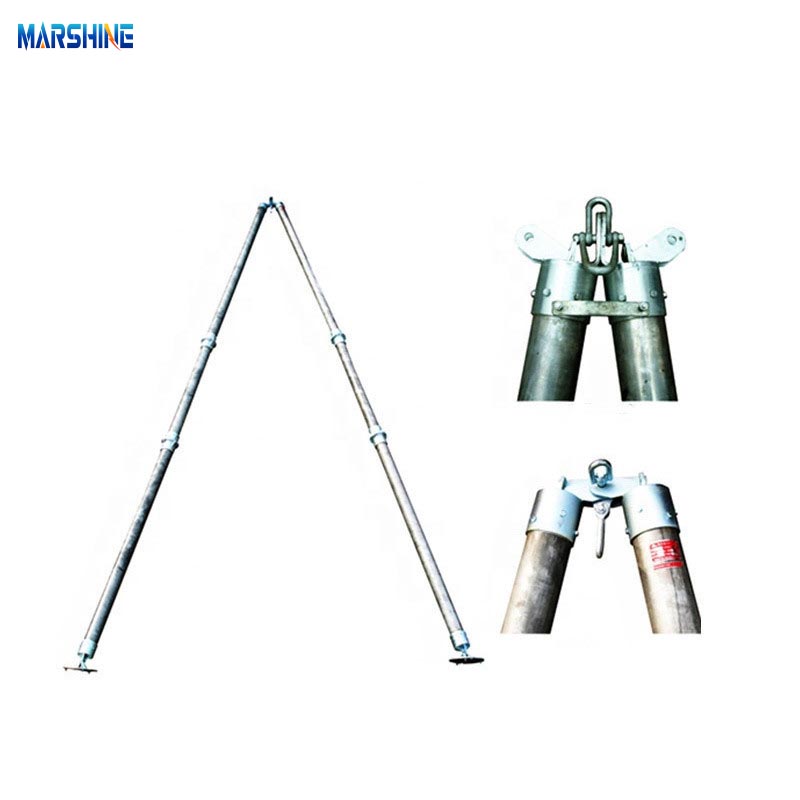

This MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole is a lifting tool that designed for erecting poles, and lifting equipment, or performing the line construction tasks in overhead power line projects. With its A-frame construction, this gin-pole can provide the excellent stability and load distribution, making it a good choice for the field operations where requires the safety, portability and efficiency.

Product Parameter

Itemnumber	Model	Length(m)	Base stroke(m)	allowable vertical load(KN)	Cross section(mm)	Weight(kg/m)
03301	LBGR100A-6	6	2.1	18	Φ100	5.5
03302	LBGR100A-7	7	2.4	13
03303	LBGR100A-8	8	2.8	10
03311	LBGR120A-6	6	2.1	30	Φ120	7.5
03312	LBGR120A-7	7	2.4	26
03313	LBGR120A-8	8	2.8	21
03314	LBGR120A-9	9	3.1	17
03321	LBGR150A-8	8	2.8	31	Φ150	8
03322	LBGR150A-9	9	3.1	28
03323	LBGR150A-10	10	3.5	24
03324	LBGR150A-11	11	3.8	20
03325	LBGR150A-12	12	4.2	16
03326	LBGR150A-13	13	4.5	13

Product Feature

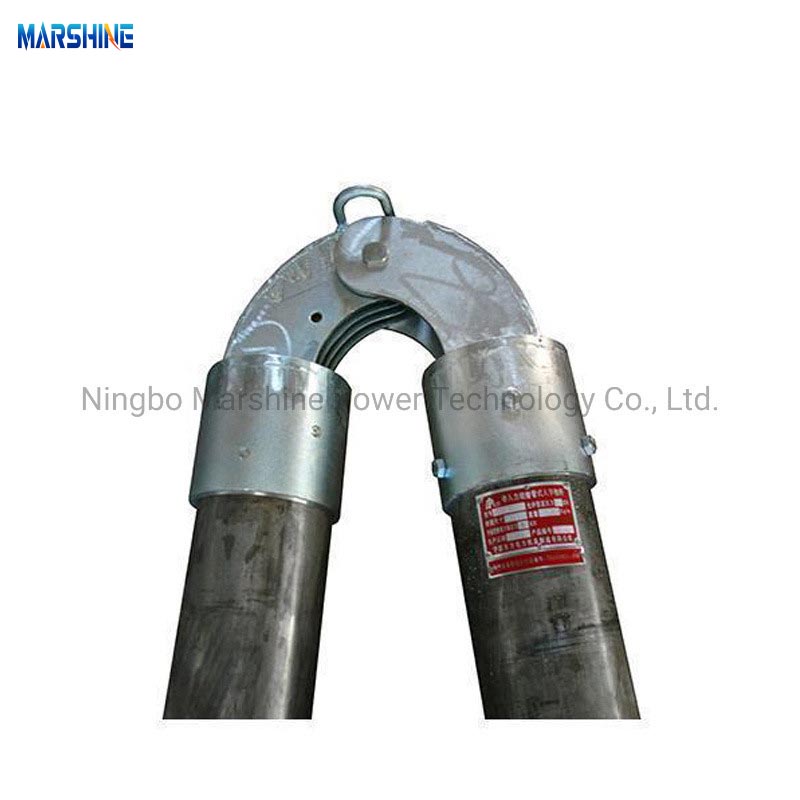

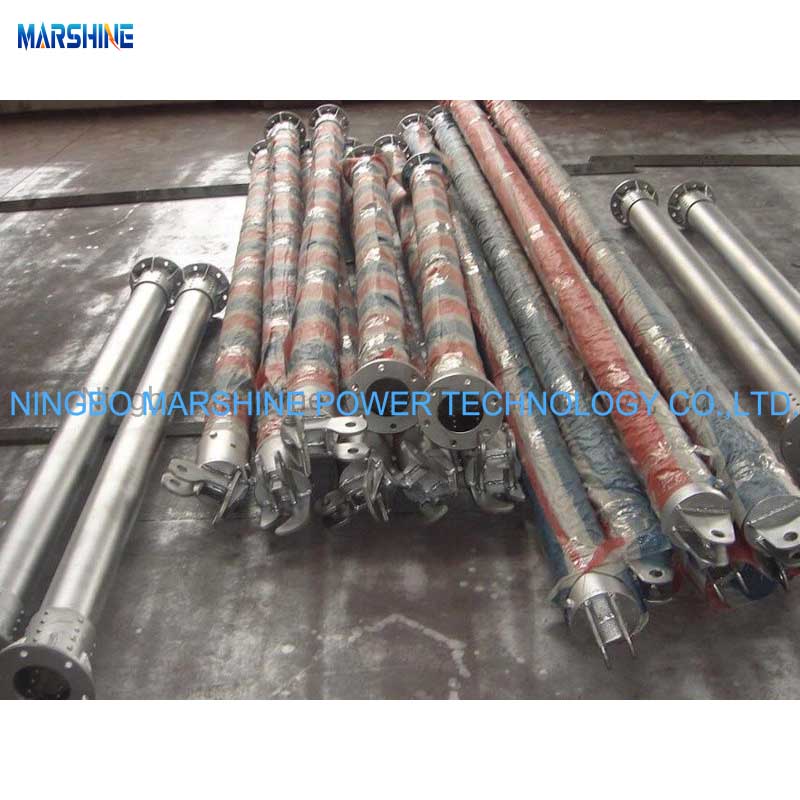

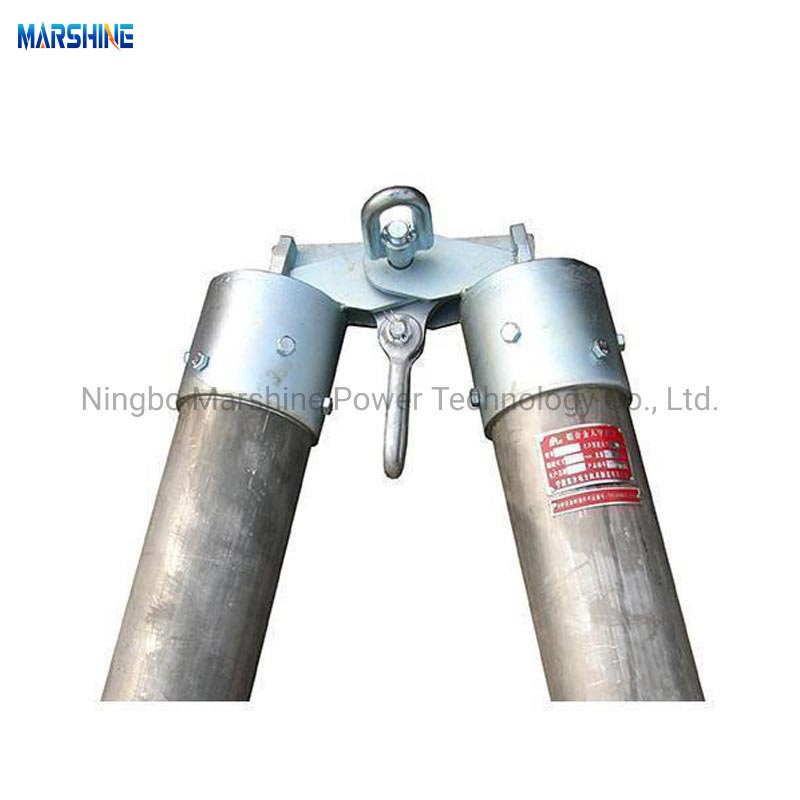

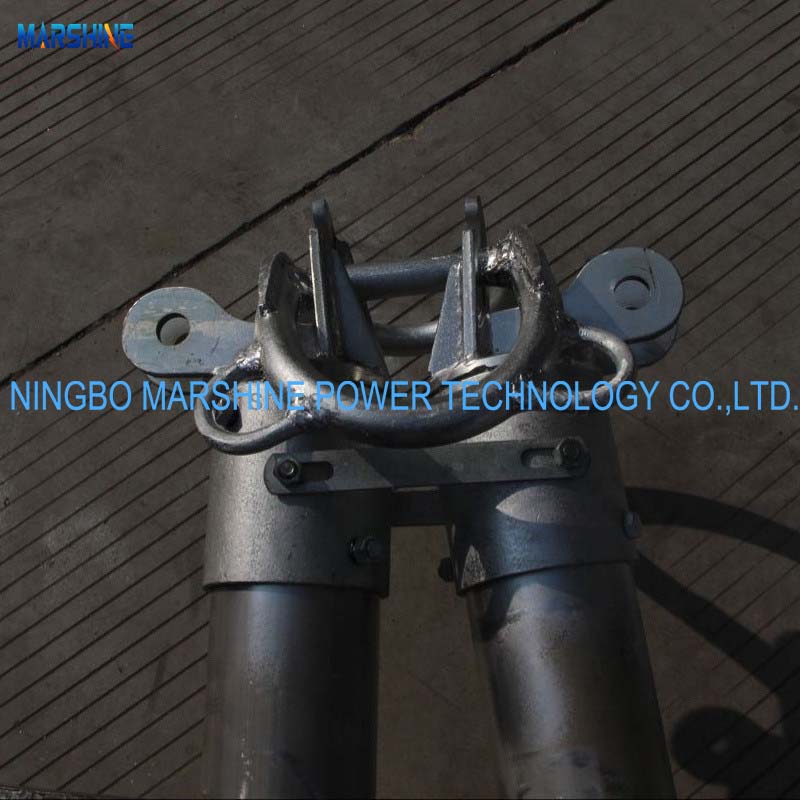

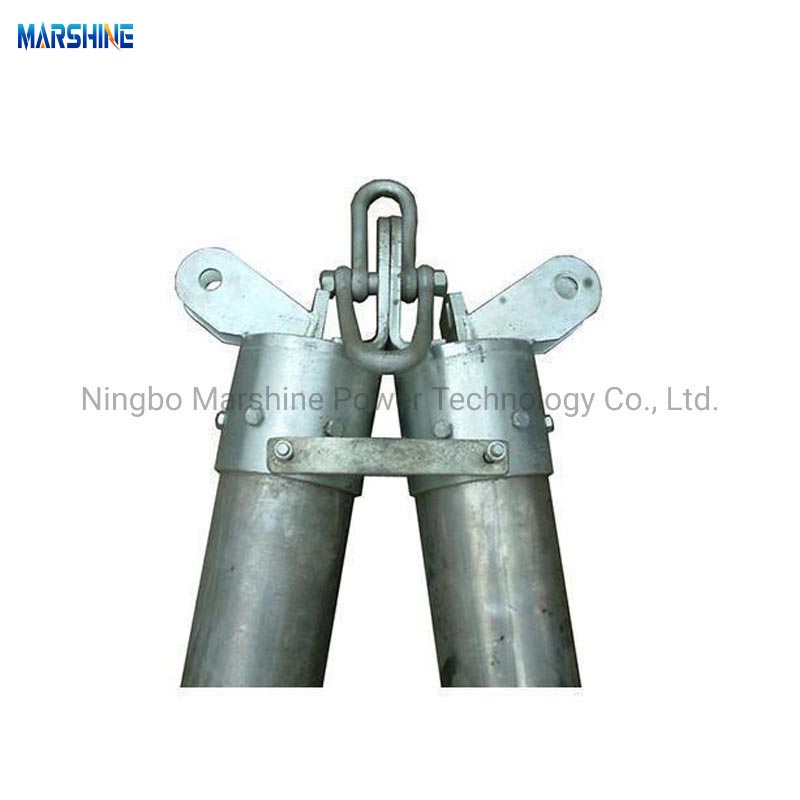

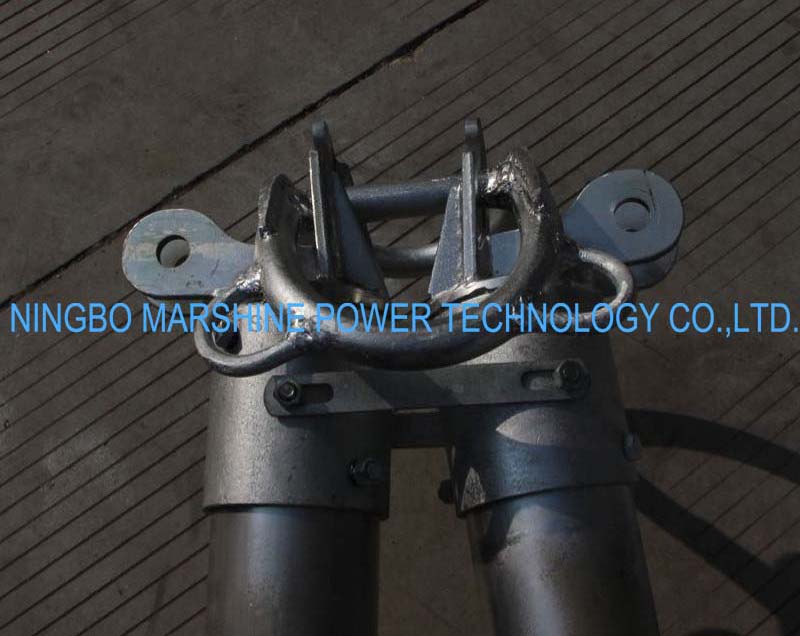

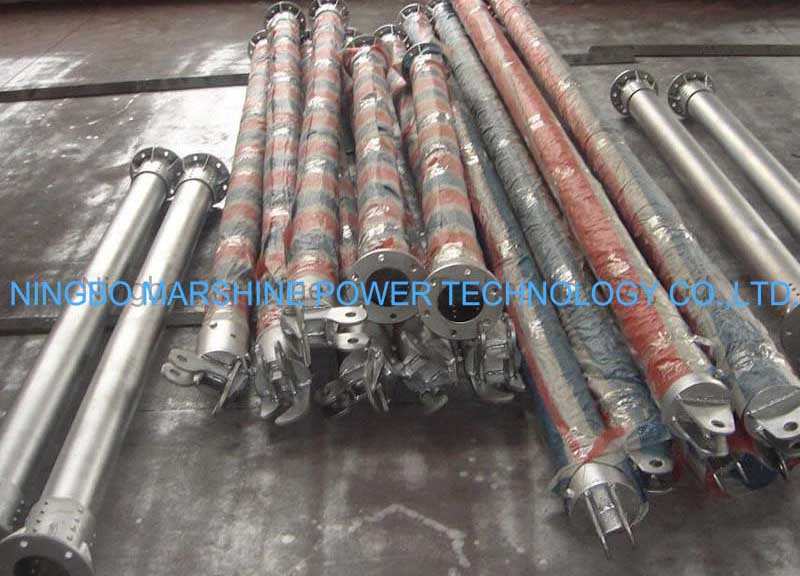

The MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole is made of high-tensile aluminum alloy, can ensures its durability, and due to its lightweight, with this gin-pole can improve the construction efficiency well. With this A structure, it can improves the balance of the body itself and is able to offer support when operating the lifting tasks, and can effectively reduce the risks of tipping or shaking. And the tubular design allows this gin-pole to installed and disassembled quickly.

Product Application

MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole is ideal for erecting transmission or distribution poles, lifting and positioning conductors or line fittings, or installing the crossarms, insulators or tensioning equipment. In addition, it is also able to deal with the live line maintenance, tower erection and field repairs. And due to its portability, this tool is suitable for the project sites in rural areas or difficult to access as well.
