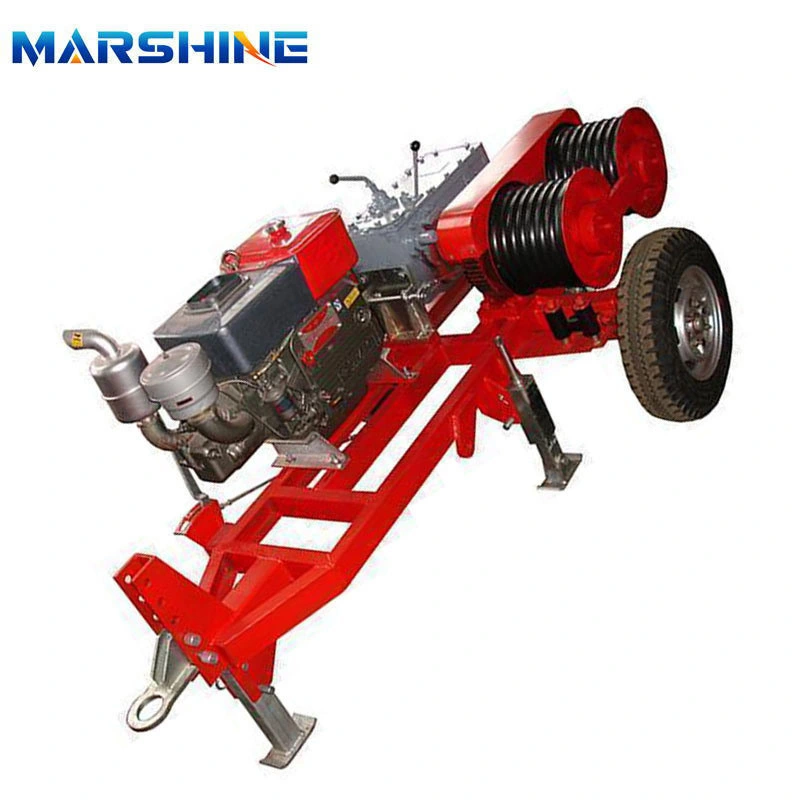

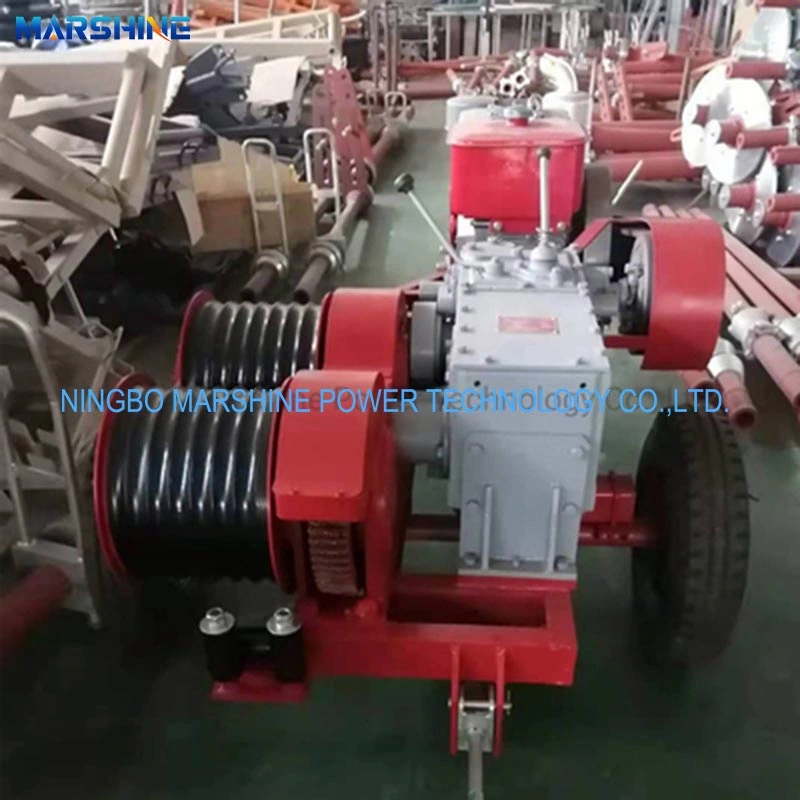

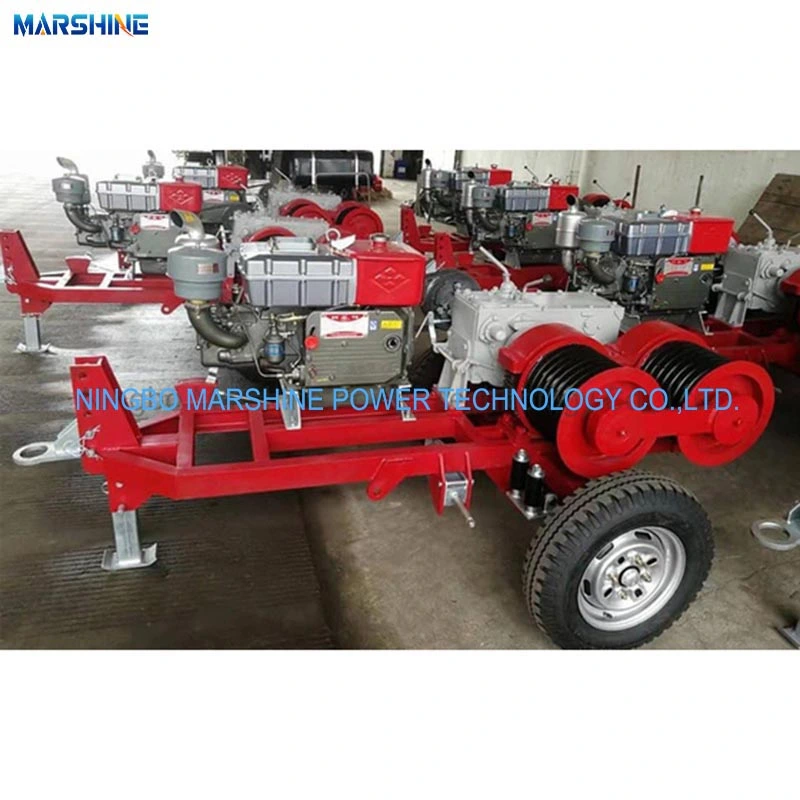

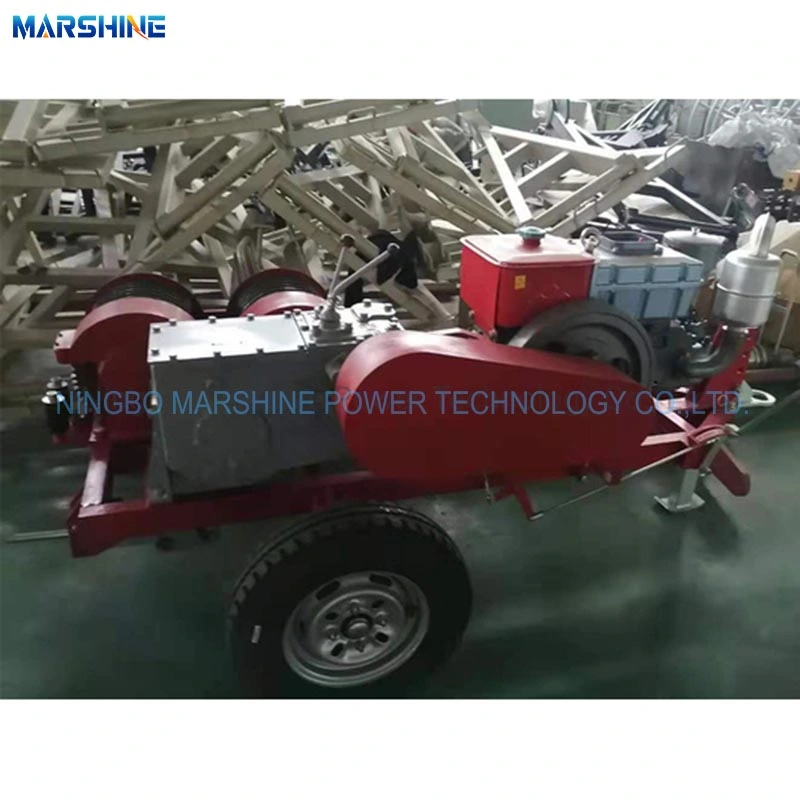

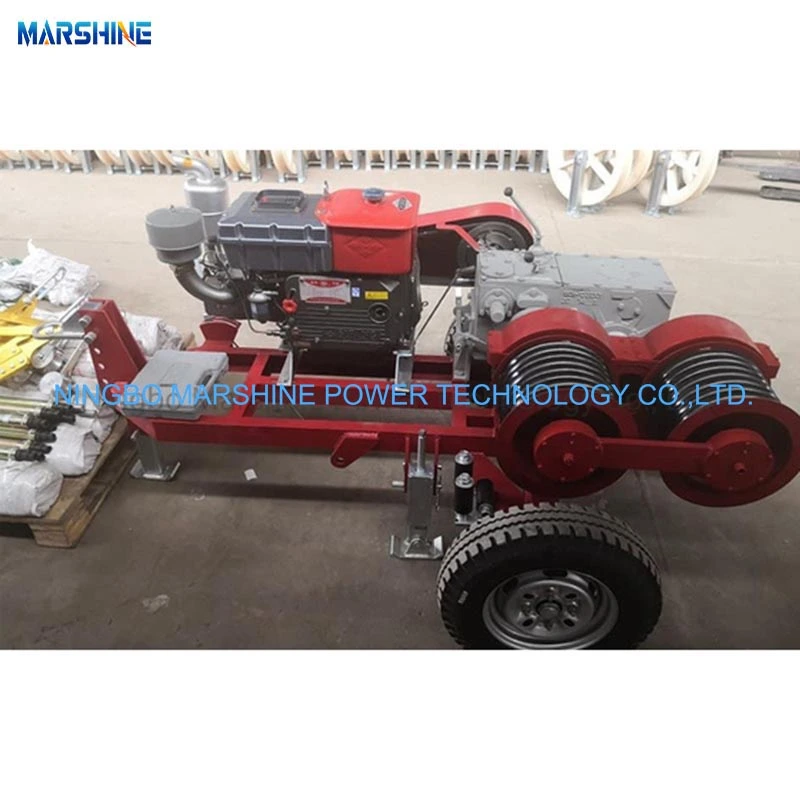

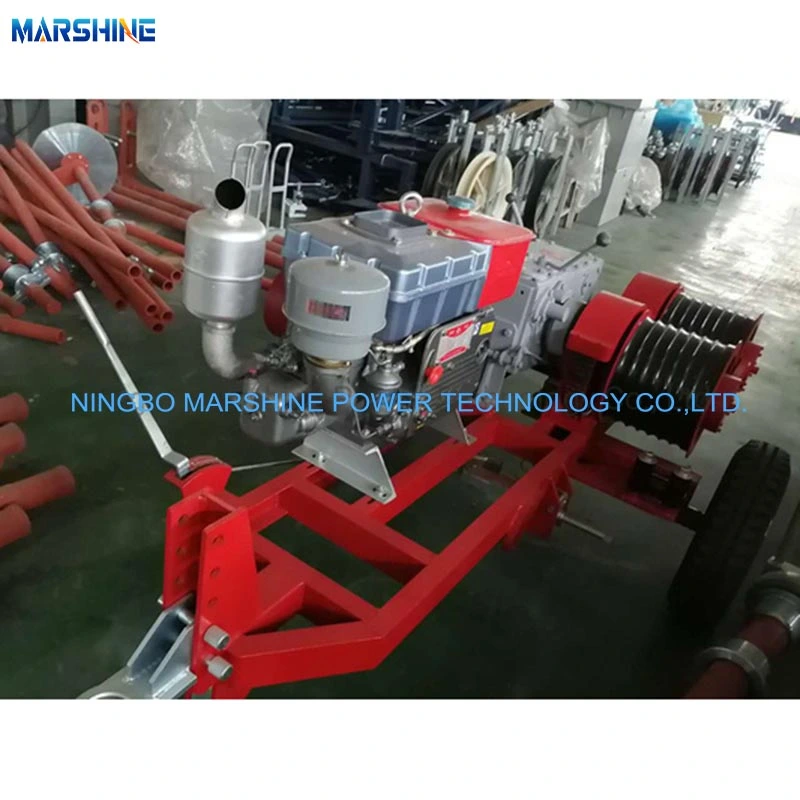

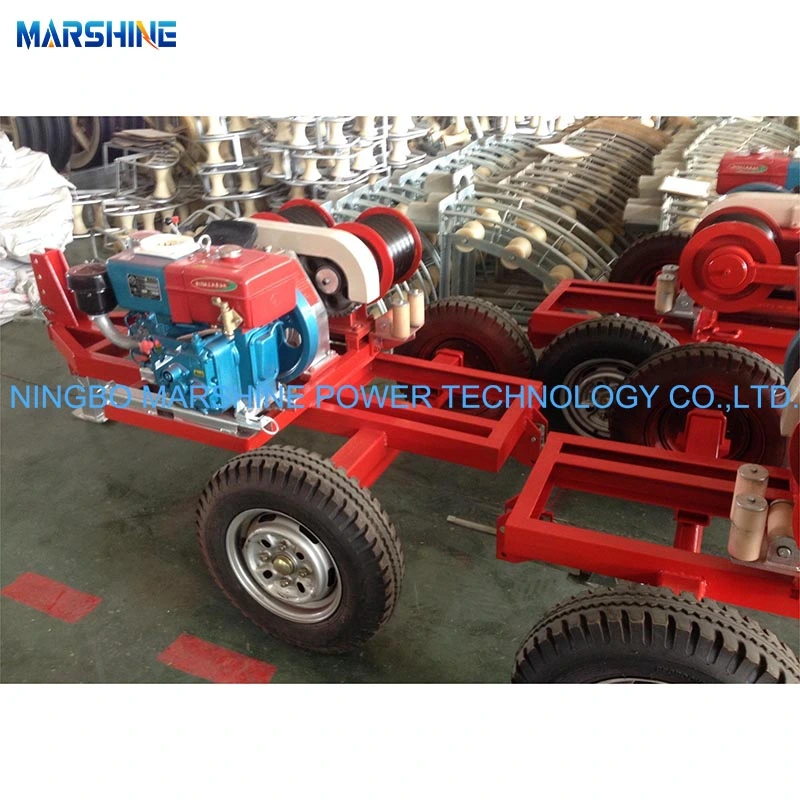

Diesel Engine Cable Pulling Winch Machine 5T

MARSHINE is a large-scale diesel engine cable pulling winch machine 5T company from China, specializing in the development, design and manufacture. We working on manufacturing and supplying cost-effective electrical power construction products, in the same time we provide item customization and price discounts for large volume products.

Send Inquiry

Product Description

The MARSHINE Diesel Engine Cable Pulling Winch Machine 5T is suitable for a wide range of applications such as hoisting machinery equipment groups or erecting pole towers, capable of efficiently pulling and stringing conductors.

This product can be used for postal and telecommunications and power lines. The whole machine is mounted on a frame with hub bearings, lower than the transport. With an alternative price and excellent quality, this product may be a good choice for your team.

Product Parameter

Item Number	09162
Model	JJCS-50T
Engine	Model	S195G Diesel Engine
	Power(kw)	9
	Speed(rpm)	2000
Tracking Force(kn)/Pulling Speed(rpm)	I.III	50/3.1.40/9.6
	II.V	45/7.1.17/22.3
	IV.VI	33/11.3.10/35.6
	Reverse	-/7.35
Diameter of Drum Bottom(mm)	Φ300
Form of Wire Winding	Manual
Weight(kg)	700
Overall Dimension(mm)	223012101135

Product Feature

High Strength: The MARSHINE diesel powered winch is designed with high-strength materials to ensure durability and reliability under heavy loads.

Corrosion Resistance:Made from corrosion-resistant materials, ensuring longevity even in harsh environments.

Load Capacity:Capable of handling significant loads, making it suitable for various industrial applications.

Smooth Operation:Features smooth operation with minimal friction, enhancing efficiency and reducing wear and tear.

Safety Mechanisms:Equipped with safety mechanisms such as overload protection and braking systems to prevent accidents.

Compact Design:Designed to be compact and lightweight, allowing for easy installation and portability.

Long Service Life:Built to last with high-quality components, ensuring a long service life and low maintenance requirements.

Easy Maintenance:Designed for easy maintenance, with accessible components and replaceable parts.

Product Application

MARSHINE Diesel Powered Winch is suitable for:

Construction: In construction sites, diesel powered winches are used for lifting heavy building materials to different heights.

Product Details

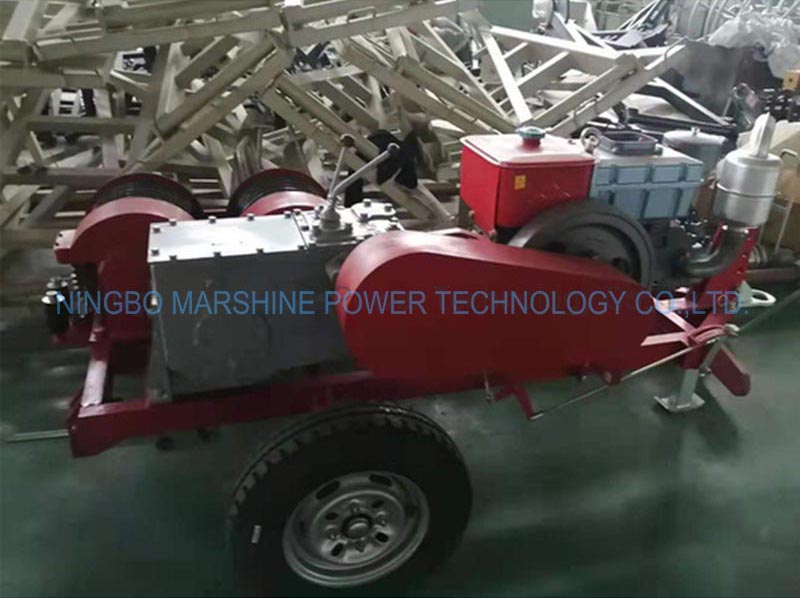

The details about MARSHINE Diesel Powered Winch

Components of a Diesel Powered Winch

Drum: The drum is a key component where the wire cable is wound or unwound. The drum bottom diameter is 300mm.

Engine: The engine provides the power to drive the drum. Different winches may use different types of engines. And the engine this diesel powered winch use is S195G Diesel Engine.

Gearbox: The gearbox is used to adjust the speed and torque of the winch. It can transform the high - speed, low - torque output of the motor into a low - speed, high - torque output suitable for winding or unwinding the wire cable.

Safety Considerations for Diesel Powered Winches

Regular Inspection: The wire cable should be regularly inspected for signs of wear. If any such signs are detected, the wire should be replaced immediately.
