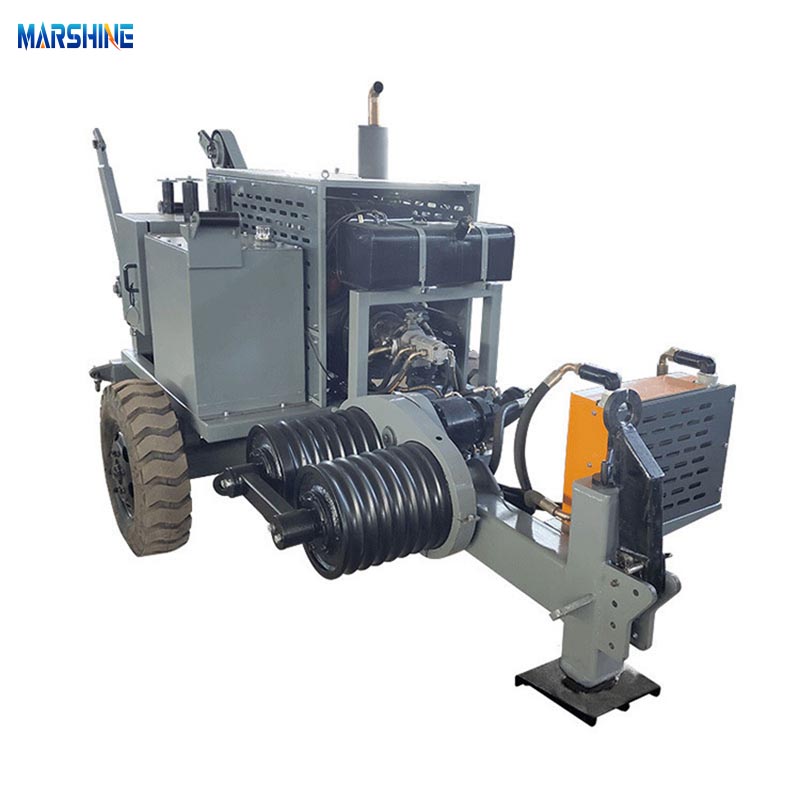

Been a powerful and compact cable pulling machine designed for the medium to small duty cable installation projects, this MARSHINE Small-scale 4 Ton Hydraulic Cable Puller is a hydraulic machine that with a pulling force of up to 4 tons, and is able to provide the users with the reliable performance while ensuring the maximum safety and the efficiency during the operations. Its small-scale design allows for the easy transportation and maneuverability, makes it ideal for both the overhead and the underground cable stringing tasks in the challenging construction environments.
Product Parameter
| Model | SA-YQ-40 |
| Maximum traction load (KN) | 40 |
| Continuous traction load (KN) | 30 |
| Traction speed (km/h) | 5 |
| Traction sheave diameter (mm) | 400 |
| Number of sheave grooves | 6 |
| Applicable wire rope diameter | 15 |
| Weight (kg) | 2200 |
| Dimensions (mm) | 3500 x 1600 x 1700 |
| Engine | CUMMINS |
| Hydraulic pump | REXROTH |
| Hydraulic motor | REXROTH |
| Reducer | BONFIGLIOLI |
| Hydraulic valve | SUN (USA) |
| Hydraulic control handle | Hyde (Italy) |
Product Feature
With the compact structure that can offer the users with the portability to use in the confined or the areas that the huge machine can not access, our MARSHINE Small-scale 4 Ton Hydraulic Cable Puller is able to offer the users with the advanced hydraulic system performance due to its stable and controlled 5km/h pulling speed, and with the strong pulling capacity up to 4 tons, it is able to handle the demanding cable installation tasks. Been built with the high-tensile alloy steel and treated with the protective oil=paint to withstand the tough working conditions, this machine can provide your team with the lower maintenance requires, and with the integrated overload protection, it is able to ensure the secure and reliable cable pulling with ease.
Product Application
The MARSHINE Small-scale 4 Ton Hydraulic Cable Puller is suitable for the overhead power line conductor installation tasks, and the underground cable stringing operations in the urban and the rural projects, or the telecom and the fiber optic cable deployment. Further more, it can also performed well in the utility maintenance, power distribution, and the substation construction.
Product Details
The MARSHINE Small-scale 4 Ton Hydraulic Cable Puller combines the compact design, strong pulling capacity, and the advanced hydraulic performance, is a perfect choice for the medium to light duty cable installation projects.
Place Of Origin:Zhejiang,China.
Warranty:1year.
Certifications:ISO,CE.
Lead Time:12-14days.
