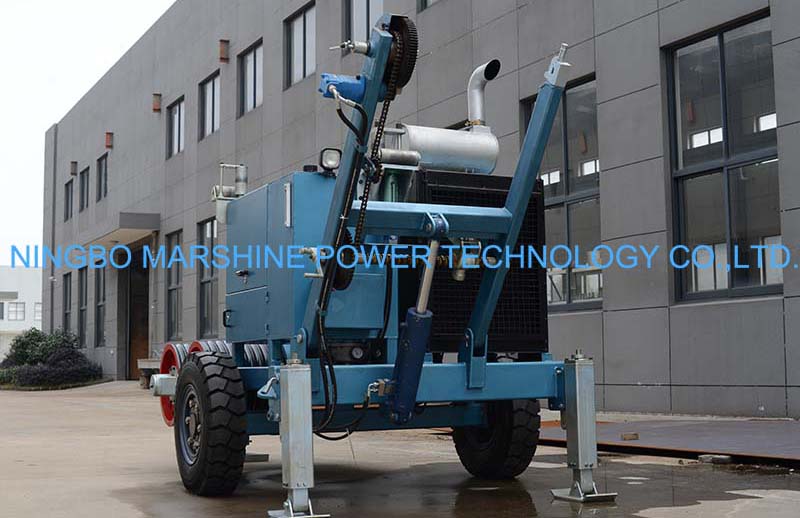

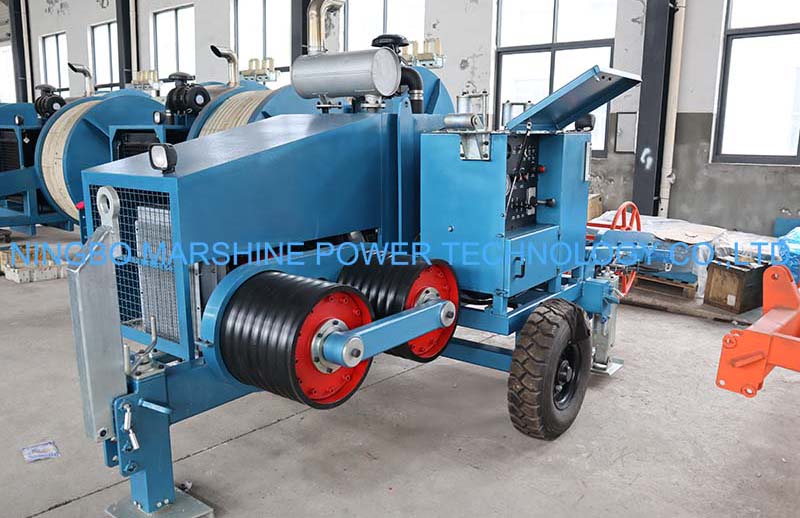

Whether you’re working on the underground utility networks, overhead power lines, or the large-scale infrastructure projects, This MARSHINE Automatic Hydraulic Cable Puller 20T is a good choice to meet your needs. It is a high-performance yet durable cable pulling machine that can pull and lay the heavy-duty cables with ease.
Product Parameter
| Model | SA-YQ220 |
| Maximum pull force (kn) | 220 |
| Continuous pull force (kn) | 180 |
| Maximum speed(km/h) | 5 |
| Bull wheel bottom of groove diameter(mm) | Φ760 |
| Bull wheel grooves number | 10 |
| Maximum suitable steel rope diameter(mm) | Φ30 |
| Maximum through connector diameter(mm) | Φ75 |
| Engine power/speed(kW/rpm) | 243/2100 |
| Dimensions(mm) | 5780*2350*2820 |
| Weight(kg) | 8000 |
Product Feature
Designed to handle the maximum load up to 20 tons, this MARSHINE Automatic Hydraulic Cable Puller 20T is capable of pulling the large cables with ease, due to its robust frame and the sturdy components, this machine can ensures the stability and the reliability under the high stress. This machine is powered by a high-pressure hydraulic system, can provide the smooth yet precise control over the cable pulling tasks while reducing the power costs, make it a efficient machine for the construction teams. And been applicable to wide ranges of the cable types, with the adjustable clamping mechanism can ensures the secure grip on the cables in different diameters. Its overload protection, emergency stop function and the automatic braking systems can ensures the personal safety of the operators during the constructions.
Product Application
The MARSHINE Automatic Hydraulic Cable Puller 20T is ideal for pulling the power cables during the installation of the overhead and the underground electrical networks. It can be used to install the fiber-optic cables or the other communication lines in the large-scale telecom projects. And it can be applied to deal with the cable laying tasks for the lighting, security systems, or the utility networks in the large-scale construction projects as well. Further more, it is able to deploy the thick steel ropes or the cables in the oil-rigs, pipelines, or the offshore platforms, or to rapidly replacing or repairing the damaged cables in the critical infrastructure with the minimal downtime.
Product Details
The MARSHINE Automatic Hydraulic Cable Puller 20T owns the powerful performance, precision control, and the durable construction, make it an important asset for achieving the high-quality results in challenging environments.
Place Of Origin: Zhejiang,Ningbo.
Lead Time:30-35days.
Warranty:1year.
Certifications:ISO9001,CE.
Brand:MARSHINE.
