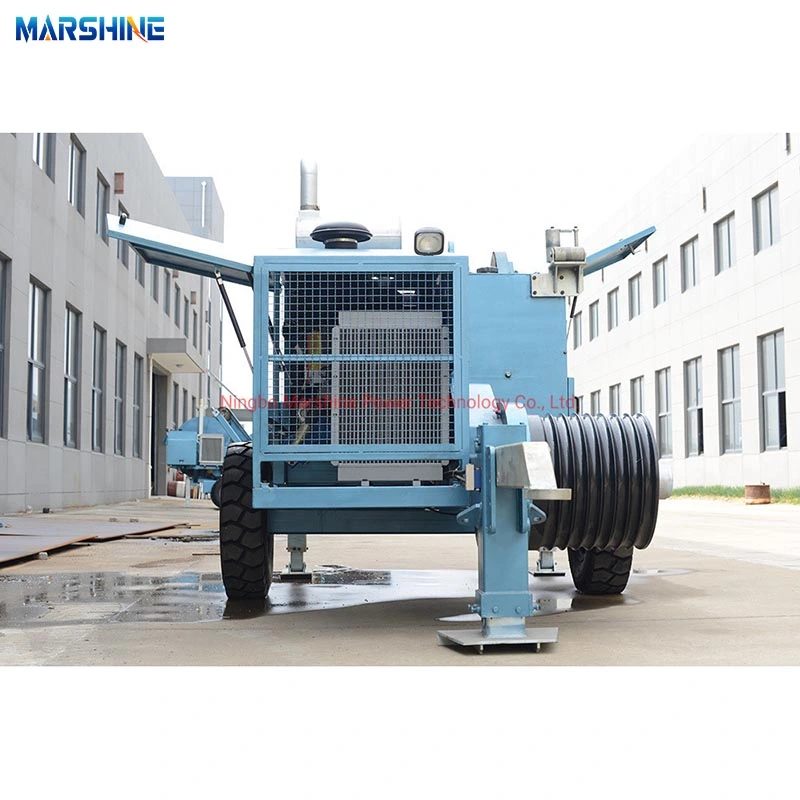

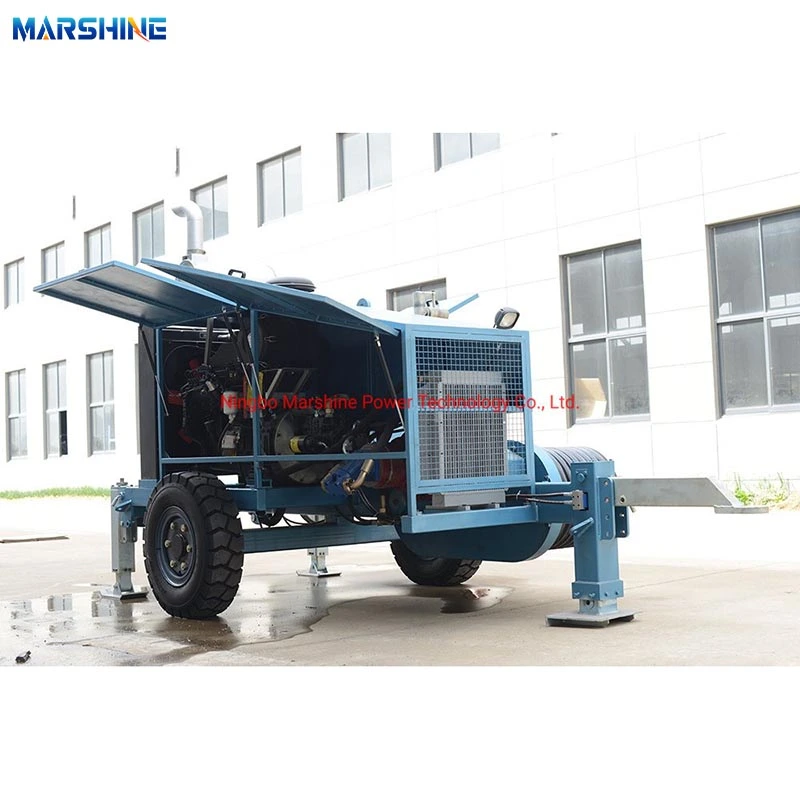

5T Hydraulic Cable Puller

Model:SA-YQ60

MARSHINE is a company specializing in the development, design and manufacture of 5T Hydraulic Cable Puller with competitive price from China. We not only manufacture and supply international standard products, OEM and custom products, but also provide quality tracking and service monitoring. MARSHINE continues to promote the "integrity, development, and innovation" entrepreneurial spirit, for the prosperity and development of power industry.

Send Inquiry

Product Description

The MARSHINE 5T Hydraulic Cable Puller is equipped with a spring-loaded hydraulic release coil, which ensures automatic start-up in the event of a sudden motor failure or hydraulic failure, thereby always maintaining safe operation. In addition, our Hydraulic Cable Puller also has an automatic overload protection function, which ensures safety during the process. Both the pulling speed and the pulling force can be adjusted conveniently, and users can monitor the pulling force through the line. In addition, users can flexibly preset the maximum pulling force for the wire rack line operation. Finally, our puller has a wire rope automatic winding device, which simplifies the laying of the rope and facilitates the loading and unloading process.

Product Parameter

Model	SA-YQ60
Maximum pull force (kn)	60
Continuous pull force (kn)	50
Maximum speed(km/h)	5

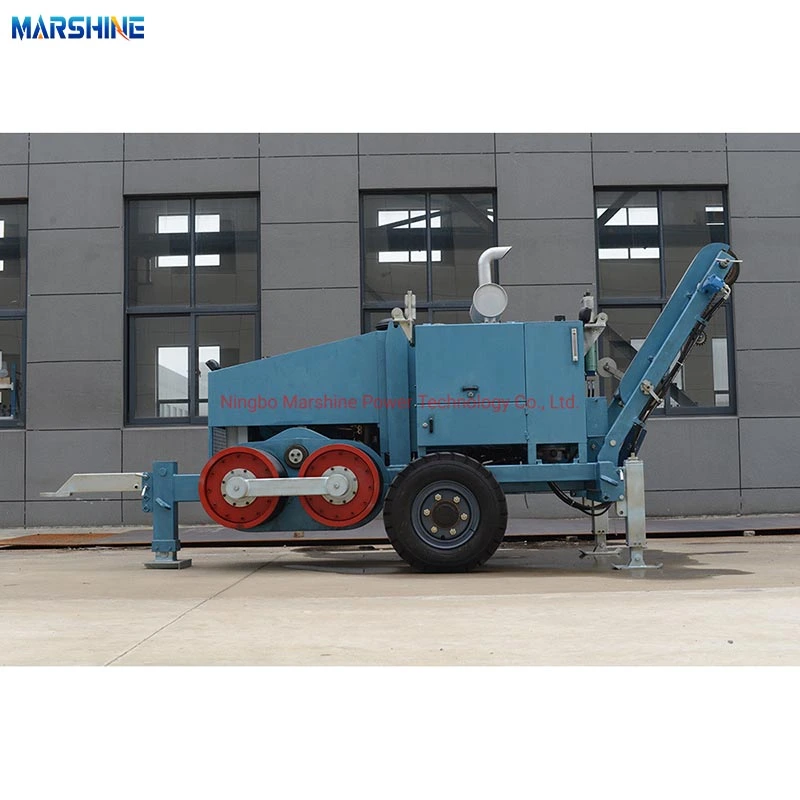

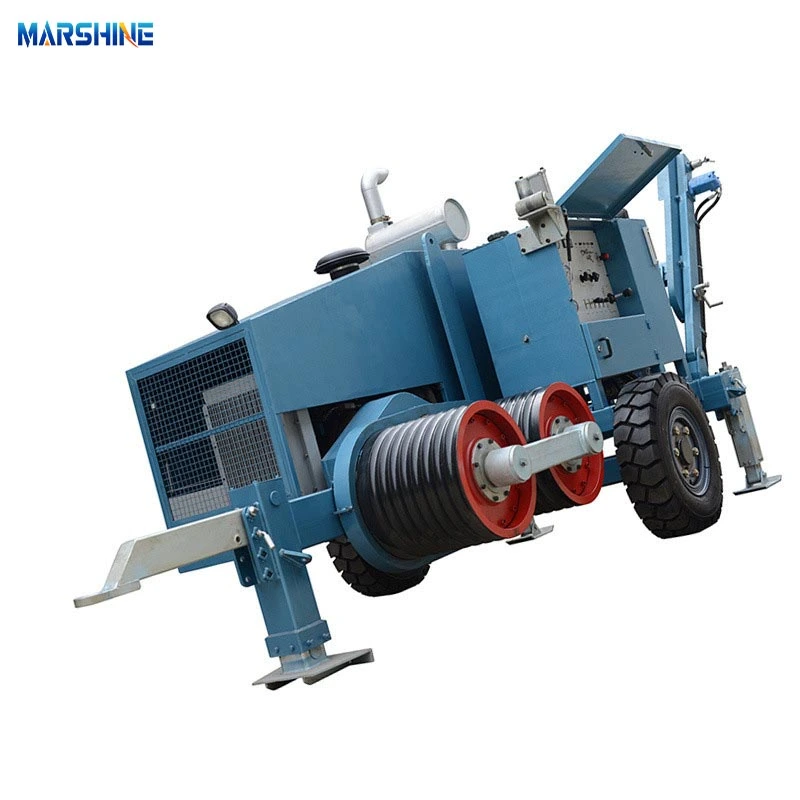

Bull wheel bottom of groove diameter(mm)	Φ460
Bull wheel grooves number	7
Maximum suitable steel rope diameter(mm)	Φ18
Maximum through connector diameter(mm)	Φ60
Engine power/speed(kW/rpm)	77/2800
Dimensions(mm)	380021002300
Weight(kg)	3000

Product Feature

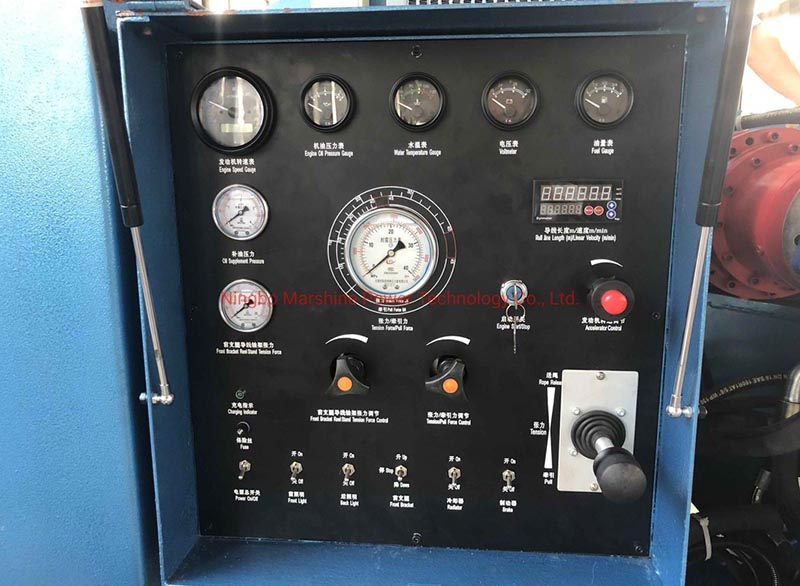

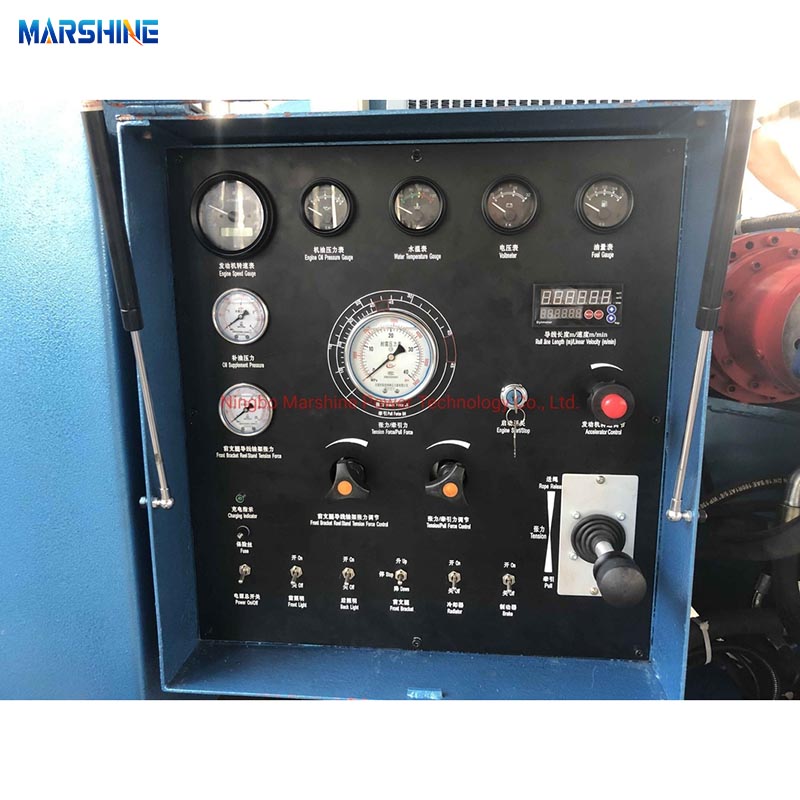

The MARSHINE 5T Hydraulic Cable Puller with the infinitely variable speed and the pull force control, is able to ensures that the pull force in the rope can be read on the line pull gauge. And the max pull for conductor-stringing operation can be preset, while this machine is been equipped with the automatic overload protection system. In case of hydraulic failure, the spring applied - hydraulic release brake acts automatically to ensures the machine and the operators safety. With the attached reel winder with automatically level wind, this machine allows the users to load and unload the materials and cables with ease.

Product Application

In the electrical sector, our MARSHINE 5T Hydraulic Cable Puller are essential for installing the high-voltage power cables. They can handle the significant tension that required to pull these heavy-duty cables through the underground or the overhead routes. And for control and signal cables, it can offers a reliable solution to ensures that the cables are pulled without the excessive force, which could lead to the damage of the cables or the equipment.
