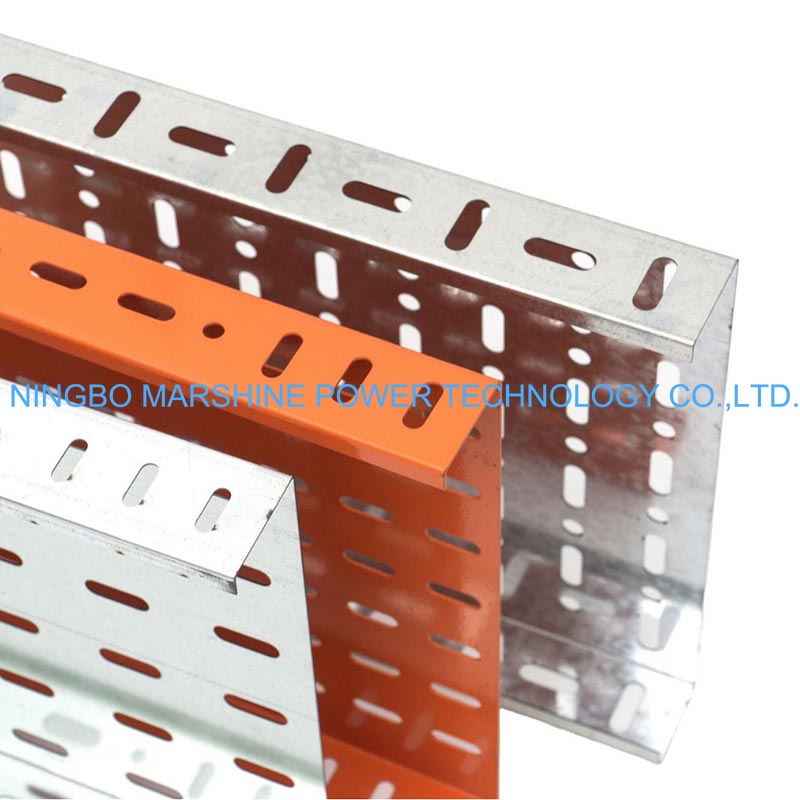

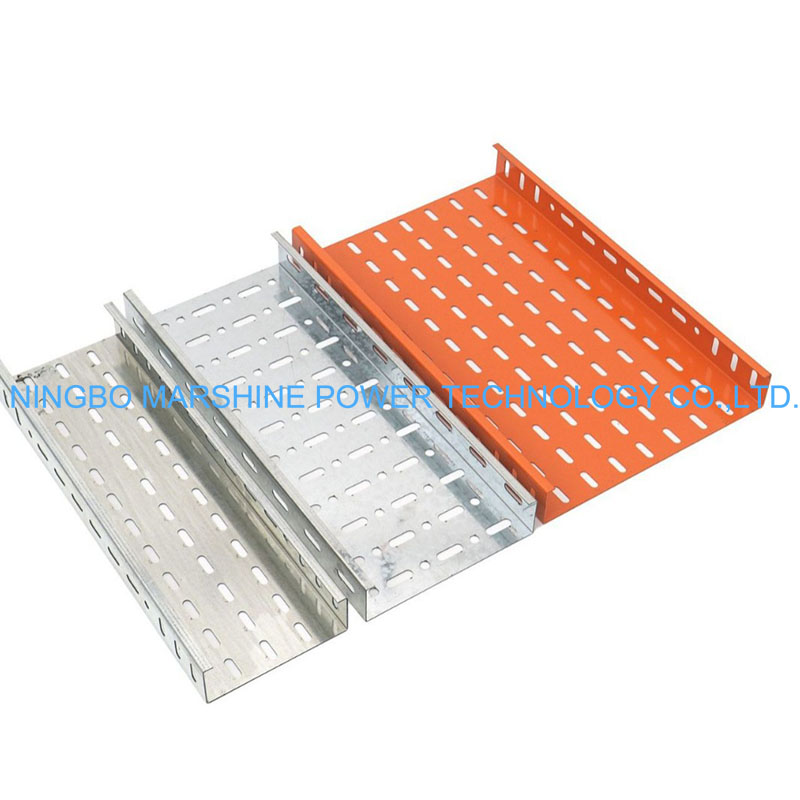

Our MARSHINE Hot-Dip Galvanized Porous Type Cable Tray is a robust cable management system that designed to support and protect the electrical cables in the industrial, commercial, and the utility installations. Been manufactured from the high-strength alloy steel and treated with the hot-dip galvanization, it is able to provide the excellent corrosion resistance, outstanding durability, and the mechanical strength, so that to ensures the long-lasting performance even in the harsh environments. With its porous design allows for the natural ventilation and heat dissipation, can effectively reduce the risk of the cable overheating. This cable manage system also makes our MARSHINE Hot-Dip Galvanized Porous Type Cable Tray easy to secure, inspect, and modify wiring layouts during the installation or the maintenance tasks, can be widely used in the power plants, substations, data centers, and the building wiring systems.
Using Guide of MARSHINE Hot-Dip Galvanized Porous Type Cable Tray
To use your MARSHINE Hot-Dip Galvanized Porous Type Cable Tray as the cable support and manage equipment, you need to review the electrical layout drawings to determine the cable routes before the installations, and measure the length, width, and the height requirements of the tray path, so that to ensure the optimal positioning and the accessibility while avoiding the areas prone to the excessive moisture or the mechanical interference. Then you need to install the supporting brackets, hangers, or the wall mounts at 1.5-2m intervals, and check for whether the supports are firmly anchored and aligned horizontally. And also do not forget to verify that the structure can bear the full weight of the cable load plus the tray itself. After that, you need to connect the tray sections by using the standard splice plates, and secure the joints with the bolts and the nuts, so that to ensures the all connections are tight and corrosion-protected. Please keep the tray alignment straight and level for the professional, reliable performance. And then you can place the cables neatly inside the tray, and use the clamps to fasten the cables securely, and maintaining the proper spacing for the ventilation. Remember do not exceeding the maximum load capacity, it will cause the deformation of your MARSHINE Hot-Dip Galvanized Porous Type Cable Tray. At last, ensure the proper grounding of the cable tray system to maintain the electrical safety, and perform a final inspection, checking for the sharp edges, loose fittings, or the exposed metal parts. By the way, you can label the cable tray sections to allows for the easy identification and the better future maintenance.
If you were interested in our MARSHINE Hot-Dip Galvanized Porous Type Cable Tray, please feel free to contact us by entering our www.cable-winch.com website and send us inquiry, or just contact me on my WhatsApp:+86 13567903815.
