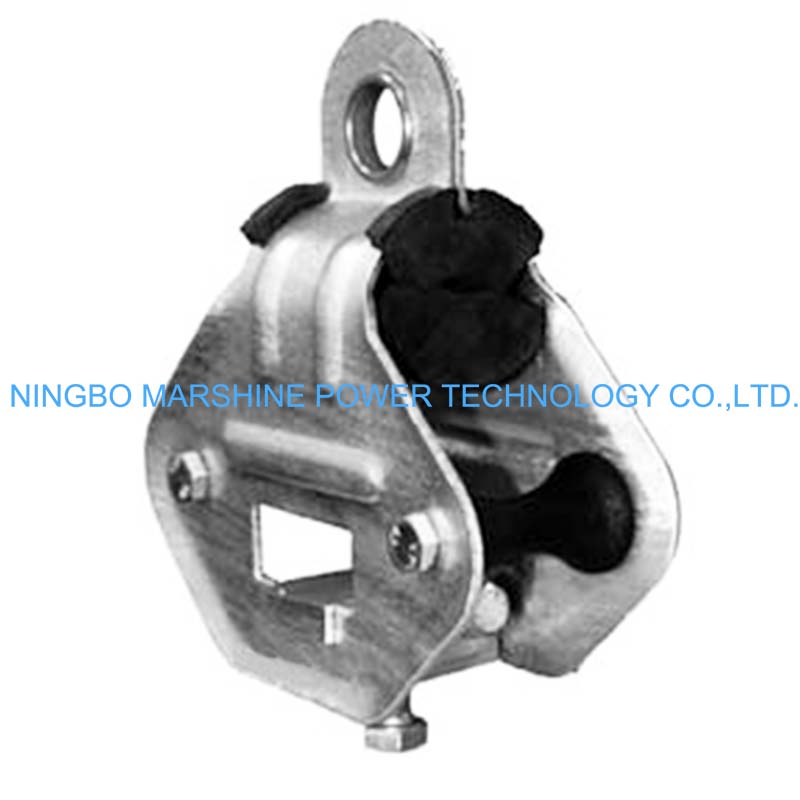

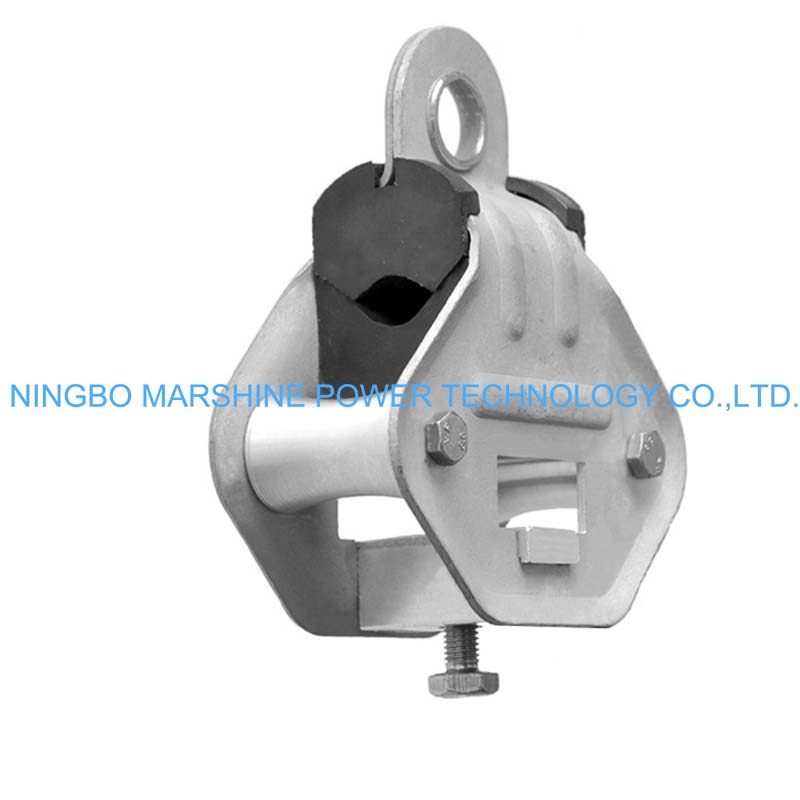

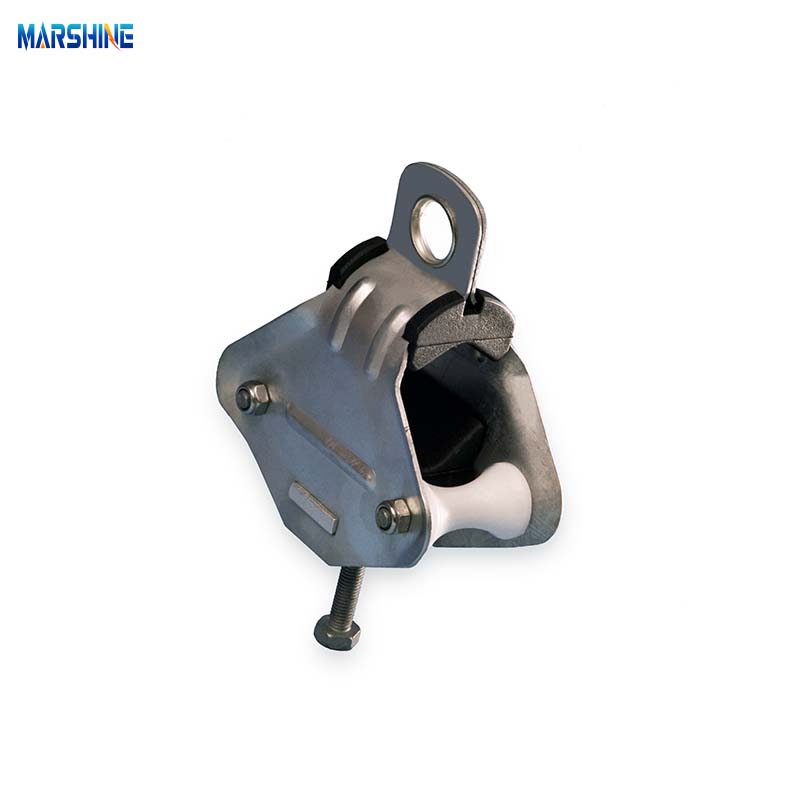

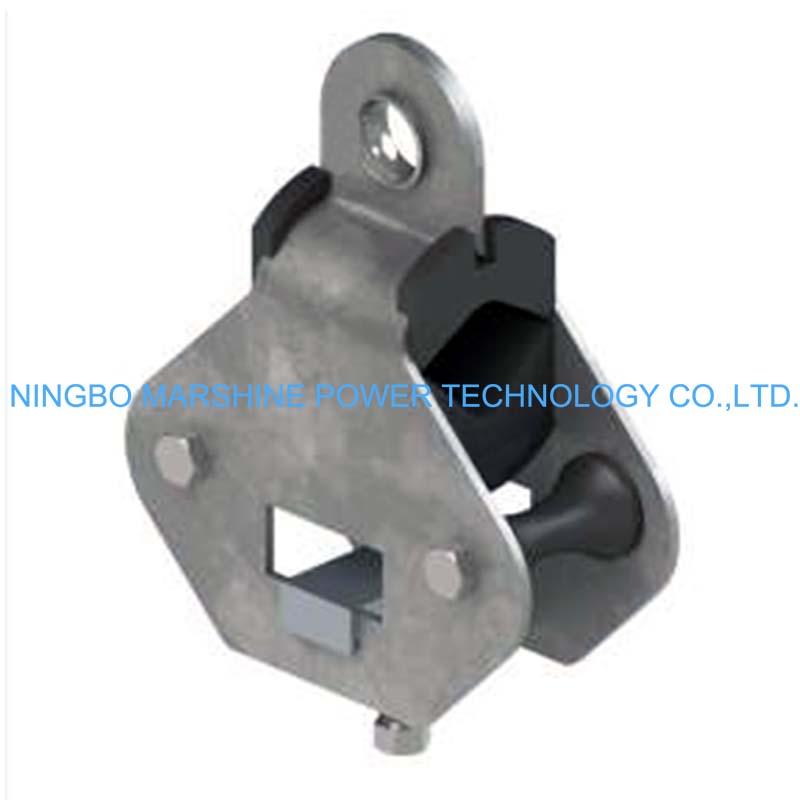

Cable Suspension Clamp Pole Mount With Roller SO99

Model:SO99

Our MARSHINE was a Chinese manufacturer for electric power line construction equipment and tools. For 20years, we have been supplying global electricians and utility workers with reliable cable supporting tools at the most competitive price. Our MARSHINE Cable Suspension Clamp Pole Mount With Roller SO99 is a power line supporting tool with rollers, which is used to supporting the cables from poles in straight line or angles.

Send Inquiry

Product Description

As a robust yet reliable cable supporting solution for suspending four-core insulated power cables from poles, our MARSHINE Cable Suspension Clamp Pole Mount With Roller SO99 which is made from hot-dip galvanized steel, it is able to ensures the safe and long term operations under the harsh outdoor working conditions. As a support tool suitable for both straight-line and angled installations, this tool can offer more flexibility to workers, and effectively improve the working efficiency.

Product Parameter

Model	SO99
Applicable conductor size	4x25-4x95 mm²
Applicable conductor diameter	18-39mm
Test voltage	4 KV / 50 Hz / 1 min
SMFL	18 KN
Tightening torque	12 N.m

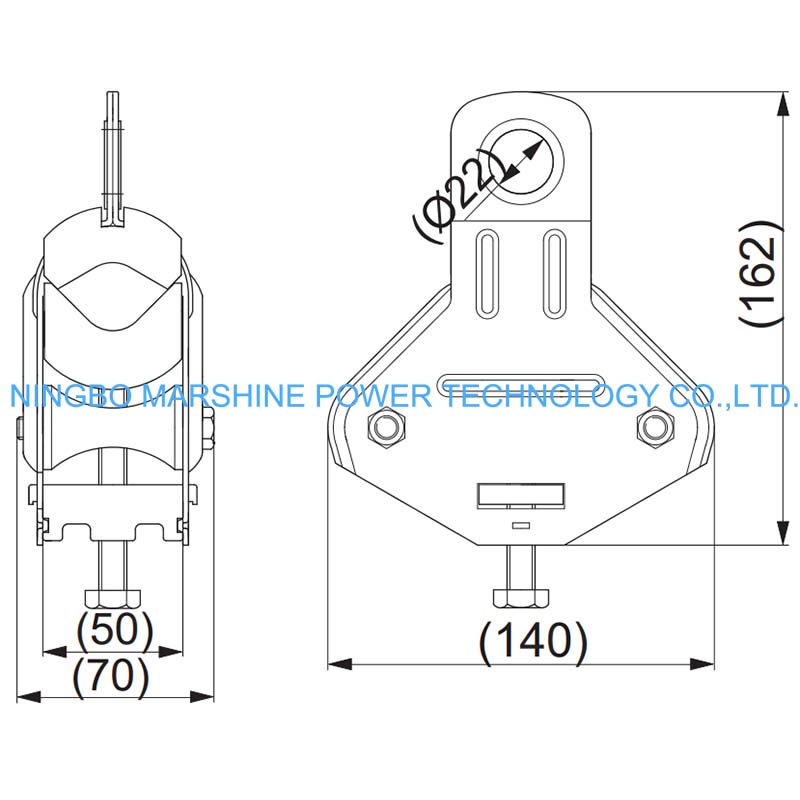

Length	140 mm
Width	70 mm
Height	162 mm
Weight	1kg
ETIM Class	EC003516
Material	hot-dip galvanized steel

Product Feature

The SMFL of 18KN can ensures the strong mechanical resilience under the heavy loads.

Compatible with conductor cross sections from 4*25 mm² up to 4*95 mm², and conductor diameters from 18 to 39 mm, makes this MARSHINE Cable Suspension Clamp Pole Mount With Roller SO99 suitable for various of situations.

Been constructed from hot-dip galvanized steel, so that to offer the excellent corrosion resistance to the harsh working environments.

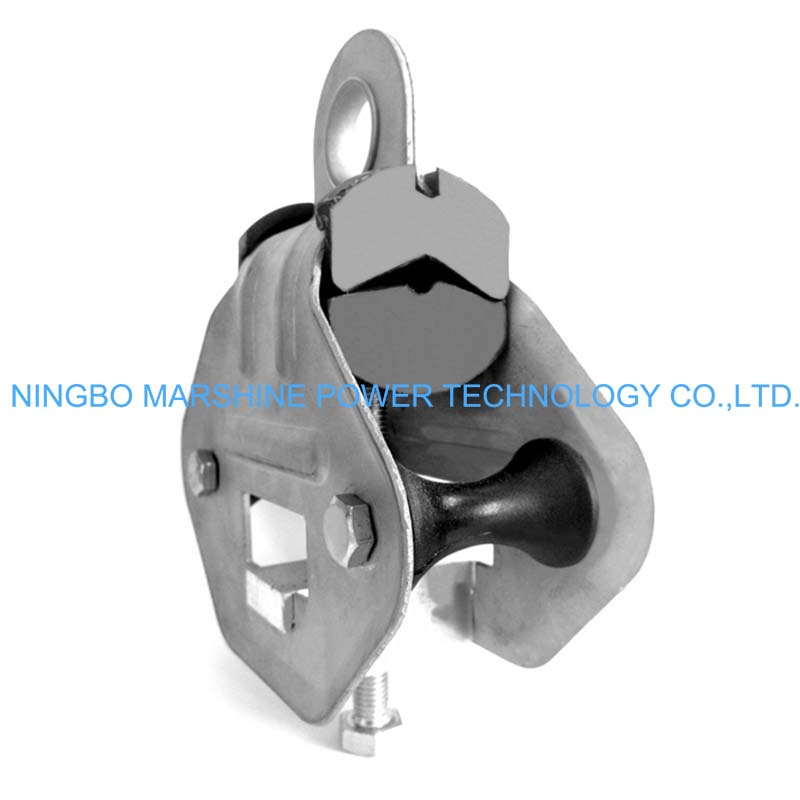

The smooth nylon roller can helps to reduce the friction and protect the conductor well.

Suitable for straight-line and angle installations, makes it ideal for different working requirements.

With approx 1kg light weight, this clamp is easier to handle and install.

The tightening torque of this clamp is 12 N.m, can facilitate the efficient installation.

Product Application

The MARSHINE Cable Suspension Clamp Pole Mount With Roller SO99 is suitable for suspending the cables directly from poles in straight-line runs or at the specific angles.

Can be used to support the bundled cables in the aerial installations, so that to ensure the safe cable positioning.

Perfect for the installation tasks with significant angular deviations.

Ideal for providing the stable yet durable support under the mechanical stress.

Or to replace the existing suspension systems in the overhead electrical networks.
