The MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole is a lightweight, high-strength lifting device widely used in power line construction and utility projects. The gin pole adopts an A-frame design, which is highly stable, easy to transport, and has a strong lifting capacity. It can be used to lift materials such as conductors, insulators, tower components and other equipment.
To ensure safe and effective use, it is important to follow the correct operating procedures. The following is a step-by-step guide on how to properly operate the MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole.
1. Pre-Use Inspection
Before beginning any lifting operation:
Remember to check for structural integrity: Inspect the aluminum alloy tubes for cracks, dents, or signs of bending.

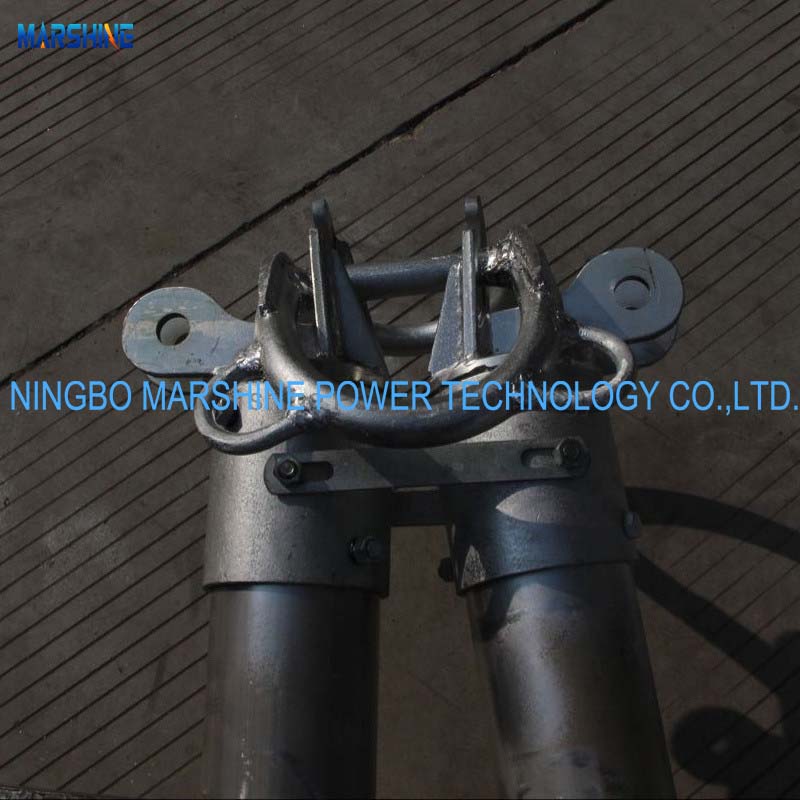

Examine all joints and connections: Ensure that the hinges, locking pins, bolts, and welds of the MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole are secure and undamaged.
Verify the gin pole system: Make sure all moving parts operate smoothly and are well-lubricated.
Review weight capacity: Confirm the gin pole’s rated load matches the weight of the materials to be lifted.
2. Site Preparation
Select a flat, stable work surface that is free from debris and obstacles:
Position the MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole directly above the lifting area.
Check overhead clearance to ensure safe hoisting without contact with power lines or other obstructions.
Set up ground anchors or supports if necessary to provide additional stability, especially in uneven or sloped terrain.
3. Assembly of the Gin Pole
Unfold the A-shape frame:
Secure all locking mechanisms and braces.
Attach the pulley or winch system at the top of the MARSHINE Aluminum Alloy A-Shape Tubular Gin Pole.
If applicable, secure the base using ground stakes, base plates, or tie-downs to prevent shifting during lifting.
Thread the lifting rope or cable through the pulley or winch system and check for smooth operation.
4. Lifting Operation
Once the setup is complete:
Attach the load securely to the hook or lifting point using appropriate rigging (slings, shackles, or cable grips).
Begin lifting slowly and steadily, either manually or using the winch, keeping the load balanced and under control at all times.
Guide the load carefully to the desired location with the assistance of a team or ground crew.
Avoid sudden movements or swinging loads to prevent instability.
Safety Tip: Always stand clear of the load path and ensure communication is clear between team members.
5. After Use and Storage
Lower the gin pole and disassemble it carefully after lifting is complete.
Clean the pole and components to remove dirt, grease, or moisture.
Inspect for wear and damage, especially on pulleys, ropes, and joints.
Store the gin pole in a dry, secure location to prevent corrosion and maintain longevity.
