The MARSHINE Dual-Drum Cable Tensioner 4 Ton is a powerful double drum cable tensioner that designed to deal with the heavy-duty cable pulling and tensioning tasks with ease. Been equipped with a high capacity hydraulic system, it allows the precise control of tension and pulling force, can ensures the safe and efficient operation during the constructions. Its compact and durable design makes it suitable for utility electricians and linemen teams who need to work in the remote or rugged locations.
Product Parameter
| Model | SA-YZ2*40B |
| Item number | 07192 |
| Maximum Tension(KN) | 2*40/1*80 |
| Continuous Tension(KN) | 2*35/1*70 |
| Maximum Speed(km/h) | 5 |
| Bull wheel bottom of groove diameter(mm) | Φ1200 |
| Number of grooves | 2*5 |
| Maximum pull-back(KN) | 2*40/1*80 |
| Maximum pull-back speed(km/h) | 2*1.5 |
| Maximum suitable conductor diameter(mm) | Φ40 |
| Engine power/speed(kw/rpm) | 51/2500 |
| Dimensions(mm) | 4500*2200*2800 |
| Weight(kg) | 4850 |
Product Feature

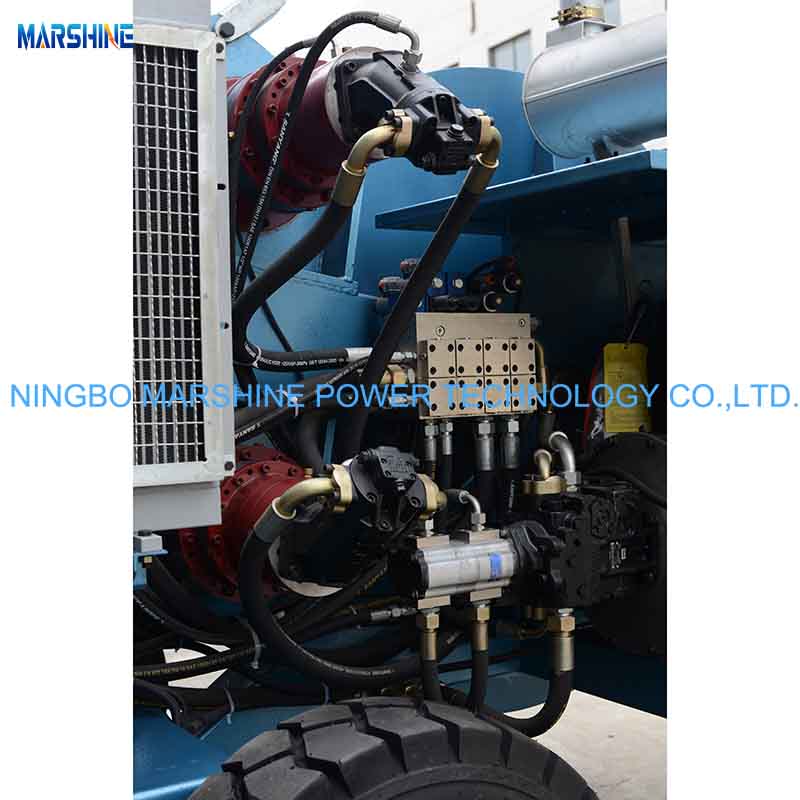

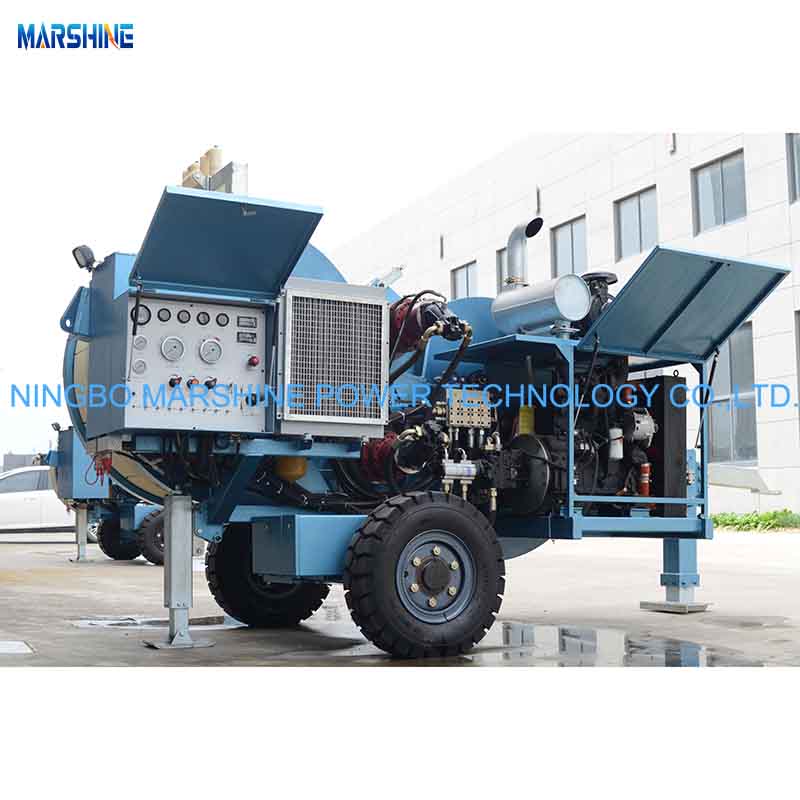

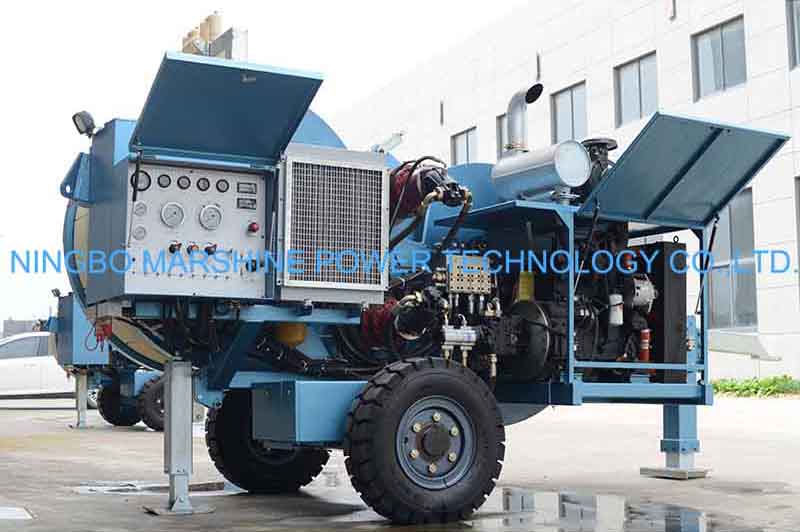

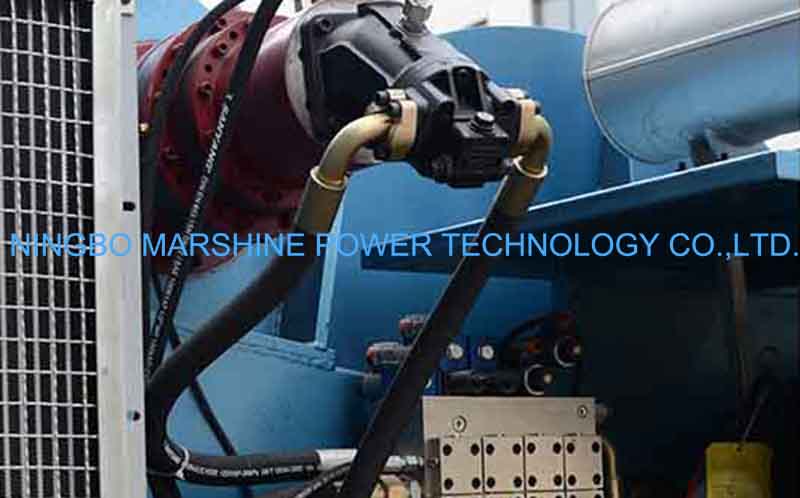

Designed to handle up to 4 tons of tension, this MARSHINE Dual-Drum Cable Tensioner 4 Ton is equipped with a digital display and the advanced control panel, allowing the operator to precisely set and monitor the tension levels. The real-time feedback can ensures the safe operation and reduce the risk of overloading or under-tensioning the cable. Been made of high-tensile alloy steel, it is able to withstand the rigors of heavy-duty use in harsh environments, and can manage the power cables and ropes with ease. Its powerful hydraulic system is able to ensures the smooth, precise control of the tension and the pulling speed while minimize the risk of cable damage or equipment failure, so that to protect the operator's personal safety.
Product Application
As a high-performance cable tensioning machine for the cable installation tasks, the MARSHINE Dual-Drum Cable Tensioner 4 Ton excels is able to efficiently pull and tension the overhead and underground cables with ease, can deal with the installation tasks of fiber optic cables or the communication lines to expand or upgrade the telecom infrastructure. It can be used to pull the heavy-duty cables or to lift the materials in large construction tasks.
Product Details
Its advanced dual-drum design, high-capacity performance, and user-friendly features makes the MARSHINE Dual-Drum Cable Tensioner 4 Ton a outstanding cable tensioning machine to deal with the tough tasks.
Origin:China,Ningbo.
Warranty:1year.
International Certified:CE,ISO.
Lead Time:30-35days.
