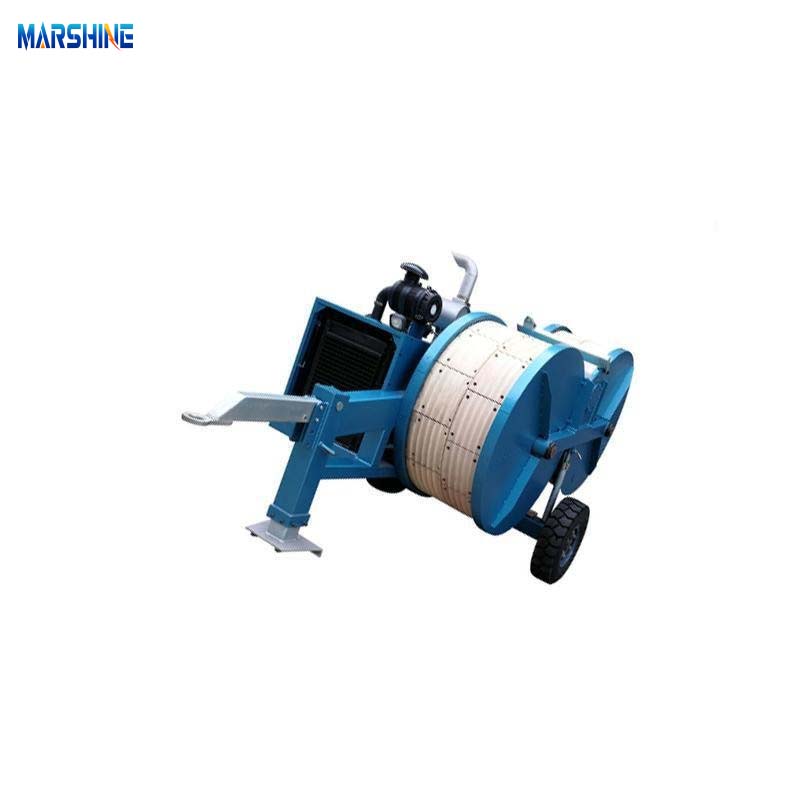

Diesel Driven Double Drum Hydraulic Cable Tensioner

Model:SA-YZ2*70/SA-YZ2*80

To combine the strength of a diesel engine with the precision of a hydraulic system, making the tensioner an ideal solution for demanding environments at an affordable price, our large company MARSHINE based in China has produced the MARSHINE Diesel Driven Double Drum Hydraulic Cable Tensioner, a powerful, high-performance tool designed for professionals involved in heavy-duty cable pulling, tensioning and installation tasks.

Send Inquiry

Product Description

The MARSHINE Diesel Driven Double Drum Hydraulic Cable Tensioner is a heavy-duty machine designed to handle the toughest cable pulling and tensioning challenges. It features a powerful diesel engine, twin drum design and a state-of-the-art hydraulic system to ensure precise control of tension and pull. Designed for versatility, this tensioner is a reliable companion for professionals in a variety of industries for both indoor and outdoor use.

Product Parameter

Model	SA-YZ270/SA-YZ280
Item number	07198/07199
Maximum Tension(KN)	270/1140;280/1160
Continuous Tension(KN)	265/1130;275/1150
Maximum Speed(km/h)	5
Bull wheel bottom of groove diameter(mm)	Φ1700
Number of grooves	2*5
Maximum pull-back(KN)	263/1126
Maximum pull-back speed(km/h)	2*1.6
Maximum suitable conductor diameter(mm)	Φ45
Engine power/speed(kw/rpm)	82.5/2500
Dimensions(mm)	530023002900
Weight(kg)	8500

Product Feature

The MARSHINE Diesel Driven Double Drum Hydraulic Cable Tensioner is driven by a powerful diesel engine, which can provide the sufficient power to handle the heavy loads with ease. And due to the diesel its characteristics, it can be easily accessible even in the remote areas where extreme weather conditions or electricity may not be easily accessible, the engine can ensures the consistent performance. Its precise hydraulic system can ensures the smooth and controlled tensioning and traction operations. The system includes the adjustable pressure setting that enable the operators to apply the precise force that required to prevent the cable damage while maintaining the optimal performance. Designed to handle the cables with the diameter maximum up to 1700mm, this tensioner can deal with most of the constructions with ease, and with its sturdy structure and heavy components, it can ensures the durability and the reliability in the high-pressure environments.

Product Application

Our MARSHINE Diesel Driven Double Drum Hydraulic Cable Tensioner can be used to pull the heavy-duty cables or to lift materials in the large construction projects, it can efficiently pull and tension the overhead/underground power cables, and can install the fiber optic cables to expand/upgrade the telecom infrastructure. It is also able to quickly repair or replace the damaged cables in the critical infrastructure to ensures the shortest downtime.
