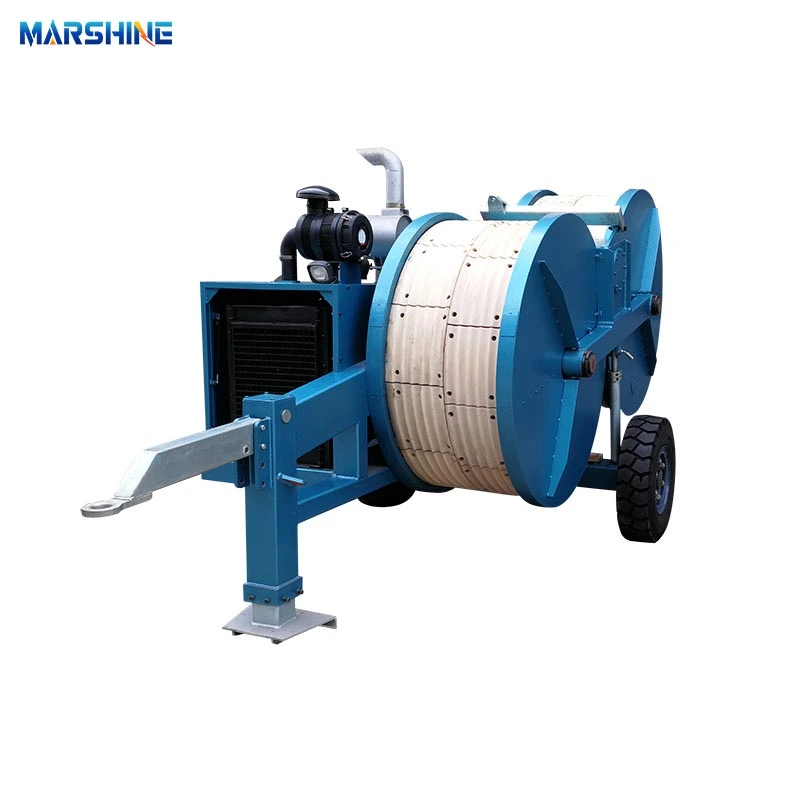

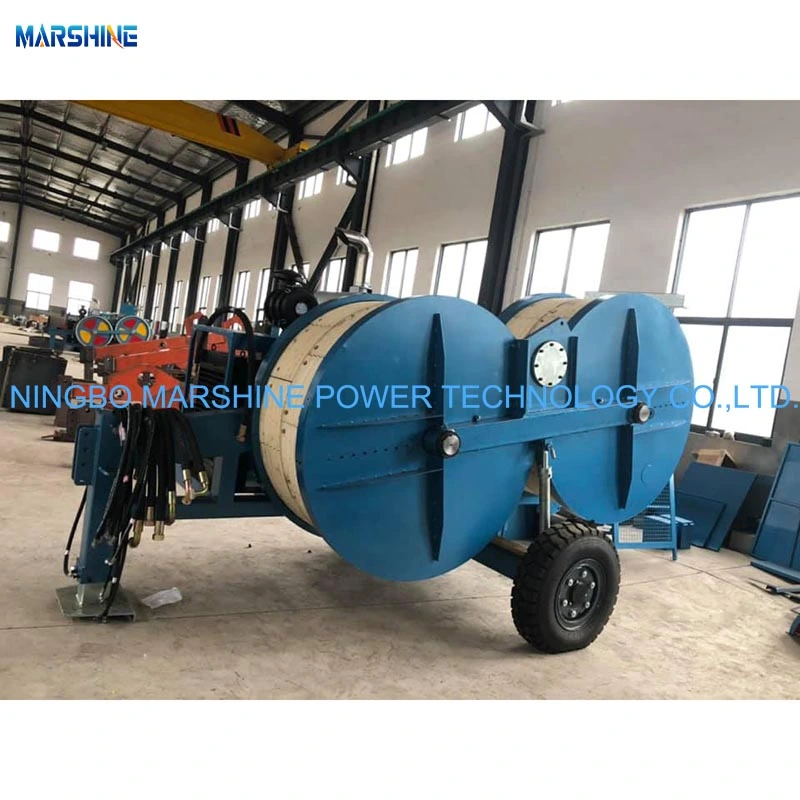

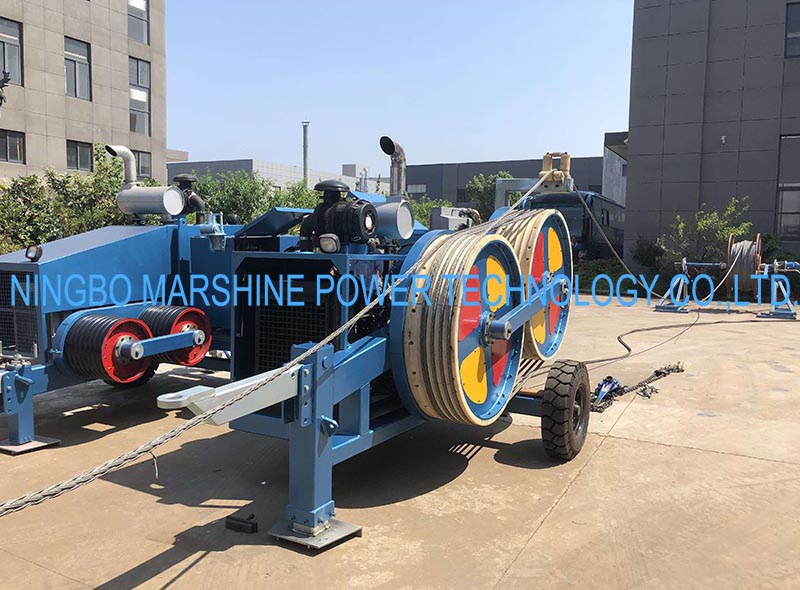

The MARSHINE 10T Hydraulic Cable Pulling Tensioner stands out for its excellent reliability, ensuring safe and high-quality operation. The bull pulley lined with wear-resistant MC nylon material ensures durability under harsh conditions.
The hydraulic cable pulling tensioner is equipped with a continuously variable tension control system, which achieves stable tension during stringing operations, thereby improving performance. In addition, it provides two sets of hydraulic power output interfaces, which can be seamlessly connected with the hydraulic wire drum support.
In the event of hydraulic failure, the hydraulic cable pulling tensioner is equipped with a spring-loaded hydraulic release brake that automatically engages, ensuring safety and preventing accidents.
| Model | SA-YZ2x55 |
| Maximum Tension(kn) | 2*55 /1*110 |
| Continuous Tension(kn) | 2*50 /1*100 |
| Maximum speed(km/h) | 5 |
| Bull wheel bottom of groove diameter(mm) | Φ1600 |
| Number of grooves | 2*5 |
| Maximum pull-back(kn) | 2*50 /1*100 |
| Maximum pull-back speed(km/h) | 2*2.1 |
| Maximum suitable conductor diameter(mm) | Φ42.5 |
| Engine power/speed(kw/rpm) | 54/2500 |
| Dimensions(mm) | 5000*2240*2730 |
| Weight(kg) | 7500 |

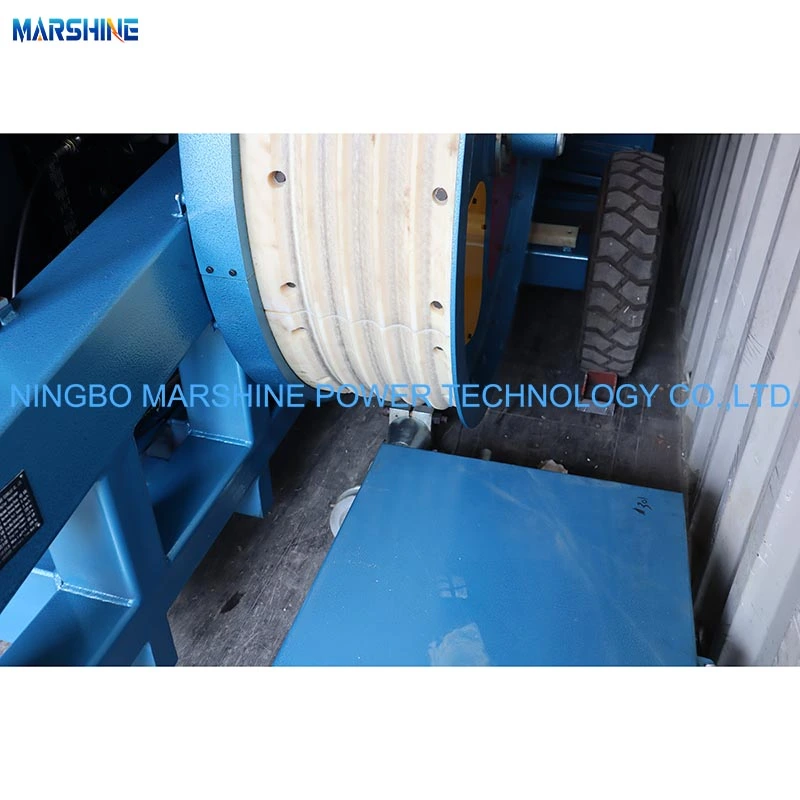

Bull pulley with wear-resistant MC nylon lining.
Stepless tension control and constant tension wire stringing.
Spring-loaded hydraulic release brake automatically operates in the event of hydraulic failure to ensure safety.

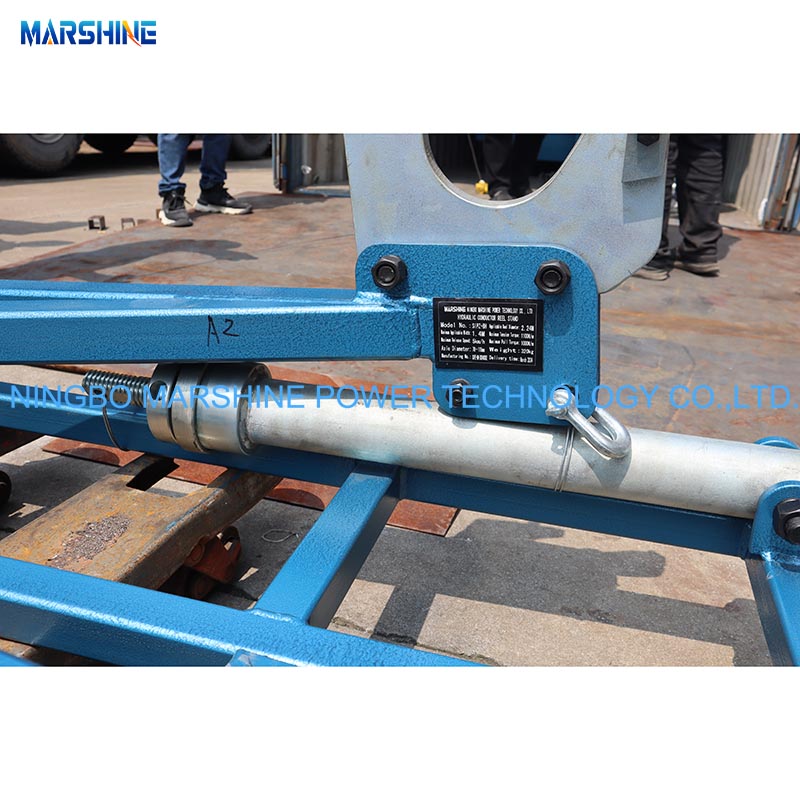

Attached with two sets of hydraulic power output interfaces for connecting hydraulic wire reel brackets.
The MARSHINE hydraulic cable pulling tensioner is used to connect various wires and ground wires in series. Suitable for connecting one wire or two wire harnesses in series.
The detail about the MARSHINE 10T Hydraulic Cable Pulling Tensioner.

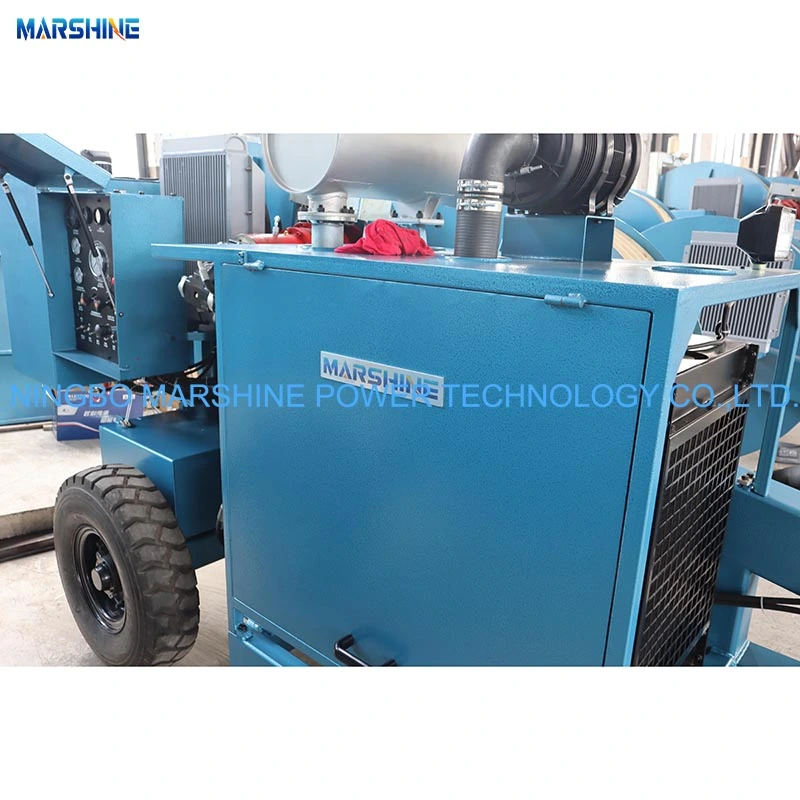

Engine: Deutz(Germany) air cooled diesel engine.
Main pump/motor: Rexroth(BOSCH).
Main hydraulic valve: Rexroth(BOSCH).
Reducer: RR(Italian).
