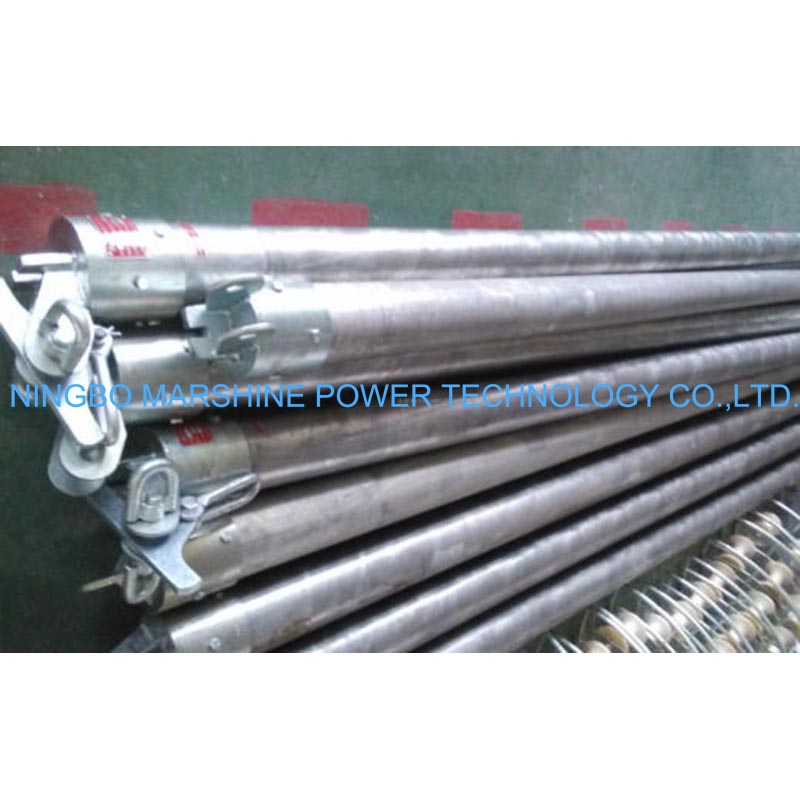

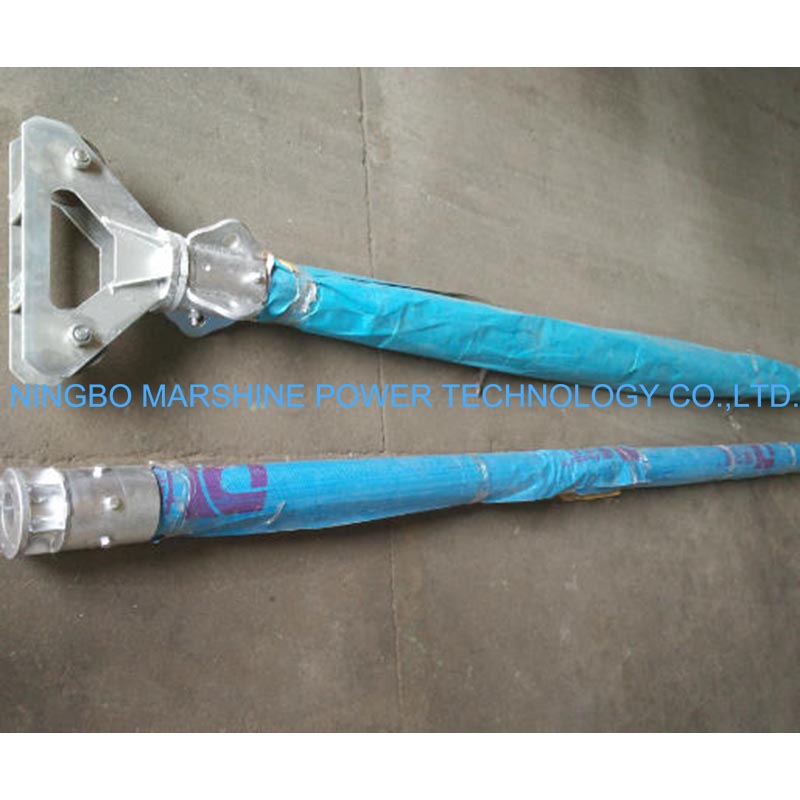

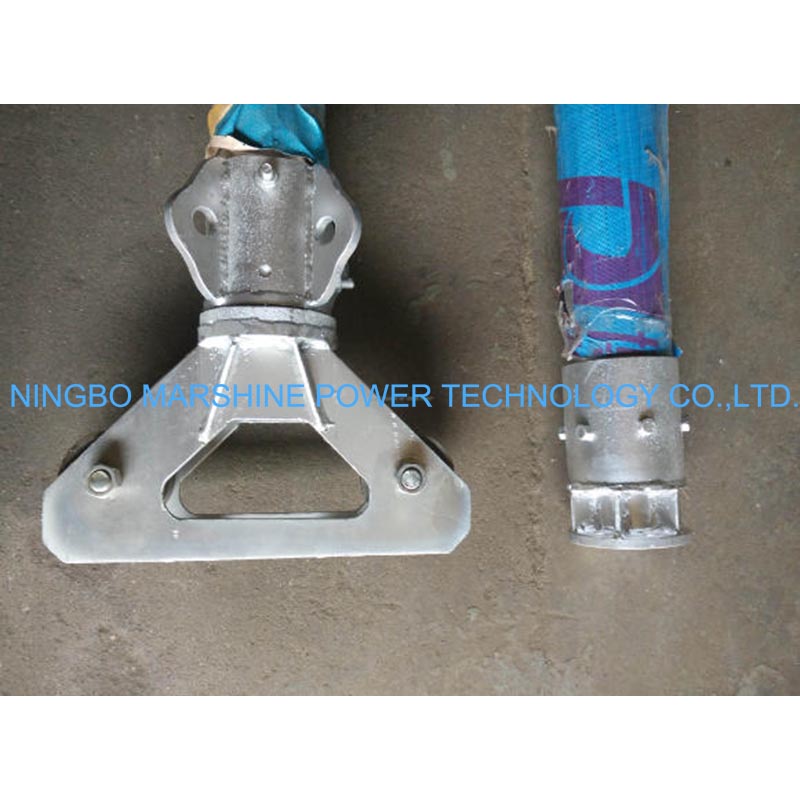

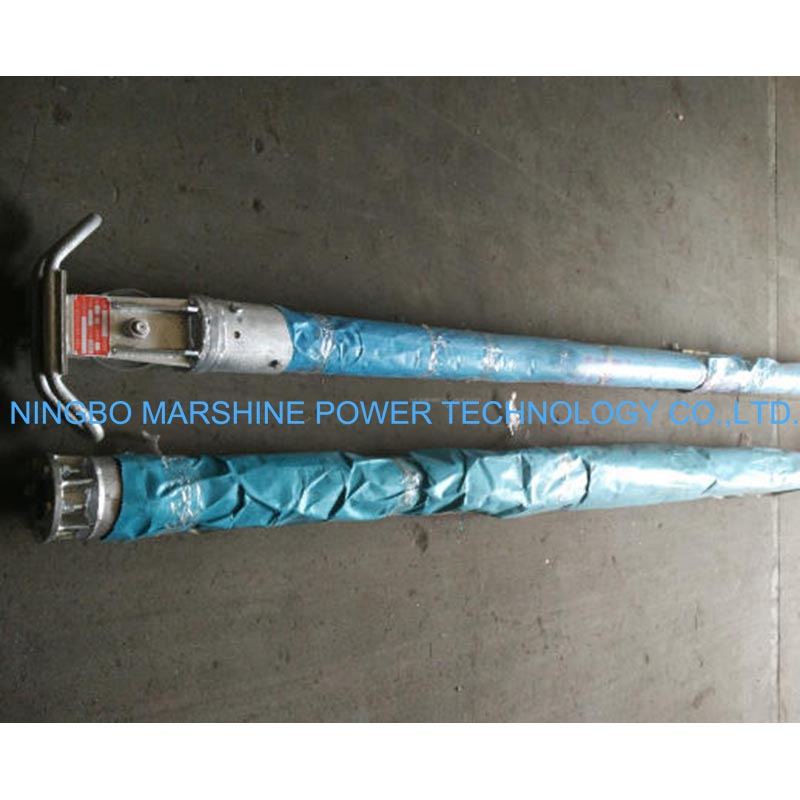

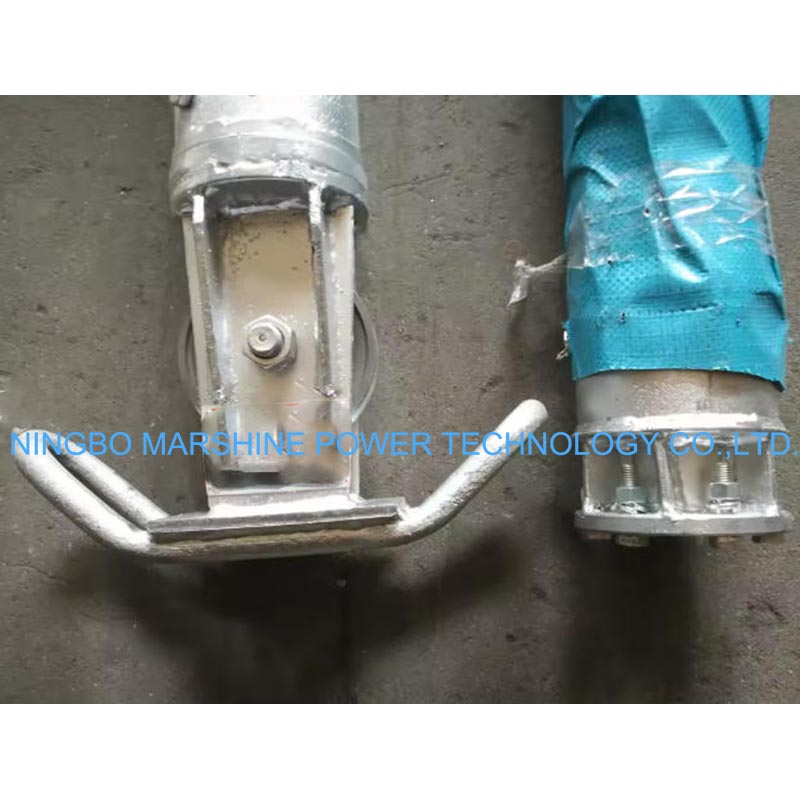

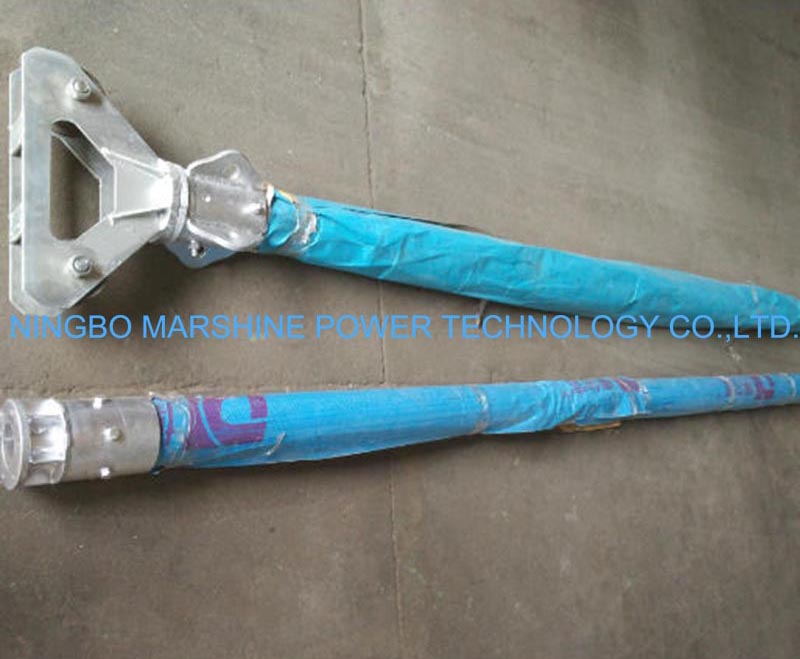

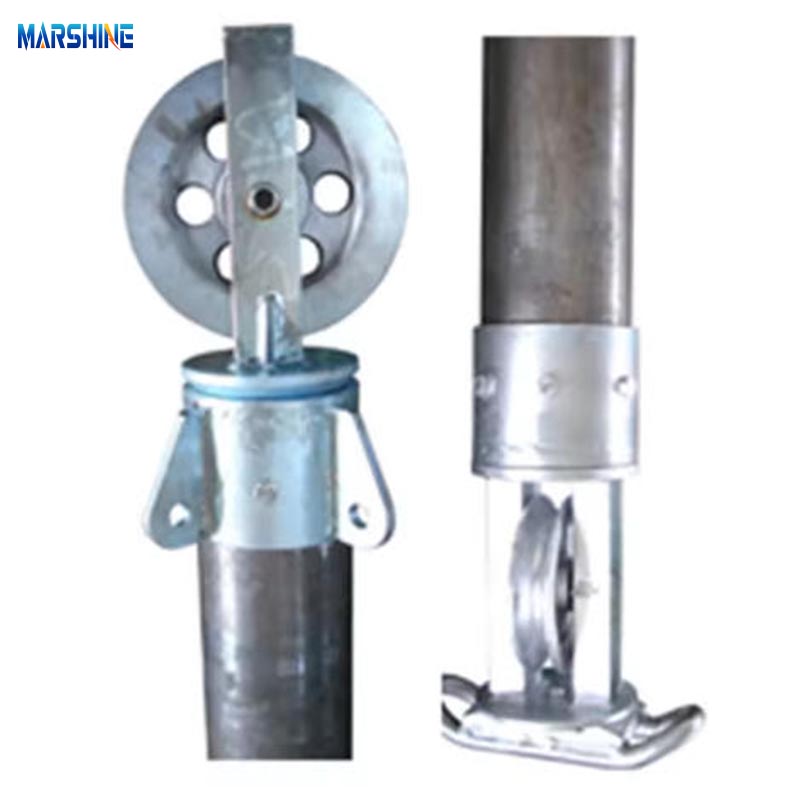

The MARSHINE Aluminum Alloy Internal Suspension Tower Gin Pole features a modular telescopic structure that adjusts in 0.6m increments, with the height ranges typically spanning 10 m to 32 m to fit the projects that from the power pole erection to the antenna installation. Its crafted from the high-strength aluminum alloy, they weigh between 33kg and 75kg, and the Key components include the dual-lock base to prevent the shifting during the use, while the reinforced top hook for secure the load attachment that a corrosion-resistant coating, which can withstand the rain, the dust and the humidity.
Product Parameter
| Item No. | NET55 | NET56 | NET57 | NET58 | NET59 |
| Model | BNX-300 | BNX-400 | BNX-500 | BNX-600 | BNX-700 |
| Rang(m) | 10-15 | 12-16 | 16-24 | 16-32 | 20-32 |
| Section（mm） | 300*300 | 400*400 | 500*500 | 600*600 | 700*700 |
| Main part size(mm) | 50*50*5 | 50*50*5 | 63*63*5 | 70*70*6 | 80*80*6 |
| Accessory size（mm） | 30*30*3 | 30*30*3 | 40*40*4 | 40*40*4 | 50*50*4 |
| Vertical Load（KN) | 17-35 | 29-51 | 41-93 | 72-221 | 115-294 |
| Safety Factor（K） | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Weigh（KG） | 33 | 43 | 54 | 63 | 75 |
Product Feature
Made with aluminum alloy offering an outstanding strength-to-weight ratio, the MARSHINE Aluminum Alloy Internal Suspension Tower Gin Poles are capable of holding the 1200kg loads yet they are weigh only 33kg-75kg, which allow it can maneuver over the rough ground easily. What set this tool in safe is built in a spring-loaded latch on the top hook to keep the loads secure, and its wide-base design that can reduce the tipping risk even on the slightly uneven ground. In addition, they require only the minimal maintenance because the aluminum alloy resists rust while the wear and the replacement parts like the latches or the winch adapters are available at the low costs.
Product Applications
A type of gin pole that excels in the scenarios where the space access or the mobility is limited is the MARSHINE Aluminum Alloy Internal Suspension Tower Gin Poles. In the rural power grid projects they’re used to erect around 35kV power poles in the mountainous areas where the cranes can’t reach with their lightweight design and can let the teams carry sections up to the narrow paths. They’re also ideal for the highway maintenance supporting the installation of the street lamp poles along the busy roads without blocking the traffic.
Product Details
The MARSHINE Aluminum Alloy Internal Suspension Tower Gin Pole is also pair seamlessly with the hand or the electric winches, which can add the flexibility to handle the loads from 500kg to 1200kg for the diverse lifting needs.
Original Country:China.
Leading Time:20-30days.
Certification:CE,ISO9001.
Warranty:1year.
