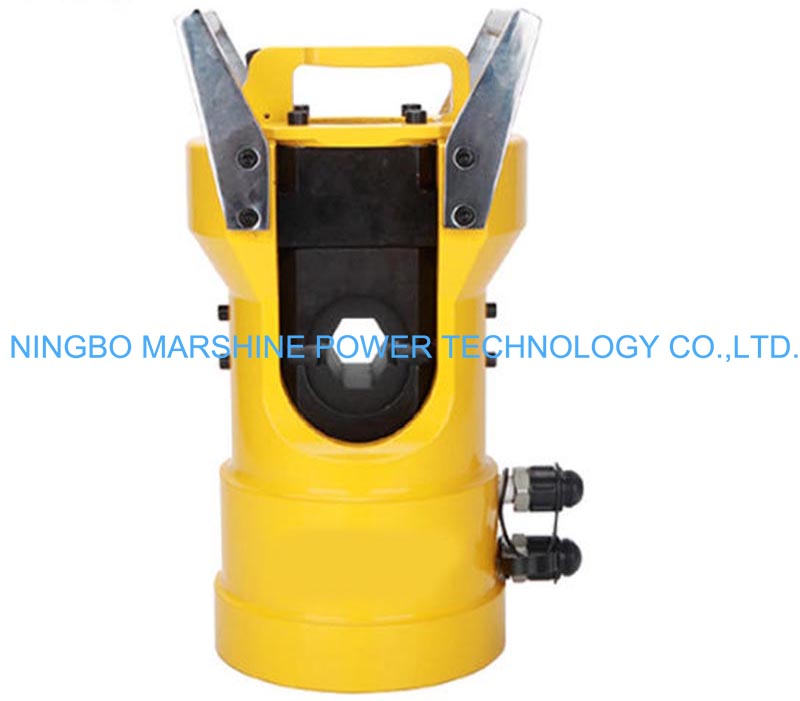

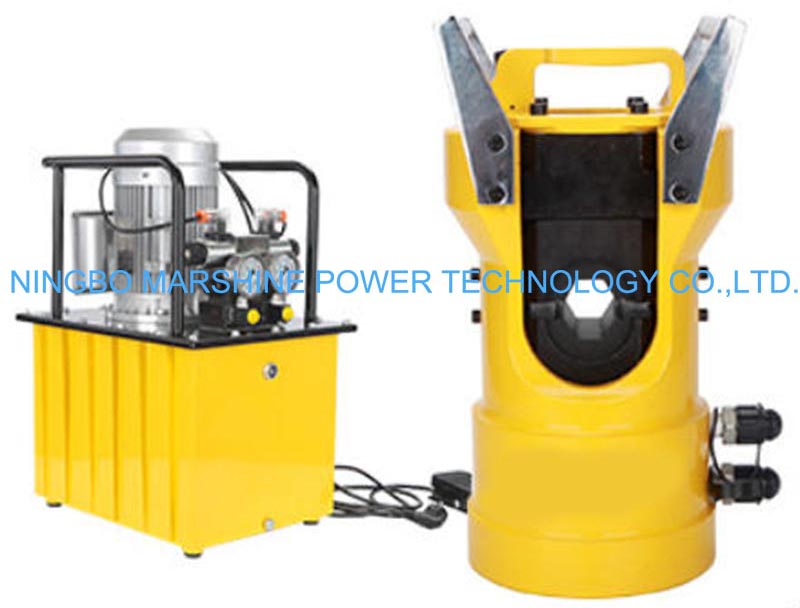

First, place the crimp connector on the wire or pipe sleeve, be sure the die surface is concentric with the terminal profile. The MRSHINE 100T Hydraulic Crimping Tool is designed for crimping loads up to 100 tons and can be used for aluminum wires ranging from 14 mm²to 76 mm²and copper wires up to 36 mm². Attach the crimp connector to the corresponding double-acting hydraulic pump with a pressure hose having a quick-connect fitting, and make sure the output power of the pump is appropriated. You can slowly increase pressure until the piston starts to compress the CHF, with a stroke of 24 mm the piston rod should move fully and evenly to carry out the crimp on the MRSHINE 100T Hydraulic Crimping Tool.
Once the crimp has been made, please gradually vent the pressure through the control valve of the pump, once more allowing for the retracting of the piston rod, this will also help to minimize die surface damage and assist with free piston rod movement. Once you release the crimp terminal, please open or rotate the die cover to remove it. The MRSHINE 100T Hydraulic Crimping Tool is equipped with rota table die cover and movable die system, which makes die change very easy after each operation. Please ensure the crimp terminal is hexagon clamped correctly and you are using the correct die size. Adjust the die size or the tool position if necessary to get the next terminal aligned. After using please clean the die surface for remove the debris and lubricate the guides lightly for smooth operation.
