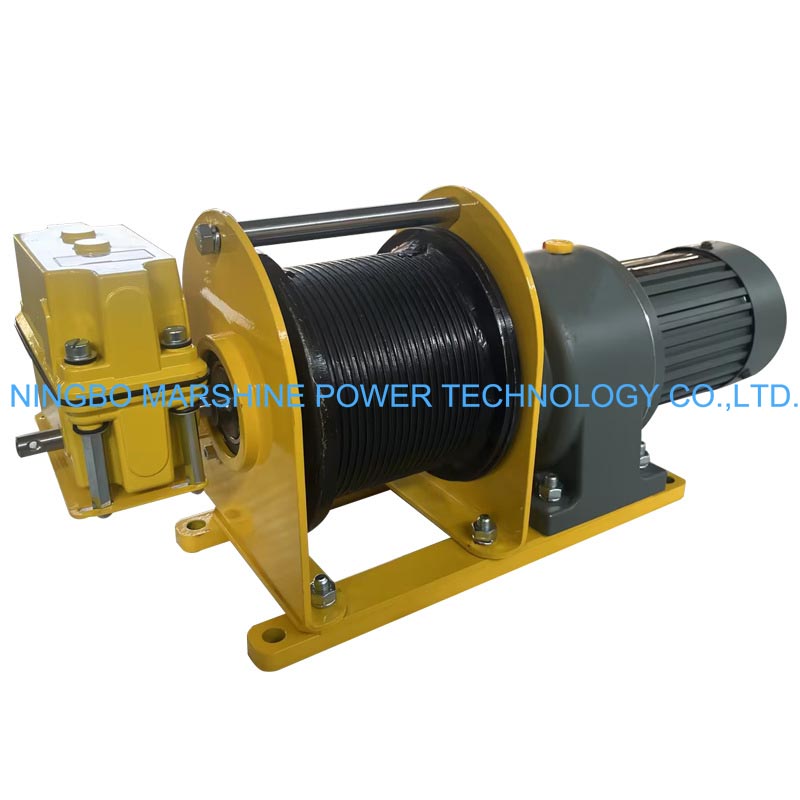

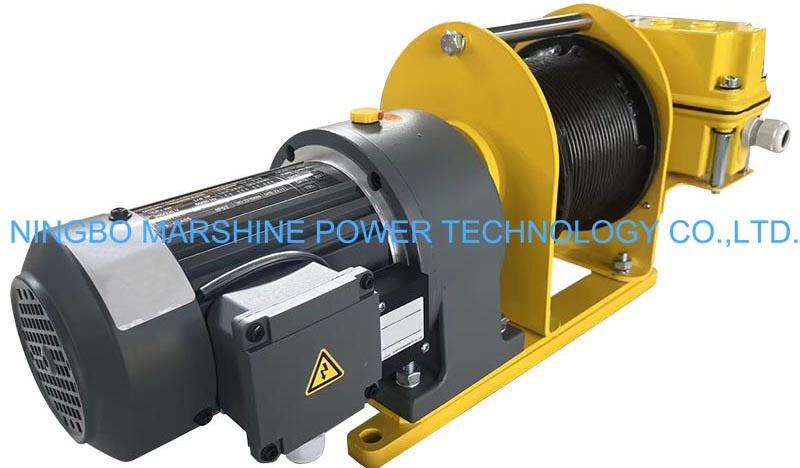

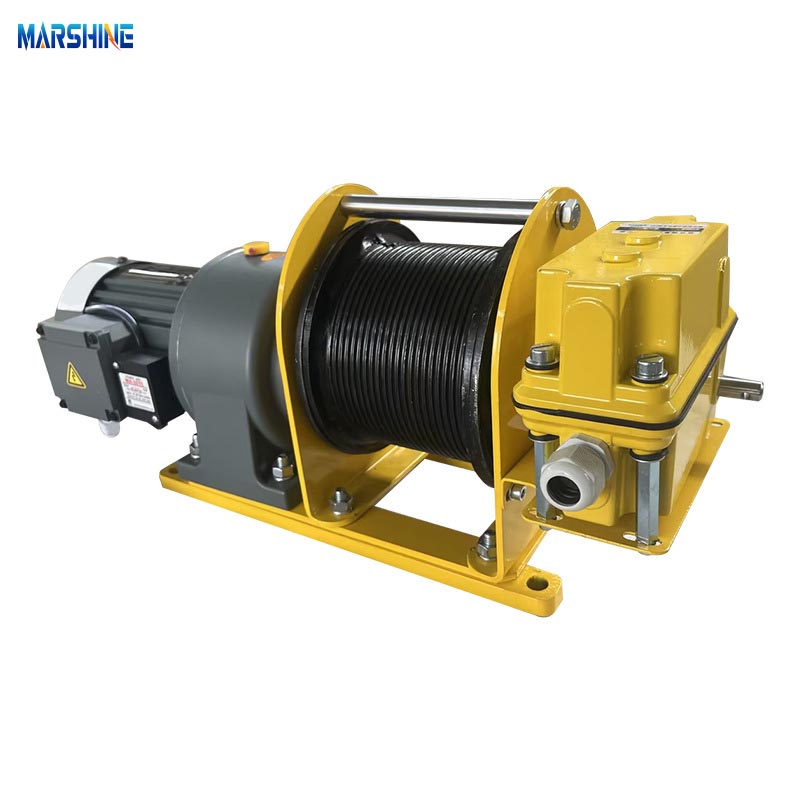

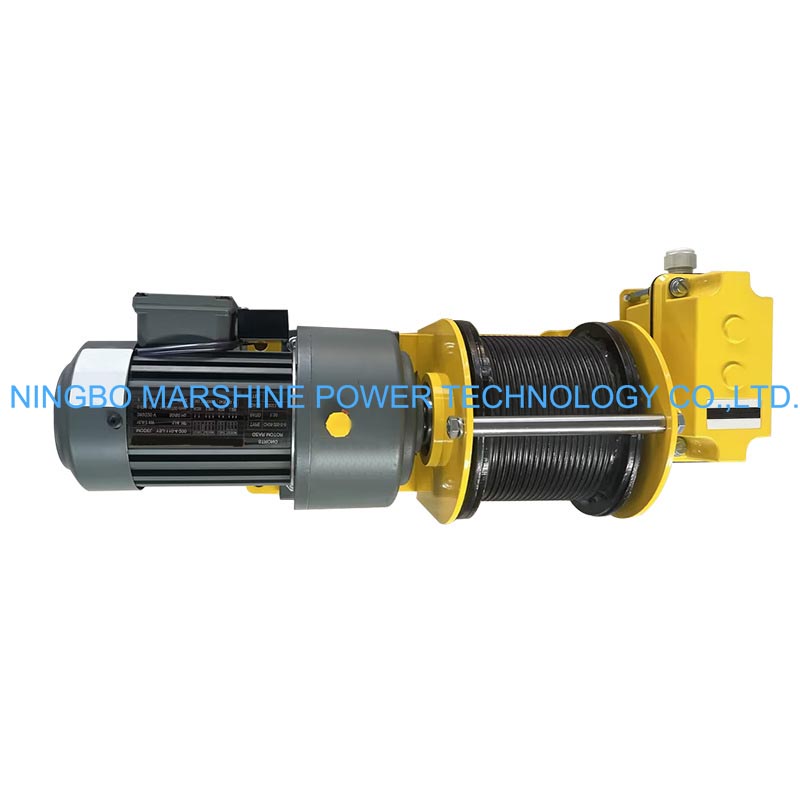

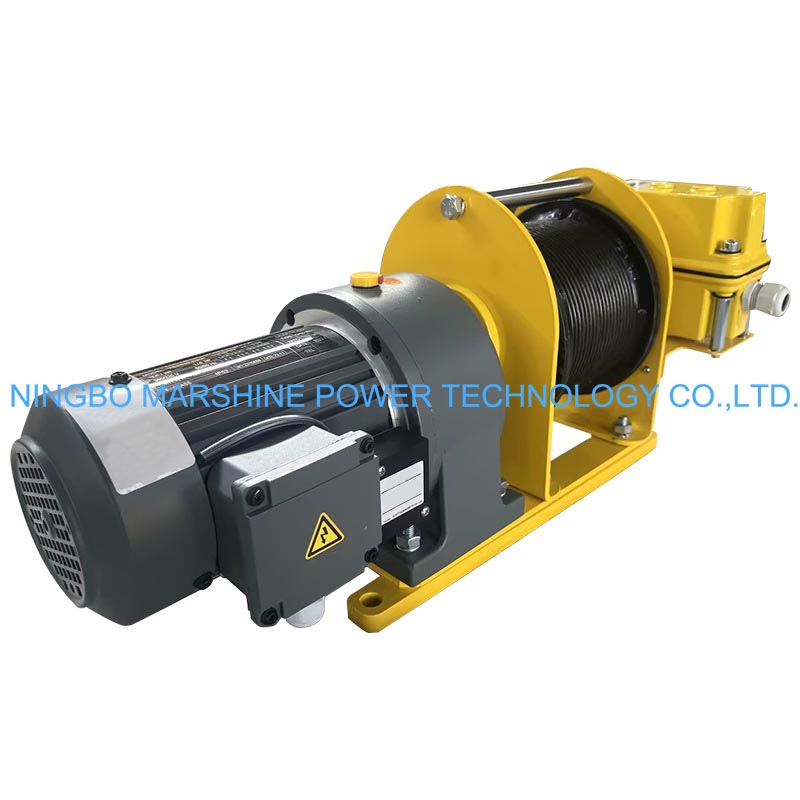

I-shaped Small Electric Powered Cable Winch

Model:MAI250

MARSHINE was a Chinese manufacturer of the electric power tools. Leveraging the good manufacturing process and the carefully selected materials, we insists on providing the cost-effective products with the competitive prices to the power industry workers and the technicians worldwide. This MARSHINE I-shaped Small Electric Powered Cable Winch was an electric winch with the compact design, which is able to provide the users with the reliable traction in the rugged or difficult-to-transport locations, so that to improve your team’s construction efficiency.

Send Inquiry

Product Description

As a compact yet powerful cable pulling winch machine that was designed to offer the users with the precision and the efficiency in confined or challenging construction environments, this MARSHINE I-shaped Small Electric Powered Cable Winch is able to deal with the medium to small duty cable installation tasks, and with its I-shaped frame, durable construction, and the powerful electric-driven motor, it is able to provide the stable, smooth cable pulling while saving the energy, and protecting the operator's personal safety.

Product Parameter

Model	Rated Tension (kg)	Lifting Speed (1 Layer) (m/min)	Wire Rope Diameter (mm)	Wire Rope Length (m)	Motor Power (kw)	Drum Speed (rpm)	Average Rope Speed (m/min)	Usable Rope (1 Layer) (m)	Weight (without rope) (kg)
MAI250	250	4.7	4	47.14	0.4	15	5.75	7	25
MAI250K	250	3.7	4	47.14	0.75	18.75	7.19	7	25
MAI500	500	3.5	6	59.72	0.37	7.9	4.145	8.4	65
MAI500K	500	8.5	6	59.72	0.75	15	8.295	8.4	65
MAI980	980	3.4	9	77.81	0.75	7.5	4.05	11	114
MAI980K	980	7.5	9	77.81	1.5	15	8.105	11	120
MAI1250	1250	5.9	9	64.32	1.5	10.71	6.6	8.7	125
MAI1600	1600	3.9	12	88.04	1.5	7.5	5.325	12.1	204
MAI1600K	1600	8.5	12	89.72	2.2	10	7.475	12.1	210
MAI3200	3200	6.0	14	65.18	3.7	7.65	6.56	11.4	224

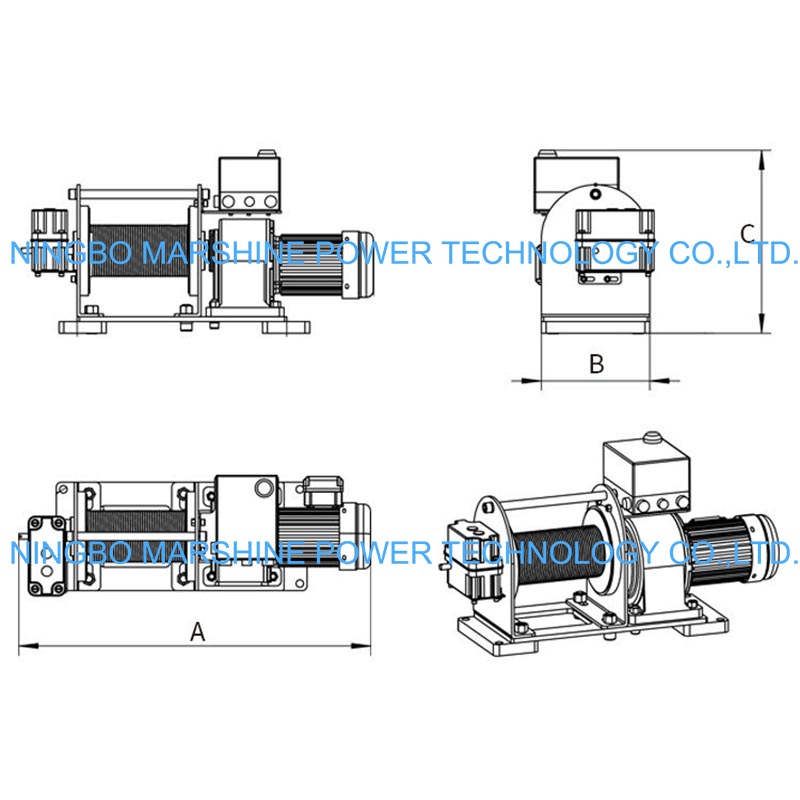

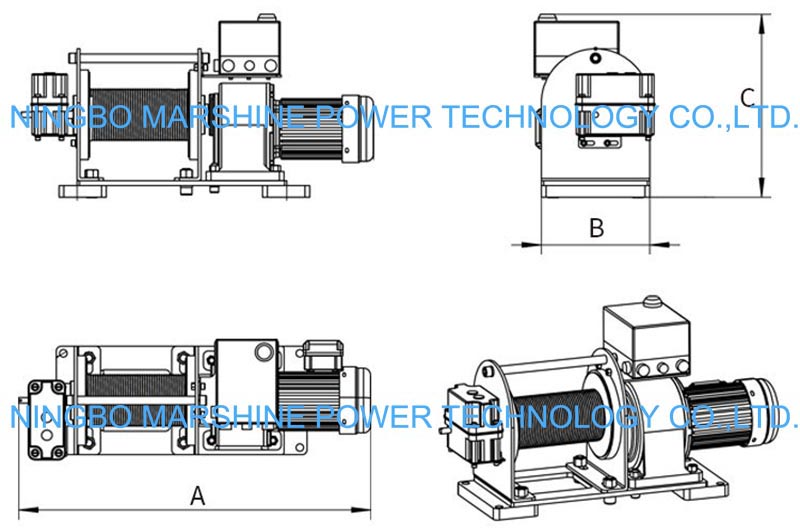

Model	Length(A) (mm)	Width(B) (mm)	Height(C) (mm)
MAI250	747	230	389
MAI250K	768	230	380
MAI500	757	200	411
MAI500K	774	260	406
MAI980	1014	220	429
MAI980K	1067	265	429
MAI1250	1004	310	484
MAI1600	1427	320	514
MAI1600K	1200	335	497
MAI3200	1283	360	534

Product Feature

Being a reliable cable winch machine, this MARSHINE I-shaped Small Electric Powered Cable Winch was been built with the high-strength steel and the protective oil-paint coating to ensures its long-lasting durability, and with the efficient electric powered motor, this winch can provide the consistent torque and the smooth operation to offer the users with less labor-efforts. Its compact I-shaped design can saving the space for the construction, and allows it to be transport and setup in the tight working areas with ease.

Product Application

Our MARSHINE I-shaped Small Electric Powered Cable Winch is suitable for the power cable installation tasks in the urban or the industrial sites, and is perfect for dealing with the telecom and the utility network constructions, or used to the overhead and the underground cable pulling operations. In addition, it is ideal for the indoor and the small-space operations, and is suitable for the electric power, railway, and infrastructure projects as well.

Product Details

This MARSHINE I-shaped Small Electric Powered Cable Winch is your reliable partner that can help you to handle the cable installation tasks with safety, efficiency and reliability.

Place Of Origin:Ningbo,China.

Warranty:1year.

Certification:CE.ISO.

Lead Time:25-30days.
