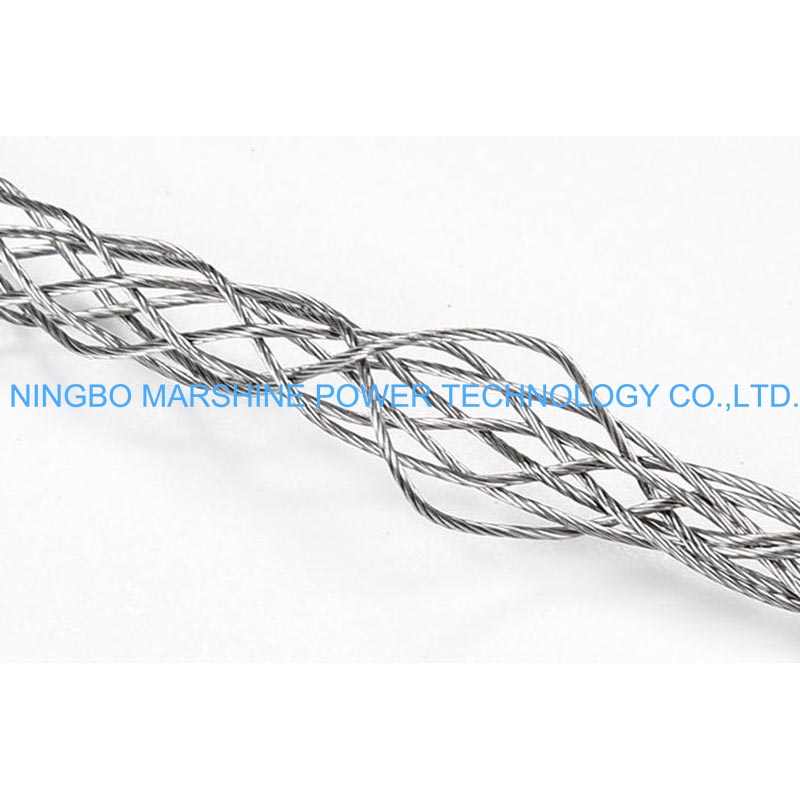

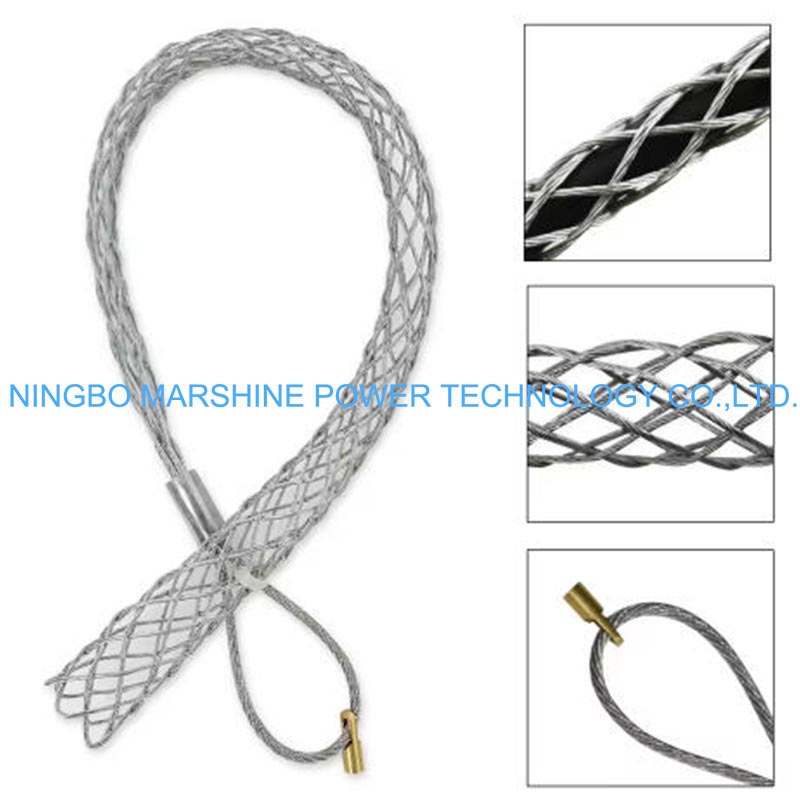

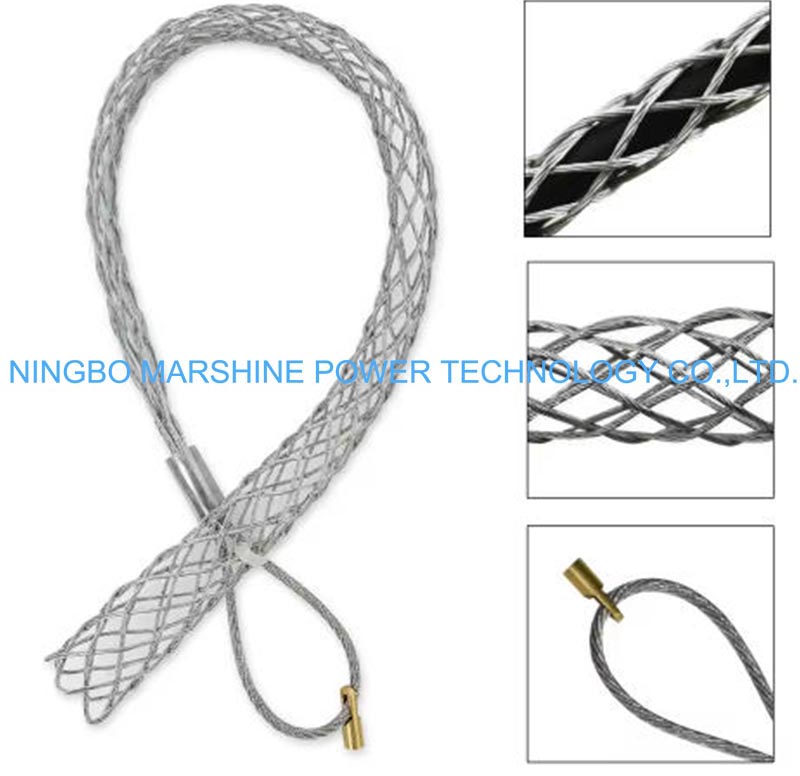

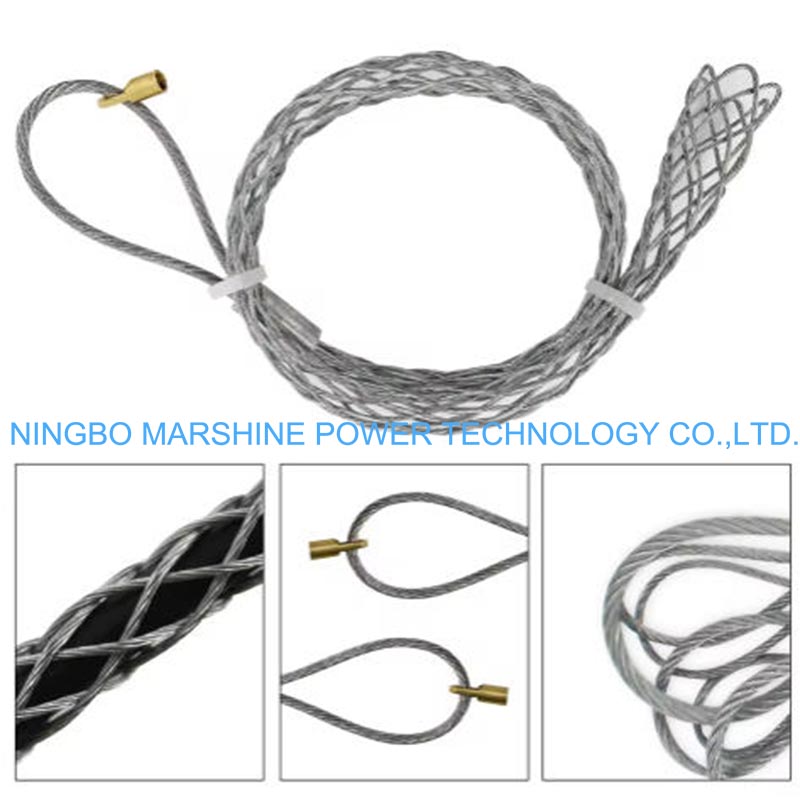

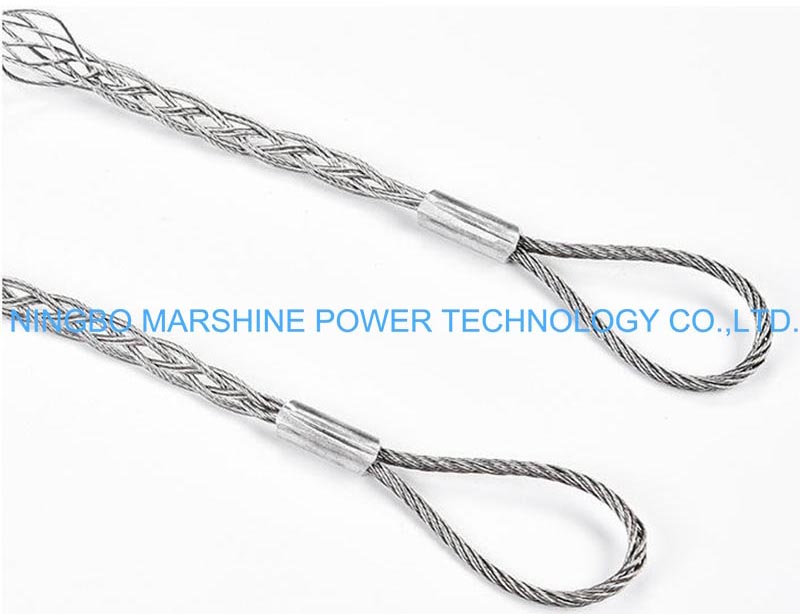

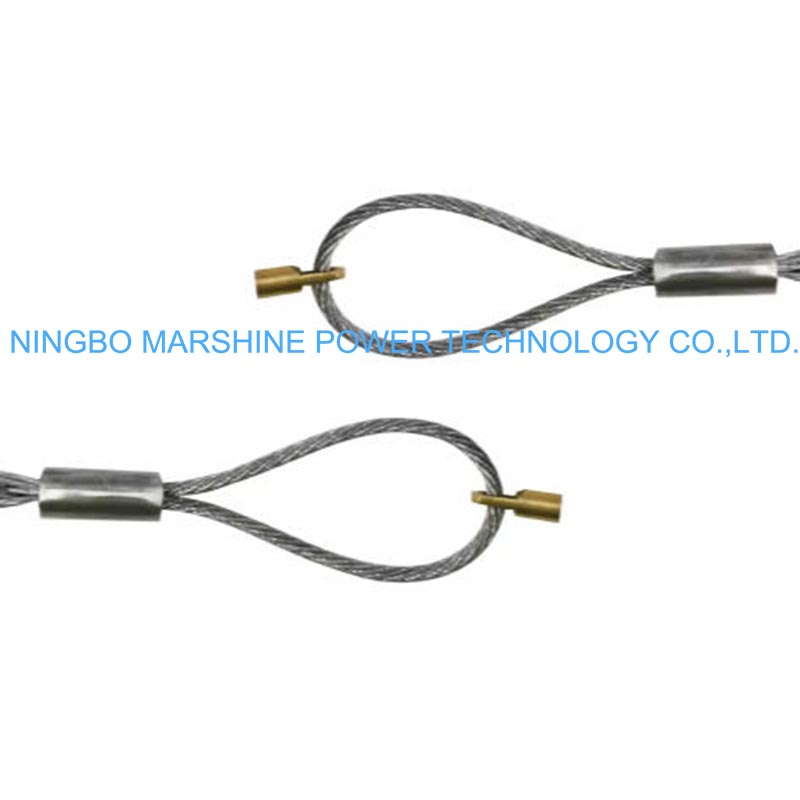

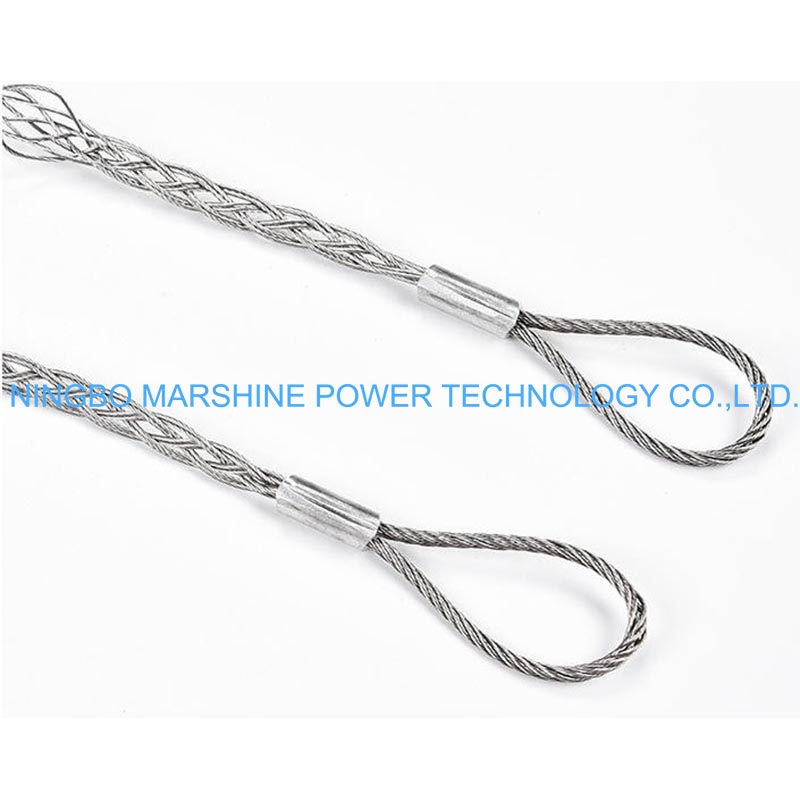

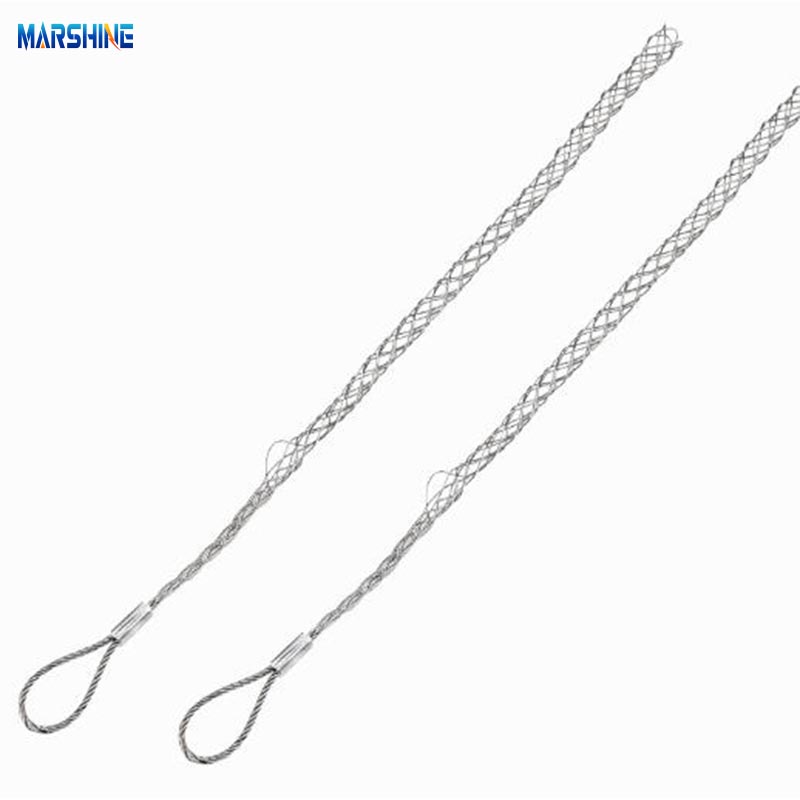

The MARSHINE Galvanizing Steel Cable Wire Pulling Sock is crafted from the high-tensile steel wire woven into a dense, expandable mesh structure, which can allow it to stretch and adapt to the cable diameters ranging from 19mm to 130mm that covering the common sizes for the power transmission cables, the telecom wires, and the industrial control cables. This wire pulling sock features a reinforced open end with a heavy-duty loop, which make it easy to attach to pulling the tools or lifting the hooks without slipping during the operation.
Product Parameter
| Model | Size Range(MM) | Mesh Length (MM) | Total Length (MM) | Weight(KG) | Breaking (KN) |
| CPS 19-25 | 19-25 | 76 | 90 | 0.29 | 1200 |
| CPS 25-38 | 25-38 | 96 | 111 | 0.45 | 1600 |
| CPS 38-50 | 38-50 | 117 | 133 | 0.82 | 3000 |
| CPS 50-63 | 50-63 | 136 | 154 | 1.14 | 4500 |
| CPS 63-89 | 63-89 | 200 | 230 | 2.30 | 6000 |
| CPS 89-115 | 89-115 | 240 | 270 | 2.89 | 8200 |
| CPS 115-130 | 115-130 | 240 | 270 | 3.78 | 11500 |
Product Feature
A cable pulling tool with expandable mesh that accommodates 19-130mm cables, which can cut down on the need to keep various sleeve sizes on hand for the different projects is the MARSHINE Galvanizing Steel Cable Wire Pulling Sock. The high-tensile steel wire construction delivers a maximum pulling load of 50kN, so that to ensure it can handle the heavy-duty cable pulling tasks without tearing or stretching out of the shape and unlike the flimsier nylon or the plastic sleeves. The reinforced loop end is designed for quick, secure attachment, and the technicians can fasten it to the winches or the hooks in seconds, which makes it able to cut down on the setup time.
Product Application
The MARSHINE Galvanizing Steel Cable Wire Pulling Sock is ideal for the underground cable laying, as its anti-corrosion coating is able to withstand the moisture in the trenches and its flexible mesh navigates bends in the duck-work, so that to ensure the smooth cable installation. For the industrial facilities, it simplifies the moving heavy-duty control cables between the machinery, which can keep the wires organized and reduce the risk of tangling during the equipment maintenance.
Product Details
Whether for the new installations or the cable replacement tasks, the versatility and durability of the MARSHINE Galvanizing Steel Cable Wire Pulling Sock can make it a reliable tool for the teams working with the electrical cables.
Place Of Origin: Ningbo, China.
Leading Time: 14-20days.
Certification: CE, ISO 9001.
Warranty: 1year.
Terminal Material: Aluminum.
