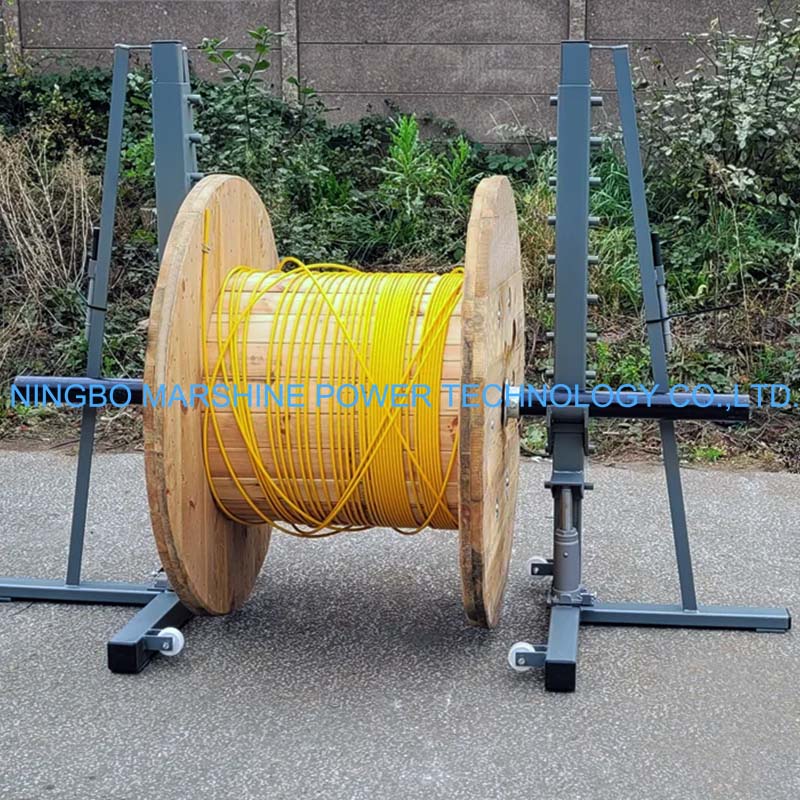

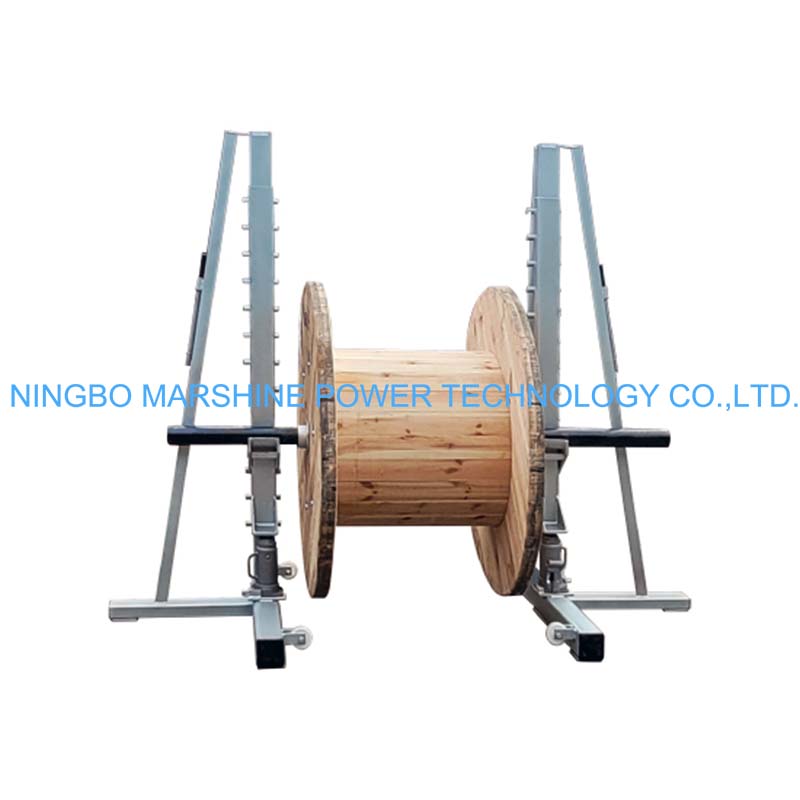

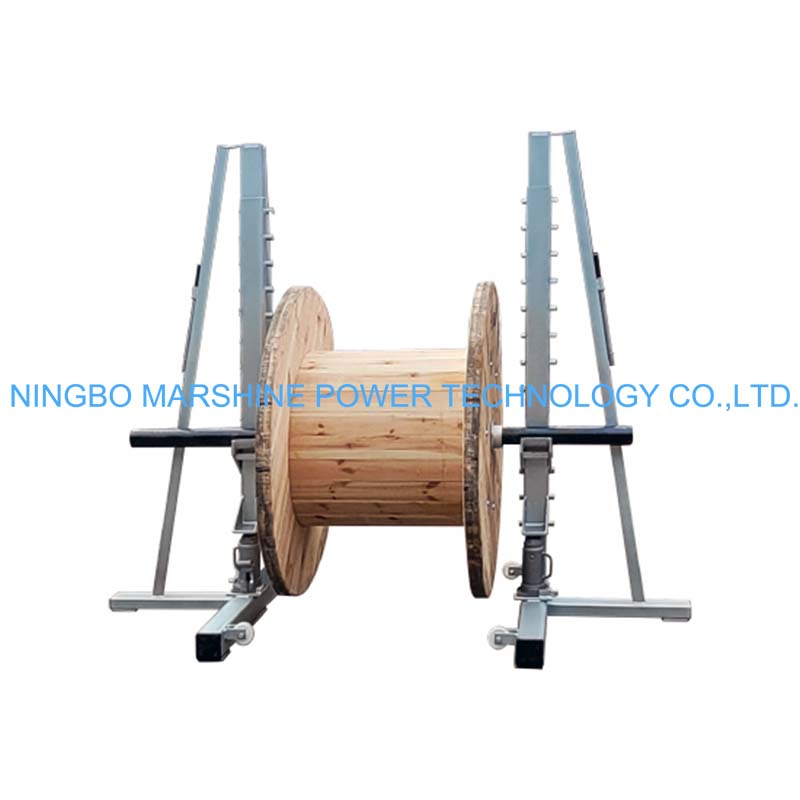

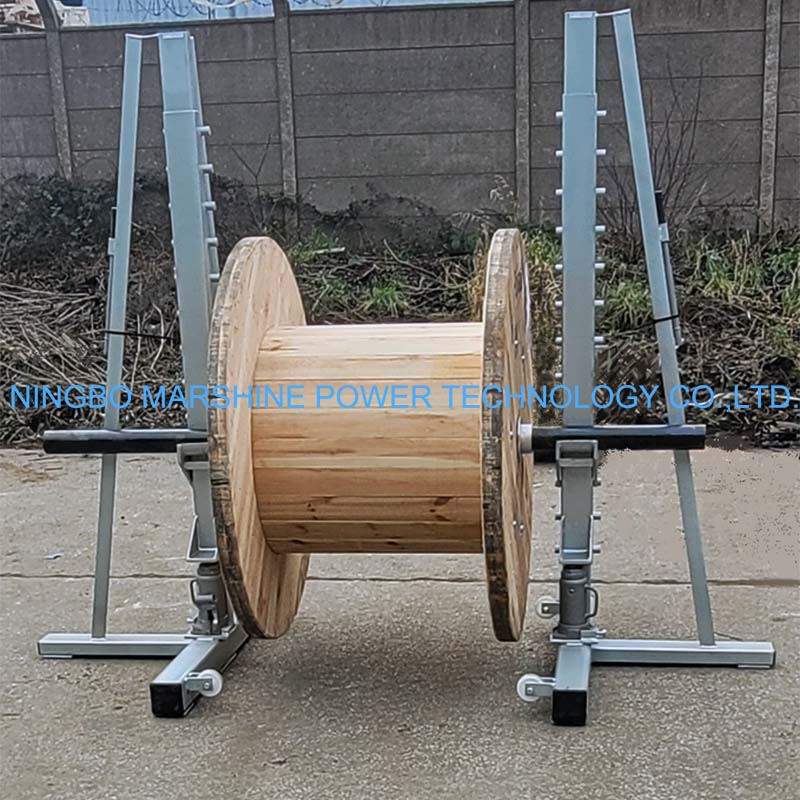

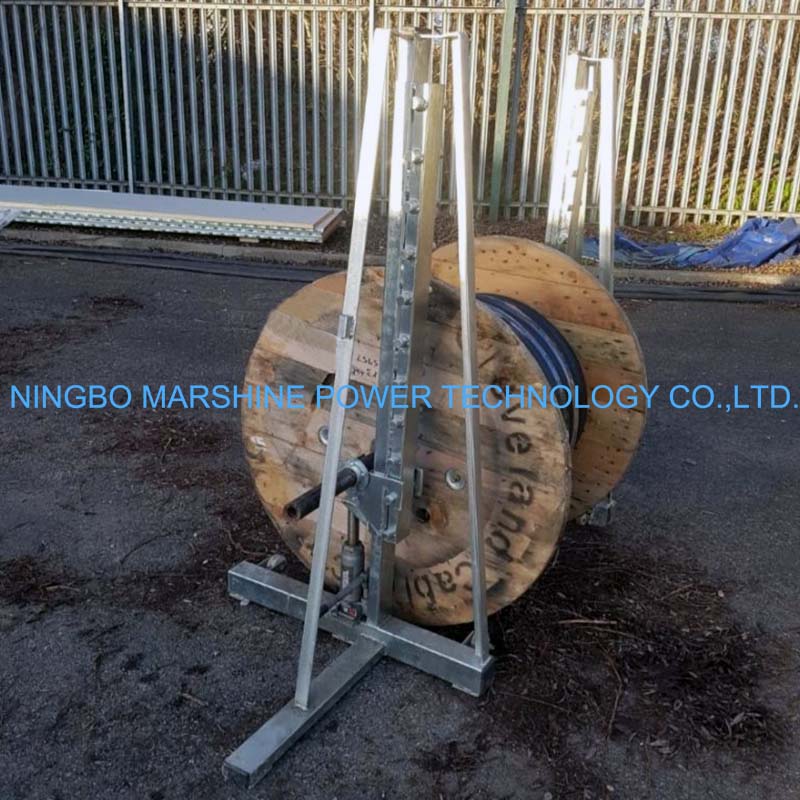

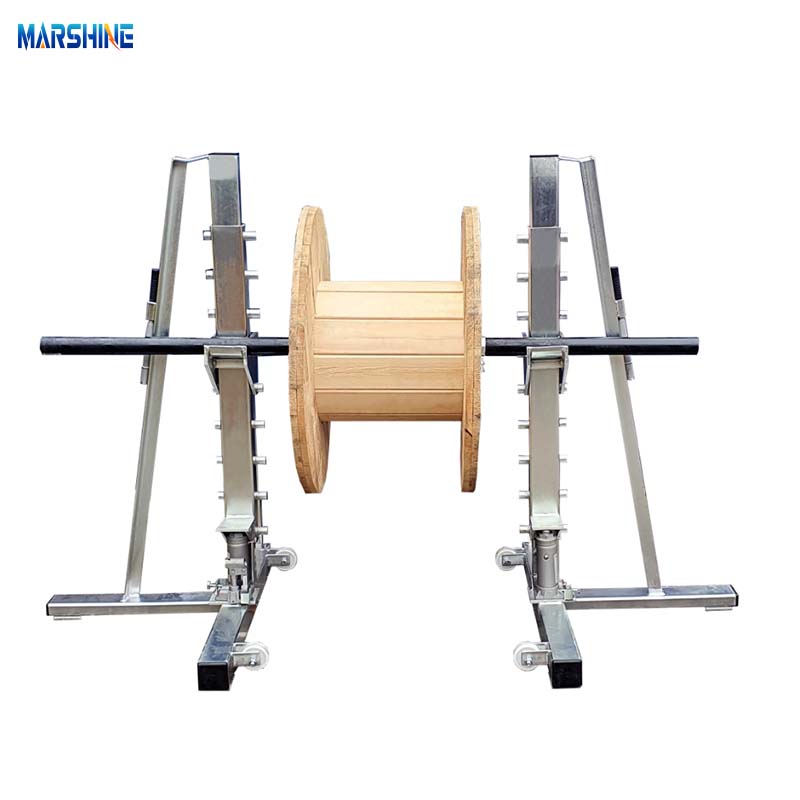

Constructed from heavy-duty galvanized steel, the MARSHINE Galvanized Steel MAR-HDJ Series Hydraulic Drum Jacks can offers outstanding structural strength and corrosion resistance for long-term use in cable yards, construction sites, and utility projects. Each set is supplied with a matching spindle bar and locking collars, providing a complete solution for handling cable drums of various sizes. Available in 3ton, 6.5ton, and 10ton lifting capacities, the MAR-HDJ Series combines reliable performance with enhanced operator safety through an automatic mechanical locking system.
| Model | MAR-HDJ3 | MAR-HDJ6 | MAR-HDJ10 |
| Capacity | 3000 kg | 6500 kg | 10000 kg |
| Base Size | 70*40 cm | 90*50 cm | 90*50 cm |
| Applicable Drum Diameter | 500-2500 mm | 900-3000 mm | 1000-3500 mm |
| Spindle | 5*180 cm Solid | 5*180 cm Solid | 76*200 cm Tubular |
| Weight/Set | 190 kg | 240 kg | 300 kg |
Hydraulic Lifting Mechanism
The integrated commercial hydraulic bottle jack provides smooth and efficient lifting with minimal manual effort, allowing operators to raise heavy cable drums quickly and safely.
Heavy-Duty Galvanized Steel Construction
Manufactured from high-strength steel and protected by a hot-dip galvanized finish, the frame delivers exceptional resistance to corrosion, impact, and harsh outdoor environments.
Automatic Mechanical Safety Lock
For enhanced workplace safety, each jack is equipped with an automatic mechanical lift lock that supports the load independently of the hydraulic system, reducing stress on the hydraulic components and preventing accidental lowering.
Multiple Capacity Options
The MAR-HDJ Series is available in three lifting capacities to suit different cable drum sizes:
MAR-HDJ3 for 3 Ton Capacity
MAR-HDJ6 for 6.5 Ton Capacity
MAR-HDJ10 for 10 Ton Capacity
This flexibility allows users to select the most appropriate model for their cable handling requirements.
Complete Drum Handling System
Each hydraulic drum jack set includes a pair of hydraulic lifting frames, a compatible spindle bar, and matching locking collars, enabling immediate deployment for cable drum lifting and controlled cable dispensing.
Integrated Transport Wheels
Heavy-duty wheels are fitted to each frame, allowing easy movement around cable yards, warehouses, and construction sites while reducing manual handling effort.
Wide Drum Compatibility
Designed to accommodate a broad range of cable drum diameters, the MARSHINE Galvanized Steel MAR-HDJ Series Hydraulic Drum Jacks are suitable for both standard utility cable reels and large industrial cable drums, providing excellent versatility across multiple applications.
The MARSHINE Galvanized Steel MAR-HDJ Series Hydraulic Drum Jacksare widely used in:
Power transmission and distribution projects;
Underground cable installation;
Telecommunications and fiber optic cable deployment;
Cable drum lifting and dispensing;
Utility maintenance and repair operations;
Cable manufacturing facilities;
Electrical contractor workshops;
Renewable energy infrastructure projects;
Cable storage yards and logistics centers;
Industrial and municipal infrastructure construction.
Brand:MARSHINE.
Condition:New.
Lead Time:15-20days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
