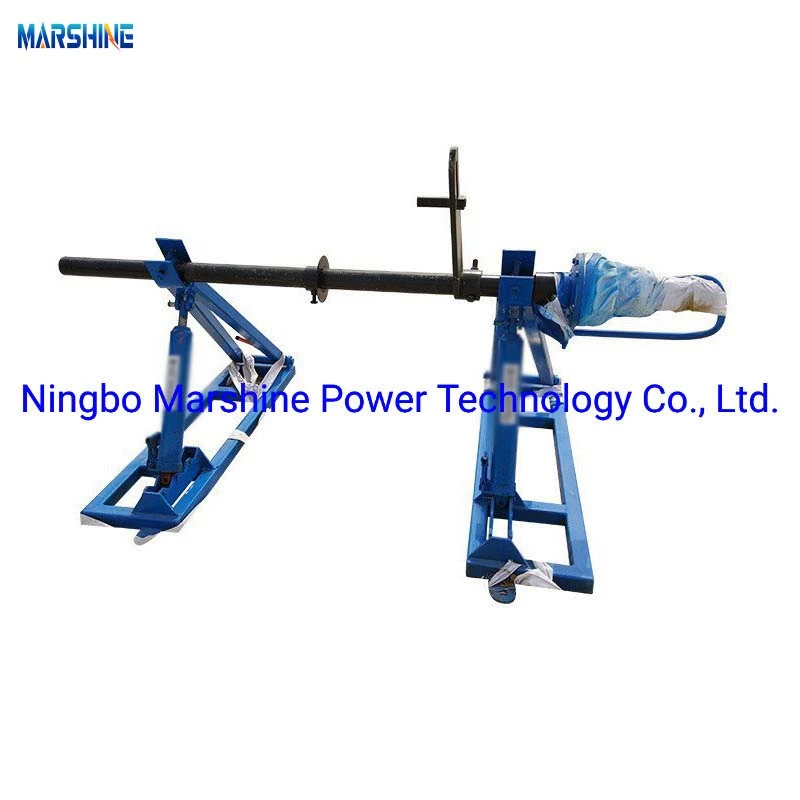

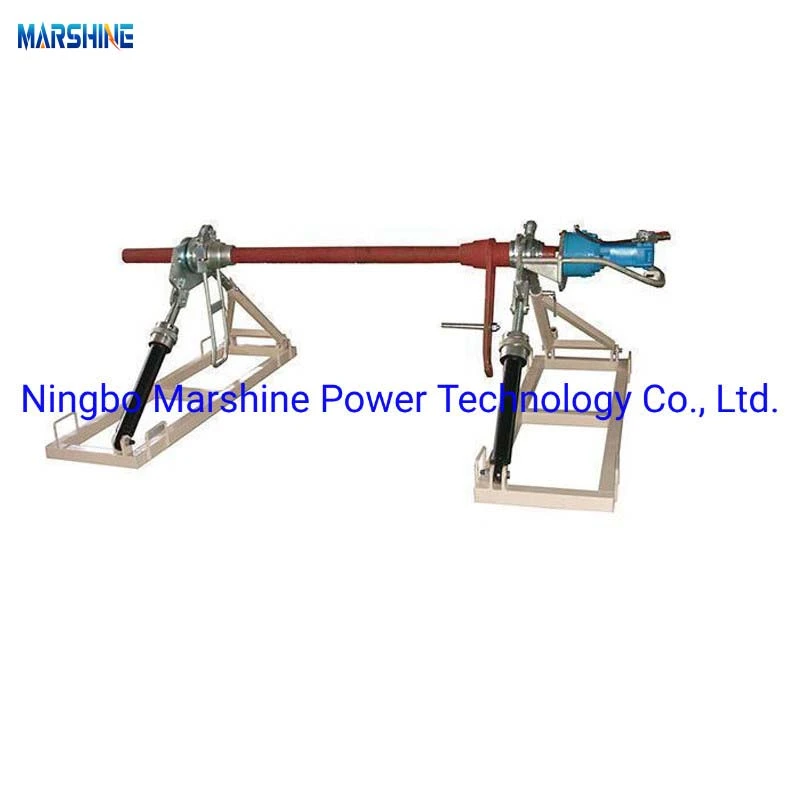

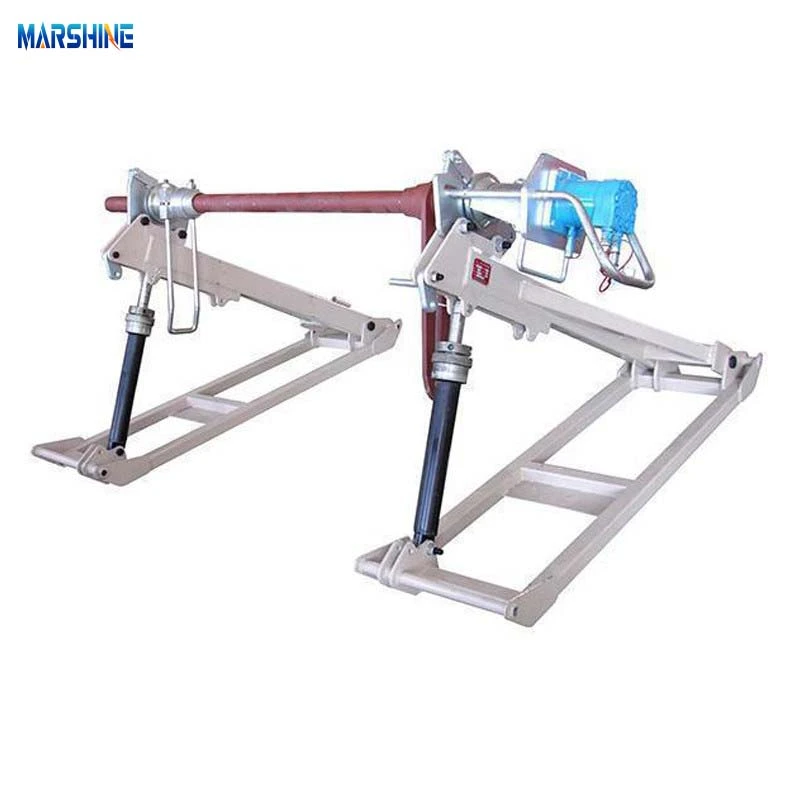

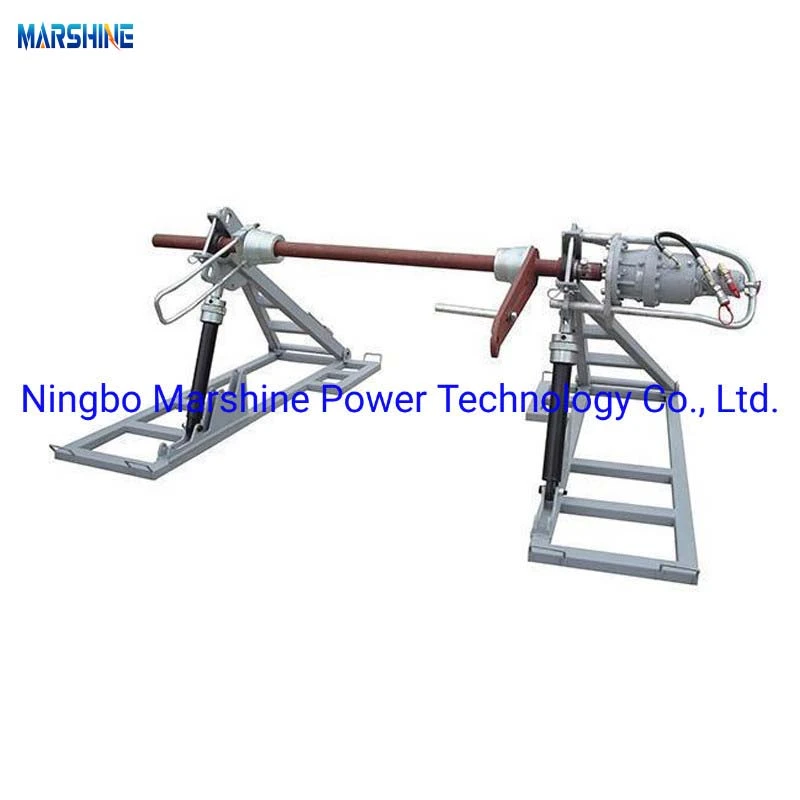

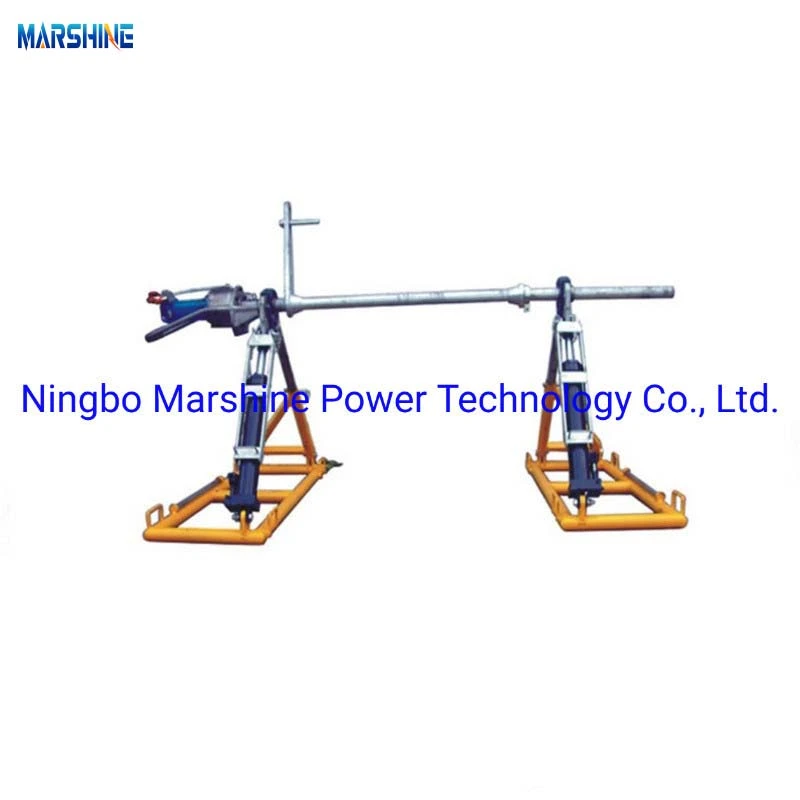

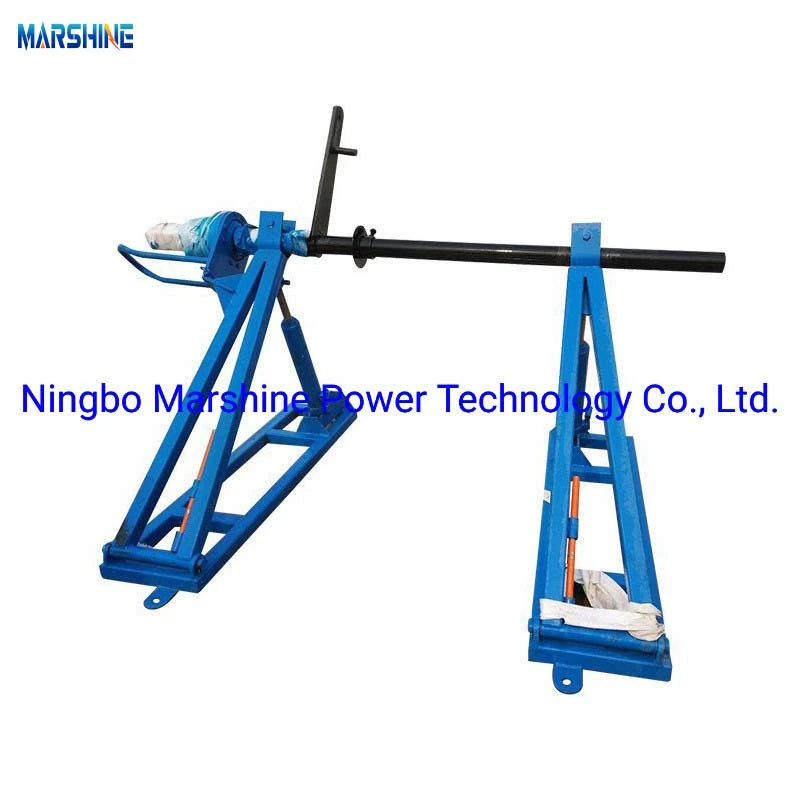

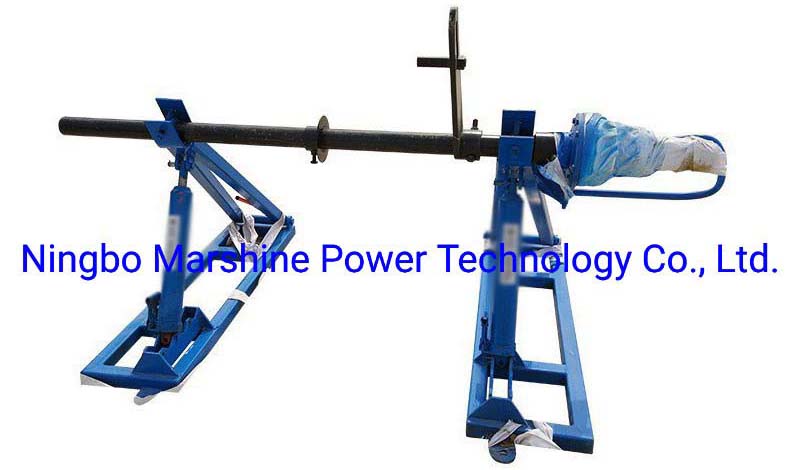

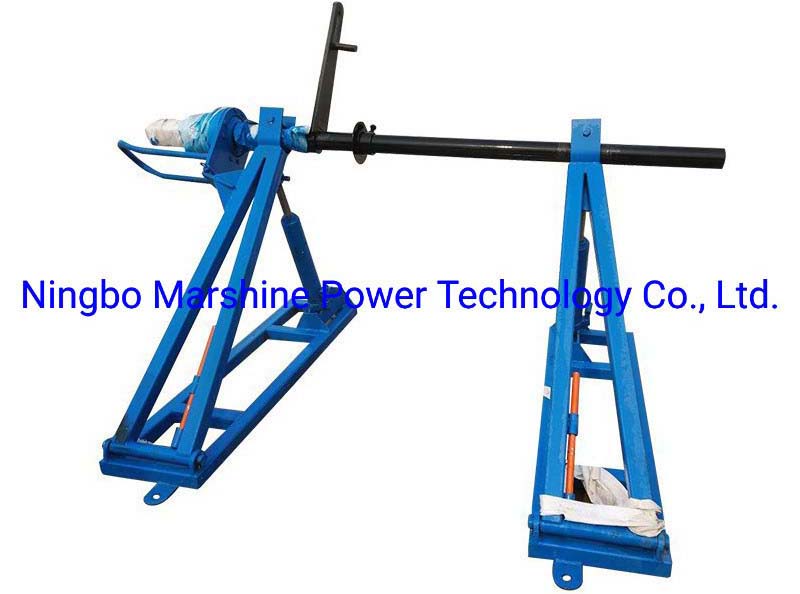

Hydraulic Cable Reel Drum Jack Stand

Model:DW2240A

As a robust and high tensile stand for cable drums, our MARSHINE Hydraulic Cable Reel Drum Jack Stand is known as its heavy duty, long service life and affordable price. This robust machine is a out-stand work from our MARSHINE, a large-scale company from China,who supply high-level standard reel jack stands for customers all over the world.

Send Inquiry

Product Description

As a efficient tool that can simplify the cable reel transportation, storage, and the deployment, the MARSHINE Hydraulic Cable Reel Drum Jack Stand was a robust yet versatile device which was engineered to streamline the operations in the energy, telecom, and the industrial sectors. Designed to safely lift, stabilize, and maneuver the heavy cable reels that weighing up to 10 tons, this hydraulic stand combines the rugged durability with the precision control, is able to reduce the manual labor, and enhancing the worksite safety.

Product Parameter

Item number		15151	15152	15153
Model		DW2240A	SIPZ-7H	SIPZ-7K
Applicable reel	Diameter of coil (mm)	φ1250~2240	φ1250~2500	φ1800~2800
	Max width of coil (mm)	1400		1700
	Diameter of axle hole (mm)	φ80-125		φ80-160
	Maximum weight (kg)	5000	7000	8000
Max working torque (N.m)		1200	2000	2500
Max Speed (rpm)		45
Axle diameter		φ76		φ69
Weight (kg)		270	350
Length of hydraulic tube		13

Product Feature

Powered by a heavy-duty hydraulic pump, the MARSHINE hydraulic cable reel drum jack stand can effortlessly lifts and lowers the cable reels with the smooth, controlled motion, no need for manual lifting or the heavy machinery. Been constructed from the high-strength reinforced alloy steel with the protective oil-paint coating to withstand the harsh environment conditions, this machine can ensures the long-lasting performance. The reinforced base and the wide-stance design can provide the operator with the outstanding stability. And due to its adjustable lifting height range, this stand can accommodates various of the cable reels and ensures the smooth alignment with the cable payout equipment.

Product Application

This MARSHINE hydraulic cable reel drum jack stand can be used to handle the heavy-duty industrial cables for the equipment power supply or the data transmission, or to manage the high-voltage power cable reels during the grid installations or repairs, and is able to transport and position the signaling or the electrification cable reels in the rail projects.
