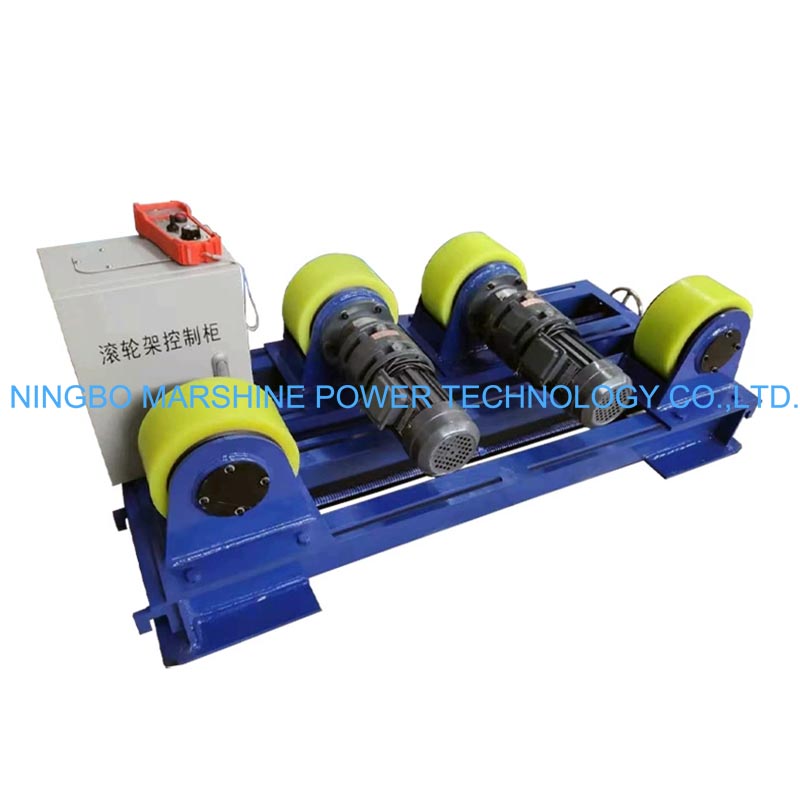

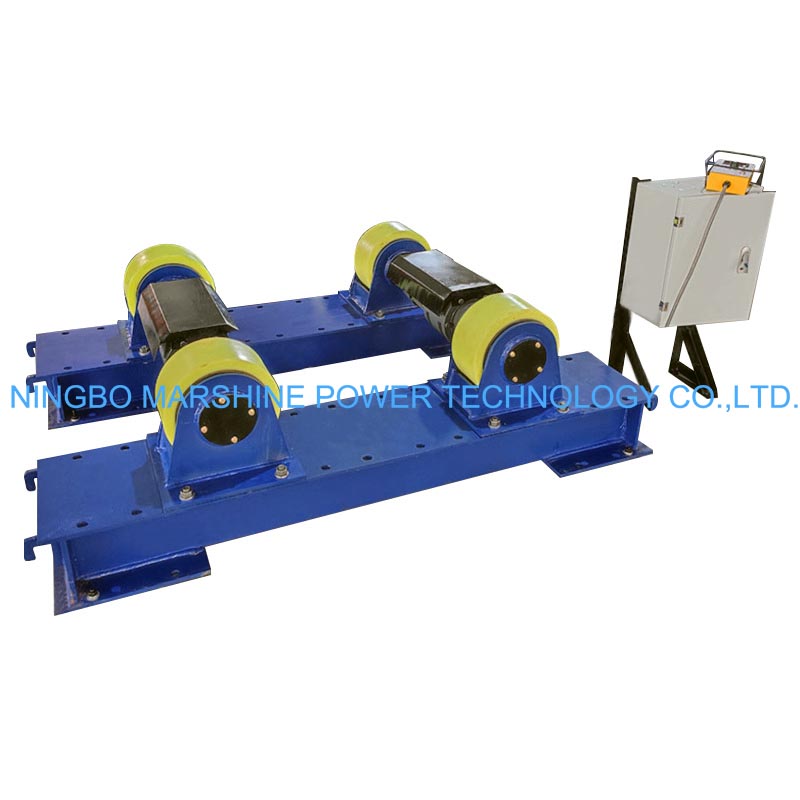

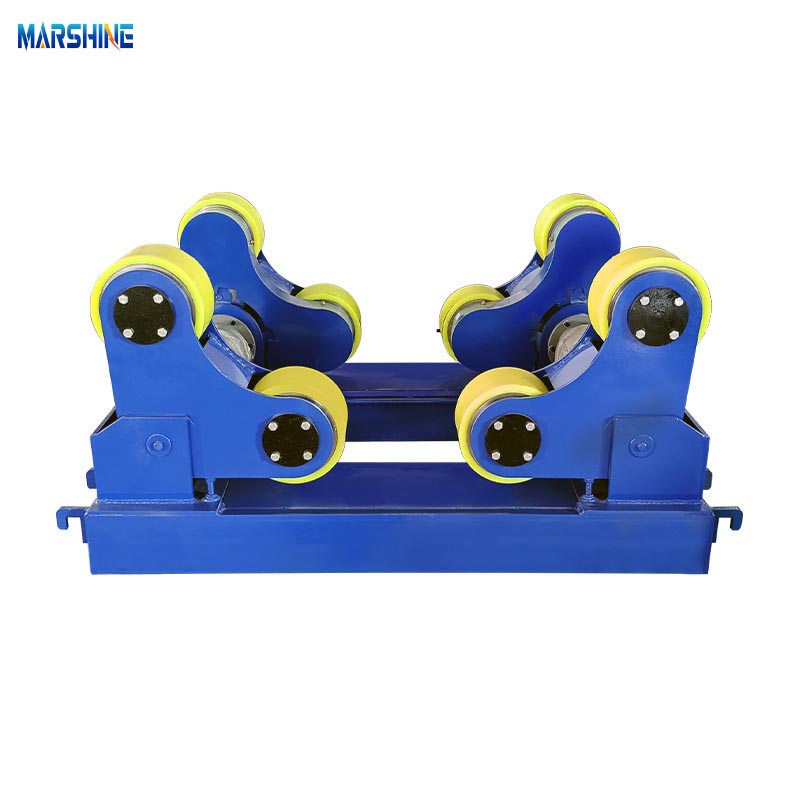

The MARSHINE Electric Motor Adjustable Reel Stand Rotating Platform is a dependable and high-performance cable reel rotation unit that makes the handling, unwinding and winding of cables, wires, hoses and the like easier. Its electric motor construction and flexible adjustable design enable technicians and installers to handle cable reels with minimal manual effort. It is suitable for workshop, building site and industrial uses where heavy cable rolling out or rolling in is an everyday job.
| Model | Capacity (T) | Applicable Range | Roller Size | Roller Material | Motor power | Weight |
| MARZT-5T | 5 | 300-2500mm | Φ220*120 | Polyurethane/steel | 2*0.37kw | 510kG |
| MARZT-10T | 10 | 500-3000mm | Φ250*120 | 2*0.55kw | 720kG | |
| MARZT-20T | 20 | 500-3800mm | Φ300*140 | 2*0.75kw | 1100kG | |
| MARZT-30T | 30 | 550-4500mm | Φ350*180 | 2*1.1kw | 2200kG | |
| MARZT-50T | 50 | 600-5000mm | Φ400*200 | 2*1.5kw | 3200kG | |
| MARKT-5 | 5 | 250-2500mm | Φ220*120 | 2*0.37kw | 550kG | |
| MARKT-10 | 10 | 350-3800mm | Φ250*120 | 2*0.55kw | 680kG | |
| MARKT-20 | 20 | 350-4500mm | Φ300*140 | 2*0.75kw | 980kG | |
| MARKT-30 | 30 | 350-4500mm | Φ350*180 | 2*1.1kw | 1500kG | |
| MARKT-50 | 50 | 350-4500mm | Φ400*200 | 2*1.5kw | 2600kG | |
| MARKT-5S | 5 | 250-2500mm | Φ220*120 | 2*0.37kw | 510kG | |
| MARKT-10S | 10 | 350-3000mm | Φ250*120 | 2*0.55kw | 700kG | |
| MARKT-20S | 20 | 350-3800mm | Φ300*140 | 2*0.75kw | 950kG |
Electric Motor Drive
The rotation of the reel platform is driven by a powerful motor, which can save the labors and then enhance the working efficiency.
Reel Width Adjustable
This MARSHINE Electric Motor Adjustable Reel Stand Rotating Platform can be mounted to different shafts to adapt to various reel widths with an adjustable width reel design for best versatility.
Stable Rotating Platform
The platform offers a solid foundation preventing the wobbling when rotate, makes the stability and uniformity of rotating the drum rolling smoothly.
Heavy-Duty Construction
Designed to handle the rigors of daily use in industrial applications while carrying heavy cable reels.
The MARSHINE Electric Motor Adjustable Reel Stand Rotating Platform is good for:
Cable Pulling & Deployment
Productive cable unwinding for install or maintenance work.
Cable Winding & Storage
Winding up used cables or spare ones onto reels for storage or transportation.
Industrial & Building Use
Drum electrical wire, fiber optic cable, rope and other material handling for heavy duty job sites or factory floors.
Workshop or Production Lane
enables you to maintain a steady reel motion while working on an operation or preparation.
Utility & Infrastructure Projects
Enabling a high pace power, communication, or fiber cable deployment in a large infrastructure build.
Brand:MARSHINE.
Condition:New.
Lead Time:30days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
