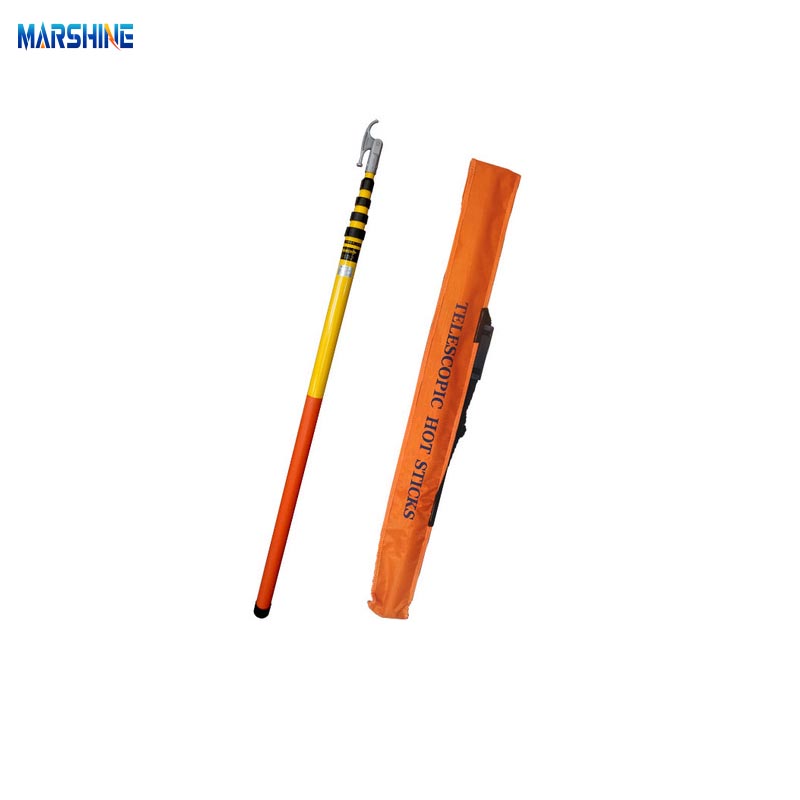

Triangular Telescopic Link Stick

Model:MASJ-243

MARSHINE is a Chinese manufacturer of power tools. In the past decade, we have been providing the cost-effective insulated operating tools to the customers around the world with the competitive prices. This MARSHINE Triangular Telescopic Link Stick is a high-efficiency retractable insulated operating rod that can effectively cope with the different live operating situations, and is an reliable safety tool for the linemen and utility electricians.

Send Inquiry

Product Description

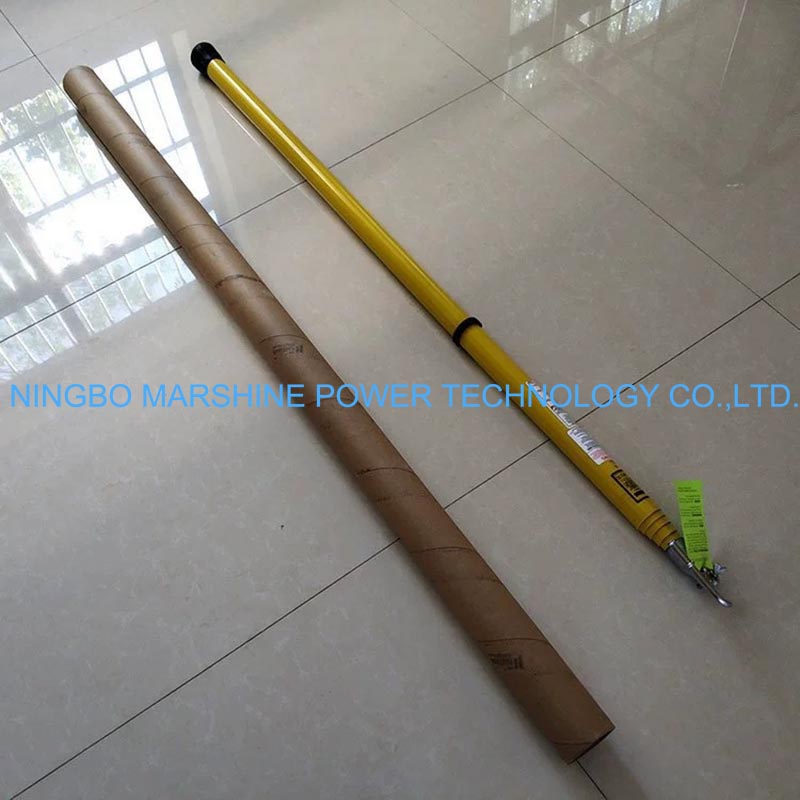

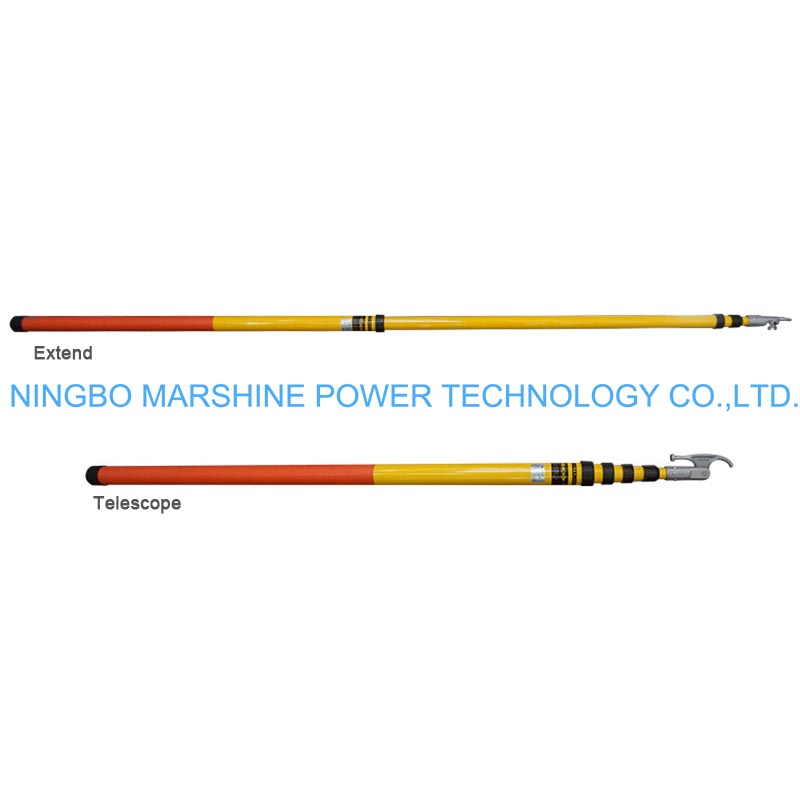

The MARSHINE Triangular Telescopic Link Stick is a high-voltage insulating safety tool specially designed for the electrical operations such as the switching, disconnecting, grounding, and the maintenance on the energized power lines. Constructed with the premium-grade fiberglass and a triangular telescopic design, this tool can ensures the high mechanical strength, with the outstanding 10-66kV insulation performance, it is able to provide the safety during the live-line work. Its telescope fiberglass structure allows it for the easy transportation and can storage with ease while maintaining its rigidity when it was extended.

Product Parameter

Model	Extended(m)	Retracted(m)	Outer diameter of bottom bar (mm)	Sections	Weight(kg)	Moisture-proof bag model	Applicable Voltage(KV)
MASJ-243	2.43	0.83	44.6	5	1.75	FC－90	10-66
MASJ-380	3.8	1.485	37	3	1.85	FC-150
MASJ-500	5	1.55	40.4	4	2.6	FC-160
MASJ-643	6.43	1.625	44.6	5	3.4	FC-165
MASJ-780	7.8	1.67	48.4	6	4.25	FC－170
MASJ-921	9.21	1.72	52.4	7	5.1	FC-175
MASJ-106	10.6	1.77	56.5	8	6.2	FC-180
MASJ-120	12	1.82	60.3	9	7.2	FC-185

Product Feature

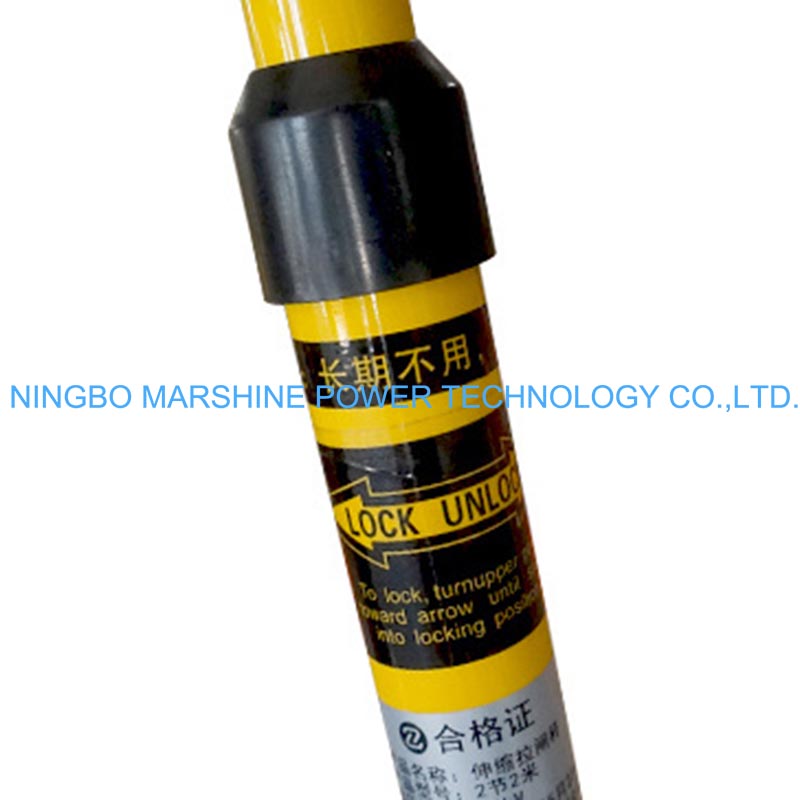

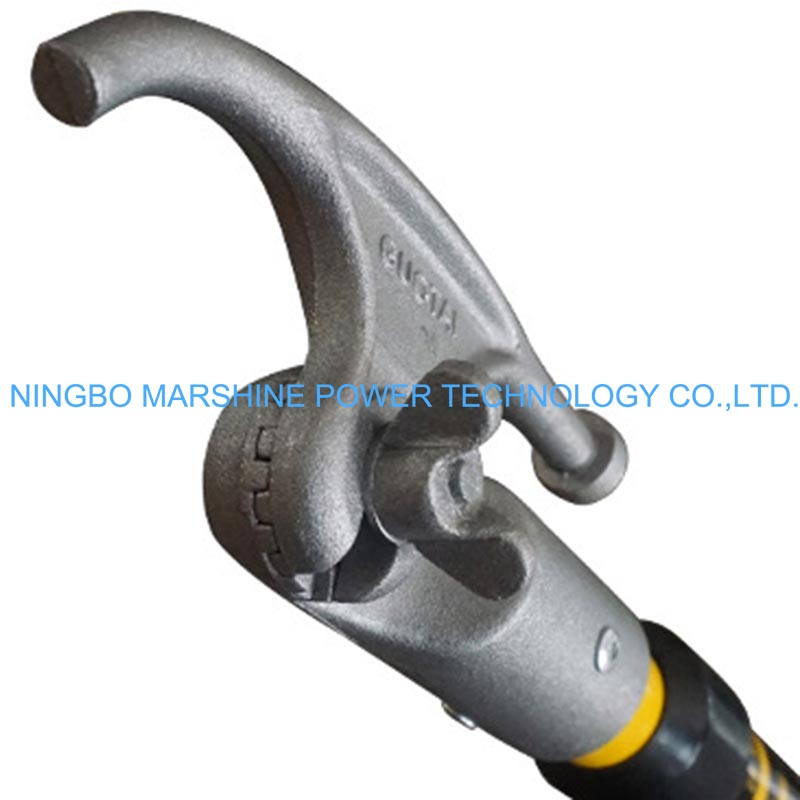

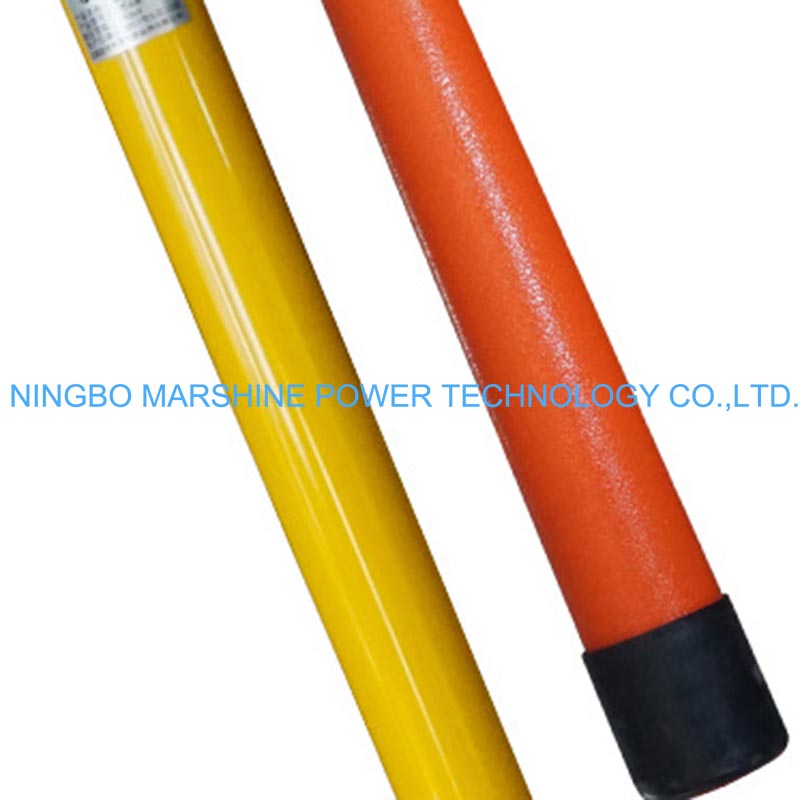

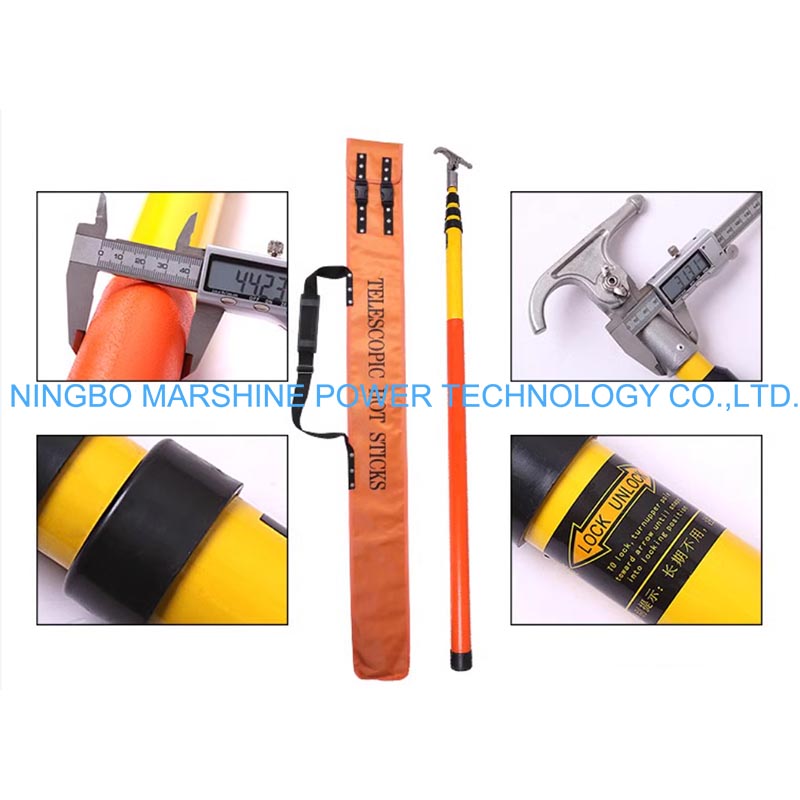

Manufactured from the high-quality epoxy resin fiberglass,our MARSHINE Triangular Telescopic Link Stick owns the superior electrical insulation properties. With the high strength yet lightweight construction, this stick is easy to handle, can help you deal with the prolonged operations. The handle is enhanced and with the triangular structure to prevent the rotation during the use, can provide more control and stability to the operators. And with the each section can be securely locked in place, it can maintain the optimal length during the use. With the high-quality low carbon alloy steel made operation head, it is able to withstand the harsh outdoor construction environments.

Product Application

Our MARSHINE Triangular Telescopic Link Stick is able to deal with the electrical maintenance in the substations and the transmission lines, or for the grounding and voltage testing in the power distribution systems, and can apply on the inspection or the maintenance of the overhead lines and live-line tools, or deal with the telecom and railway power line works. In addition, it is also able to operate the disconnect switches and the circuit breakers on the live lines.
