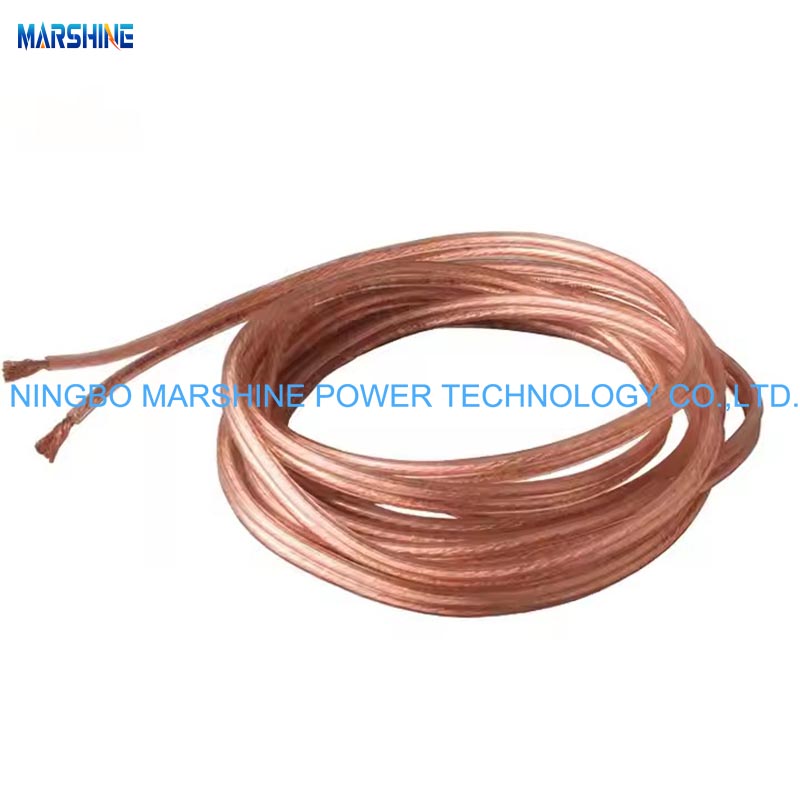

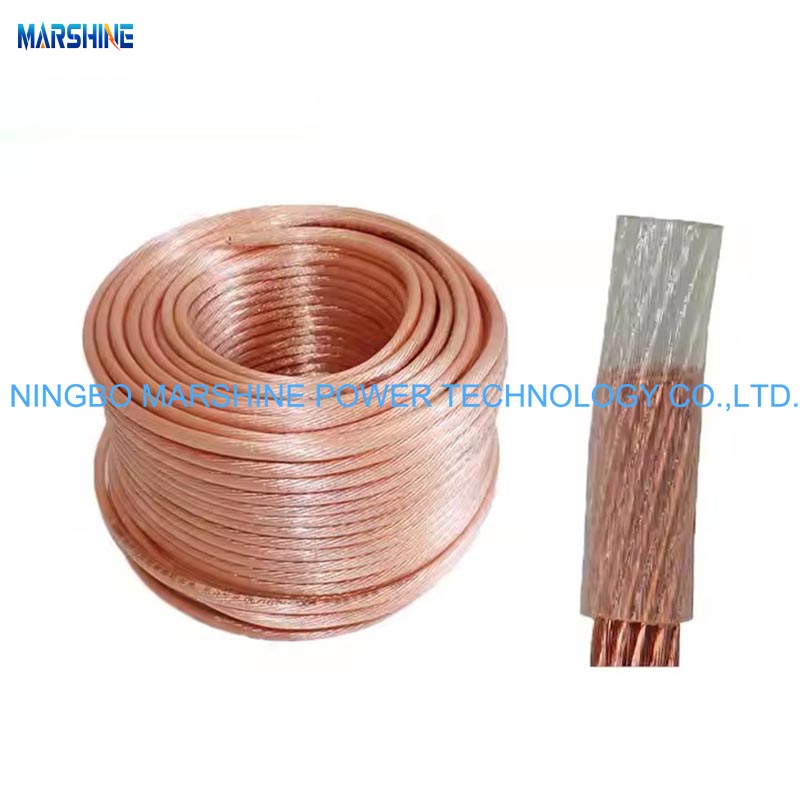

Been made of high-quality copper stranded wire. this MARSHINE Copper Braided Ground Wire is a flexible, highly conductive grounding solution that is ideal for grounding and earthing applications that require flexibility, strength and conductivity. It has excellent electrical performance and mechanical durability and is widely used in electrical installations, substations and industrial grounding systems.
Product Parameter
| Section(mm2) | Structure | Dimensions | Weight | ||
| Cross-sectional area(mm2) | Weighing area(mm2) | Number of strands x number of roots x number of sets/Single wire diameter (mm) | Width not greater than(mm) | Thickness not more than(mm) | Kg/m |
| Structural compositionNumber of strands x number of roots xNumber of sets/single wire diameter | Calculate weight | ||||
| 2 | 2.12 | 24x5x1/0.15 | 5.0 | 1.0 | 21 |
| 2.5 | 2.54 | 24x6x1/0.15 | 6.0 | 1.0 | 25.4 |
| 3.18 | 36x5x1/0.15 | 8.0 | 1.5 | 32 | |
| 4 | 4.24 | 24x10x1/0.15 | 7.0 | 1.5 | 42.2 |
| 6 | 6.36 | 36x10x1/0.15 | 11.0 | 1.5 | 63.80 |
| 8 | 8.45 | 48x10x1/0.15 | 13.0 | 1.2 | B5 |
| 10 | 10.60 | 40x15x1/0.15 | 15.0 | 2.0 | 106 |
| 10.18 | 48x12x1/0.15 | 16.0 | 1.5 | 102 | |
| 12 | 12.72 | 48x15x1/0.15 | 18.0 | 1.8 | 128 |
| 16 | 16.96 | 48x20x1/0.15 | 22.0 | 2.0 | 170 |
| 20 | 21.20 | 48x25x1/0, 15 | 25.0 | 2.0 | 212.50 |
| 25 | 25.45 | 48x30x 1/0.15 | 28.0 | 3.0 | 254 |
| 25.45 | 4Bx15x210, 15 | 20.0 | 3.5 | 254 | |
| 35 | 33.93 | 64x30x1/0, 15 | 40.0 | 2.2 | 340 |
| 33.93 | 4Bx20x210.15 | 26.0 | 3.2 | 340 | |
| 50 | 50.87 | 64x45x1/0.15 | 50.0 | 3.0 | 510 |
| 50.87 | 48x30x2/0, 15 | 30.0 | 3.2 | 510 | |
| 50.89 | 48x20x3/0.15 | 28.0 | 4.8 | 510 | |
| 75 | 76.34 | 80x54x1/0.15 | 32.0 | 3.5 | 765 |
| 76.34 | 48x30x3/0.15 | 36.0 | 5.0 | 765 | |
| 95 | 95.00 | 48x28x4/0.15 | 35.0 | 6.0 | 950 |
| 100 | 100.09 | 96x59x1/0.15 | 80.0 | 4.0 | 1000 |
| 120 | 127.23 | 48x30x5/0.15 | 42.0 | 7.0 | 1271.80 |
Product Feature
With its superior features, this MARSHINE Copper Braided Ground Wire can effectively improve the efficiency of your team and provide a safe operating environment for technicians performing construction.
High conductivity: Made of high-quality copper materials, this grounding wire has excellent electrical properties.

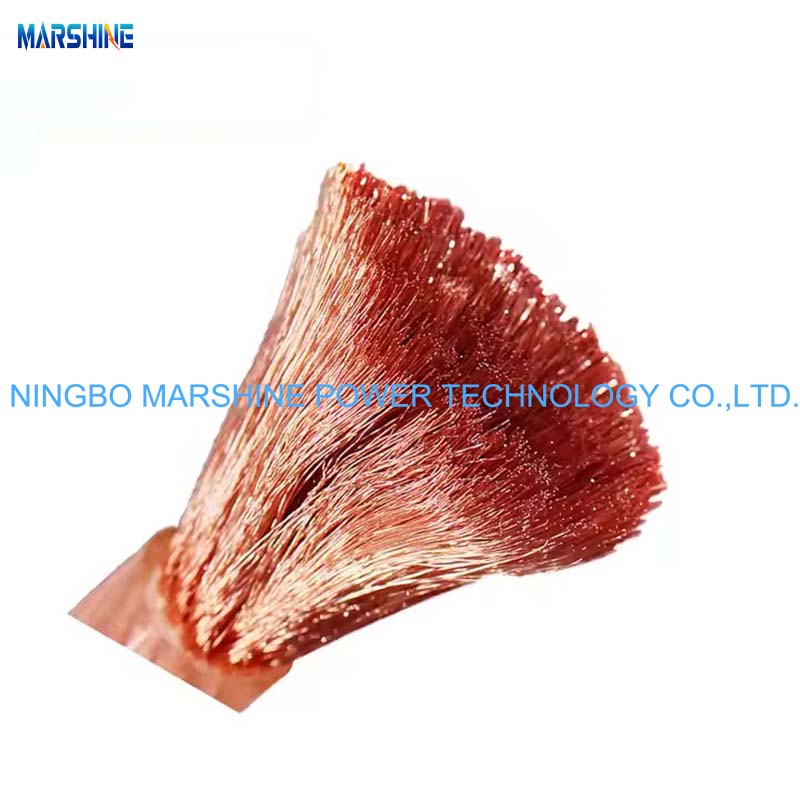

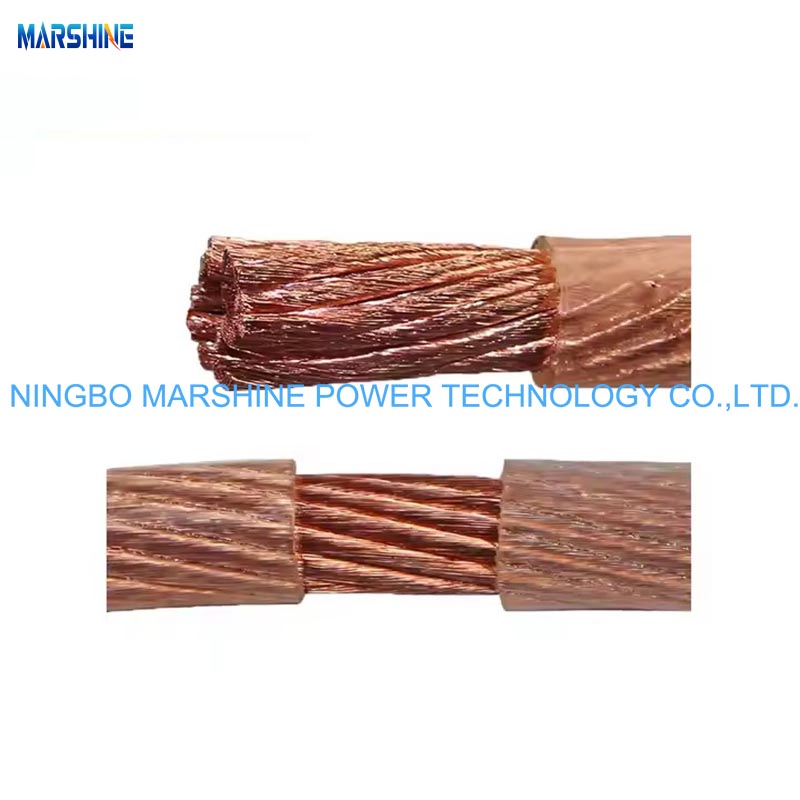

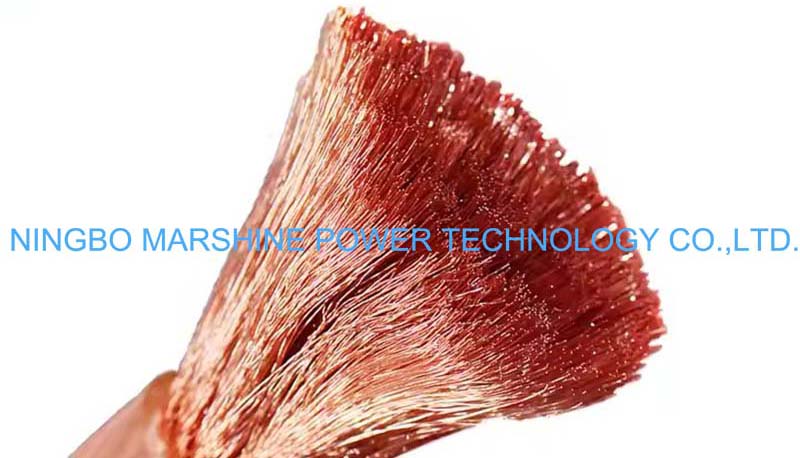

Excellent flexibility: The grounding wire adopts a braided structure to ensure flexibility and easy installation in narrow or complex spaces.

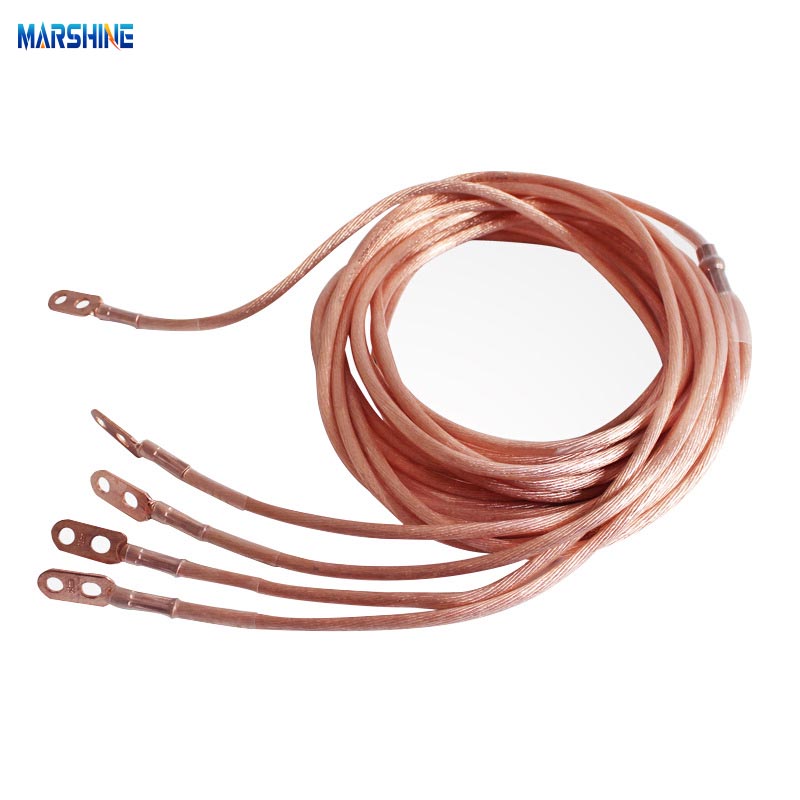

Customizable length and terminals: This grounding wire can offers a variety of cross-sectional areas and terminal options to meet the different installation needs.
Durable construction: It can withstand mechanical stress, vibration, and thermal expansion without losing integrity.
Product Application
With the good conductivity, durable and compact structure, and customizable length of this MARSHINE Copper Braided Ground Wire, it can be applied to different usage scenarios.
This wire can be used for grounding distribution networks, substations and control panels in city electrical constructions.

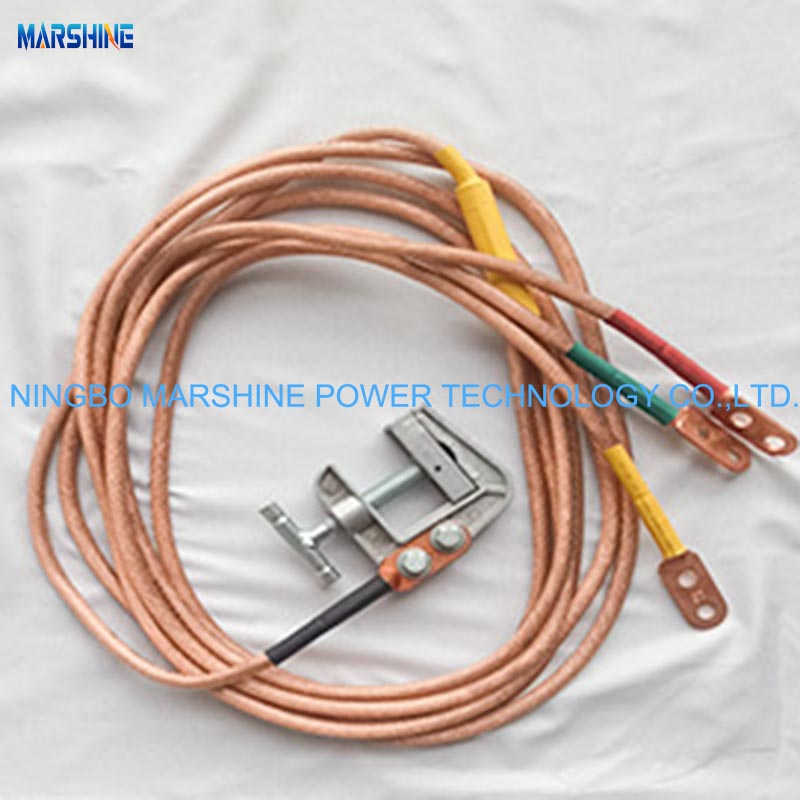

It can ensures the safe electrical continuity between equipment and structures by grounding the equipment.
This wire can be acts as a discharge path in the lightning protection grounding systems.
Product Details
As an important part of a safe, efficient and durable electrical grounding system, MARSHINE Copper Braided Ground Wire has many features, some of which are listed below.
High reliability: This grounding wire is tested for its conductivity, tensile strength and environmental resistance.
Place of Origin: Ningbo, China.
Customizable Option: Length, OEM.(MOQ:10kg)
Certification: CE, ISO9001.
Leading Time: 7 Days.
