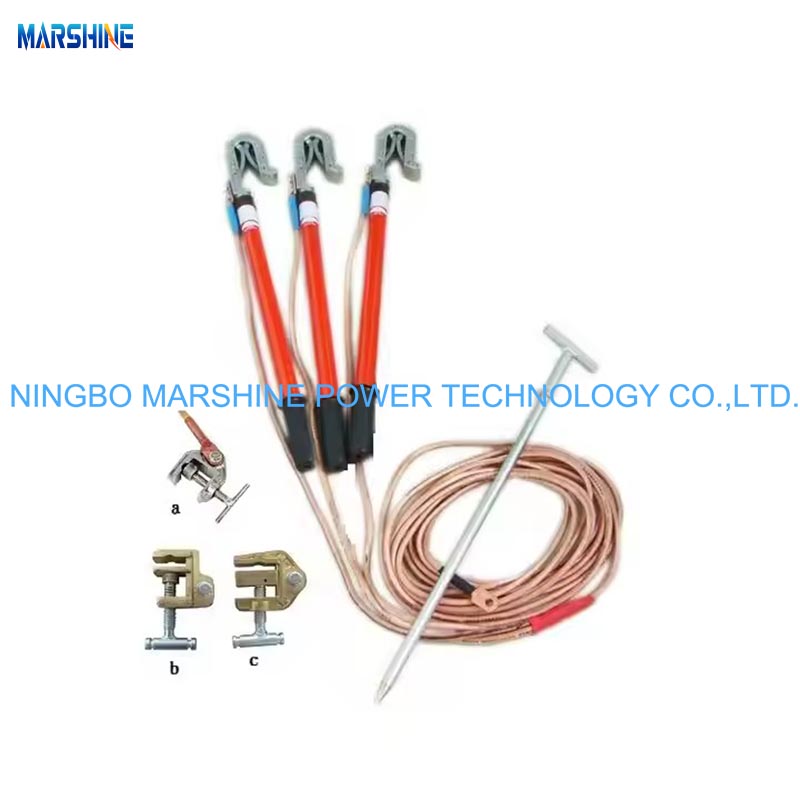

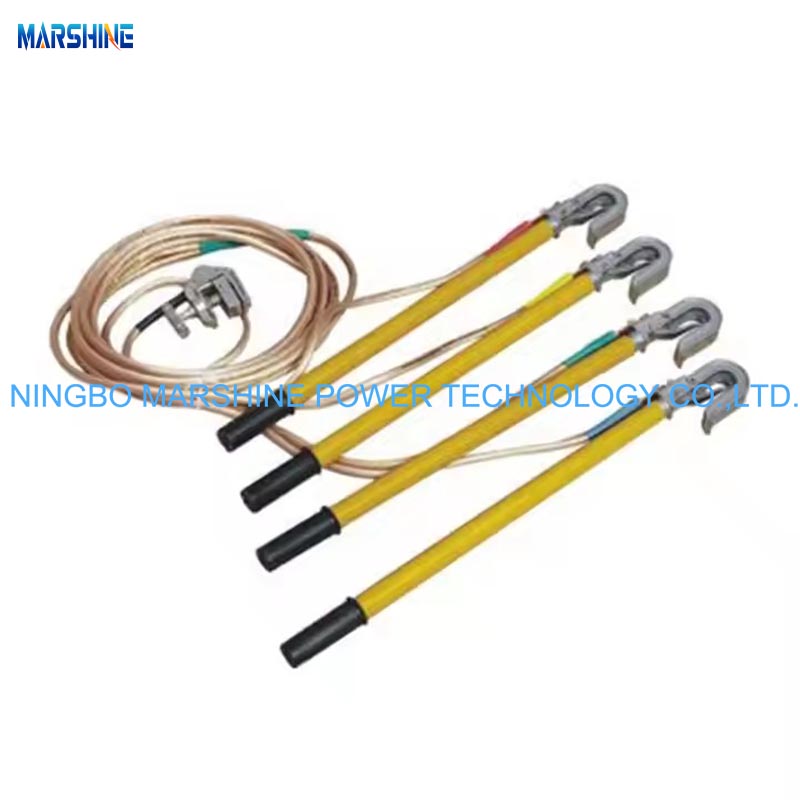

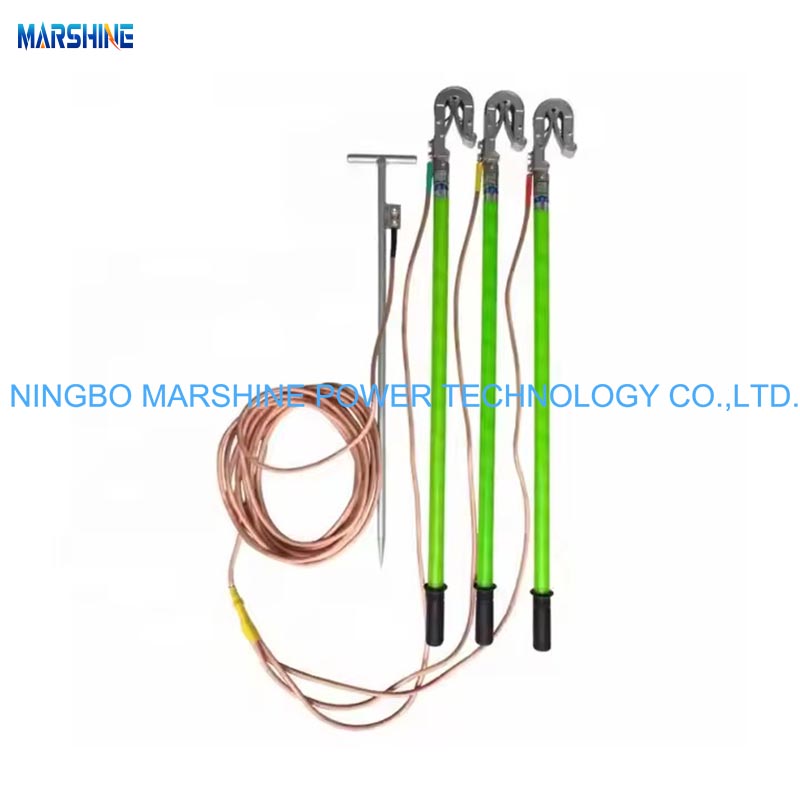

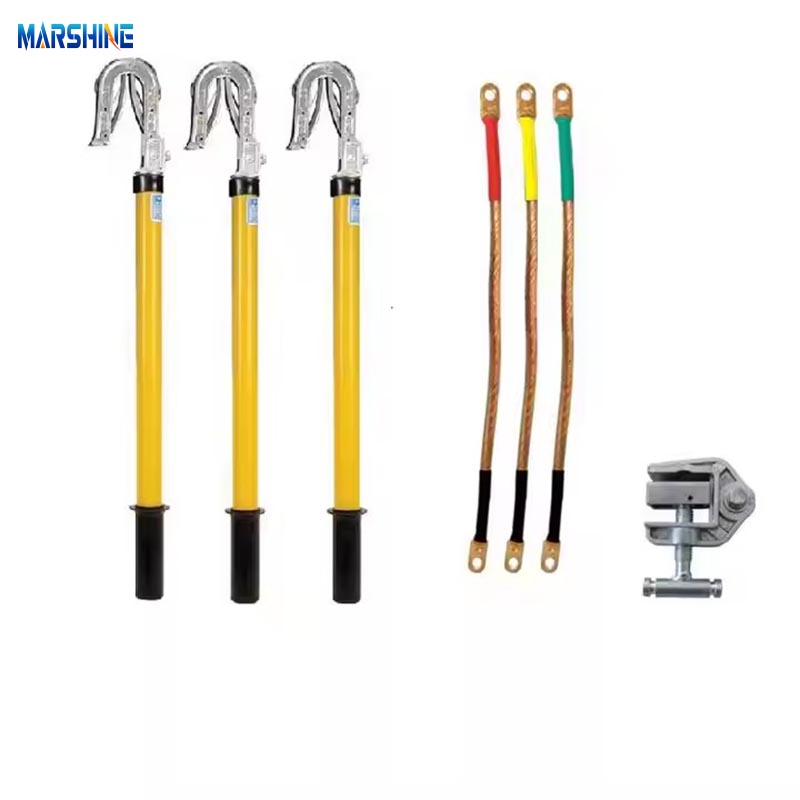

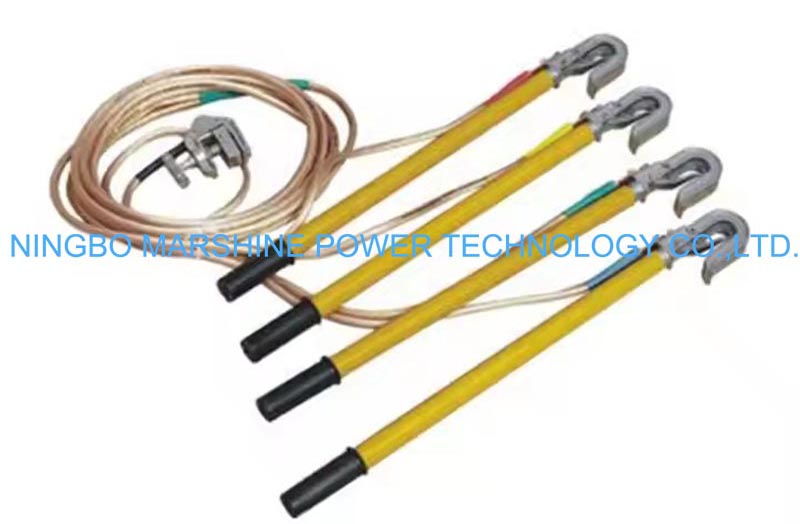

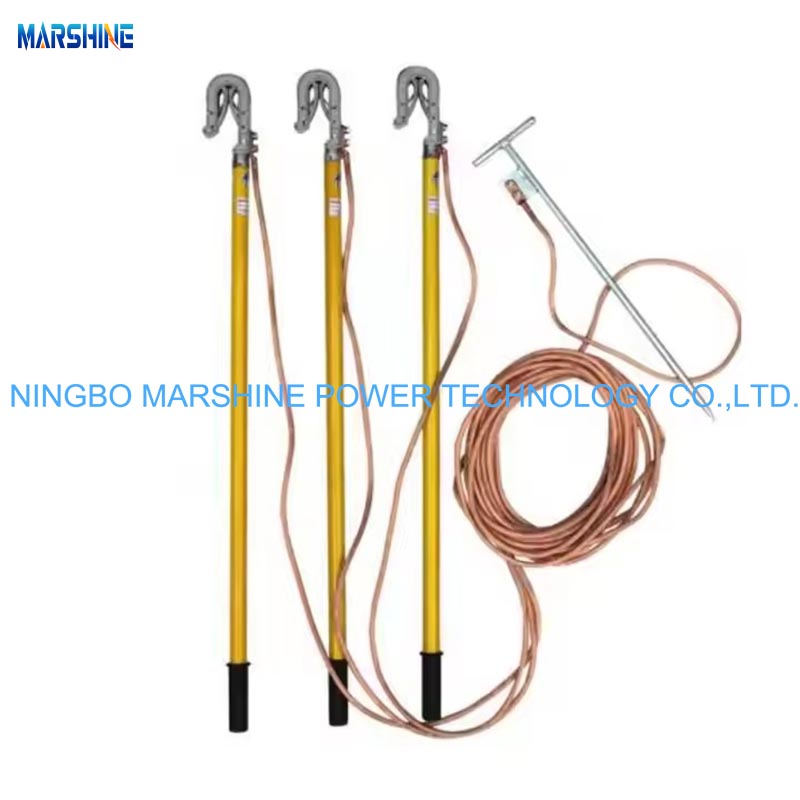

Featuring an innovative arc-shaped opening, this MARSHINE Earth Rod (Arc Opening) is a specialized earthing device which allows for quick clamping onto round or irregularly shaped conductors. Designed to provide fast, reliable, and secure grounding, this earth rod can ensuring effective grounding in diverse working environments. It is ideal for use in overhead line construction, substation maintenance, and live-line safety procedures.
Product Parameter
| Model | Length(m) | Rod number | Earthing wire area(mm2) | Applicable voltage(KV) |
| MAGR-1001 | 1.0m | 3 rods/set | 25 mm2 | 10KV |
| MAGR-3501 | 1.5m | 25 mm2 | 35KV | |
| MAGR-6601 | 1.5m | 35 mm2 | 66KV | |
| MAGR-11001 | 2.0m | 35 mm2 | 110KV | |
| MAGR-22001 | 3.0m | 35 mm2 | 220KV | |
| MAGR-33001 | 4.0m | 50 mm2 | 330KV | |
| MAGR-50001 | 6.0m | 50 mm2 | 500KV |
Product Feature
This MARSHINE Earth Rod(Arc Opening) is a durable device that combines convenient operation with effective safety protection. With the following but not limited to the features described below, this ground rod is the best choice for all electric power industry personnel.
Arc-shaped jaw design: This design enables technicians to easily connect round conductors or busbars, which increases the versatility and application speed of the product, saving time for critical operations.
Highly conductive material: Made of high-quality cast aluminum material, this ground rod has the excellent electrical properties.
Insulated handle: The ergonomic insulated handle ensures the safety and comfort of the operator during use.
Corrosion and wear resistance: This ground rod can adapt to harsh outdoor working conditions.
Product Application
With its high durability and good conductivity, this MARSHINE Earth Rod(Arc Opening) can adapt well to most construction environments, and due to its head design, it can greatly improve the team's construction progress speed.

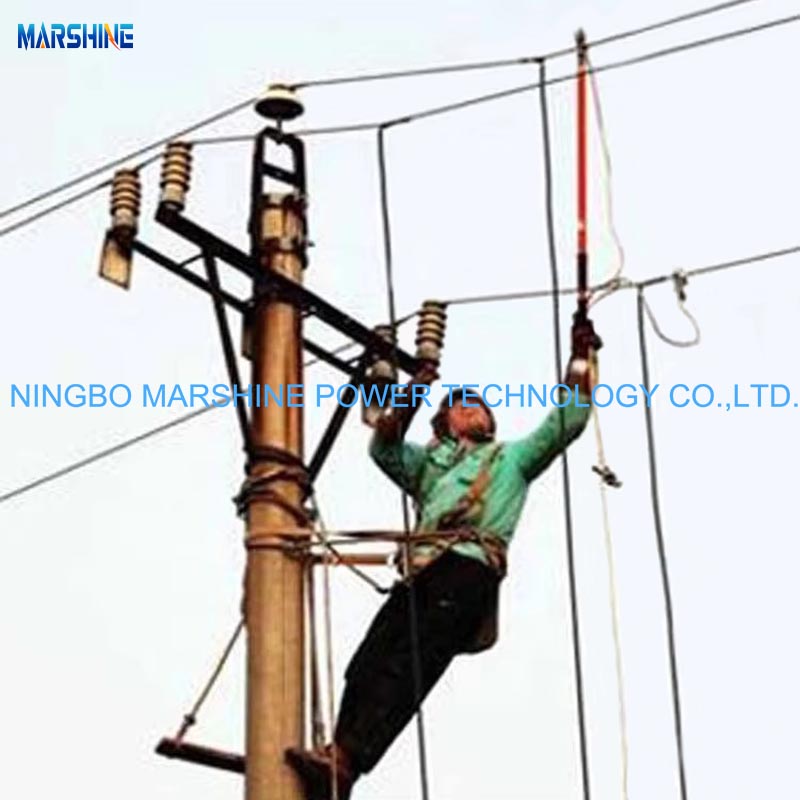

This ground rod is ideal for temporary grounding when installing or repairing high voltage lines during overhead line construction.
It can ensure that equipment is grounded during substation maintenance so that technicians can perform repairs safely.
This ground rod allows workers to establish safe working conditions in high voltage live field environments.
Product Details
Designed to challenge high-voltage operation tasks, our MARSHINE Earth Rod(Arc Opening) can be a general solution for overhead line constructions, here are the details about it:
Trusted Engineering: All of our MARSHINE products are carefully developed and tested to meet stringent quality control standards.
Place of Origin: Ningbo, China.
Certification: CE, ISO9001.
Phase: Single or three.
