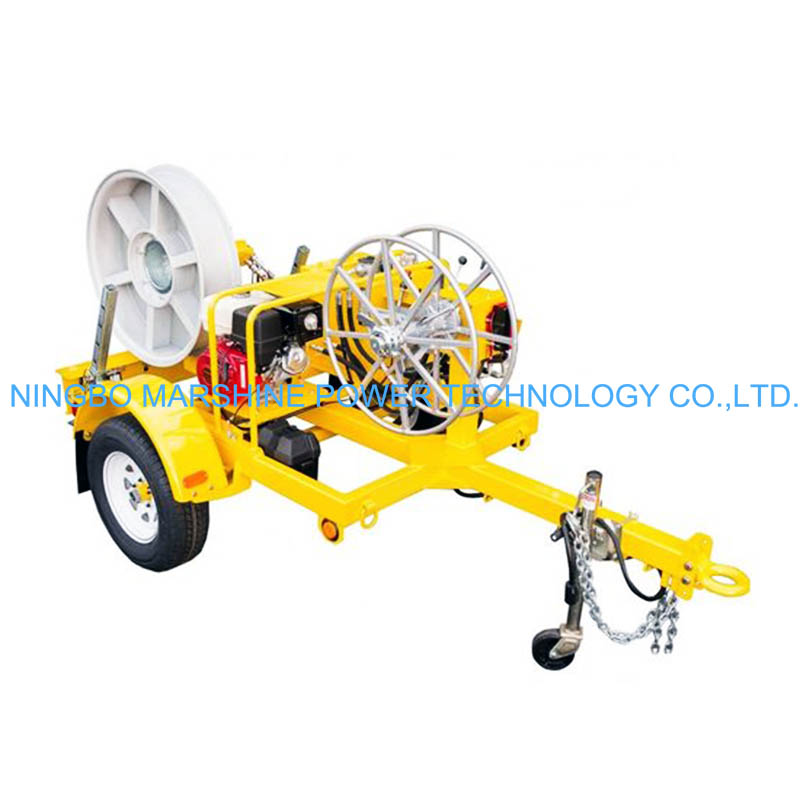

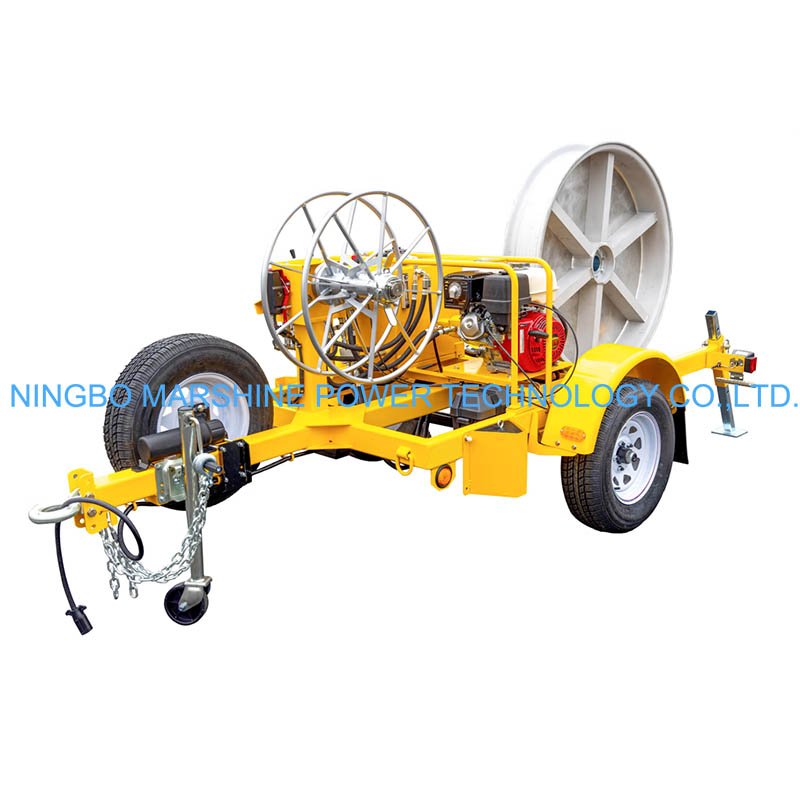

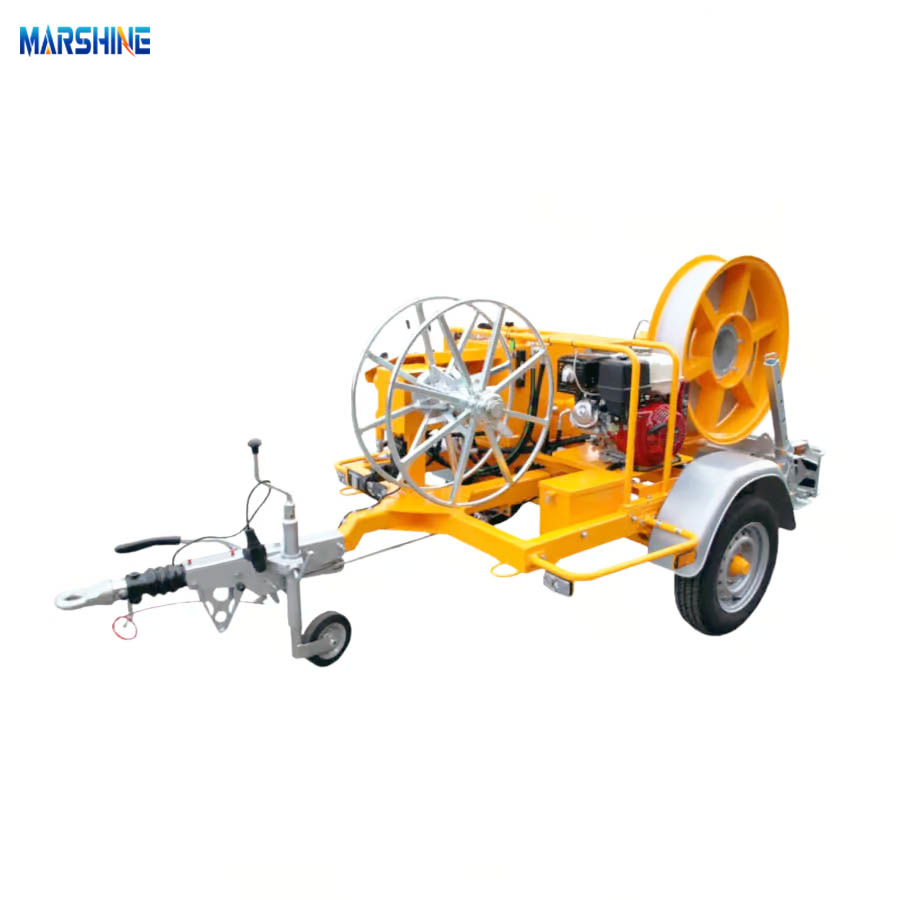

Trailer Mounted MAR-CPA-500 Cable Pull Assist Winch

Model:MAR-CPA-500

Our MARSHINE is a large scale cable installation equipment supplier from China, owns 20 years manufacturing experience for providing global electricians and utility linemen with the reliable yet competitively priced cable mounting equipment. This MARSHINE Trailer Mounted MAR-CPA-500 Cable Pull Assist Winch is our trailer type cable pulling winch for light duty cable installation works.

Send Inquiry

Product Description

The MARSHINE Trailer Mounted MAR-CPA-500 Cable Pull Assist Winch is a versatile cable pulling machine designed to provide additional traction and controlled pulling assistance during underground cable installation and long-distance cable laying operations. Mounted on a robust single-axle trailer chassis, the unit can be positioned at the cable entry point, exit point, or intermediate pulling locations to reduce cable tension, improve installation efficiency, and extend maximum pulling distances.

Product Parameter

Model	MAR-CPA-500
Load Capacity	500 kg
Engine	13HP gasoline engine
Rope Speed	54 m/min
Capstan Size	760 mm
Trailer Type	Single axle
Brake	Overrun auto reverse
Weight	750 kg

Product Feature

500 kg Pull Assist Capacity

Designed to provide up to 500 kg of pulling assistance, the MAR-CPA-500 effectively reduces cable pulling resistance, making it ideal for long cable routes and installations with multiple bends.

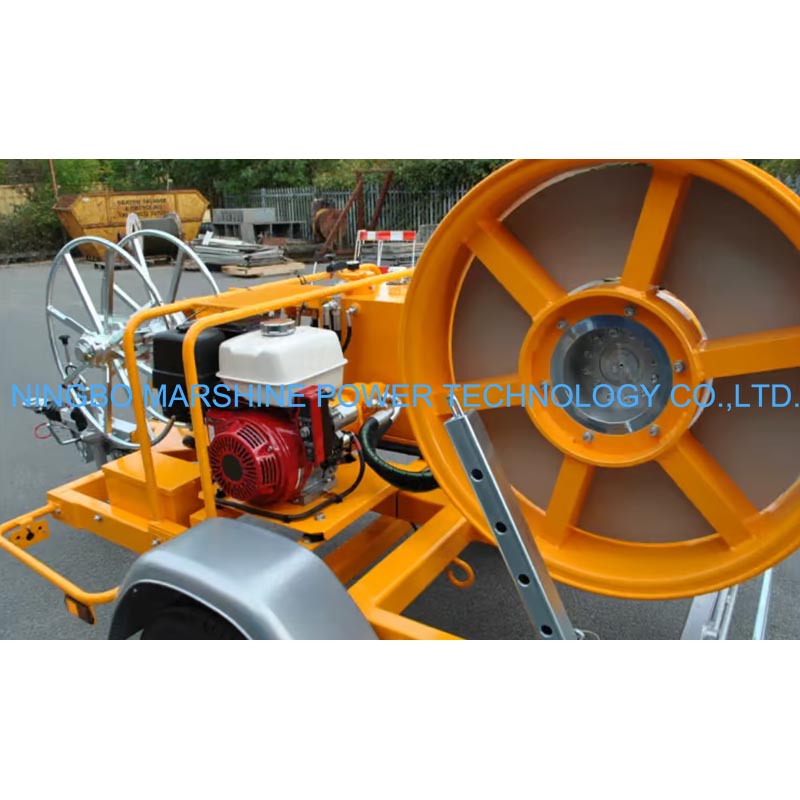

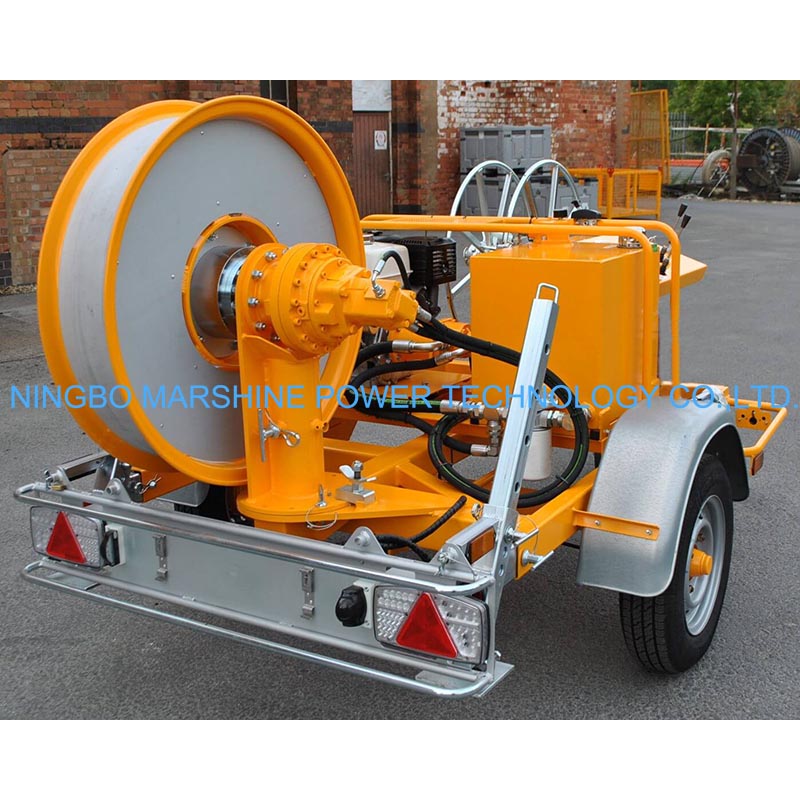

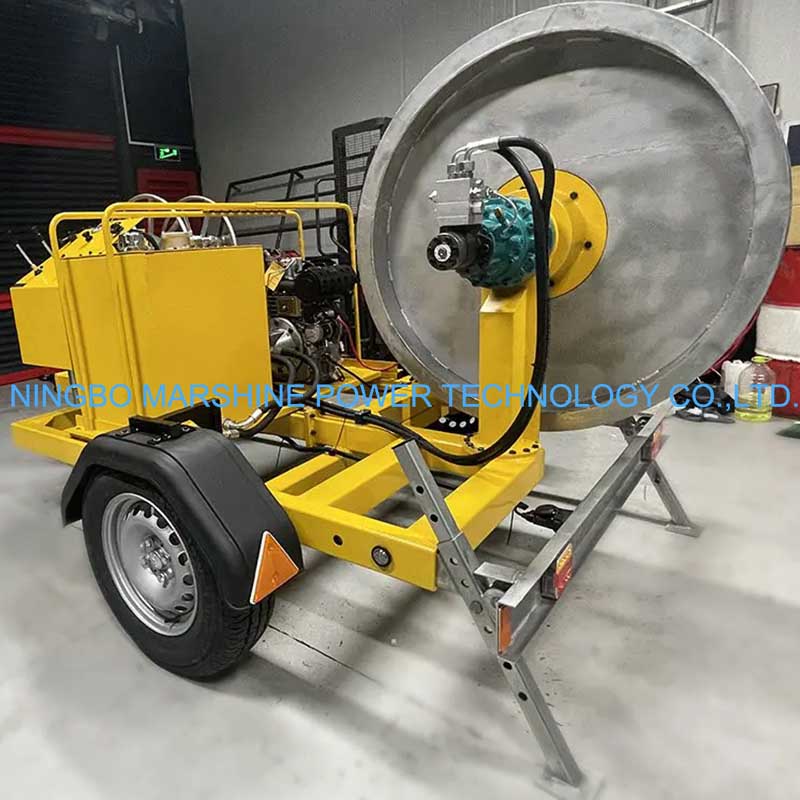

Large-Diameter Capstan Drive

The heavy-duty capstan ensures consistent rope grip and smooth traction, reducing rope wear while maintaining stable pulling performance throughout cable installation.

Hydraulic Power Transmission

The hydraulic drive system of this MARSHINE Trailer Mounted MAR-CPA-500 Cable Pull Assist Winch can delivers precise speed control and steady pulling force, allowing operators to maintain optimal cable installation conditions under varying job-site requirements.

Integrated Rope Take-Up Drum

A dedicated rope storage drum continuously winds excess pulling rope during operation, preventing tangles, improving workplace organization, and simplifying rope management.

Trailer-Mounted Mobile Design

The durable single-axle trailer frame enables fast transportation between construction sites and quick deployment with minimal setup time.

Product Application

The MARSHINE Trailer Mounted MAR-CPA-500 Cable Pull Assist Winch is especially effective on long cable runs where additional pulling assistance is required to reduce cable tension and improve installation efficiency. It can be positioned at intermediate locations along the cable route, making it an excellent solution for complex installations involving multiple bends, ducts, or extended pulling distances.
