PCW3000 Portable Pulling Winch Machine

Model:PCW3000

We MARSHINE was a large-scale Chinese supplier who offer cable winches and other pulling winch device for the linemen and utility workers with competitive price. And this PCW3000 Portable Pulling Winch Machine is a portable winch tool with 700kg pulling force, can deal with the small outdoor works like the light weight lifting works and pulling operations with ease.

Send Inquiry

Product Description

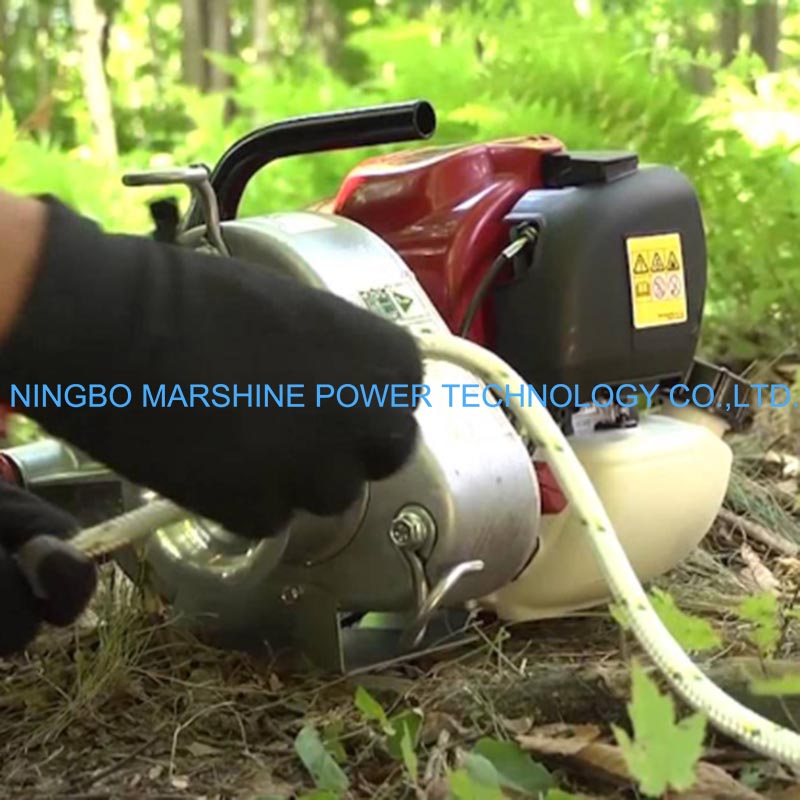

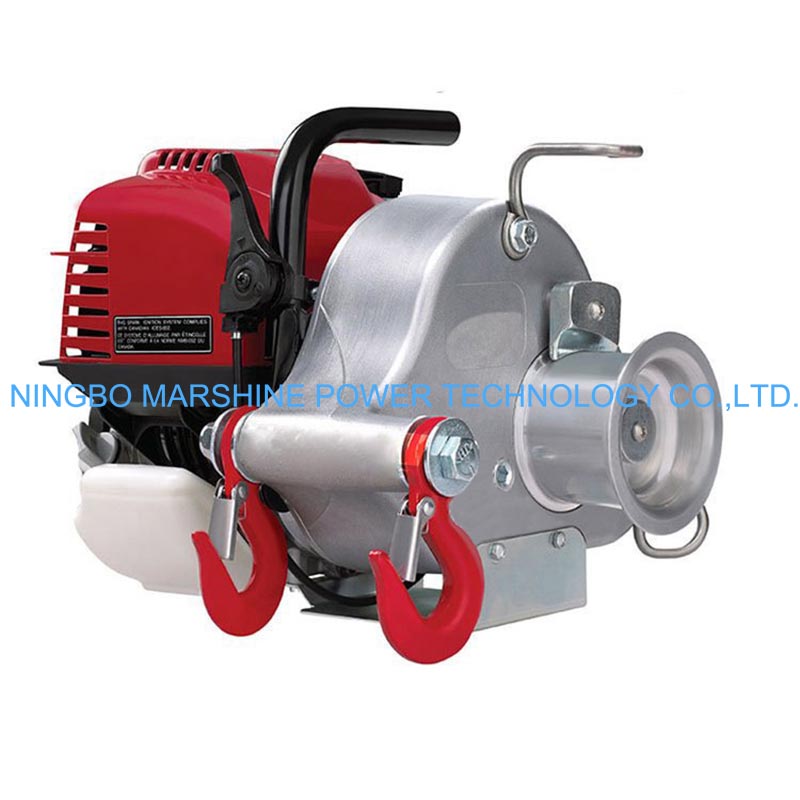

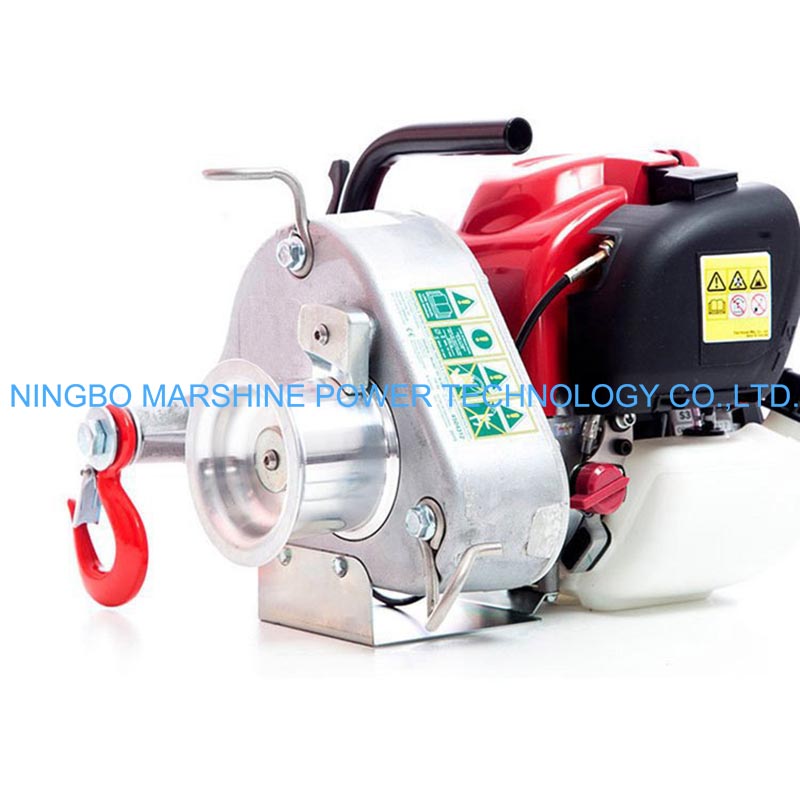

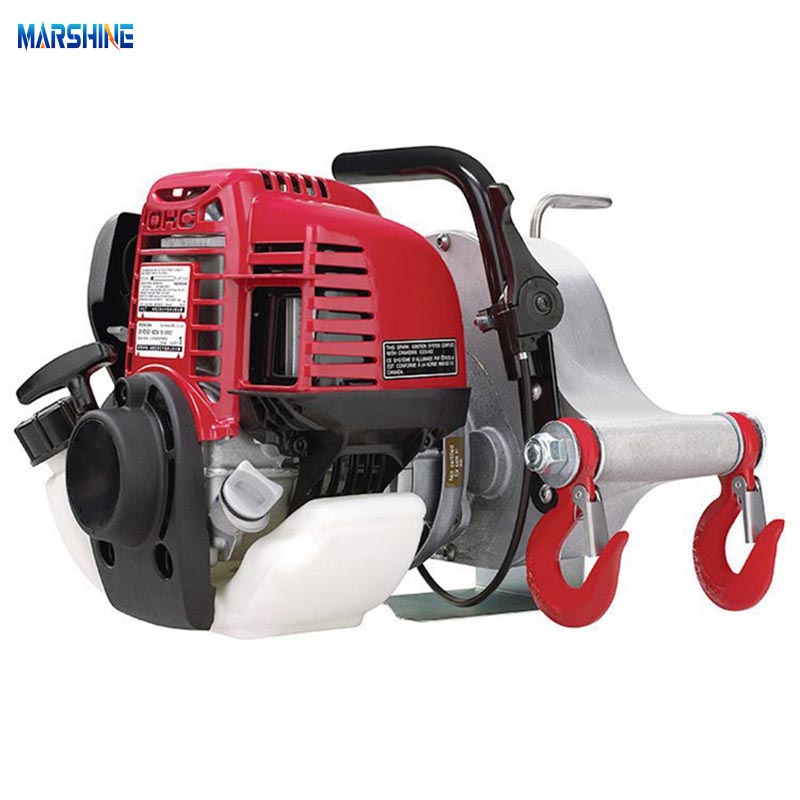

The MARSHINE PCW3000 Portable Pulling Winch Machine is a portable Honda engine powered winch unit. It can handle the low weight vertical lifting or pulling operations that require continuous traction force. It is suitable for the low-stretch braided high-strength nylon ropes, and with its powerful gasoline-powered engine, this portable winch can provide a reliable power in outdoor areas without power supply.

Product Parameter

Model	PCW3000	Gear ratio	200:1
Engine	360 4-stroke GX-35cc	Dimensions	35 * 28.9 *26.1cm
Reel	76mm diameter	Warranty	1 year
Speed	8m/min	Engine	Honda GXH-50
Weight	9.5kg	Working frequency	continuous
Capacity-Traction	Single line: 700kg Double line: 1400kg	Anchorage	60mmx2m nylon sling
Designed for	small outdoor work or vertical lifting (need to be equipped with self-locking pulley)
Traction rope	low ductility braided high-strength nylon rope--no length limit, diameter 10mm, diameter 12mm

Product Feature

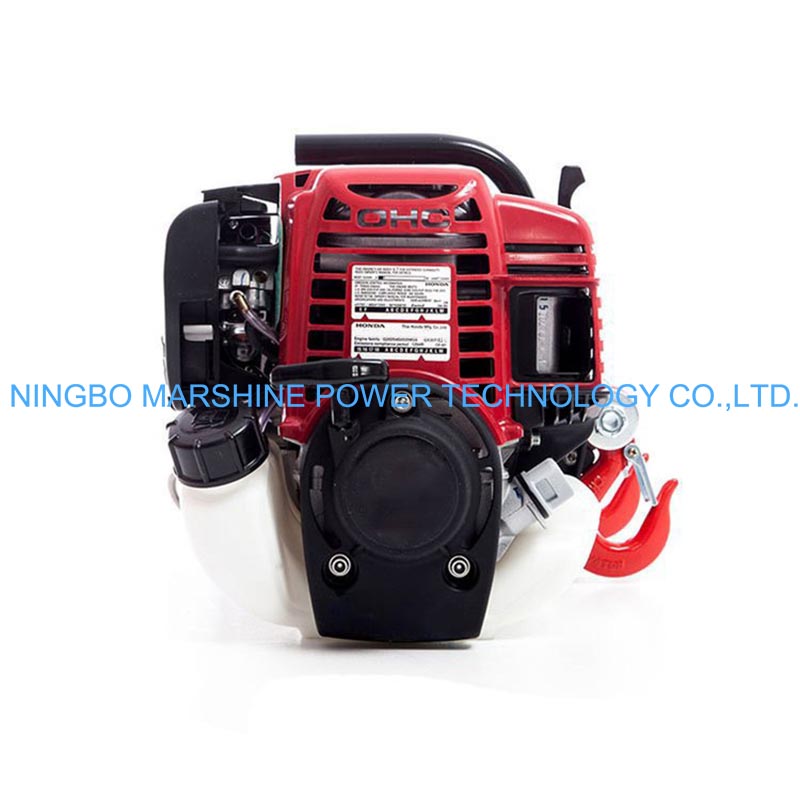

This MARSHINE PCW3000 Portable Pulling Winch Machine is equipped with a reliable 4-stroke gasoline engine which can delivers a consistent pulling performance up to 700 kg (1,540 lbs) in a single line pull. The weighs of this winch is just around 9.5 kg (21 lbs), can carry and set up by one person easily. It can works with an unlimited length of low ductility yet high-strength nylon rope, allowing for the long-distance pulls without the resetting requires. The casing of this winch is been built with the durable plastic materials and can withstand the rugged outdoor use.

Product Application

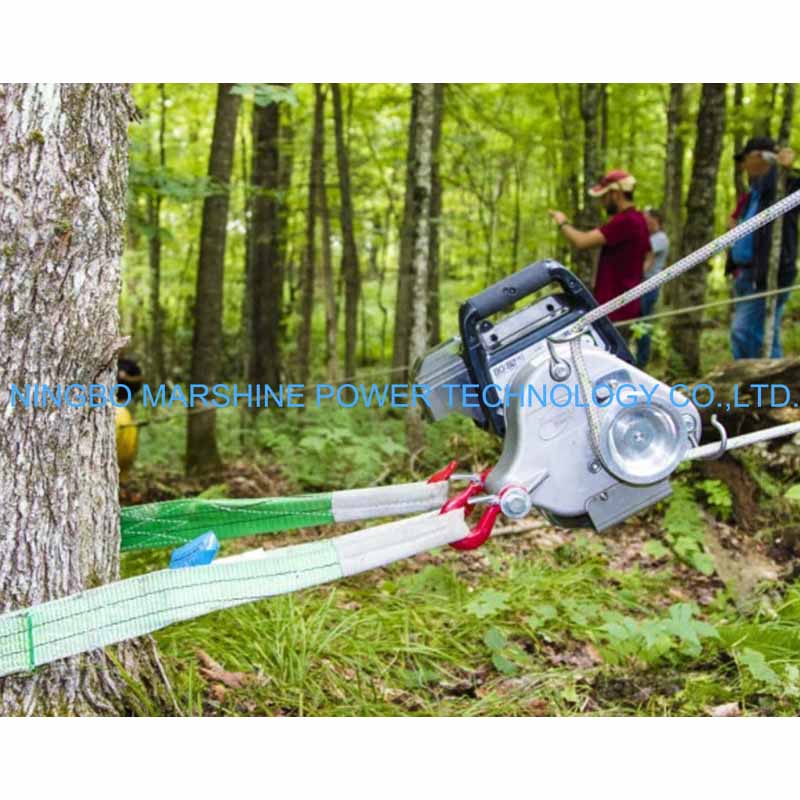

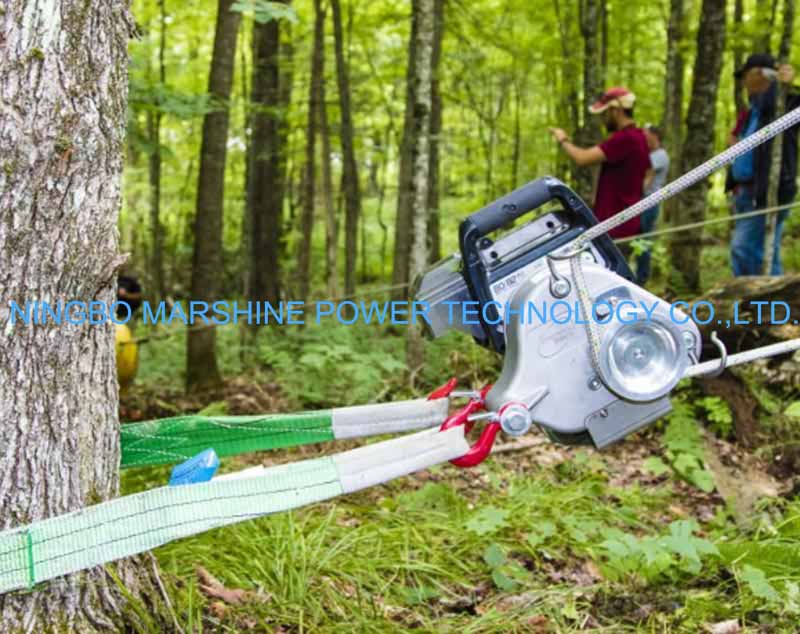

This MARSHINE PCW3000 Portable Pulling Winch Machine can be used for pulling the medium diameter cables in power and telecommunication line installations. It can also be used for the lifting operations in the rescue operations and emergencies. In addition, the winch can also provide the stable traction during the agricultural planting processes and in off-road vehicle rescue tasks.
