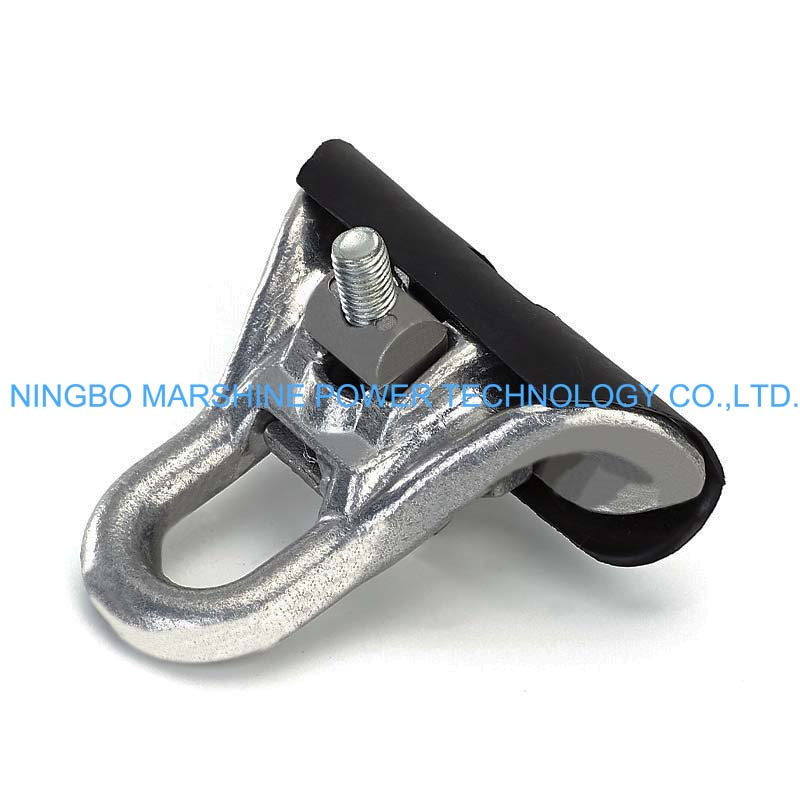

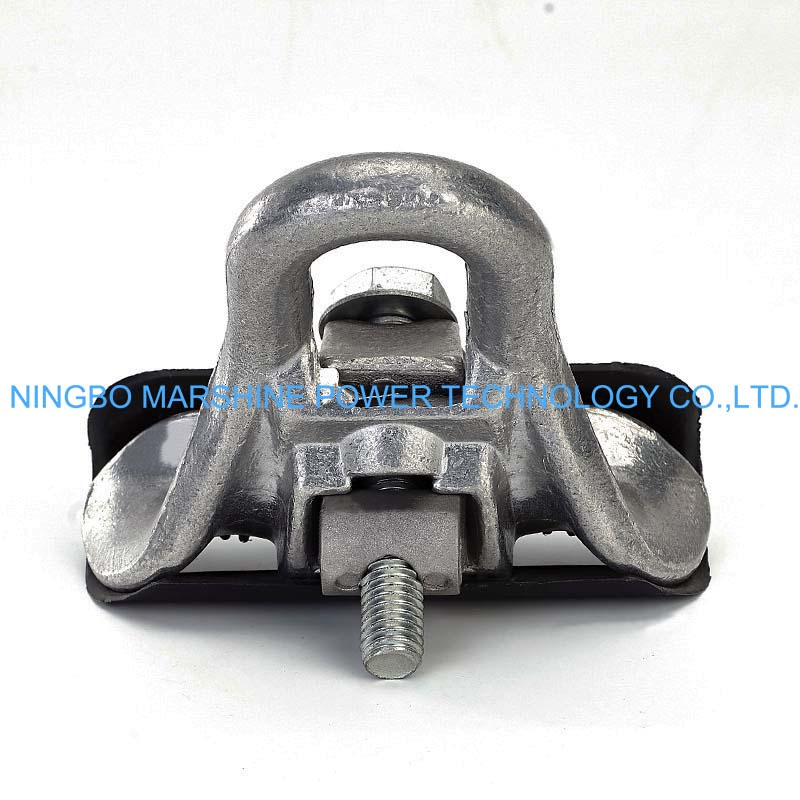

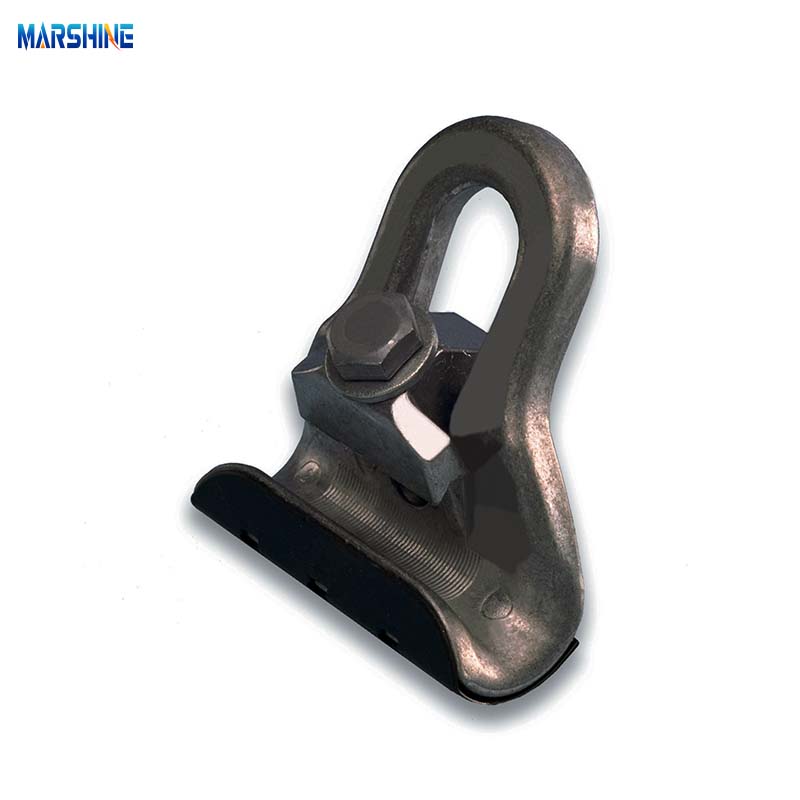

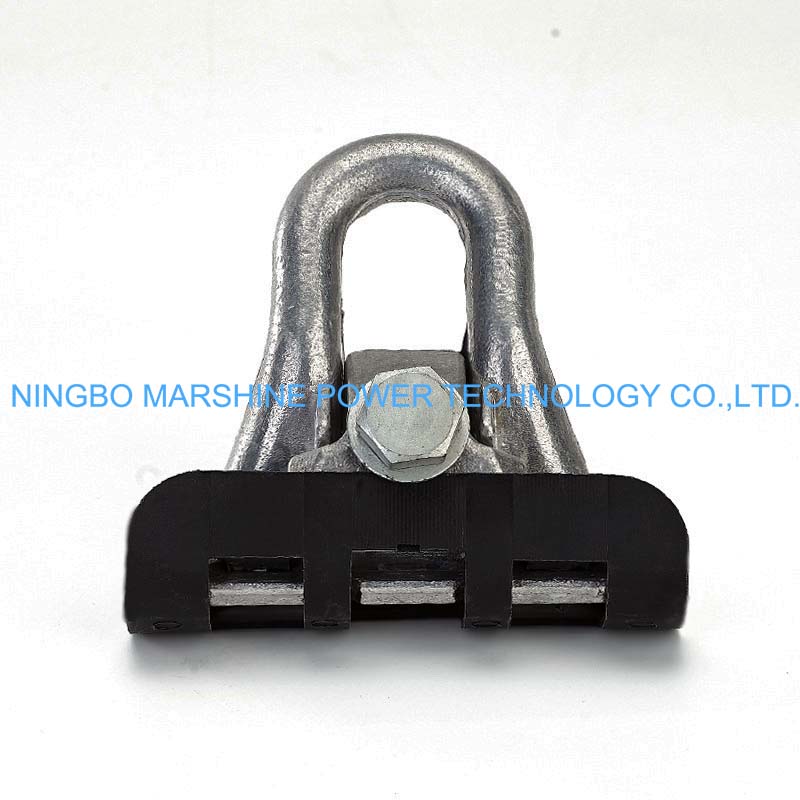

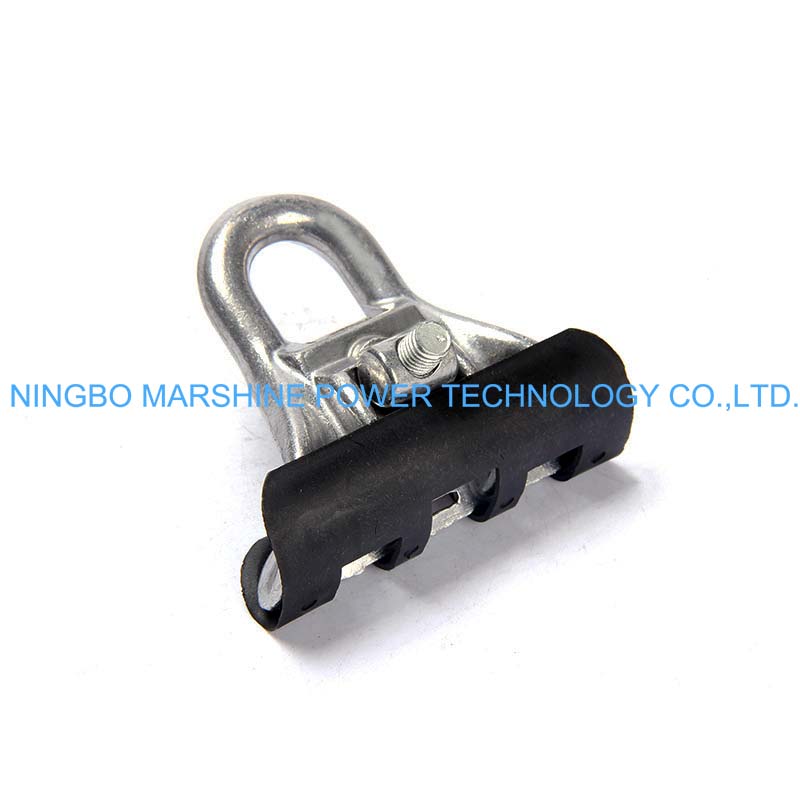

Straight Type Alloy Steel Messenger Wire Suspension Clamp SO214

Model:SO214

Been a Chinese electric power line construction equipment and tool manufacturing and trading company, our MARSHINE owns ample experience to provide the global electricians and utility linemen with reliable cable installation solutions at the most competitive price. This MARSHINE Straight Type Alloy Steel Messenger Wire Suspension Clamp SO214 is one of our efficient cable supporting tool for the aerial cable installation tasks. Due to its alloy steel construction, this clamp can ensures the last long durability.

Send Inquiry

Product Description

Designed to suspend the overhead cables by using the messenger wires, our MARSHINE Straight Type Alloy Steel Messenger Wire Suspension Clamp SO214 as a straight type robust yet efficient cable supporting tool can perform in both straight line and maximum up to 90° angled installations. It combines the high mechanical strength and the reliable durability, can suited for various of utility poles, towers, and other overhead line structures.

Product Parameter

Model	SO214
SMFL	25 KN
Tightening torque	48 N.m
Messenger diameter	4.8-13mm
Messenger conductor size	16-95mm2

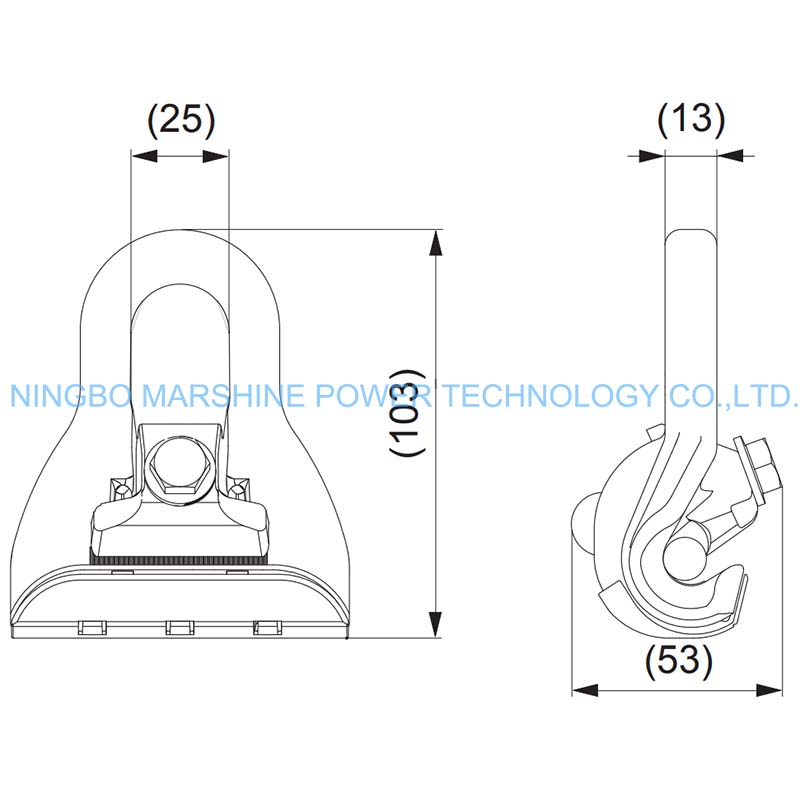

Length	103mm
Width	85 mm
Height	53 mm
Weight	0.5kg
Material	Steel
ETIM Class	EC003516

Product Feature

With 25KN safe maximum failure load capacity of this MARSHINE Straight Type Alloy Steel Messenger Wire Suspension Clamp SO214, it can ensures the strong mechanical resilience.

Applicable for supporting the messenger conductor sizes from 16 to 95mm2, and with the diameter ranging from 4.8 to 13mm, this clamp is suitable for various of the tasks.

Ideal for uses in the straight runs and angles up to 90°, it can offers the flexible installation options for the complex line geometries.

Been made form the alloy steel, this clamp can delivers the rugged strength and the long-term performance.

48 N.m tightening torque offers the firm yet reliable grip on the messenger wires, so that to provide the added safety.

Product Application

Our MARSHINE Straight Type Alloy Steel Messenger Wire Suspension Clamp SO214 is able to provide the reliable support for the conductors in both rural and urban overhead network constructions.

Ideal for the installation tasks that requires the suspension at non-straight angles (up to 90°).

Can be used in the high-load spans where the mechanical strength is vital.

It is also suitable for both the installing the new power lines and retrofitting the existing lines to enhance the support and reliability.

Perfect for challenging climates and long-term use under the harsh environment conditions as well.
