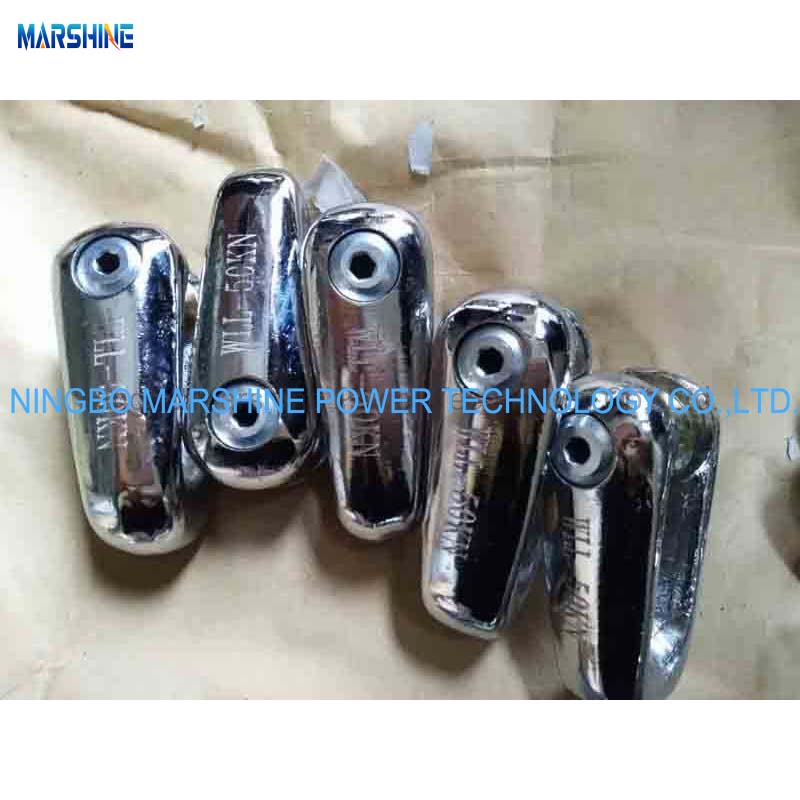

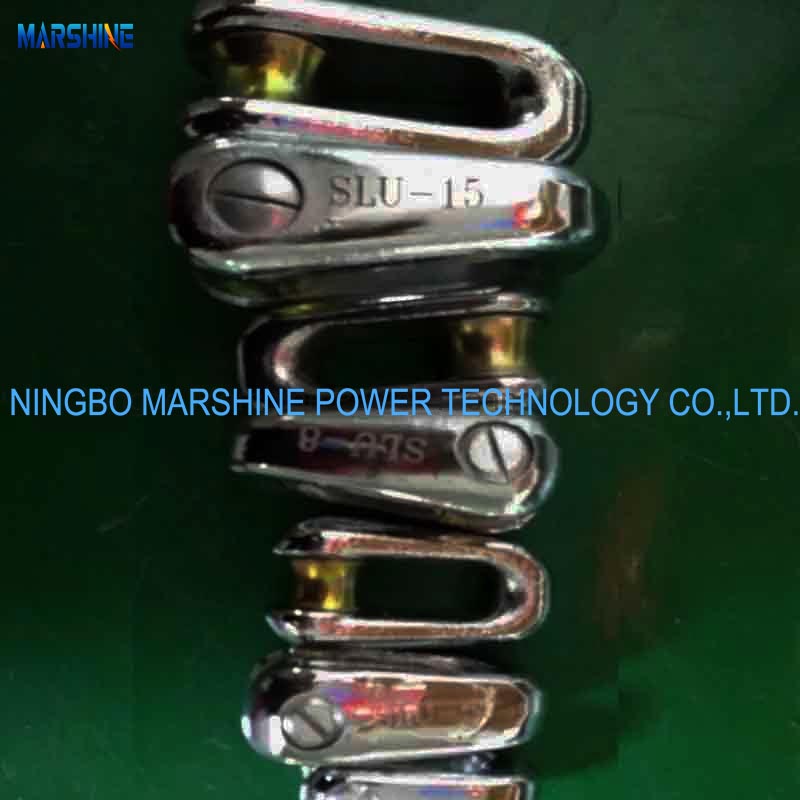

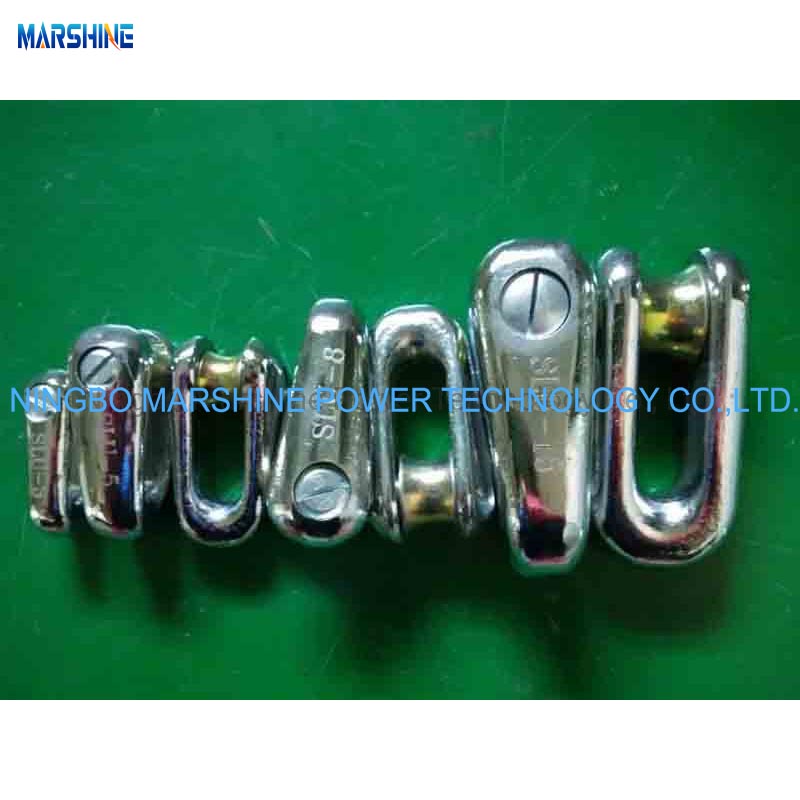

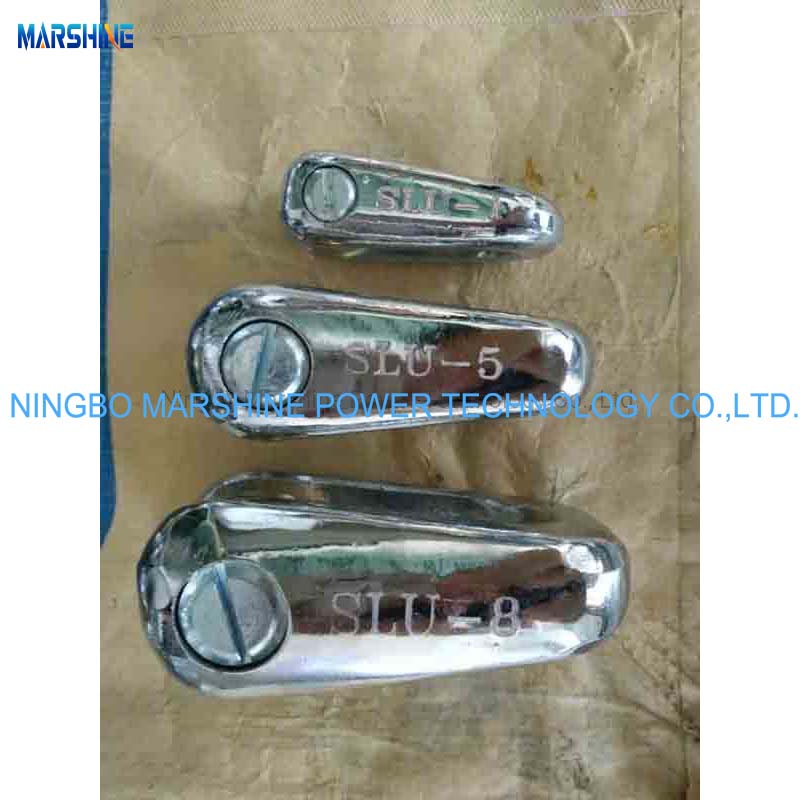

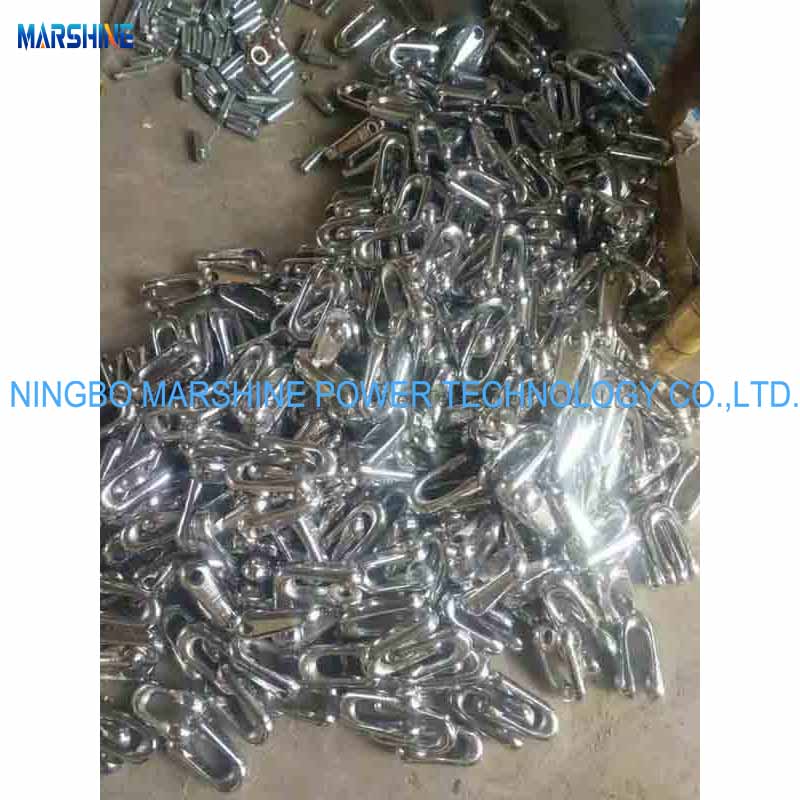

U Shape Fixed Joint

Model:SLU-1

Designed by large scale Chinese manufacturer MARSHINE for securely linking pulling ropes, conductors, or other transmission line tools during overhead and underground line construction, we offer these durable MARSHINE U Shape Fixed Joint with affordable price. Been a heavy-duty mechanical connector, its rigid U-shaped structure can provides a stable connection to maintain the alignment and withstand the high tension.

Send Inquiry

Product Description

Our MARSHINE U Shape Fixed Joint is designed to provide high rigidity and durability for securing cables, conductors and structural components. This rugged connector can prevent the lateral movement and misalignment, and ensuring the long-term reliability in power transmission constructions.

Product Parameter

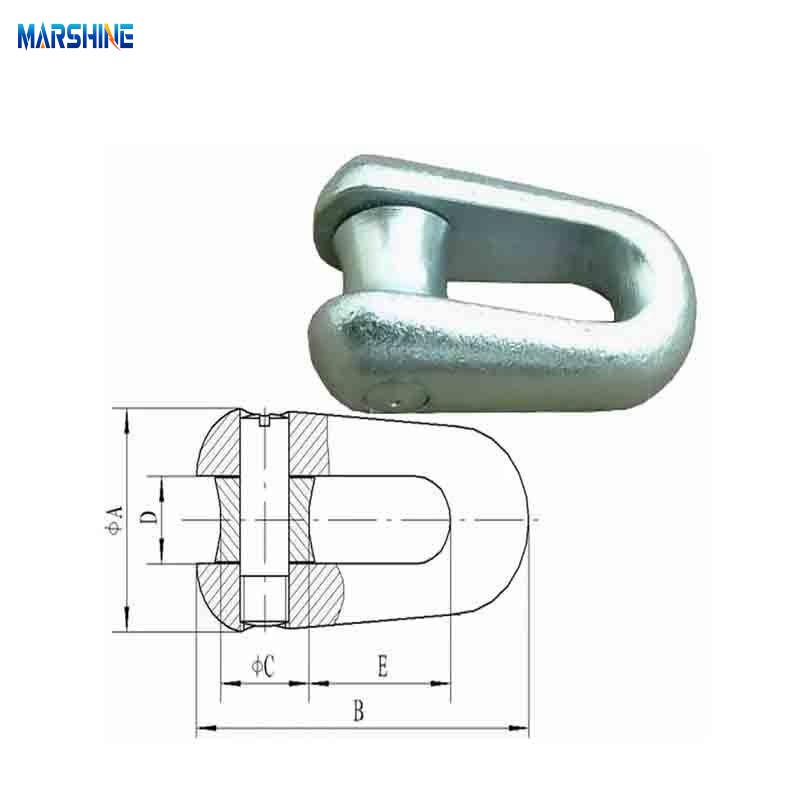

Item number	Model	Main size(mm)						Rated load(KN)	Weight(kg)
Item number	Model	A	B	C	d	D	E	Rated load(KN)	Weight(kg)
17111	SLU-1	36	68	18	10	14	29	10	0.2
17112	SLU-3	37	76	20	12	17	31	30	0.22
17113	SLU-5	50	96	23	18	19	42	50	0.6
17114	SLU-8	56	110	28	20	22	50	80	0.8
17115	SLU-10	59	126	30	22	26	54	100	1.2
17116	SLU-13	61	134	32	24	27	56	130	1.3
17117	SLU-15	63	138	37	27	28	58	150	1.4
17118	SLU-25	80	178	44	30	35	72	250	3.0
17118A	SLU-28	80	178	44	30	35	72	280	3.0
17119	SLU-32	85	186	42	30	38	80	320	3.9

Product Feature

Our MARSHINE U Shape Fixed Joint is designed to withstand high pulling forces without deformation. Been manufactured with the sturdy U-shaped design to prevent the movement or rotation, can ensures a secure connection during the pulling operations. With the high-strength steel alloy and the protective finish, it can ensures the long service life to reduce the lifecycle costs. Due to its streamlined structure, the connector can easily pass through the stringing blocks.

Product Application

MARSHINE U Shape Fixed Joint is suitable for installation of OPGW and ACSR conductors, such as the stringing and tensioning overhead transmission lines, cable pulling and pole tower erection, or the public utilities and power infrastructure construction.
