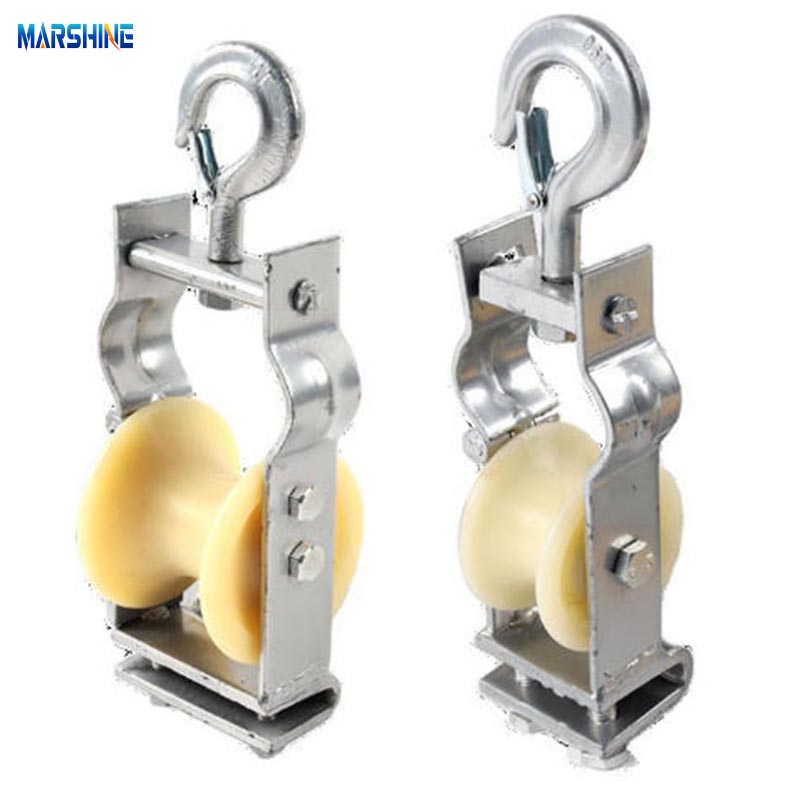

Single Sheave Conductor Stringing Block

Model:SHD-160x40

As a large-scale electric power cable installation tool supplier in China, our MARSHINE insists on providing the utility linemen and construction workers with the durable yet smooth rolling conductor stringing blocks at the affordable prices. This MARSHINE Single Sheave Conductor Stringing Block was a single sheave stringing block specialized for the conductor cable stringing operations. With its smooth roller and the durable frame, can protect the conductors during the operations well.

Send Inquiry

Product Description

Designed for the efficient yet stable conductor installation tasks in the overhead power line projects, our MARSHINE Single Sheave Conductor Stringing Block is a reliable conductor stringing tool which features a single high-strength sheave, and is able to provide the users with the smooth cable guidance, so that to reduce the friction while preventing the conductor damage during the stringing operations. Its robust build and the precision engineering make it an good choice for the construction teams who need to deal with the transmission and distribution line constructions.

Product Parameter

Item number	Model	Diameter	Sheave width	Suitable conductor	Rated load(KN)	Weight(kg)	Remark
10171	SHD-120x30	120	30	ACSR 25~70	5	1.5	Aluminum sheave
10172	SHD-160x40	160	40	ACSR 95~120	10	2.5
10173	SHD-200x40	200	40	ACSR 150~240	15	4
10174	SHD-200x60	200	60	ACSR 150~240	15	4.6
10175	SHD-250x40	250	40	ACSR 150~240	20	4.6
10176	SHD-250x60	250	60	ACSR 300~400	20	6
10177	SHD-270x60	270	60	ACSR 300~400	20	7
10178	SHD-320x60	320	60	ACSR 300~400	20	9.5
10179	SHD-400x80	400	80	ACSR 400~500	20	15
10191	SHDN-120x30	120	30	ACSR 25~70	5	1.5	Nylon sheave
10192	SHDN-160x40	160	40	ACSR 95~120	10	2.5
10193	SHDN-200x40	200	40	ACSR 150~240	15	3.6
10194	SHDN-200x60	200	60	ACSR 150~240	15	4
10195	SHDN-250x40	250	40	ACSR 150~240	20	4
10196	SHDN-250x60	250	60	ACSR 300~400	20	4.5
10197	SHDN-270x60	270	60	ACSR 300~400	20	5.6
10198	SHDN-320x60	320	60	ACSR 300~400	20	6.7
10199	SHDN-400x80	400	80	ACSR 400~500	20	13

Product Feature

This MARSHINE Single Sheave Conductor Stringing Block is a stringing tool which was been equipped with the high quality sheaves that made from the durable MC nylon to ensures its long lasting durability. And its smooth treatment on the sheave is able to minimizes the friction while preventing the conductor abrasion. Due to its heavy duty frame constructed from the high-tensile galvanized steel for the durability to withstand the harsh working environments, and with the reliable bearing system to ensures the smooth rotation and the consistent performance under the heavy loads, this conductor stringing tool can be your reliable partner to handle the demanding tasks.

Product Application

As a stringing tool that designed to offer the workers with high-efficiency, our MARSHINE Single Sheave Conductor Stringing Block is suitable for the overhead transmission line conductor stringing tasks, and is able to be used in the distribution line installation and the maintenance operations, or for the cable guiding tasks in the tower erection and tensioning works. In addition, it is ideal for the power utility, infrastructure, and the construction projects as well.

Product Details

The MARSHINE Single Sheave Conductor Stringing Block can offers the dependable performance and the rugged durability, make it a good choice for the efficient yet safe line stringing operations.

Place Of Origin:Zhejiang,China.

Warranty:1year.

Manufacturing Time:10-12days.

International Certified:ISO9001.
