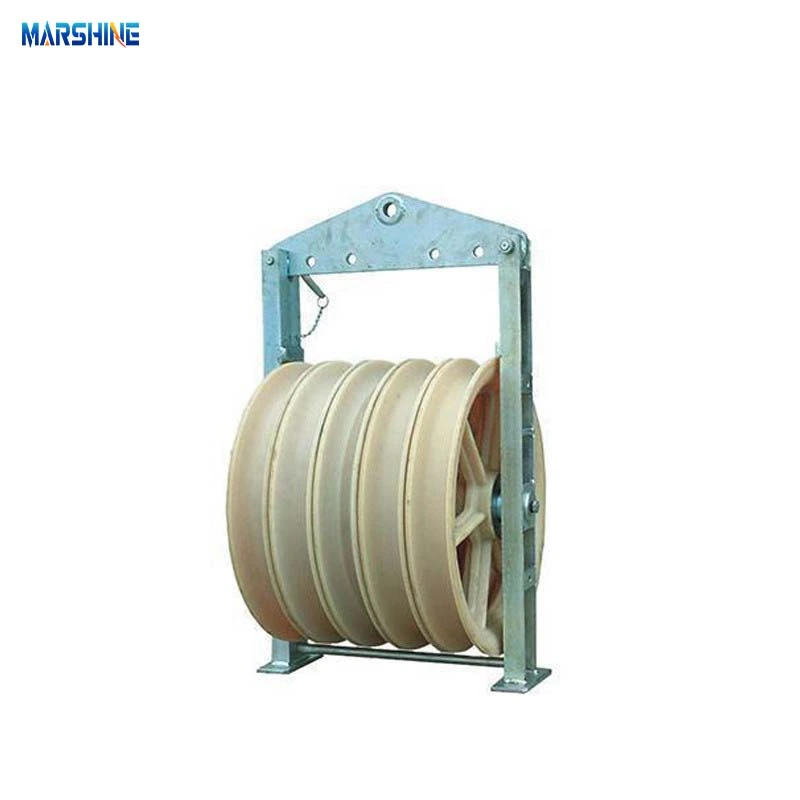

This 508mm large diameter stinging block is the MARSHINE Manual Conductor Stringing Blocks, which is equipped with the most suitable conductor LGJ400. In other words, our product is suitable for aluminum conductors with a nominal cross-sectional area of up to 400 square millimeters. The block size (outer diameter * root diameter * pulley width) is Φ508×Φ408×75mm.
| Item number | Model | Number of sheave | Rated Load(kn) | Weight(kg) | Features of sheave |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber coated aluminum sheave |
| 10102 | SHS508 | 3 | 40 | 61 | Middle:cast steel sheave Conductor:Rubber coated aluminum sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104 | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 | Middle:MC nylon sheave Conductor:Rubber coated aluminum sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107 | SHSQN508 | 3 | 40 | 43 | MC nylon sheave |
| 10108 | SHWQN508 | 5 | 60 | 70 |
Material:Constructed from high-strength materials such as forged steel or reinforced polymers to withstand heavy loads and harsh environmental conditions.
Load Capacity:Designed to handle high tensile loads, our MARSHINE conductor stringing block is suitable for stringing heavy-duty conductors and cables.
Durability:Built to last with corrosion-resistant coatings or materials, ensuring longevity even in corrosive environments.
Smooth Operation:Equipped with precision bearings or rollers to provide smooth and efficient movement, reducing friction and wear.
Safety Mechanisms:Includes safety latches and locking mechanisms to prevent accidental release and ensure safe operation.
Versatility:Compatible with a wide range of conductor sizes and types, this conductor stringing block can make it suitable for various applications in the utility and construction industries.
Ease of Use:Ergonomic design for easy handling and installation, reducing the physical strain on workers.
Adjust Ability:Adjustable components to accommodate different stringing configurations and requirements.
Compact Design:Compact and lightweight design for portability and ease of transport to job sites.
Weather Resistance: This conductor stringing block is designed to perform reliably in extreme weather conditions, including high temperatures, humidity, and UV exposure.
Low Maintenance:requires minimal maintenance with sealed bearings and durable construction, reducing downtime and maintenance costs.
Compliance:Meets or exceeds industry standards and regulations for safety and performance, ensuring compliance with relevant codes and specifications.
Power Line Installation:
Used in the installation of overhead power lines to pull and position conductors efficiently.
Ensures smooth and controlled movement of conductors during installation.
Telecommunications:
Utilized in the deployment of communication cables, such as fiber optics and telephone lines.
Helps in maintaining tension and preventing damage to delicate cables.
Utility Maintenance:
Facilitates the repair and replacement of existing conductors and cables in utility networks.
Enables safe and efficient handling of conductors with this conductor stringing block during maintenance operations.
Construction Industry:
Used in construction projects where electrical wiring or communication cables need to be strung across large distances.
Assists in the installation of temporary power lines and communication systems at construction sites.
Railway Systems:
Applied in the installation and maintenance of overhead catenary systems for electric trains.
Ensures proper tension and alignment of the overhead wires.
Marine Applications:
This conductor stringing block can be used in marine environments for stringing cables and ropes on ships and offshore platforms.
Provides reliable performance in challenging maritime conditions.
The details about the MARSHINE Manual Conductor Stringing Blocks.
Maximum suitable conductor: ACSR400.
Wheel axle diameter (outer diameter x groove diameter x width):Φ508 x Φ408 x 75mm.
Customization: Block dimensions Φ508×Φ408×100(mm) are available for customization.
