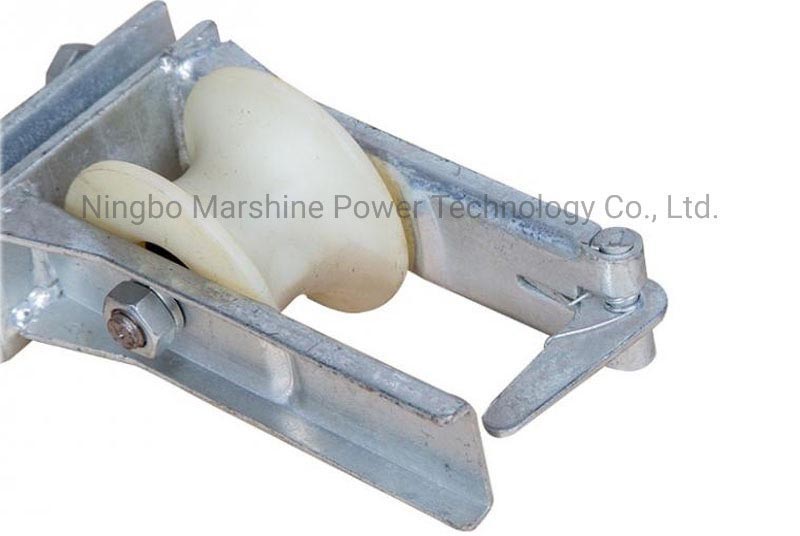

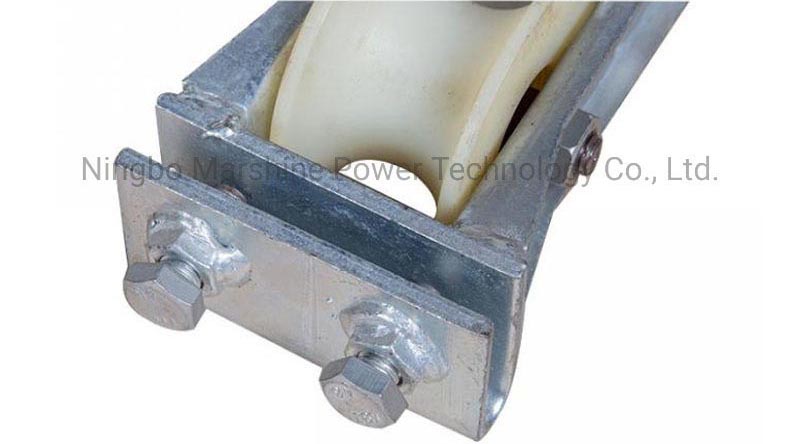

The MARSHINE Crossarm-Mounted Conductor Stringing Block is a professional cable stringing tool that suitable for utility electricians. Designed for cable stringing applications, this block is able to increase the construction stringing efficiency and reduce the risk of wire damage, especially in the confined or the elevated work spaces. Its rugged structure and the simple mounting system make it a reliable choice for the power line construction and maintenance.
Product Parameter
| Item number | Model | Applicable conductor(mm) | Rated load(KN) | Weight(kg) | Remark |
| 10231 | SHC-80x50A | Φ80 | 5 | 1.5 | Aluminiumsheave |
| 10232 | SHC-120x58A | Φ120 | 20 | 3 | |
| 10233 | SHCN-80x50A | Φ80 | 5 | 1.1 | Nylon sheave |
| 10234 | SHCN-120x58A | Φ120 | 20 | 2.3 |
Product Feature
As a tool that can installed on the standard cross arms too-freely by its prefabricated brackets and dowel pins, this MARSHINE Crossarm-Mounted Conductor Stringing Block is a efficient tool that made of the high-tensile alloy steel with the equipped durable nylon pulley, can ensures the long-lasting durability. With the slim profile, it is able to avoid the interference with the existing hardware or adjacent the conductors. The adjustable pulley orientation accommodates the vertical, horizontal or angled cable paths without repositioning. And no need for the temporary guy wires or ground anchors, can effectively reduce the installation time by 50%.
Product Application
The MARSHINE Crossarm-Mounted Conductor Stringing Block can be used to install solar/wind farm interconnects on the existing crossarm systems, or replace the outdated conductors without removing the entire crossarm structure, and is suitable for various of terrains and installation conditions. It can quickly string the wires on rural or urban grids with the minimal disruption. It is also ideal for stringing the wires on low, medium and high voltage power lines, the straight conductor stringing and guiding through the angle or elevation changes, and the new and re-stringing or upgrading existing lines, or used to restore the power after a storm.
Product Details
The MARSHINE Crossarm-Mounted Conductor Stringing Block can offers a practical, durable, and efficient solution for the overhead conductor installation.
Original Country:China.
Lead Time:12-14days.
Warranty:1year.
Certifications:CE,ISO9001.
