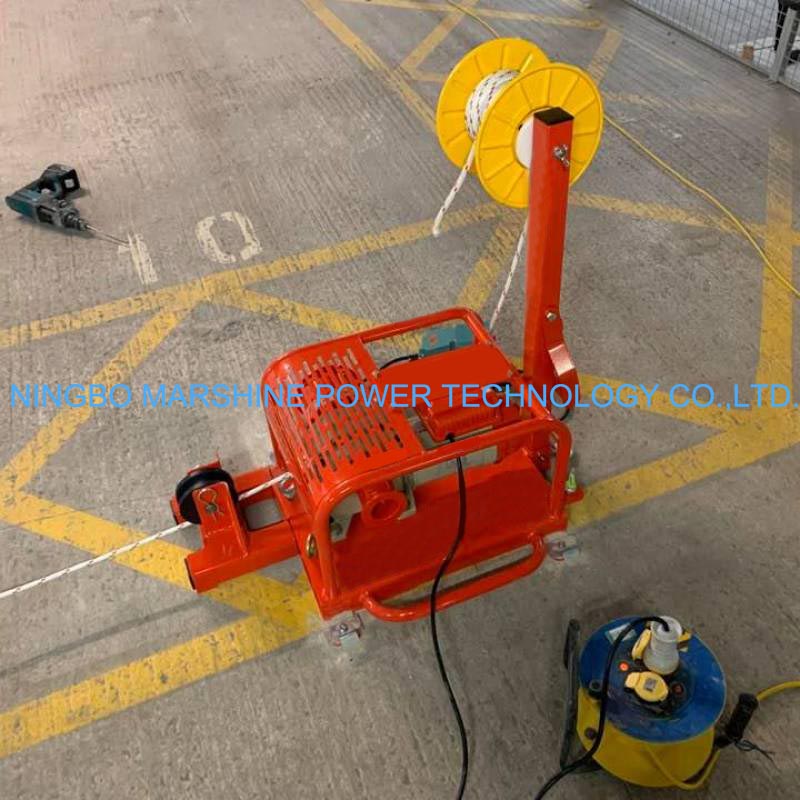

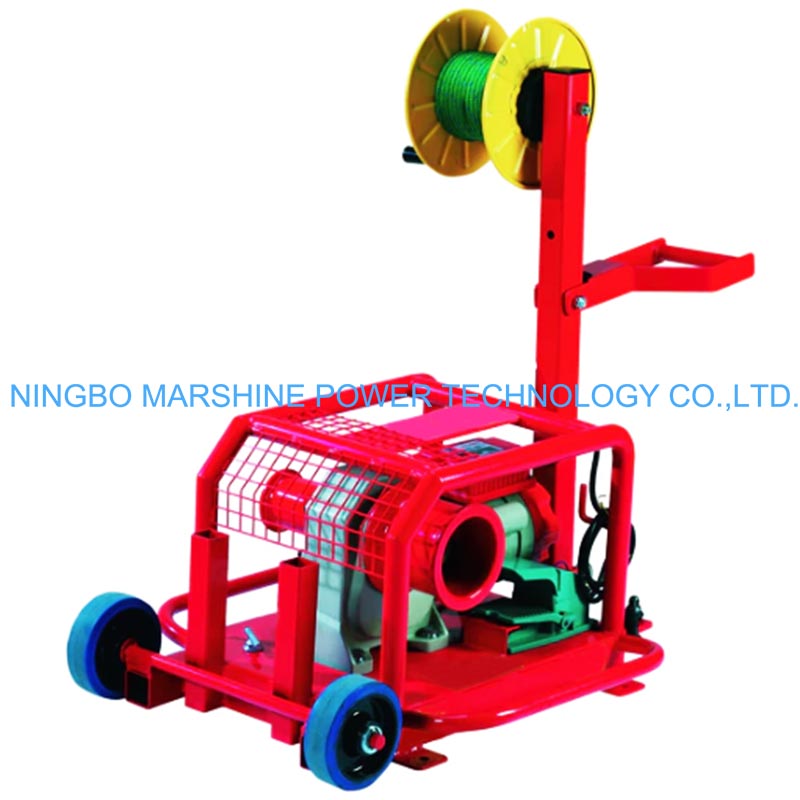

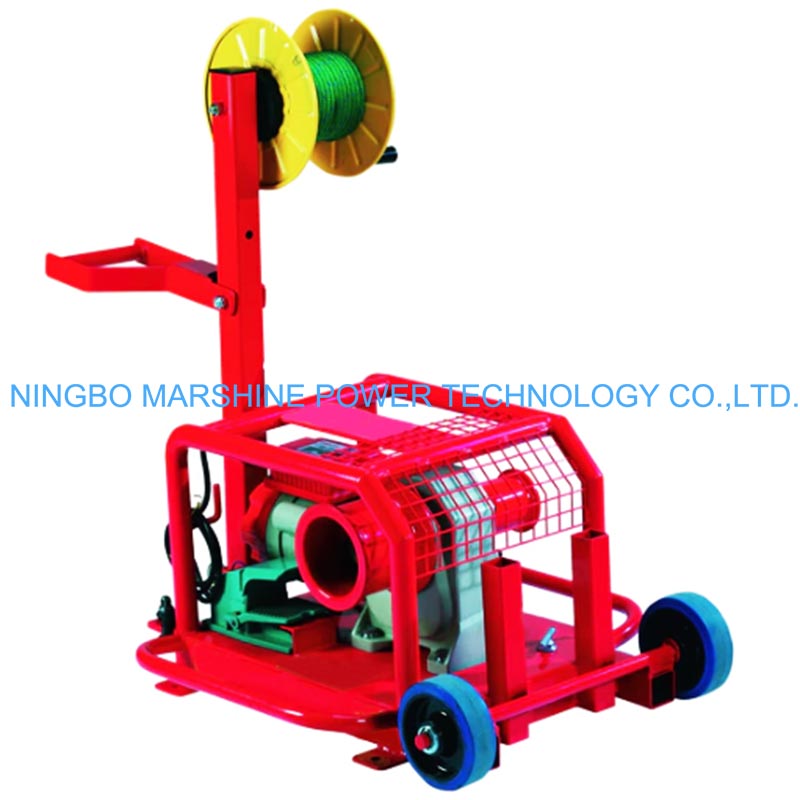

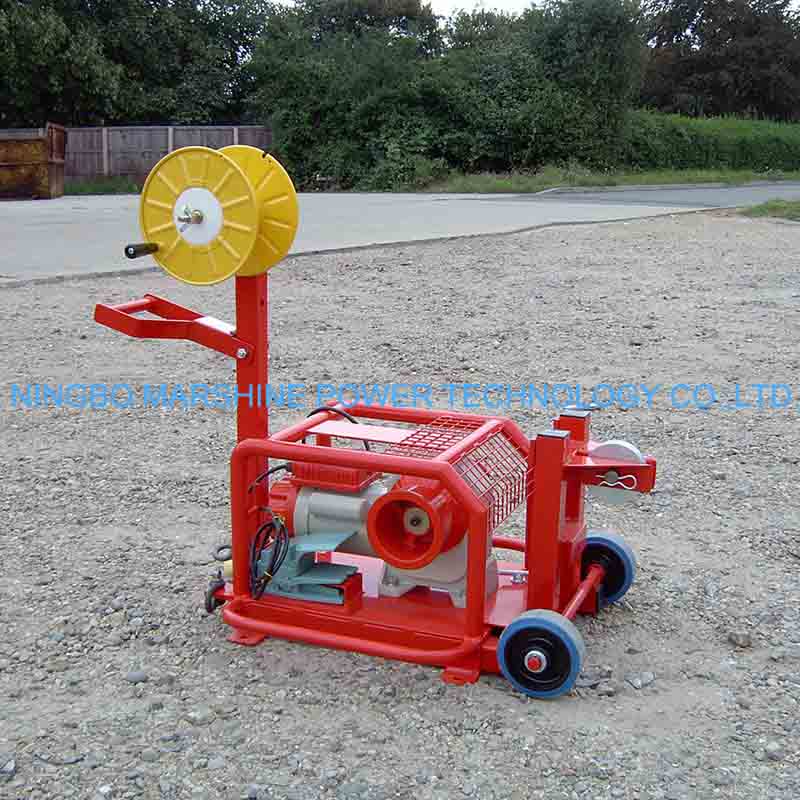

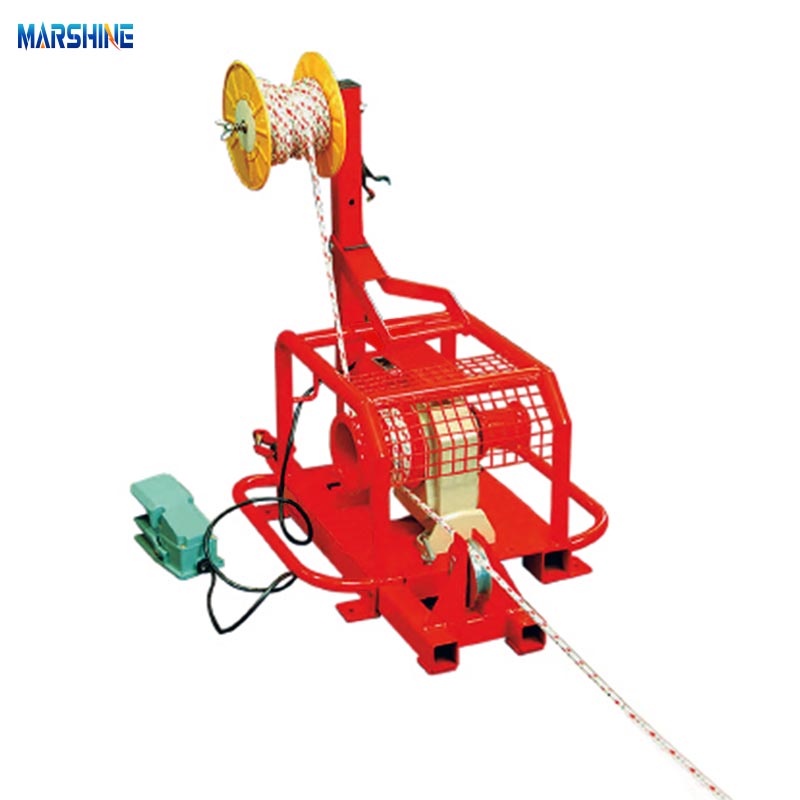

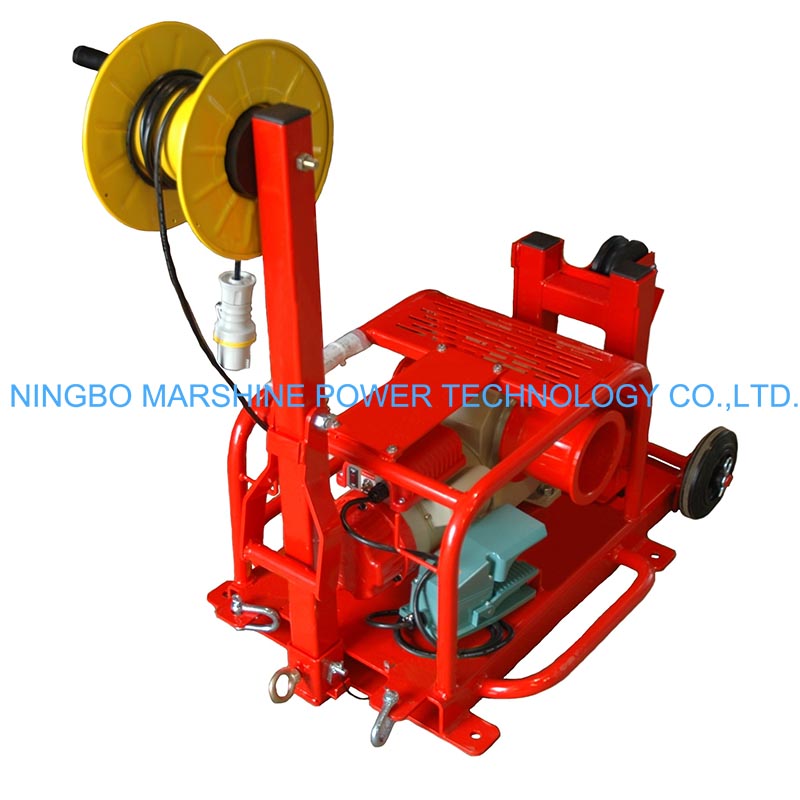

Portable Capstan Winch AC-2500 Electric Cable Puller

Model:AC-2500

Our MARSHINE is a manufacturing and trading company for electric power line installation tools and equipment from China. With 20 years supplying experience, we were able to provide global utility linemen with efficient yet reliable cable mounting equipment at the competitive price. This MARSHINE Portable Capstan Winch AC-2500 Electric Cable Puller is one of our portable cable installation capstan winch with electric power supply, can handle fiber ropes maximum 18 mm in diameter with ease.

Send Inquiry

Product Description

Powered by a heavy-duty electric induction motor, the MARSHINE Portable Capstan Winch AC-2500 Electric Cable Puller incorporates a dual-capstan configuration that allows operators to select different pulling capacities and rope speeds according to the application. Unlike conventional drum winches, the capstan design supports virtually unlimited rope lengths, making it ideal for extended cable pulling projects. The machine is equipped with a detachable rope storage reel, foot-operated controls, overload protection, and an electromagnetic fail-safe brake, ensuring safe, efficient, and reliable operation in demanding environments.

Product Parameter

Model	AC-2500
Cable Pulling Capacity	2500 kg
Applicable Cable Diameter	≤Φ 18 mm
Rope Capacity	50 m to 400 m
Rope Speed (approx.)	2.5 m/min
Dimension	665 mm(L) x 550 mm(W) x 400 mm(H)
Gross Weight	80 kg
Running current	220 V / 380V (Optional)

Product Feature

Powerful 2500 kg Pulling Capacity

The AC-2500 can delivers a maximum cable pulling capacity of 2500 kg, providing ample power for installing heavy electrical, telecommunications, and fiber optic cables.

Dual Capstan Drive System

The dual-capstan design enables operators to choose between two pulling capacities and rope speeds, providing greater flexibility for handling different cable weights and installation conditions.

Unlimited Rope Length Capability

Unlike traditional drum winches, the capstan mechanism of our Portable Capstan Winch AC-2500 Electric Cable Puller allows ropes from 50 m to 400 m or longer to be used without being stored on the pulling drum, making the machine highly suitable for long-distance cable installation projects.

Heavy-Duty Electric Motor

Available with 220 V or 380 V power options, the high-efficiency induction motor provides stable output, low operating noise, and dependable continuous performance.

Foot-Controlled Operation

The supplied foot pedal enables hands-free control of the pulling operation, allowing operators to focus on cable positioning and improving overall installation safety.

Electromagnetic Fail-Safe Brake

A spring-applied electromagnetic braking system automatically holds the load when power is interrupted, providing additional protection during cable pulling operations.

Automatic Overload Protection

The integrated overload protection system automatically shuts down the machine if excessive pulling force is detected, helping protect both the equipment and the installed cable.

Portable Tubular Steel Frame

The reinforced tubular steel frame combines excellent strength with portability. Integrated carrying handles and removable transport wheels allow the machine to be moved easily around construction sites.

Detachable Rope Storage Reel

A removable rope storage drum keeps pulling rope organized during operation and simplifies transportation and storage between projects.

High-Efficiency Gear Transmission

A case-hardened gear train and heavy-duty ball bearings provide smooth power transmission, high mechanical efficiency, and long service life with minimal maintenance.

Product Application

Due to its compact size, portable design, and unlimited rope length capability, the MARSHINE Portable Capstan Winch AC-2500 Electric Cable Puller was especially suitable for confined spaces, indoor installations, tunnels, and long-distance cable pulling operations where diesel-powered equipment may not be practical.
