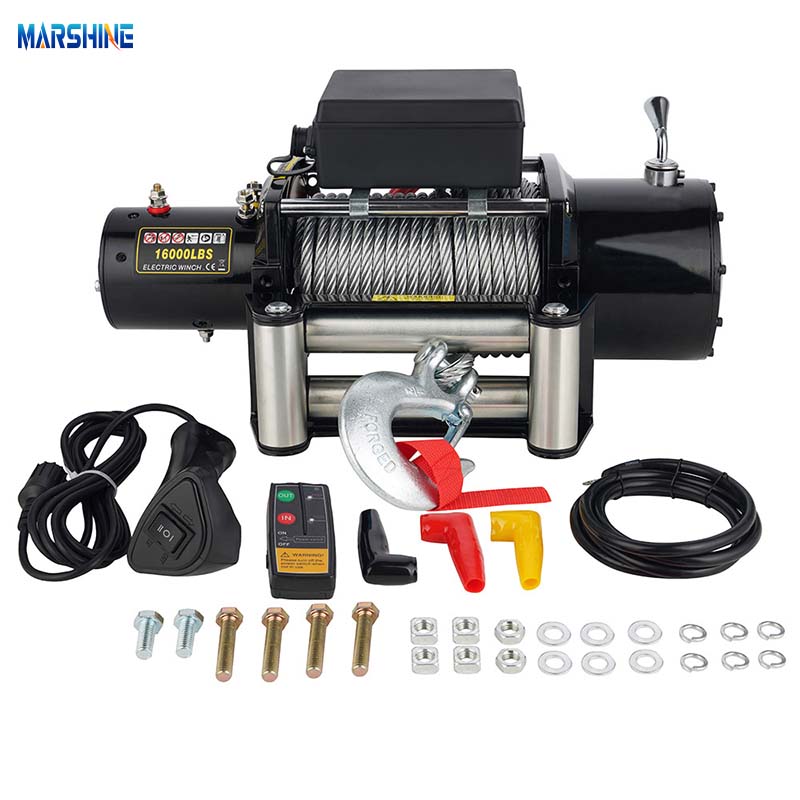

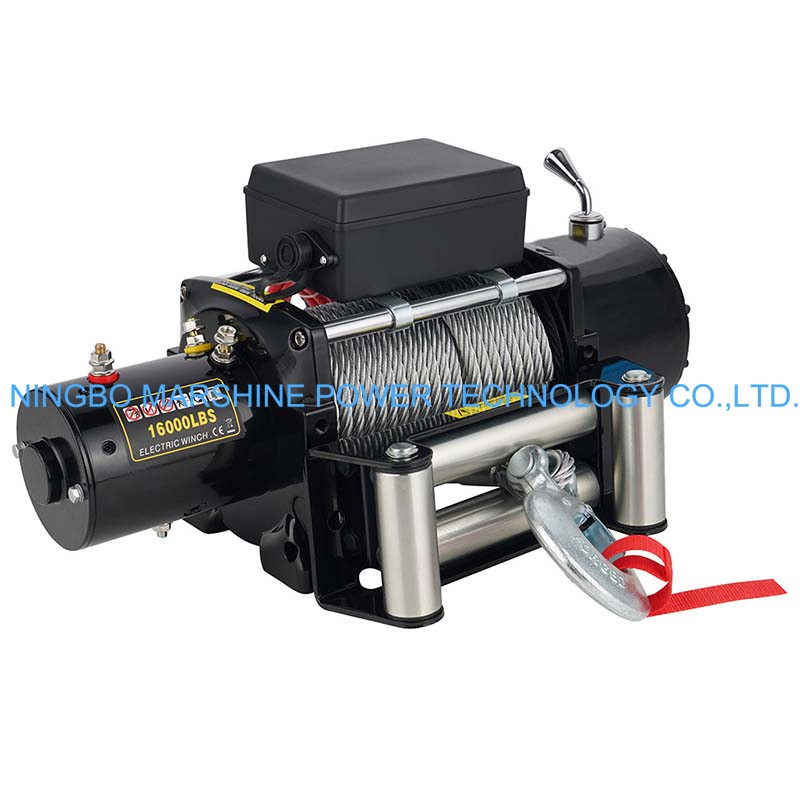

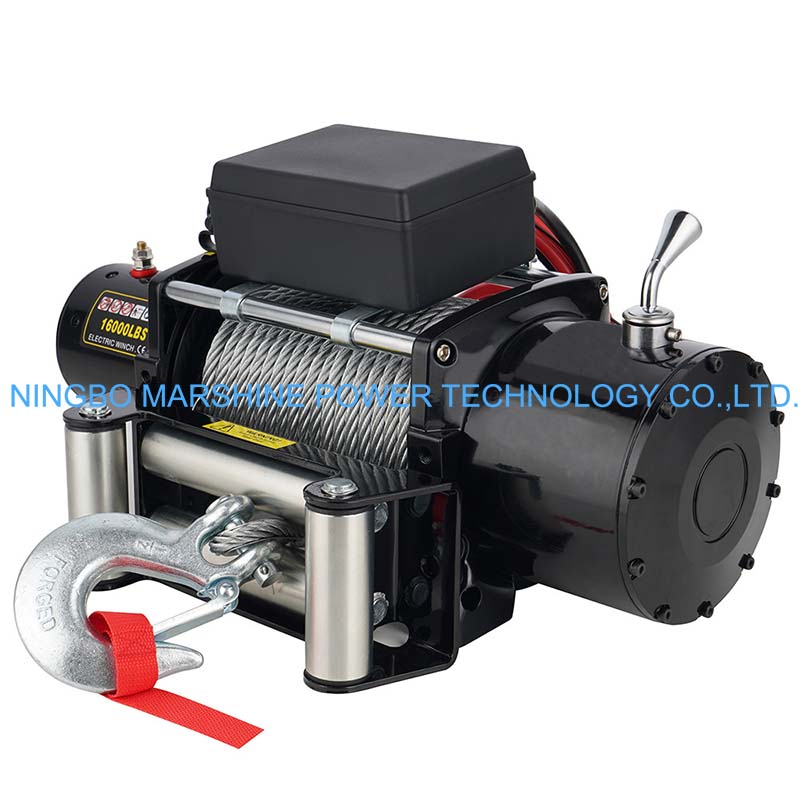

12V 16000lbs Electric Powered Pulling Winch

Model:MAEW-12

As a Chinese supplier specializing in manufacturing the electric power tools, MARSHINE has more than ten years of experience in providing the electric power engineering tools to the international customers. We insist on providing the reliable tools for the utility electricians and the linemen with the competitive prices. And this MARSHINE 12V 16000lbs Electric Powered Pulling Winch is an efficient electric winch that can effectively improve the construction efficiency of the construction team with its strong traction and the compact design.

Send Inquiry

Product Description

As a high-capacity, rugged winch machine that designed to handle the heavy-duty pulling tasks with the precision and the efficiency, this MARSHINE 12V 16000lbs Electric Powered Pulling Winch is powered by a reliable 12V DC motor, and is able to delivers a massive pulling force of up to 16,000 lbs, making it suitable for both the industrial applications and the vehicle recovery operations. Its robust construction and the intelligent control system can ensures the excellent performance under the demanding conditions.

Product Parameter

Rated Line Pull	16000LBS (7257kgs) single line
Motor	5.2kw/7hp, series wound
Control	Remote switch, 9.8ft(3m)lead
Gear train	3 Stage Planetary
Gear train ratio	358:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size	Φ2.5"(88)mm×(8.8")221.5mm
Cable	Φ10.5mmX26m
Overall Dimensions	23.9"x4.5"x9"(606mm×190mm×254mm)
Mounting Bolt Pattern	253mm×114mm Φ12
Weight	N.W.54kg G.W.56Kg
Packing Size	655×235×410mm

Line pull lbs(kgs)	Line speed ft/min(m/min)	Current A
0	25.6(7.8)	85
4000(1814)	12.2(3.7)	235
7000(3175)	9.2(2.8)	290
10000(4536)	6.9(2.1)	350
13000(5897)	5.6(1.7)	395
16000(7257)	4.6(1.4)	435

Layer	Rated Line Pulllbs(kgs)	Total Rope on Drumft(m)
1	16000(7257)	16(5)
2	13700(6214)	36(11)
3	11500(5216)	62(19)
4	9700(4400)	85(26)

Product Feature

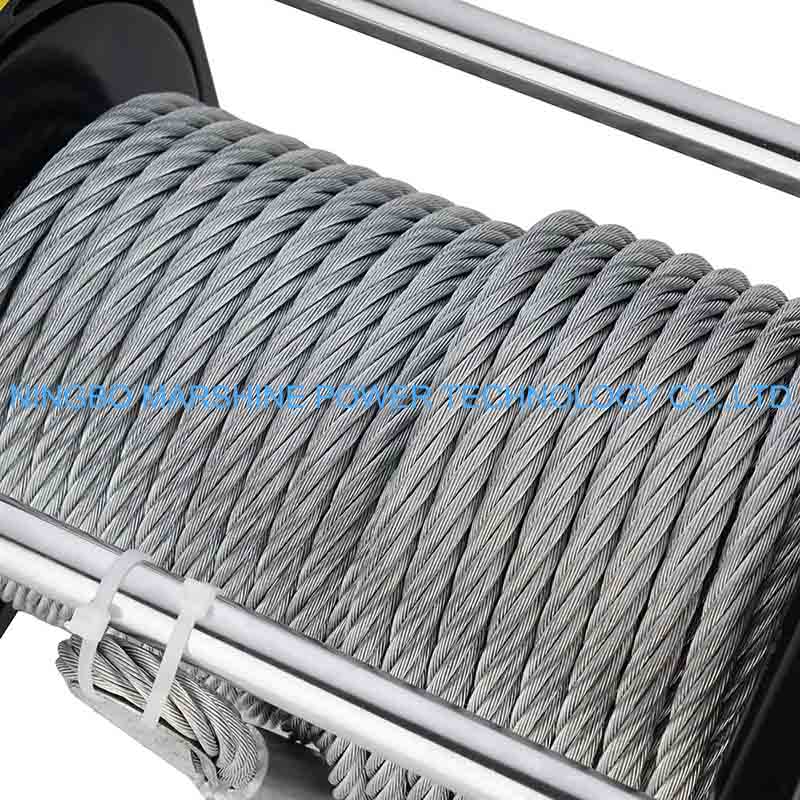

Been equipped with the wear-resistant wire ropes for its secure load handling and the long-term reliability, and the efficient yet powerful 12v DC motor to provide the consistent yet stable performance, this MARSHINE 12V 16000lbs Electric Powered Pulling Winch is able to offers an impressive 16,000 lbs pulling force, make it ideal for the heavy loads operations and the tasks in the challenging terrains. It is able to provide the superior safety by maintaining the load position during the power failure or the stop commands. And allows the operators to manage the winch machine from a safe distance, so that to improve the operational safety and the convenience. Been constructed with the durable materials and treated with the corrosion-resistant protective coating, this winch machine is suitable for the outdoor and the rugged construction environments.

Product Application

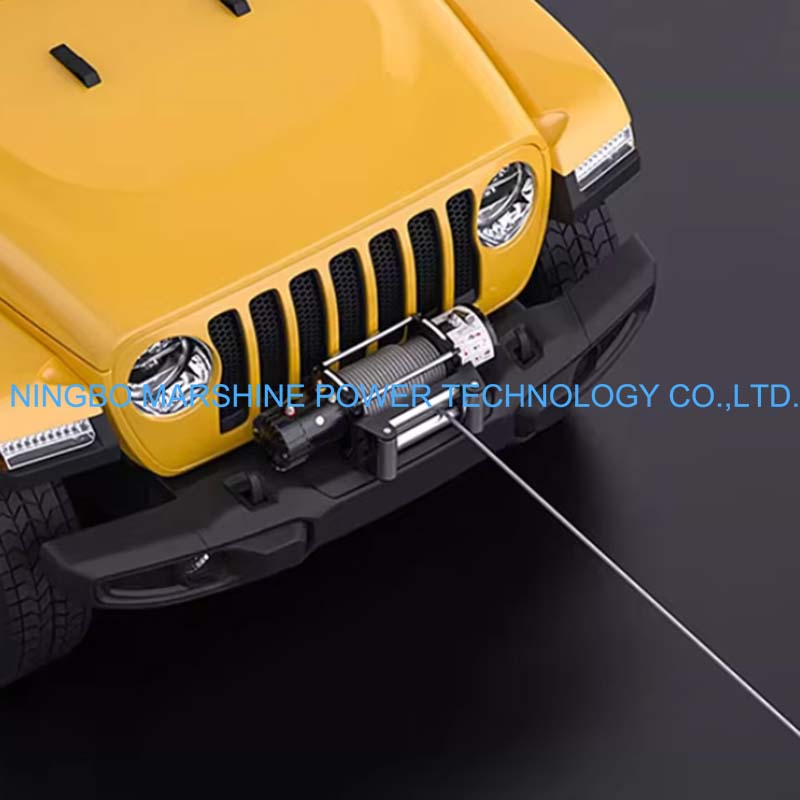

The MARSHINE 12V 16000lbs Electric Powered Pulling Winch is suitable for the power line and the communication cable pulling tasks in the underground or the overhead cable constructions, and can be used for the vehicle recovery and off-road winching, or for the lifting tasks in the construction and utility projects. In addition, it is able to deal with the agricultural machinery and the equipment recovery.
