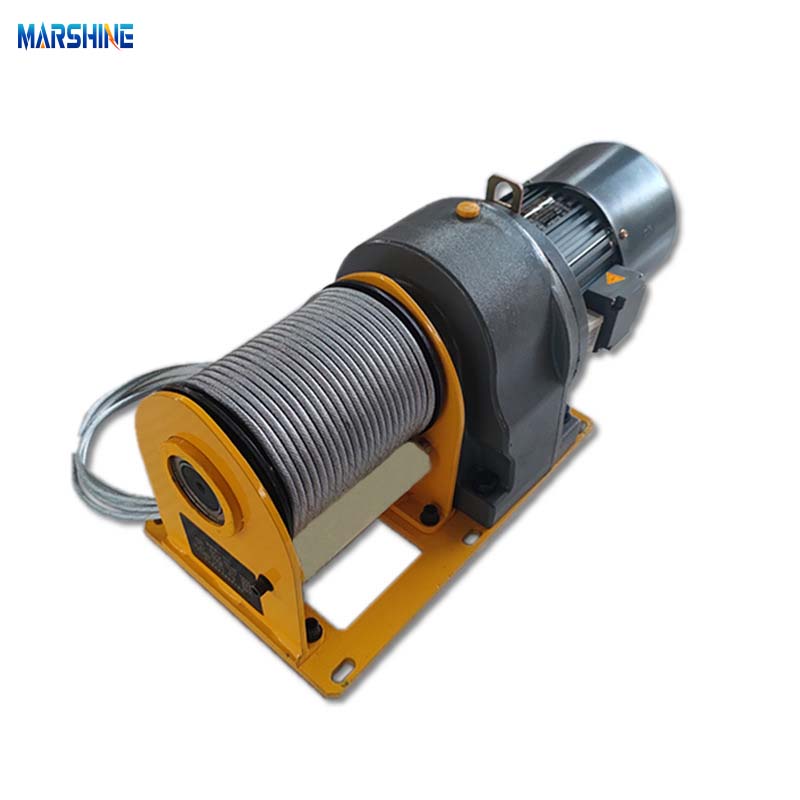

As a compact yet high-efficiency cable installation tool that designed for the lifting and pulling operations in the electrical power line construction and maintenance tasks, this MARSHINE One-Line Traction Lifting Machine Electric Cable Winch was powered by a reliable electric motor, and is able to delivers the strong, steady traction through a single-line system, making it ideal for the precise and safe hoisting of the cables, equipment, and the materials. It is built to meet the demands of the modern utility and the industrial worksites with the excellent control and the outstanding performance.
Product Parameter
| Model | Rated tension (kg) | Lifting speed 1 layer (m/min) | Wire rope diameter (mm) | Wire rope length (m) | Motor power (KW) | Drum speed (rpm) | Average rope speed (m/min) | Available rope 1 layer (m) | Weight (without rope) (kg) |
| ME250 | 250 | 4.7 | 4 | 47.14 | 0.4 | 15 | 5.75 | 7 | 25 |
| ME250 | 3.7 | 4 | 0.75 | 18.75 | 7.19 | 7 | 25 | ||
| ME500 | 500 | 3.5 | 6 | 59.72 | 0.37 | 7.9 | 4.145 | 8.4 | 65 |
| ME500 | 8.5 | 6 | 0.75 | 15 | 8.295 | 8.4 | 65 | ||
| ME980 | 980 | 3.4 | 9 | 77.81 | 0.75 | 7.5 | 4.05 | 11 | 114 |
| ME980 | 7.5 | 9 | 1.5 | 15 | 8.105 | 11 | 120 | ||
| ME1250 | 1250 | 5.9 | 9 | 64.32 | 1.5 | 10.71 | 6.6 | 8.7 | 125 |
| ME1600 | 1600 | 3.9 | 12 | 88.04 | 1.5 | 7.5 | 5.325 | 12.1 | 204 |
| ME1600 | 8.5 | 12 | 89.72 | 2.2 | 10 | 7.475 | 12.1 | 210 | |
| ME3200 | 3200 | 6.0 | 14 | 65.18 | 3.7 | 7.65 | 6.56 | 11.4 | 224 |

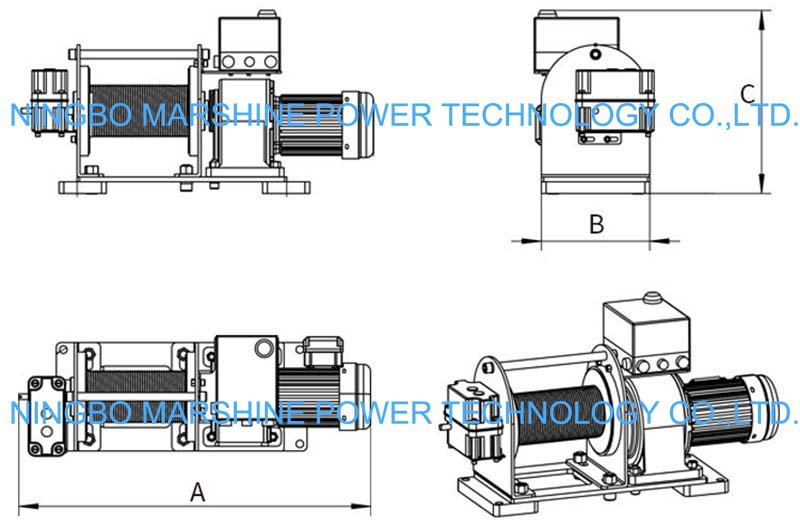

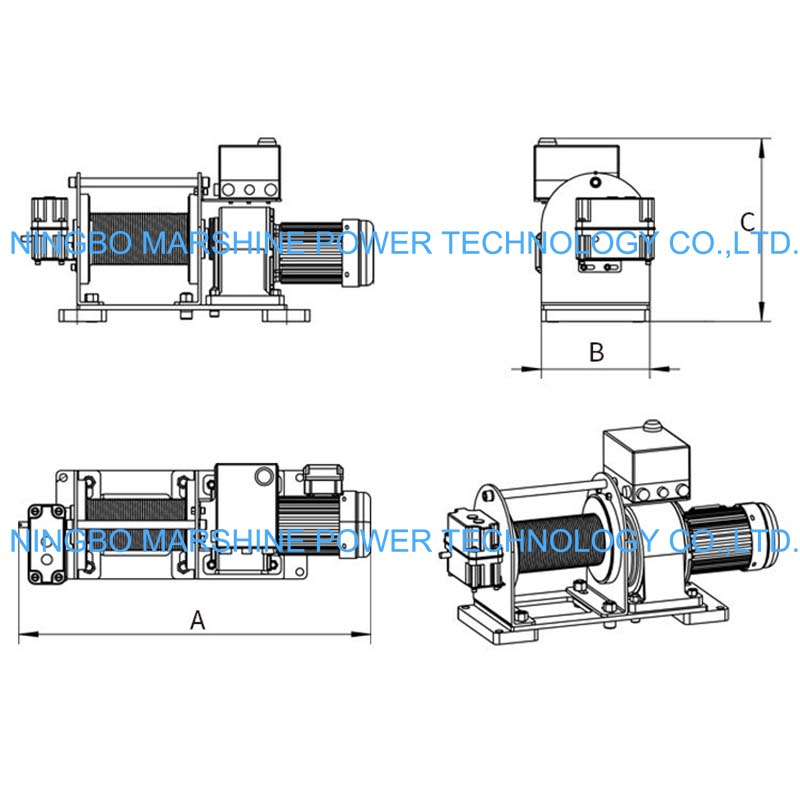

| Model | A(length)(mm) | B(width)(mm) | C(height)(mm) |
| ME250 | 747 | 230 | 389 |
| ME250 | 768 | 230 | 380 |
| ME500 | 757 | 200 | 411 |
| ME500 | 774 | 260 | 406 |
| ME980 | 1014 | 220 | 429 |
| ME980 | 1067 | 265 | 429 |
| ME1250 | 1004 | 310 | 484 |
| ME1600 | 1427 | 320 | 514 |
| ME1600 | 1200 | 335 | 497 |
| ME3200 | 1283 | 360 | 534 |
Product Feature
With the streamlined design and the optimized line tension, this MARSHINE One-Line Traction Lifting Machine Electric Cable Winch can achieve the simple and effective lifting and pulling with ease. Been made from the high-tensile alloy steel and the quality components to withstand the harsh construction site environments, and with the consistent torque output enables the smooth operation under the heavy load conditions, this winch machine with the lightweight design can effectively improve your team's construction efficiency. Its included start/stop controls and the emergency braking system for the operators can ensures the operator's personal safety during the use. And with the efficient mechanical structure can ensures the long term operation without wearing the components.
Product Application
The MARSHINE One-Line Traction Lifting Machine Electric Cable Winch is suitable for lifting and pulling the overhead conductors, and can be used to hoist the tools and materials in pole and tower constructions, or for positioning the light industrial cable handling and equipment. It can be used to the utility line maintenance and installation projects as well.
Product Details
The MARSHINE One-Line Traction Lifting Machine Electric Cable Winch is a reliable choice for the professionals who requires for the reliable, precise, and safe cable lifting and pulling performance.
Original Place:Ningbo,Zhejiang.
Certification:ISO,CE.
Warranty:1year.
Leading Time:25-30days.
