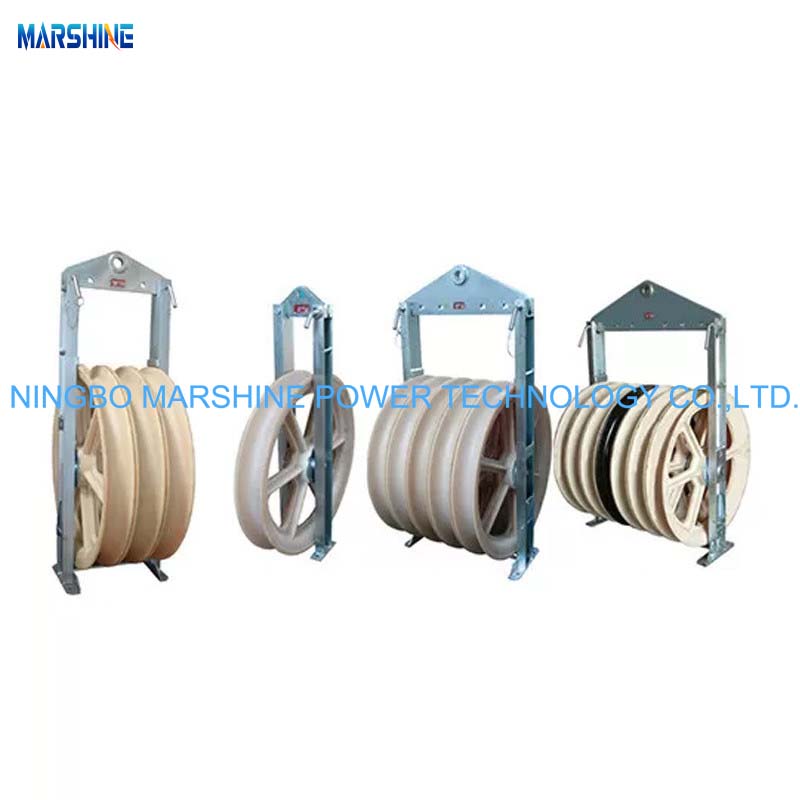

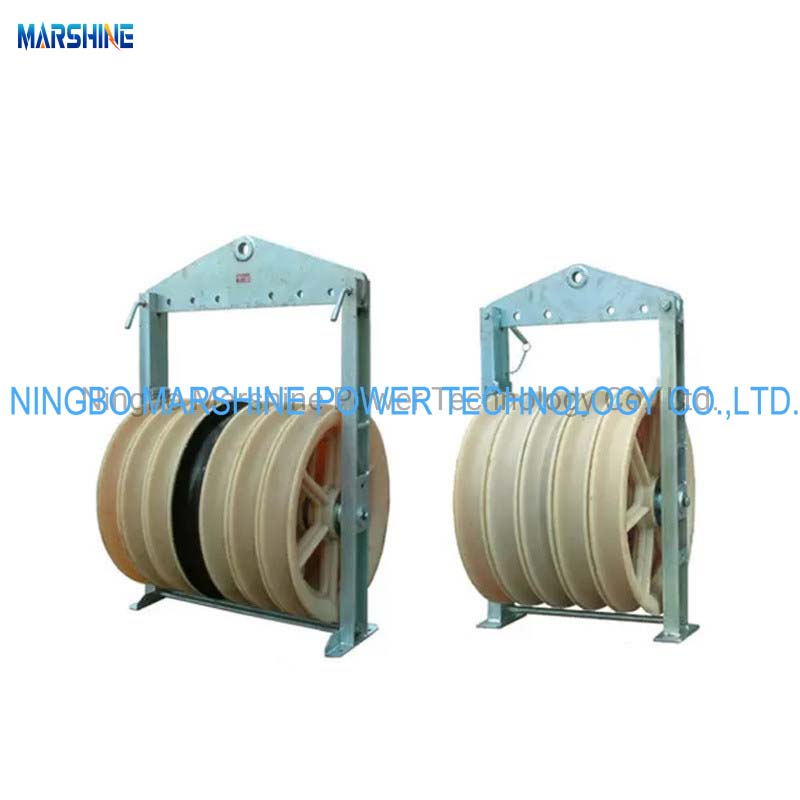

The MARSHINE Φ1160Large Diameter Universal Stringing Block is a critical tool in power line construction and maintenance, designed to simplify cable installation while ensuring safety and efficiency. Manufactured by MARSHINE, a trusted brand in cable installation tools such as pulley blocks and tensioners, this cable pulley is designed for heavy-duty applications. In this article, we'll explore its features, step-by-step instructions for use, and best practices for achieving optimal performance.
Main features of MARSHINE Φ1160Large Diameter Universal Stringing Block
Large Diameter Design: Φ1160 model accommodates high-tension cables and conductors, reducing friction and wear during installation.
Universal Compatibility: Suitable for a variety of cable diameters and types, including aluminum, copper and composite conductors.
Durable Construction: The structure is made of high-strength alloy steel with an anti-corrosion coating to ensure service life in harsh environments.
Step-by-step guide to using the MARSHINE Φ1160 Large Diameter Universal Stringing Block.
1. Pre-installation preparation
Inspect the pulley block: Check for cracks, deformation or rust. Make sure the pulley rotates smoothly and the locking device is working properly.
Choose the mounting point: Select a sturdy structure such as a transmission tower or pole rated to withstand the load capacity of the pulley block.
Gather tools: Include winches, tensioners, and rigging hardware (e.g., shackles, slings) for a secure connection.
2. Install the threading pulley block
Attach to the structure: Secure the pulley block with a rated shackle or bolts. Align it to match the expected path of the cable to minimize angular stress.
Verify stability: Confirm that the mounting structure of MARSHINE Φ1160Large Diameter Universal Stringing Block can withstand dynamic loads during cable pulling.
3. Threading the wire
Feed the wire: Thread the cable through the pulley sheave, making sure it is centered to avoid uneven wear.
Attach the pulling equipment: Use a winch or tensioner to apply controlled force. Avoid sudden jerk to prevent cable damage.
4. Perform pulling operations
Monitor tension: Use a dynamometer to ensure tension remains within the rated capacity of the pulley.
Adjust alignment: If the cable is off track, pause and readjust the pulley or cable path.
5. Post-operation inspection
Clean pulleys: Remove debris and lubricate pulleys to maintain performance.
Store properly: Store the MARSHINE Φ1160Large Diameter Universal Stringing Block in a dry environment to prevent corrosion.
Safety Considerations
The MARSHINE Φ1160Large Diameter Universal Stringing Block simplifies complex cable installations while prioritizing safety and durability. By following the outlined steps and adhering to maintenance protocols, operators can maximize efficiency and extend the life of the tool.
Load Limits: Never exceed the manufacturer’s specified load capacity to avoid structural failure.
Personal Protective Equipment (PPE): Workers should wear gloves, helmets, and safety belts during installation.
Regular Maintenance: Schedule inspections for wear and tear, especially after high-stress projects.
This guide combines industry standards and manufacturer-recommended best practices to ensure users achieve the best results with this versatile tool.
