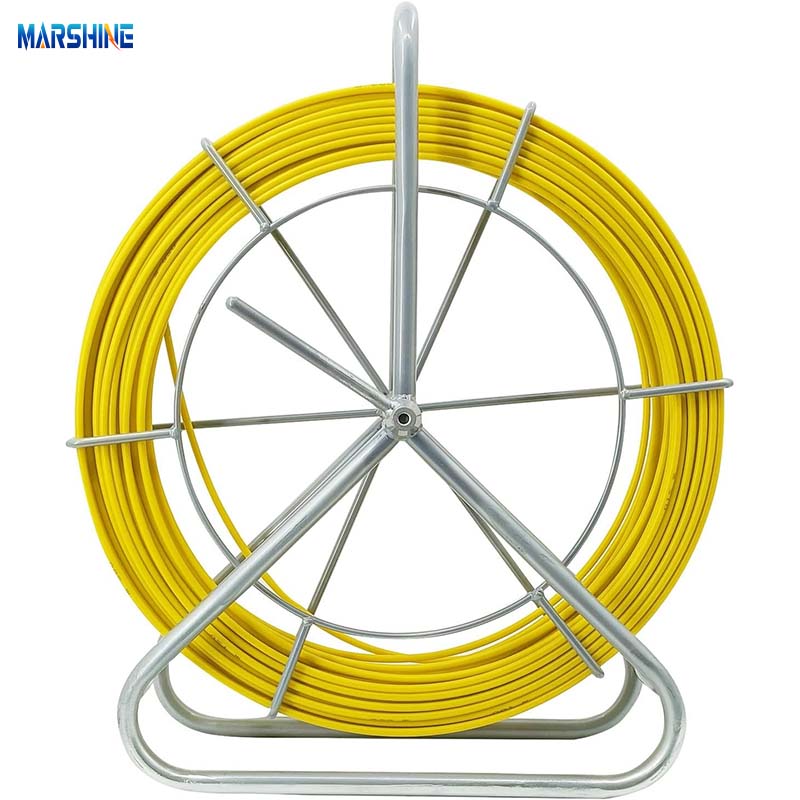

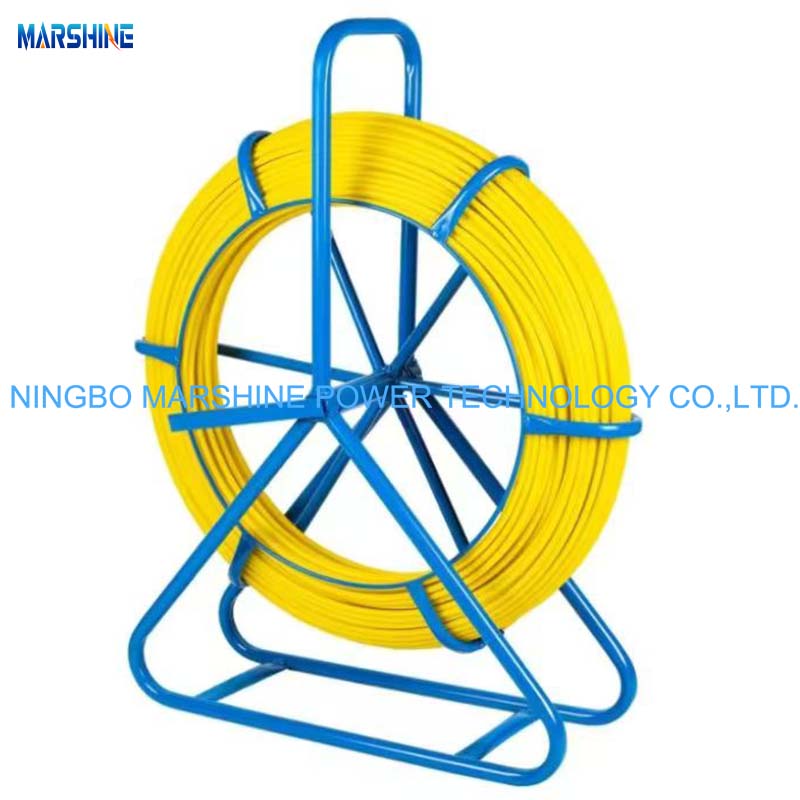

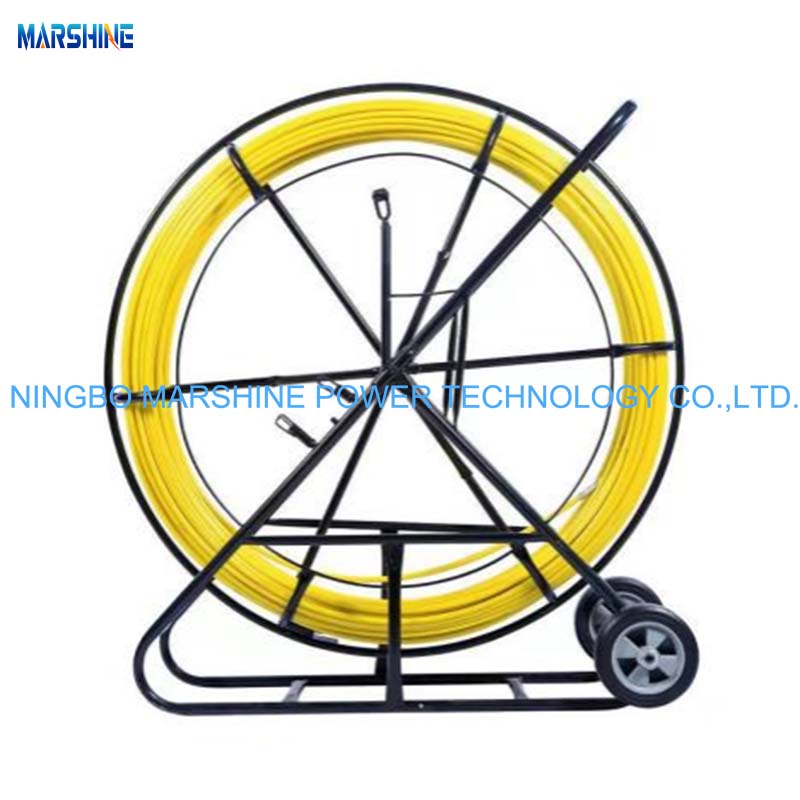

13mm Power Cable Laying Machine Fiberglass Duct Rod

Model:SP-13

Being a Chinese company who contribute to produce lightweight, and versatile fiberglass duct rod with competitive price, our MARSHINE 13mm Power Cable Laying Machine Fiberglass Duct Rod can be a go-to solution for professionals prioritizing speed, safety, and precision in high-voltage installations.

Send Inquiry

Product Description

The MARSHINE 13mm Power Cable Laying Machine Fiberglass Duct Rod delivers unmatched efficiency and reliability in deploying high-voltage cables through conduits, ducts, and the underground pathways. Engineered with rugged fiberglass construction with machine compatibility, this rodder ensures smooth, safe, and precise cable installations—even in the most demanding environments.

Product Parameter

Model specification	4.5mm, 6mm, 8mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm
Model specification	for your choice, and we can also accept OEM order
Length	30, 50, 60, 80, 100, 120, 150, 180, 200, 250, 300, 350, 400, 450, 500 meters
Length	for choice.
Material	Fiberglass (inner) and high density Polyester(outer)
Density	>1.9gr/cm3
Working temperature	- 40 to + 80
Minimum pulling strength	4000 N±5%
Tensile Modulus	>46.500Mpa
Consistency of rod	137gr/m
Flexural Modulus	>46.500Mpa
Elongation at Break	2.5-3%
Min. Bending Radius	388m
Tensile Strength	>15N/mm2
Environmental Stress & Crack Resistance	>1000hr

Product Feature

The MARSHINE 13mm Power Cable Laying Machine Fiberglass Duct Rod can offers the exceptional tensile strength and flexibility to users, is able to resisti the kinking or snapping during the heavy-duty pulls. And can compatible with the cable laying machines for the automated, high-speed installations, can evidently reduce the manual labor and accelerating the project timelines by 50%. With the smooth yet wear-resistant epoxy surface to reduce the cable abrasion and drag, and the UV-stabilized and corrosion-resistant ability to withstand the harsh environments, this tool can ensures its long service life while protecting the cables from damaged. And the high voltage insulated, non-metallic construction ensures the personal safety of the operators.

Product Application

This MARSHINE 13mm Power Cable Laying Machine Fiberglass Duct Rod can be deployed inter-array cables in the solar farms, wind turbine arrays, and the offshore projects, or for retrofitting wiring in the factories, oil refineries, and utility tunnels, and can be used to install the high-voltage cables in the underground conduits, substations, and the transmission networks. Meanwhile, it is suitable for upgrading the power distribution systems in the congested urban ducts.
