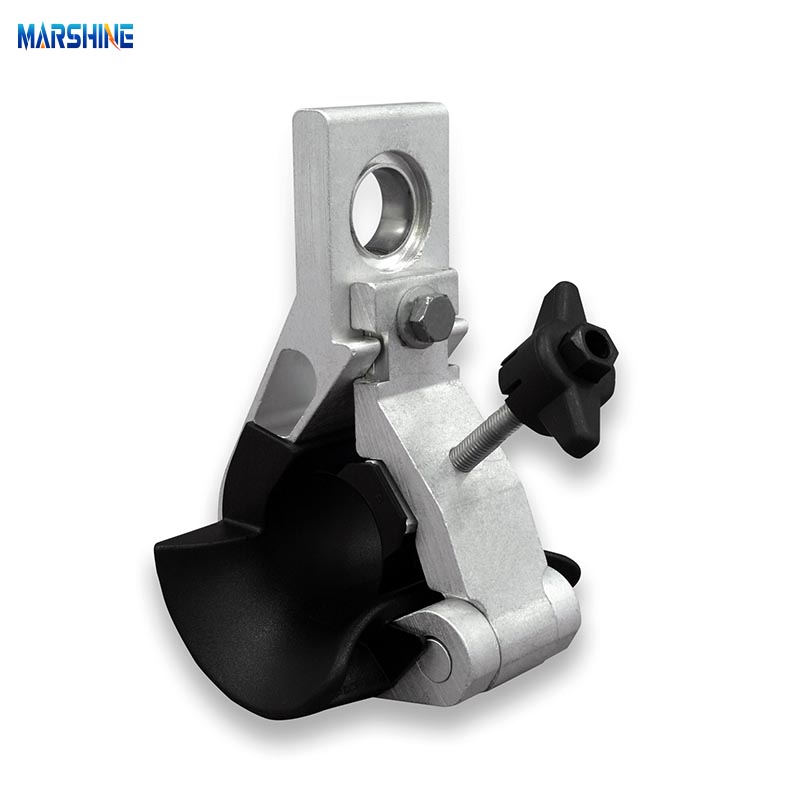

Model SO136-02 Aluminum Hook Suspension Clamp For LV ABC Cables

Model:SO136-02

Been a Chinese manufacturing and trading company for 20 years, our MARSHINE keeps on producing the reliable cable supporting tools in higher quality for global linemen and utility workers with competitive price. This MARSHINE Model SO136-02 Aluminum Hook Suspension Clamp For LV ABC Cables is one of our efficient cable supporting tools for low voltage cables. Been designed with the aluminum structure, this clamp can ensures the last long durability. And with the firm grips, this clamp can holds the cables while protecting its insulation with ease.

Send Inquiry

Product Description

Been a reliable and ready-to-use solution that engineered for the secure installation and suspension of 4 core low voltage aerial bundled conductor cables on poles, this MARSHINE Model SO136-02 Aluminum Hook Suspension Clamp For LV ABC Cables that designed with the practicality and durability can offers a high mechanical strength and fast hook mount installation, so that to make a reliable choice for the overhead line installers. Due to its lightweight yet high-tensile aluminum construction, this clamp can ensures ease of use with long-term operational stability for the distribution networks.

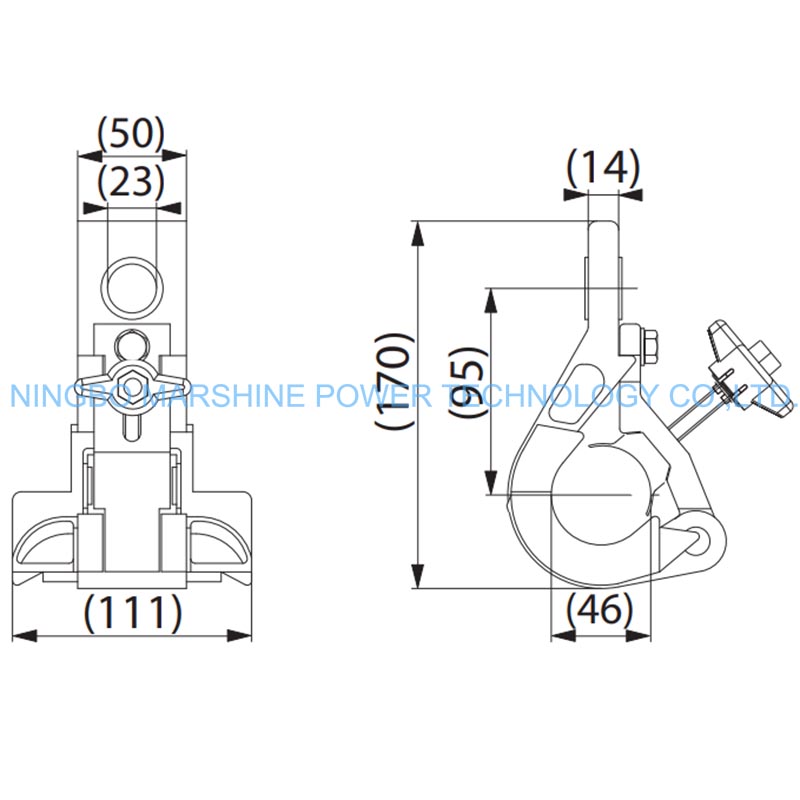

Product Parameter

Model	SO136-02
Tightening torque	10 N.m
SMFL	40 KN
Cable diameter	12-42mm
Conductor size	2-4 x (25-120)
Weight	1kg
ETIM Class	EC003516

Product Feature

The wide conductor compatibility that supports 2 to 4 cores with conductor cross-sections from 25 to 120mm² can covers a broad range of standard LV ABC cables.

Can accepts overall cable diameters from 12 to 42mm, can ensures the compatibility with various cable types and configurations.

Rated for a safe maximum failure load of 40KN, this high mechanical strength can offers the robust strength for the overhead suspension under the heavy loads.

With about 1kgs lightweight and compact design, this MARSHINE Model SO136-02 Aluminum Hook Suspension Clamp For LV ABC Cables are easy for technicians to transport and install.

Designed to mount directly on standard pole hooks, this structure allows for the low installation requires without additional parts, so that to simplify the deployment and improve the working efficiency.

Suitable for the straight-line installations and line deviations up to 90°, allows for the uses on the straight runs as well as the angled or turning line segments.

Product Application

This MARSHINE Model SO136-02 Aluminum Hook Suspension Clamp For LV ABC Cables is perfect for suspending the 4-core low voltage ABC cables on the pole-mounted overhead lines in the residential, urban, or rural distribution grids.

It is suitable for both new line construction and replacement or upgrade of existing supports.

Can be used to deal with the straight runs as well as where lines change direction that up to a 90° angle, so that to provide the outstanding flexibility in the network layout.

Because of its hook-mount design and the no-extra-parts requirement, it is ideal for the operations where requires for the fast installation turnaround.
