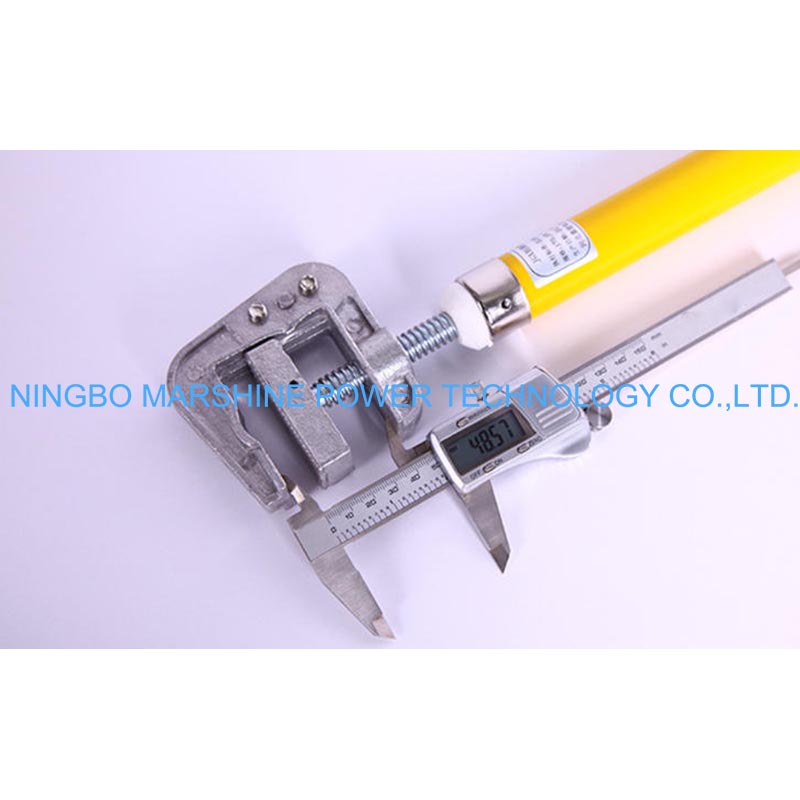

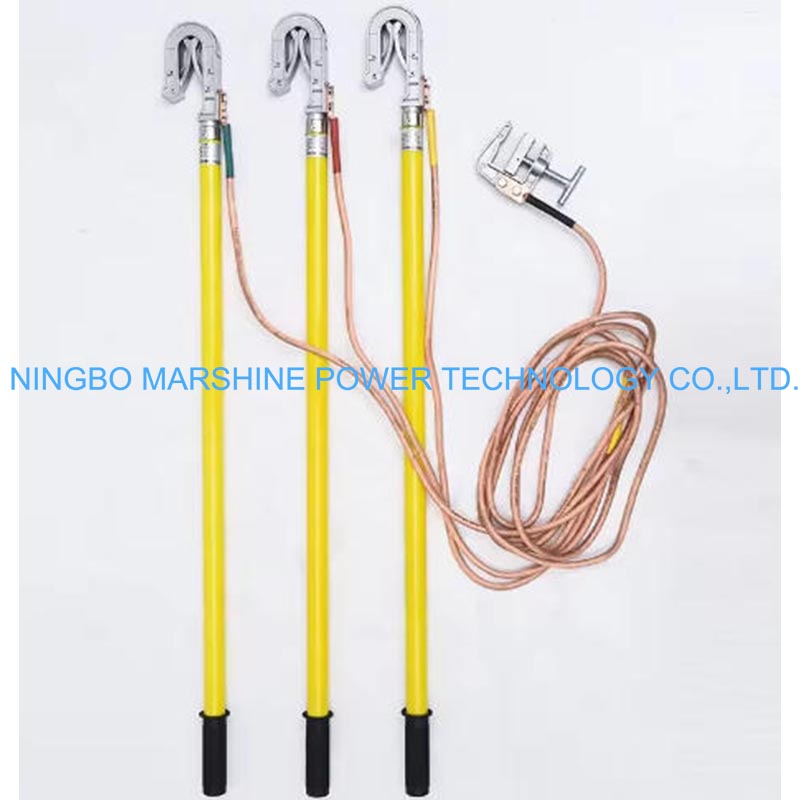

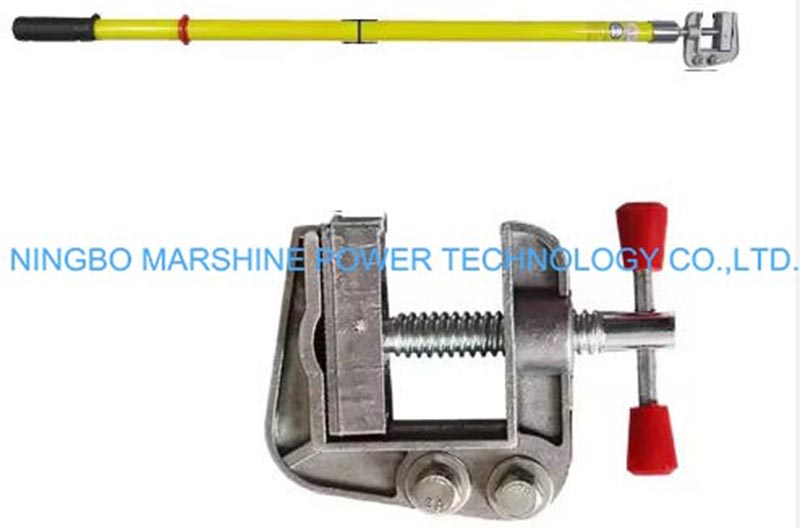

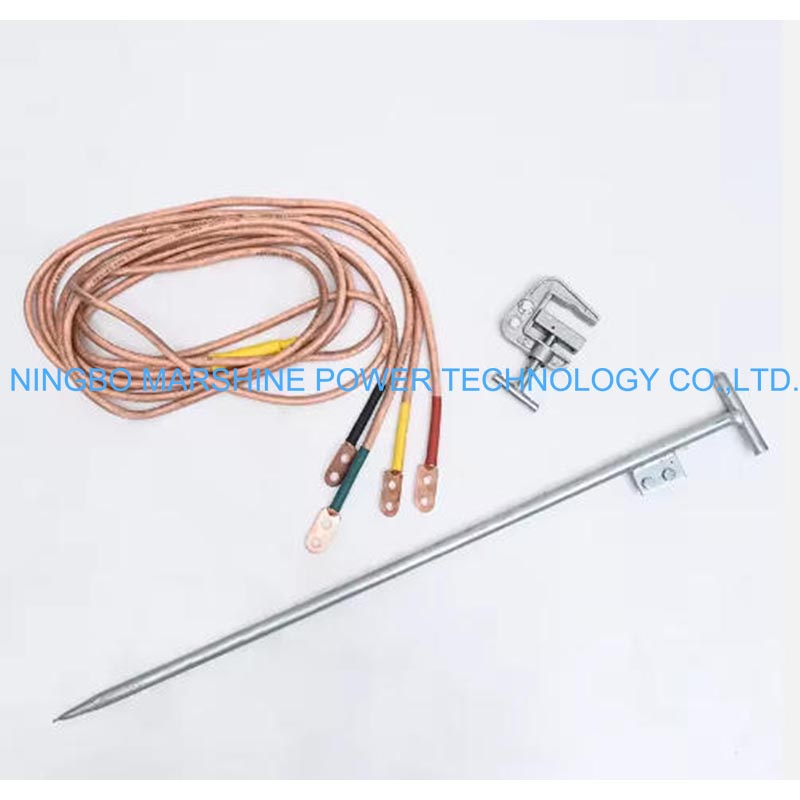

The grounding set consists of a copper boded steel grounding rod with a tough outer coating that is resistant to corrosion, and providing you with long-term contact with the earth and the stable conductivity. The rod’s length is typical for a MARSHINE Ground Rod and the diameter is standard size, which is suited to the most common installation applications. Along with the ground rod kit, a quality clamp is made from either copper or bronze alloy, and is included to ensure a good tight connection with the grounding conductor or the earthing cable.
Product Parameter
| Model | Ground Cable Size(mm²) | Recommended Length of Cable(m) | Length of Ground Stick(m) | Number of Ground Stick(rods/set) |
| RZDX-0.4KV | 16 | 3*1.5+8 | 0.5 | 3 |
| RZDX-10KV | 25 | 3*1.5+10 | 1.0 | 3 |
| RZDX-35KV | 35 | 3*1.5+10 | 1.5 | 3 |
| RZDX-110KV | 35 | 3*2+12 | 2.0 | 3 |
| RZDX-220KV | 50 | 3*2+15 | 3.0 | 3 |
Product Feature

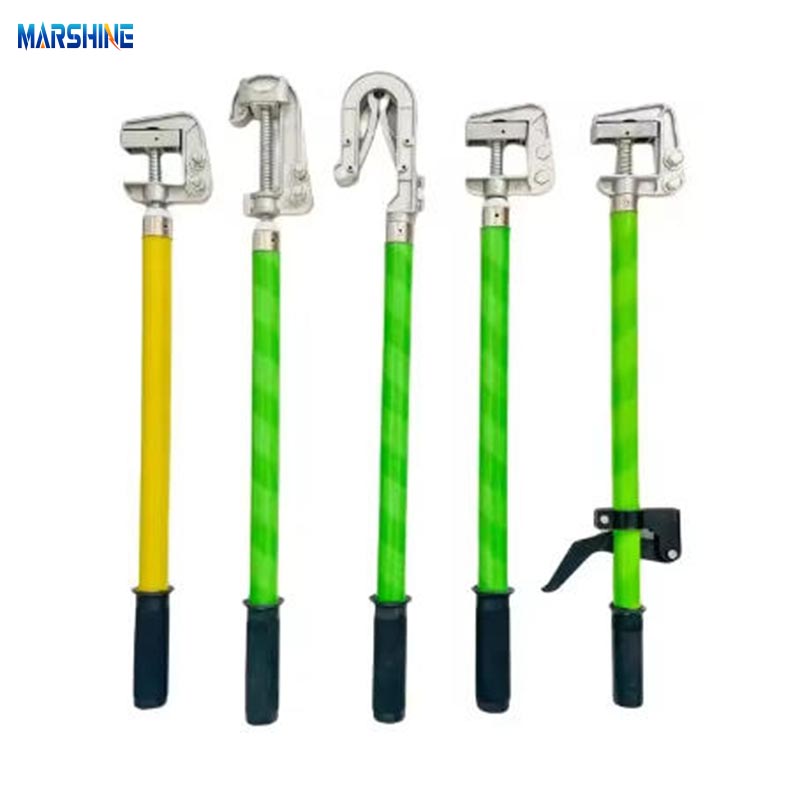

The grounding rod is use the copper bonded steel, with excellent conductivity and mechanical properties for the stable grounding. The surface treatment endows the product with corrosion resistance, which prolongs the service life even in wet or acidic soil surroundings. The clamp employs the bronze or the copper cladding alloy material, which can guarantees powerful electrical contact and anti-oxidation for the long time. The wire and connections of the MARSHINE High Voltage Fiberglass Grounding Rod is appropriately sized and rated, so that they can handle short-circuit or fault currents without melting, while allowing the grounding of high-voltage or high-current circuits.
Product Application

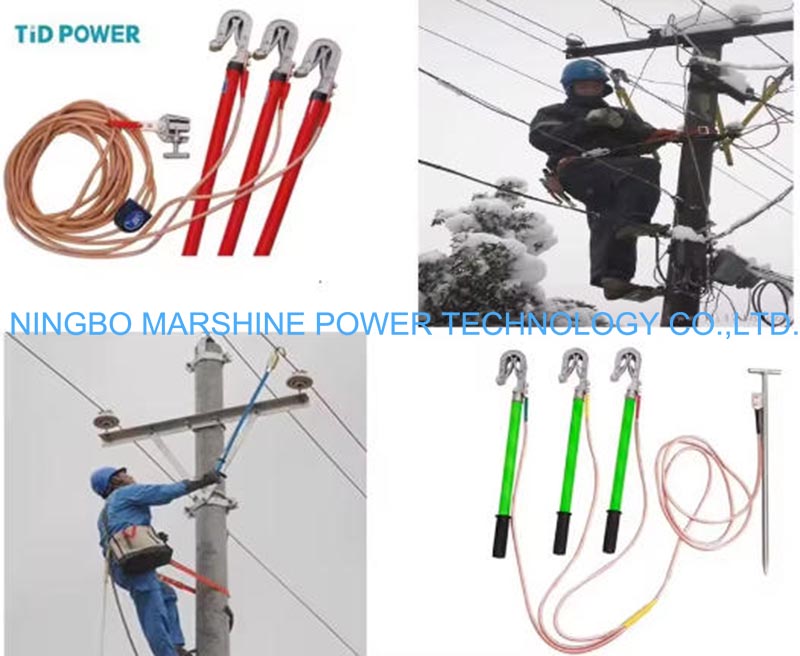

The MARSHINE High Voltage Fiberglass Grounding Rod is perfect for substation build-outs that require temporary or permanent earth rods to provide a safe grounding electrode for the switch gear. The power-line maintenance crews, particularly those working overhead or underground, which need to establish fault-current path to earth quickly, even in remote locations. It is excellent for the construction site that needs some grounding rods before energizing the systems to install the transformers or the distribution panels.
Product Details

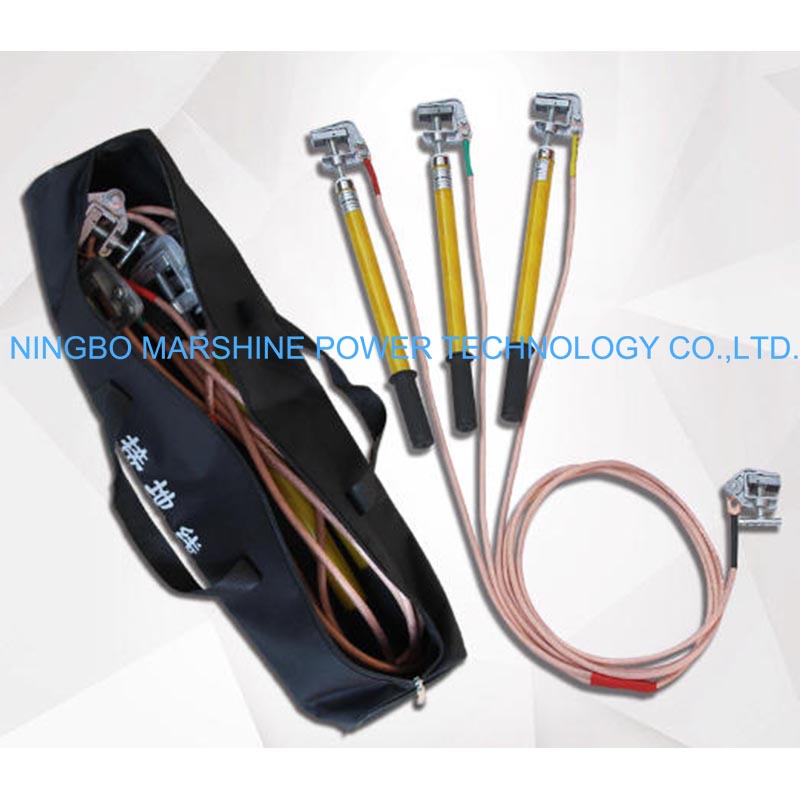

The MARSHINE High Voltage Fiberglass Grounding Rod has a compact and lightweight structure of the assembly, which can allow for easy transport, and makes it ideal for use in the field work or the emergency grounding.
Trusted Engineering: All of our MARSHINE products are carefully developed and tested to meet stringent quality control standards.
Place of Origin: Ningbo, China.
Certification: CE, ISO9001.
Phase: Single or three.
