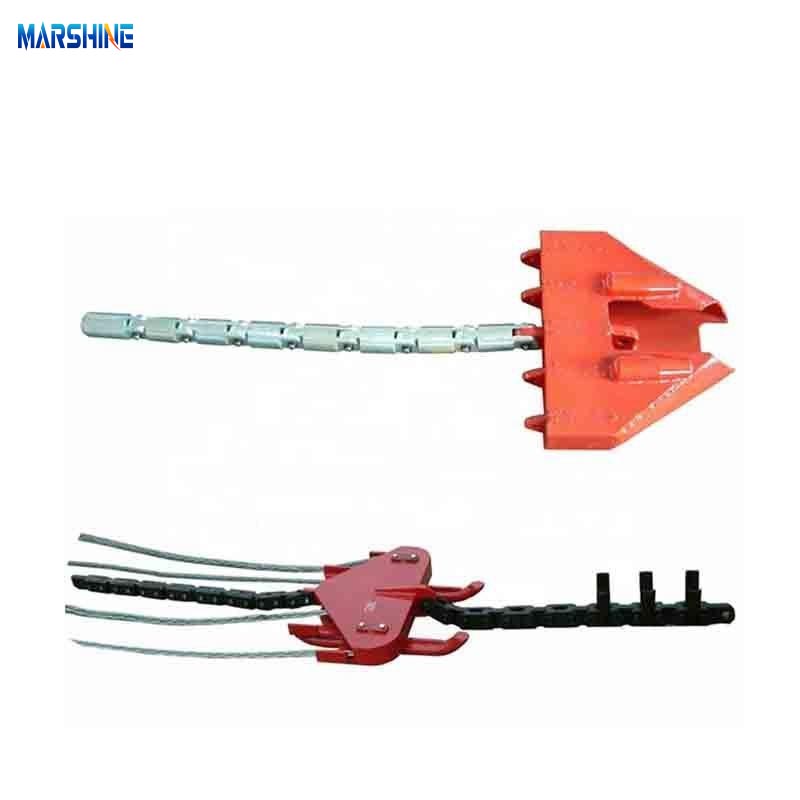

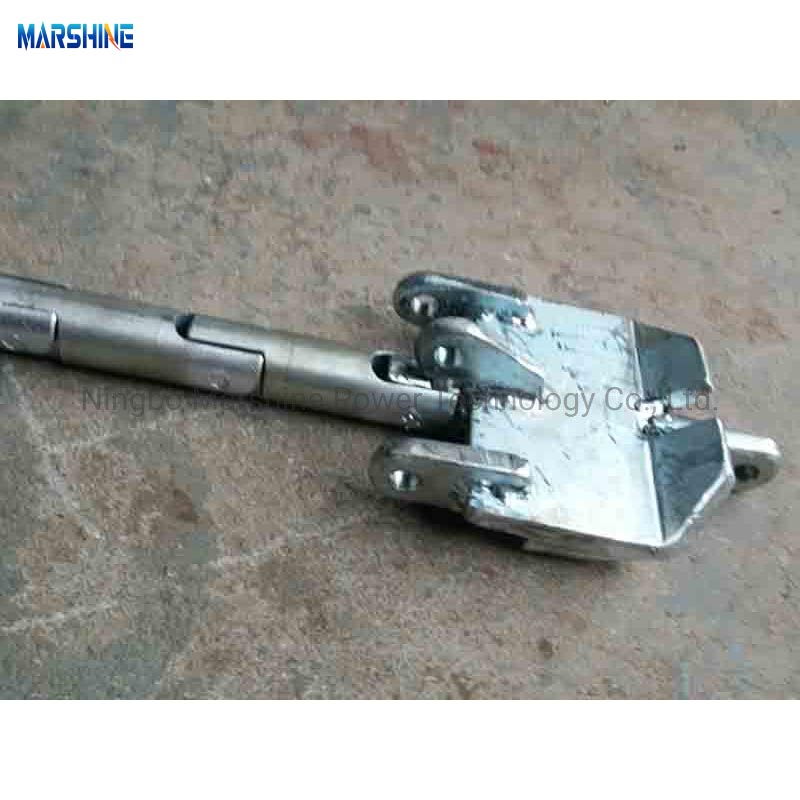

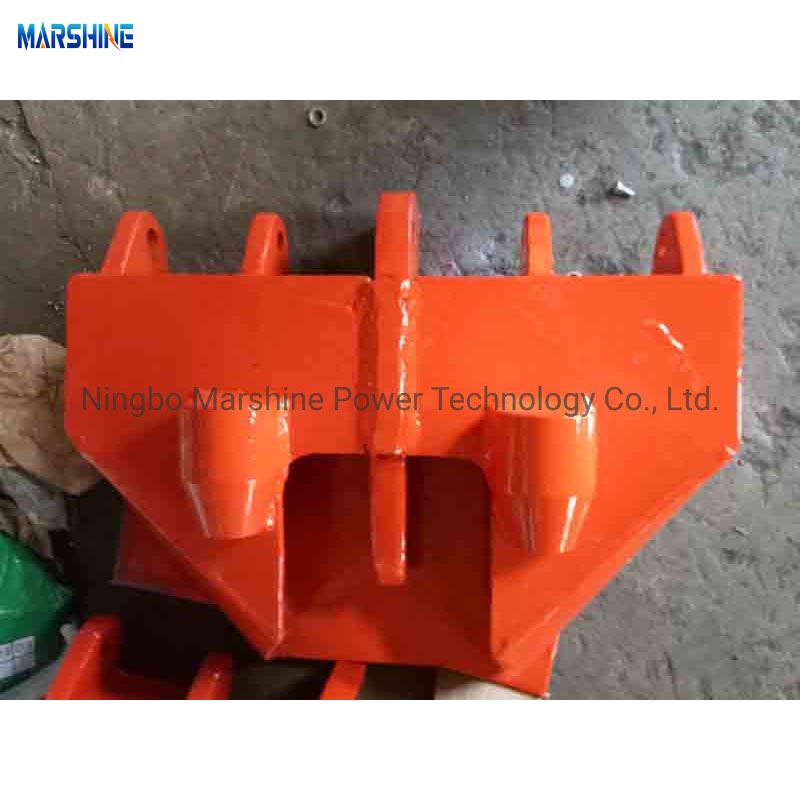

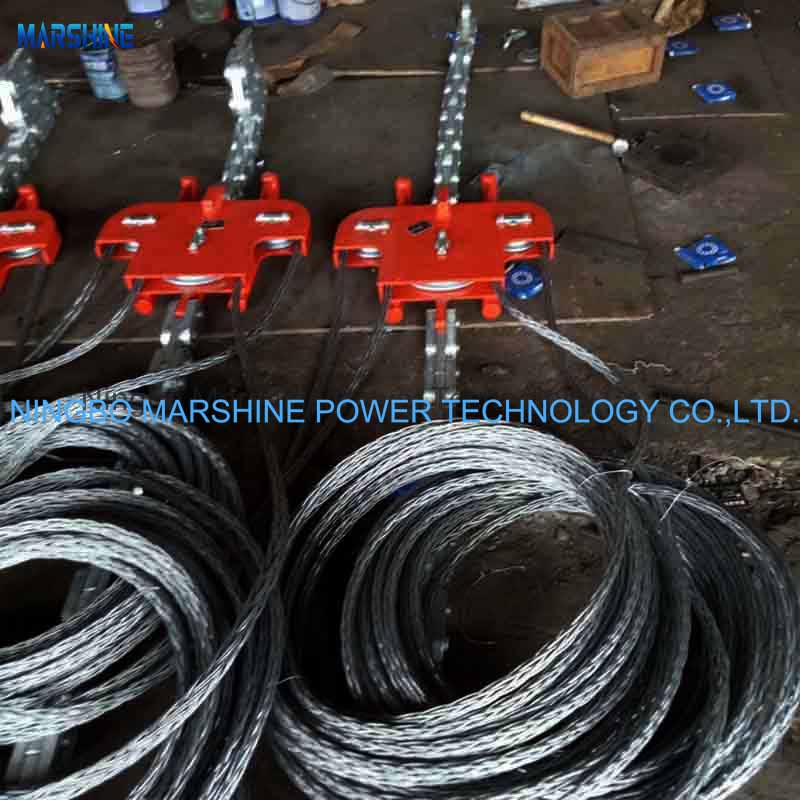

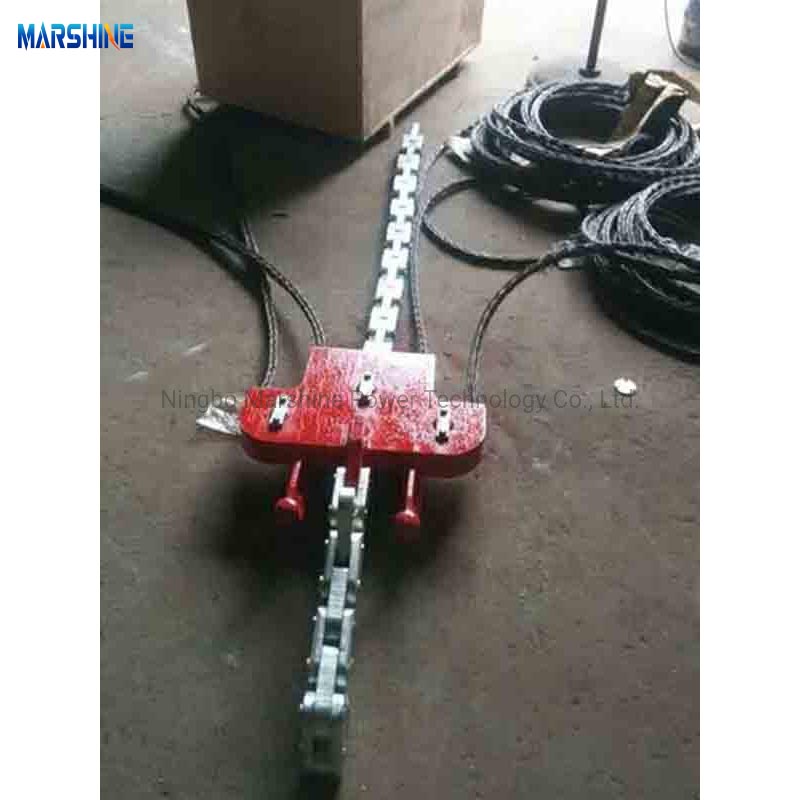

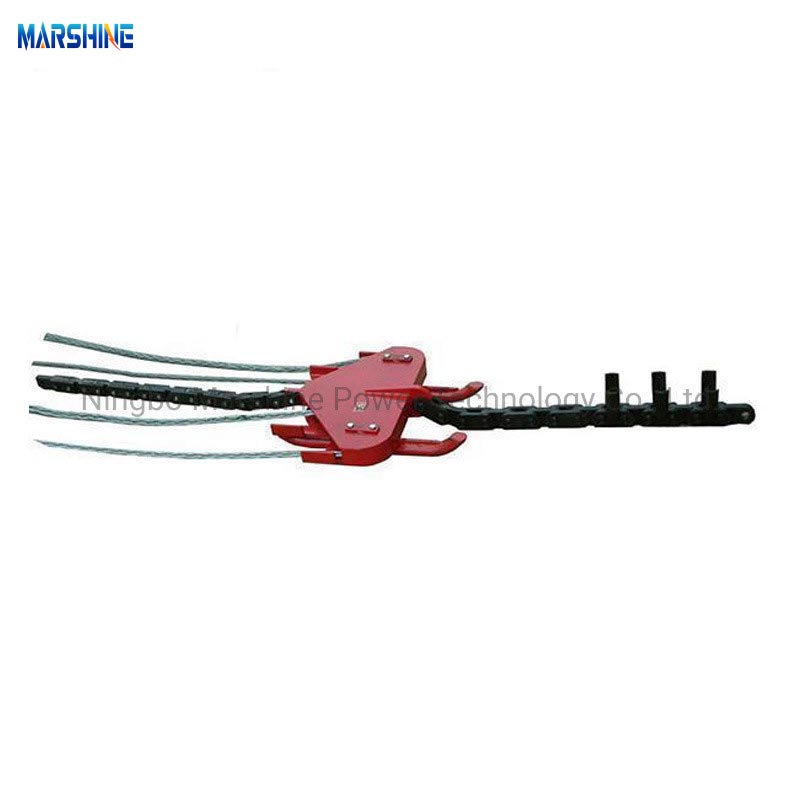

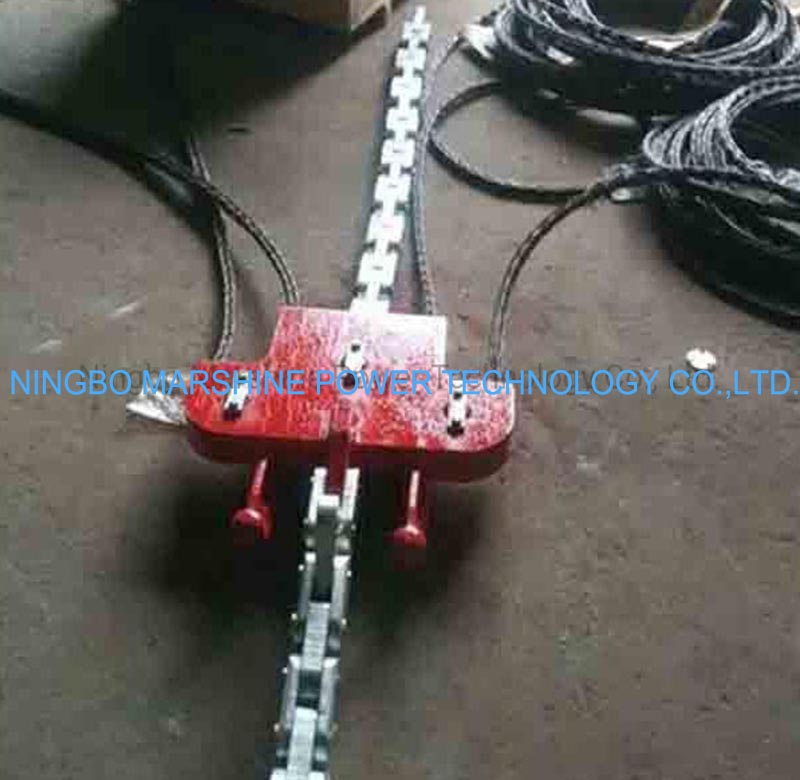

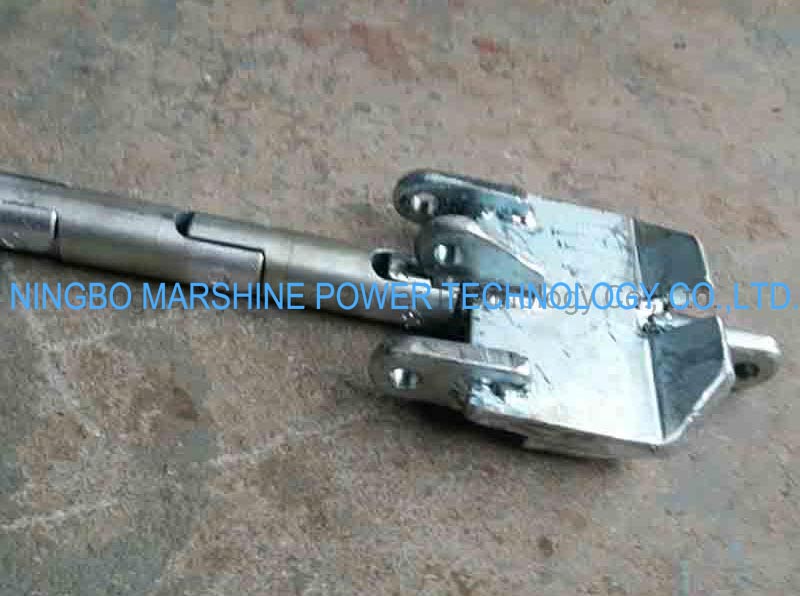

Head Boards for Three Bundle Conductor(Balancing Type)

Model:SZ3A-10
Being an expertly engineered stringing tools designed to align and evenly distribute tension among triple-bundle conductors by MARSHINE, who was a large Chinese company supply these conductor installation tools with competitive price, this MARSHINE Head Boards for Three Bundle Conductor (Balancing Type) can evidently enhance the efficiency and accuracy of conductor stringing.

MARSHINE Head Boards for Three Bundle Conductor (Balancing Type) are designed to provide unmatched mechanical and electrical balance for multiple cable pulls on high voltage transmission systems. Designed for utility operators and renewable energy projects, these advanced hubs ensure precise spacing, eliminate torsional stress, and evenly distribute dynamic loads on triple split conductors. By preventing galloping, colliding, and uneven tension, they improve grid reliability in extreme weather, high wind areas, and high capacity power corridors.


Product Parameter

Item number Model Rated load (KN) Applicable stringing block sheave width(mm) Weight (kg) Steel rope length (m)
17228 SZ3A-10 100 100 114 1x30+1x15
17229 SZ3A-13 130 110 130 1x30+1x15
17230 SZ3A-18 180 110 142 1x30+1x15

Product Feature

This MARSHINE Head Boards for Three Bundle Conductor (Balancing Type) can integrates easily with the cable pulls, swivels, and tensioning equipment. Been made of high-strength materials, this tool can withstand the high tensile forces. It is designed to maintains the consistent spacing between the three conductors, can effectively optimizing the load distribution and reducing the electromagnetic interference by 40%. With this board, you can pulling bundles of cables with a steady movement, and reduce the risk of wire damage or entanglement during the cable pulling operations.

Product Application

The MARSHINE Head Boards for Three Bundle Conductor (Balancing Type) can be used with hydraulic puller, hydraulic tensioner and conductor stringing blocks, very suitable for constructions that where balance and alignment are critical. Such as new lines or upgrades to existing lines, or the installation of three-beam conductors in high voltage overhead transmission lines.

Product Details

With superior balance control and rugged construction, the MARSHINE Head Boards for Three Bundle Conductor (Balancing Type) are an essential asset for high-voltage power transmission projects.


Proven Global Performance: Trusted in high-voltage transmission projects in over 50 countries around the world, including hurricane-prone and earthquake-prone areas.


Advanced Engineering: It is designed based on a deep understanding of conductor characteristics and tension dynamics.


Grid Reliability: Can eliminates uneven tension and conductor collisions, reducing maintenance costs by 50% over a more than 25 year service life.


Labor Efficiency: With its lightweight design (40% lighter than steel) enables rapid deployment, even in mountainous or offshore environments.


Safety Compliance: The insulated materials of this tool meets the CE and ISO international safety standards.

Hot Tags: Head Boards for Three Bundle Conductor(Balancing Type)
