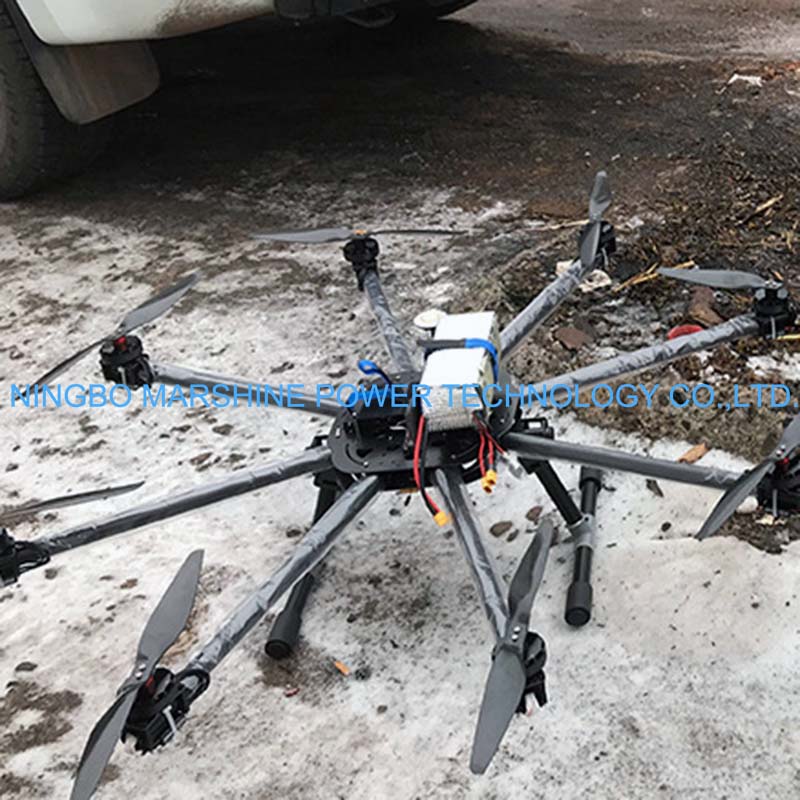

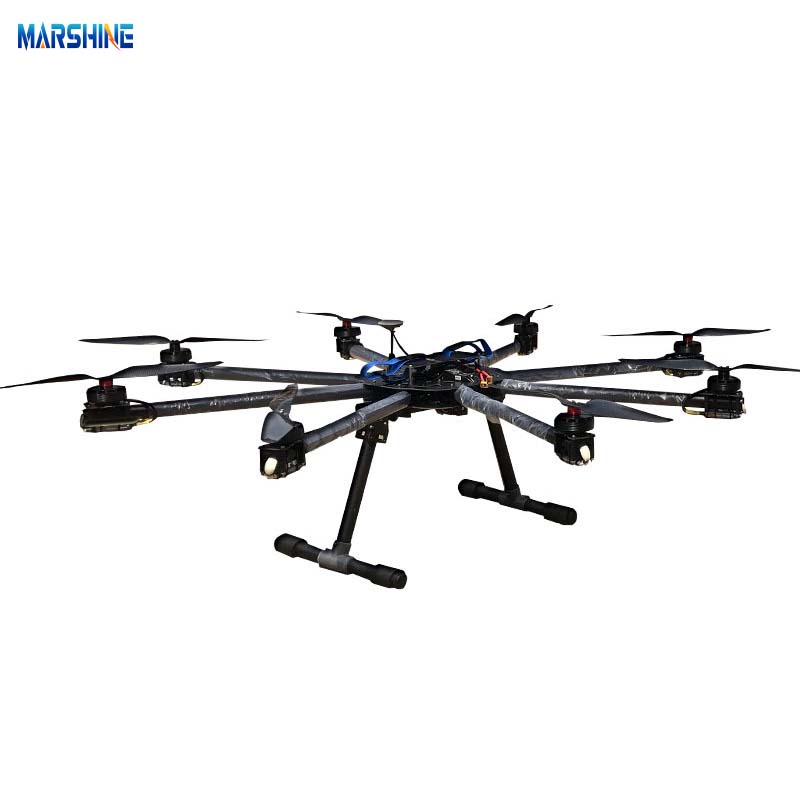

Been a efficient aerial cable stringing equipment that designed to deal with the overhead transmission line stringing tasks, our MARSHINE remote control drone which owns 8 axis is able significantly enhances the working speed, achieve the precise action while offering the added safety. With the excellent stability and maneuverability, this drone can effectively reduce the labor efforts and improve the working efficiency well.
Product Parameter
| Product Name | 8-axis stringing drone |
| Wheelbase | 1100mm |
| Aircraft Weight | 3KG |
| Payload | 8KG |
| Takeoff Weight | 11KG |
| Flight Time | 22MIN |
| Maximum Takeoff Weight | 19KG |
| Wind Resistance | Level 6 |
| Flight Speed | 14M/S |
| Breaking Force | 60KG |
| Empty Weight | 3KG |
| Leader Type | 3.5/2.0 Dublin/Nylon wire |
| Battery Type | IATA POWER 16000 25C Li-on battery |
| Ambient Temperature | -40°C~+60°C |
| Battery Capacity | 16000MAH |
| Flight Altitude | Adjustable 1.5KM |
| Flight Distance | Adjustable 3-4KM |
| Functions | Altitude and Point Control, Autonomous Hovering, Flight Path Setting, Autonomous Flight, Automatic Return to Starting Point in Case of Loss of Control |
Product Feature
With eight axis design, this drone can deliver the enhanced stability, so that to ensures the precise control during the stringing process.
Been capable of carrying stringing materials maximum up to 16kg, our remote control drone with camera is ideal for various of high-tension transmission line installations.

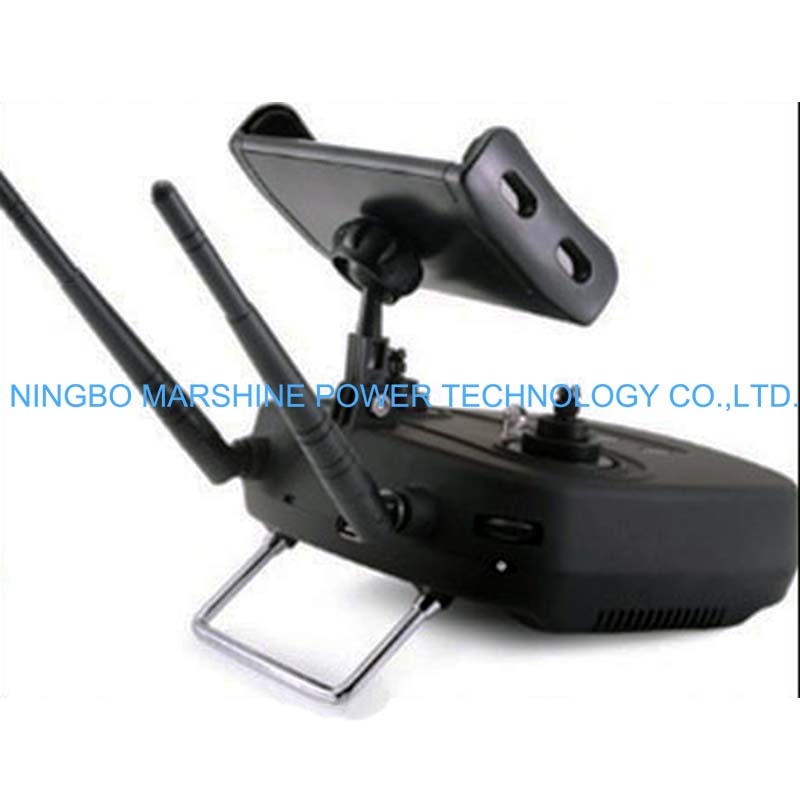

With the integrated real-time video feed and telemetry data, operators can monitor and adjust the drone's flight path to adjust the stringing process remotely.
With the automatic-fail-safe systems, this drone will return to the start point automatically, which it can operates safely in the complex environments.

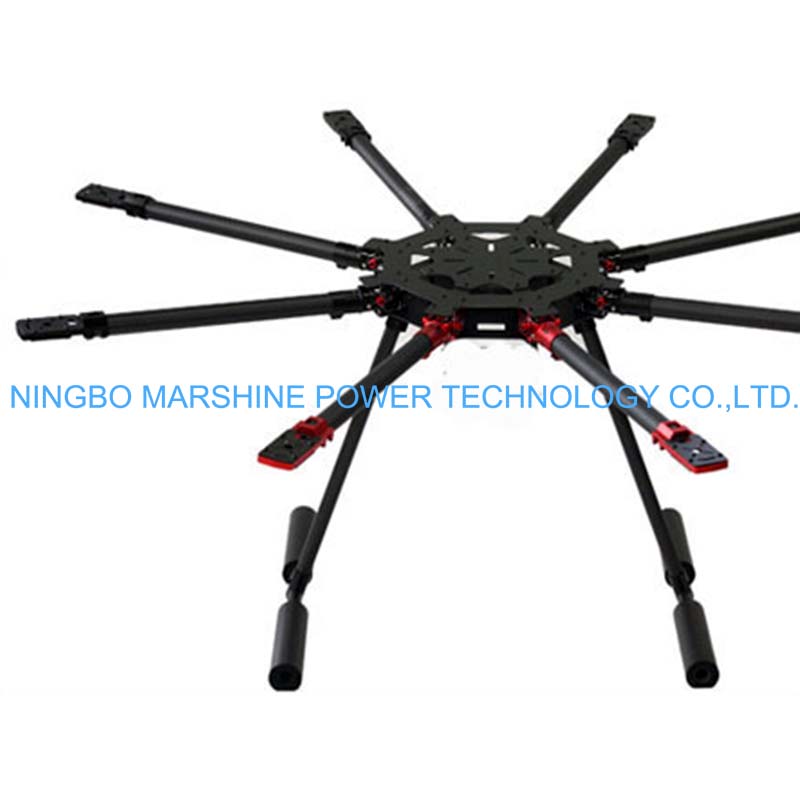

Due to its carbon fiber main body, this drone is lightweight and durable enough to working in the harsh outdoor environments.
Product Application

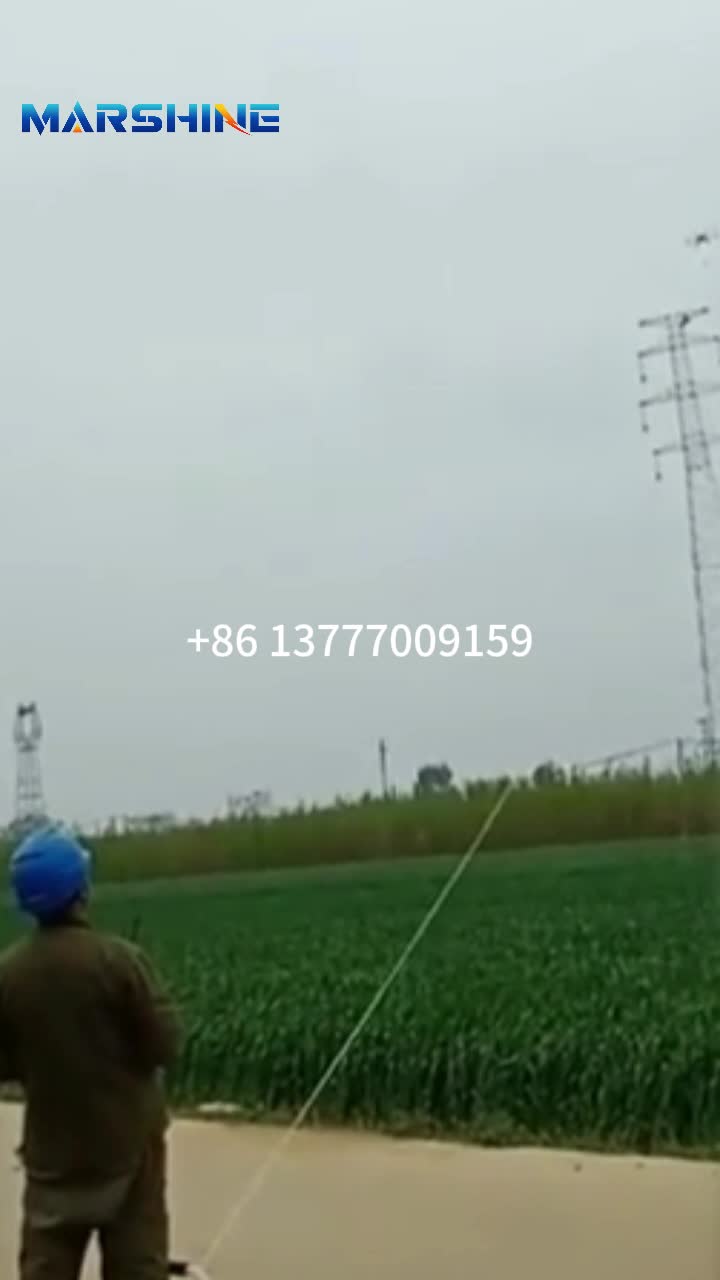

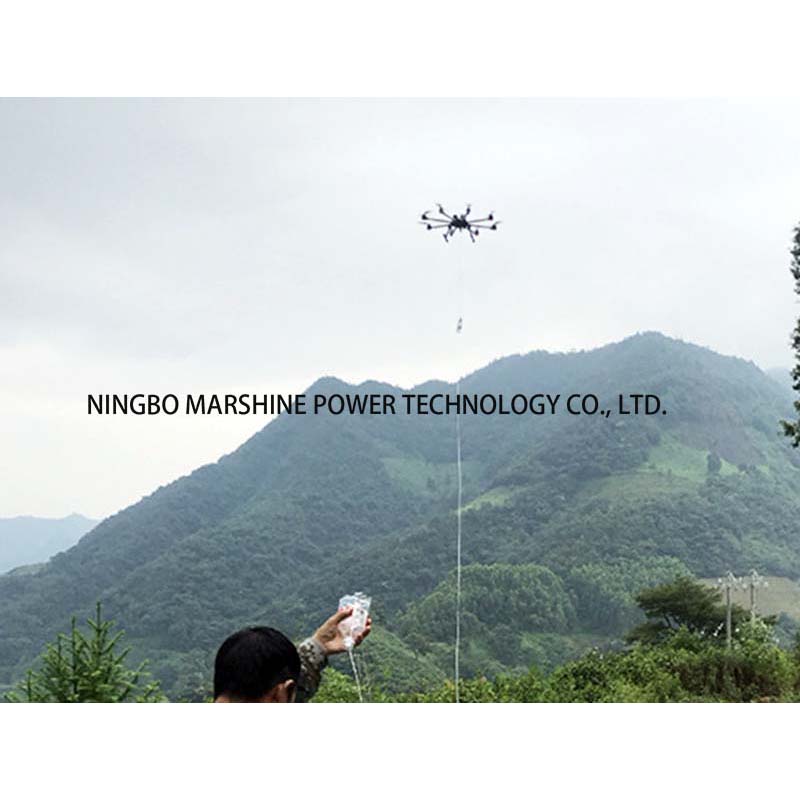

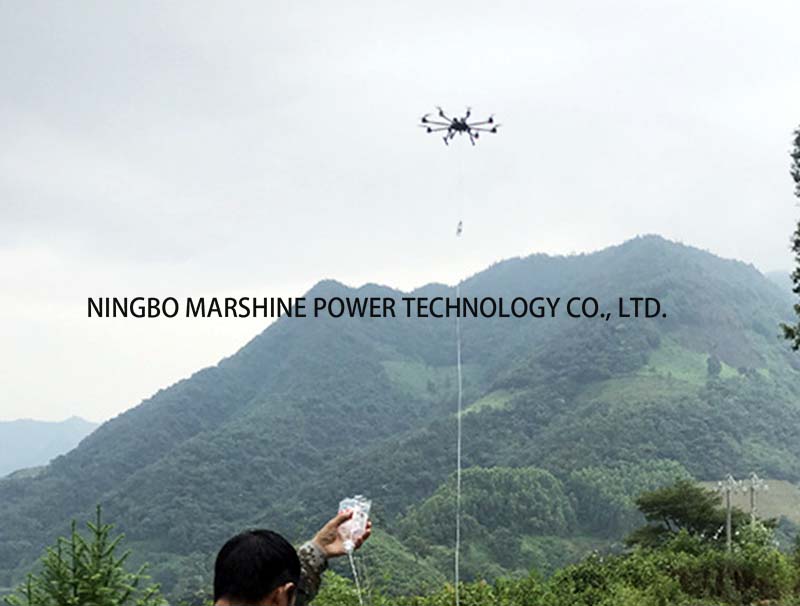

Our MARSHINE stringing drone is ideal for stringing the conductors across the long distances in the new transmission line projects.
Can be used to replace or upgrade the existing transmission lines, so that to reduce the downtime while reducing the labor effort costs in tough locations.
Perfect for the aerial cable installation works in the rugged or remote area.
Can also be applied on the inspection tasks to check the existing power lines and identify the faults or damage.
Product Details
Brand:MARSHINE.
Condition:New.
Lead Time:30days.
Warranty:1year.
Certification:ISO9001.
Place Of Origin:Zhejiang,China.Payment Term:T/T.
