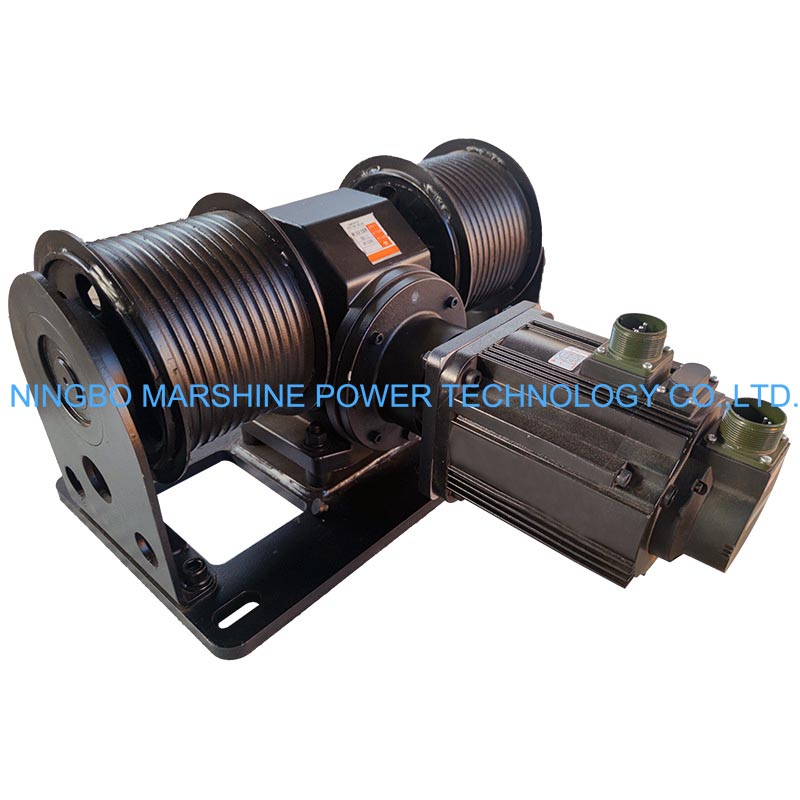

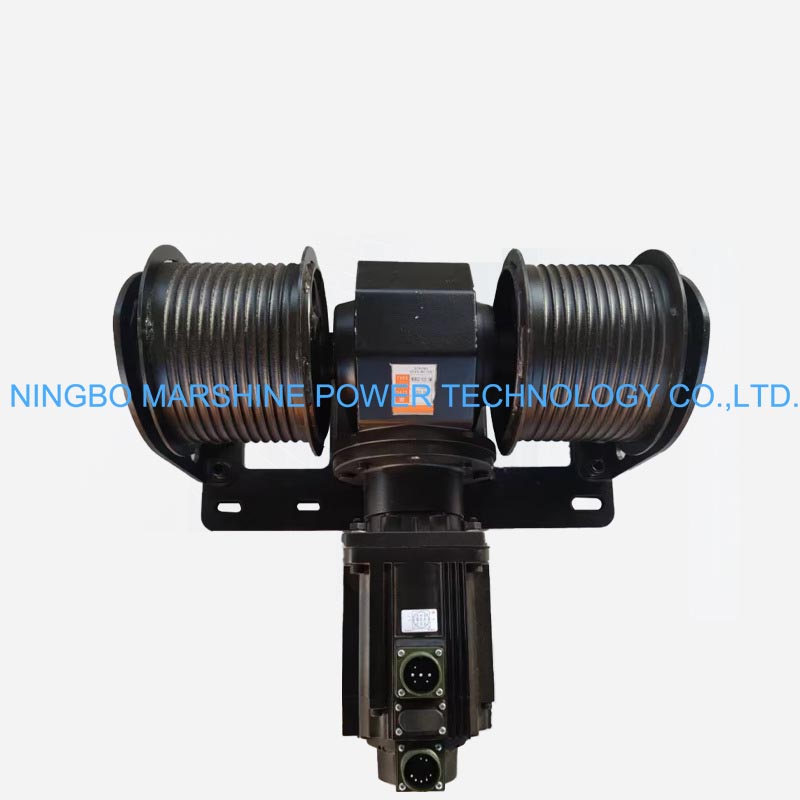

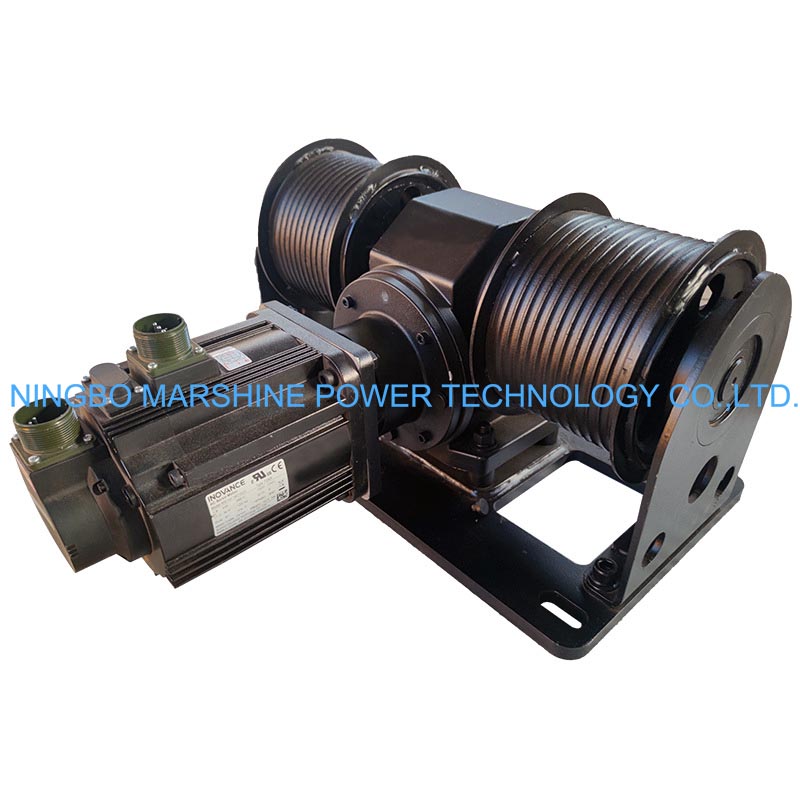

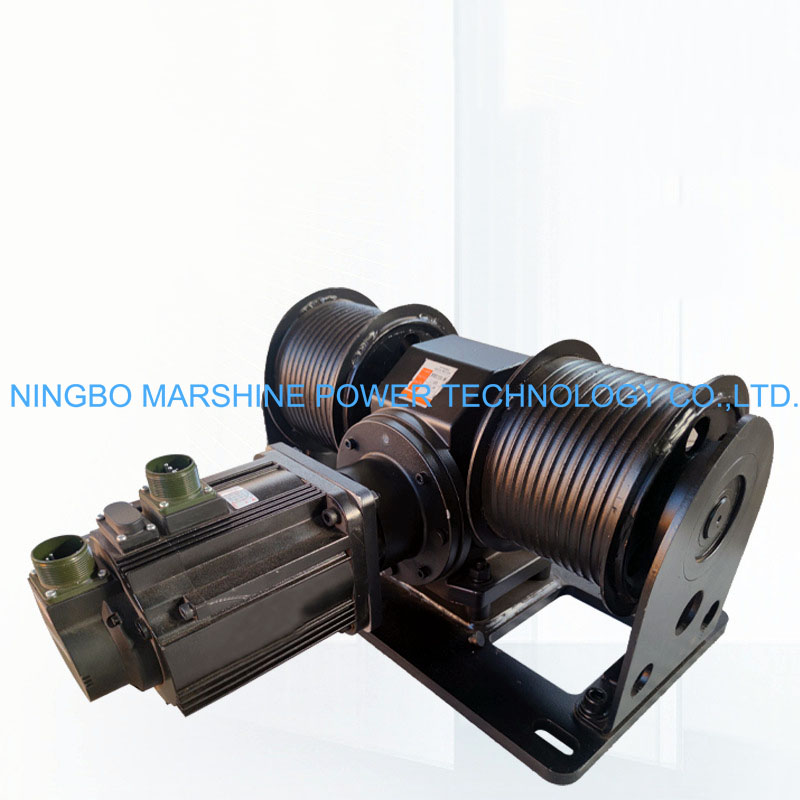

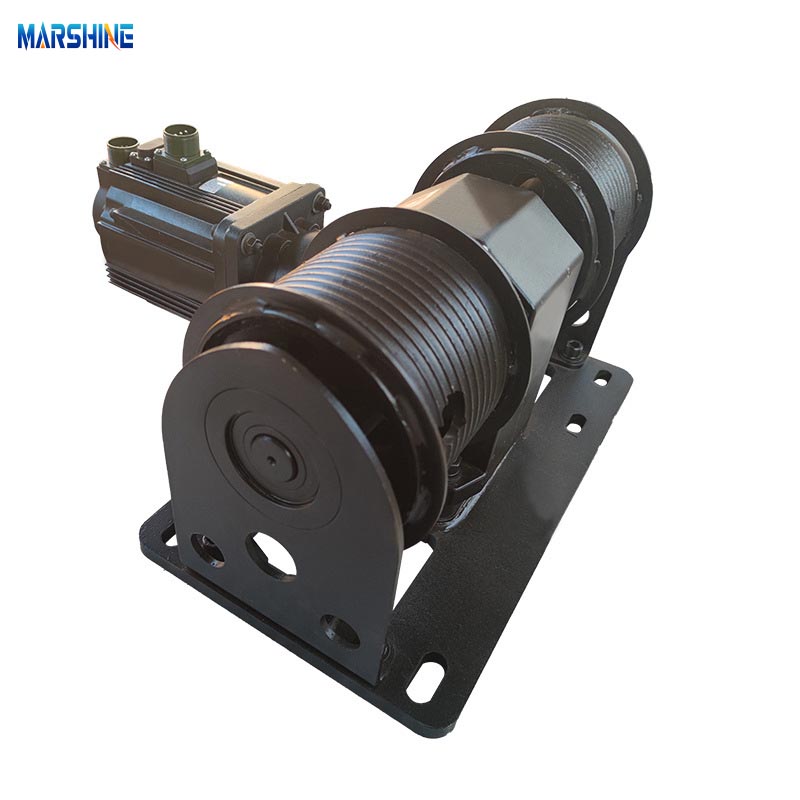

The MARSHINE Double-Rope Synchronous Electric Motor Wire Rope Winch as a high-power and high-efficiency electric winch for cable pulling, rope winding and heavy traction usage. With the double-rope synchronous structure, the machine can pull or wind two ropes simultaneously and cooperated, which enhances stability and work efficiency compared to single-rope system.Its strong electric drive, the self-winding and the compact design make this machine perfect for all type of industrial, construction, utility or infrastructure work where you need a dependable cable handling.
| Model | MAR-DW1000KG |
| Motor reducer rated output torque | 1100 N.m |
| Gear reducer transmission ratio | 160:1 |
| Motor power | 1.5 kW |
| Rope speed | 0.08 m/s |
| Lifting capacity | 1000 kg |
| Self-weight | 60 kg (excluding motor) |
| Reducer output speed | 9.4 rpm |
| Total wire rope length | 20 m |
| Wire rope diameter | 8 mm |
| Drum rope capacity | 5.6 m |
Double-Rope Synchronous Operation
Two ropes can be wound or pulled at the same time with the two-rope system, this make the force distribution more balanced, operation more smoothly, and cable twisting or misalignment is eliminated.
Electric Drive Power
Running on electric power, this MARSHINE Double-Rope Synchronous Electric Motor Wire Rope Winch can offers uninterrupted pulling power without having to use your hands, it’s more productive compared to traditional hand-operated pullers or hoists.
Auto Self-Winding System
With the integrated reel operation, it automatically winds the rope on the reel assisting in getting orderly spooled rope and minimizing rope tangle while doing operation.
Stable Rope Arrangement
Constructed with provisions for uniform rope wrapping and avoidance of overlapping, hence increasing the reliability and life of the wire rope.
Flexible Control Options
Typically available with wired and remote controls (arguments for configuration), allowing easy operation from safe location around the job site.
Heavy-Duty Construction
Features rugged construction for demanding industrial applications where day-in, day-out use is expected.
MARSHINE Double-Rope Synchronous Double-Rope Synchronous Electric Motor Wire Rope Winch is suitable for:
Fiber optic, power, or communication cable pulling in ducts, poles, or trenches.
Heavy cable and wire for use in construction sites, infrastructure, and industrial facilities.
Utility line installation and maintenance in which team pull and stability are a must.
Offer constant traction to your load need to be drawn or wound on the job site or workbench.
Remote control options enable work, even in remote locations.
Brand:MARSHINE.
Condition:New.
Lead Time:30days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
MOQ:50set.
