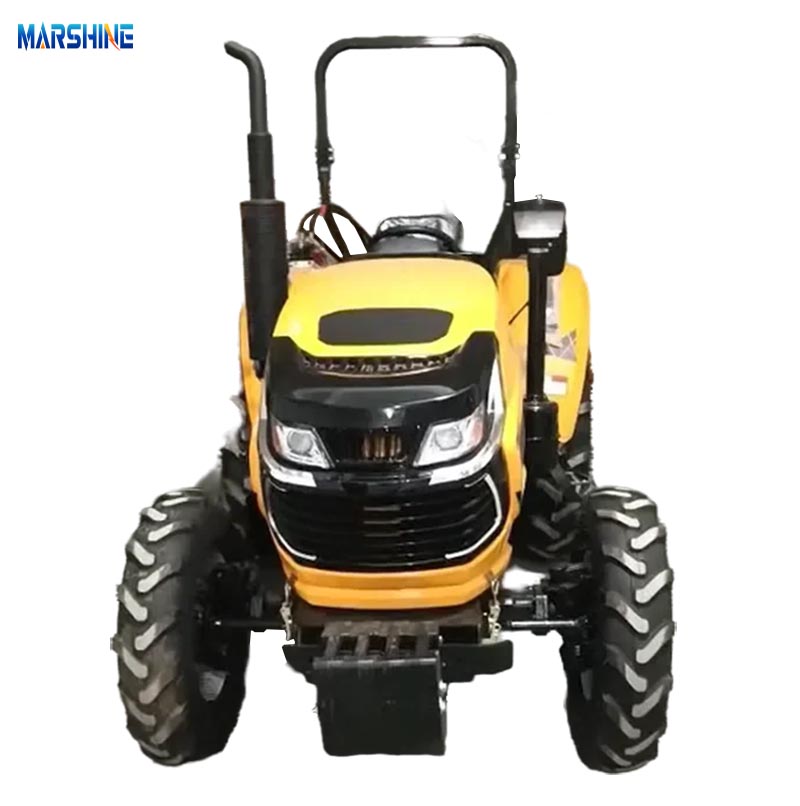

Driven by a 36.8 kW diesel power unit, this MARSHINE Diesel Pulling Tractor For Sale Tractor Winch Machine delivers a maximum traction capacity of 100 KN while offering adjustable operating speeds from 7 to 70 meters per minute. The machine is engineered to provide efficient pulling performance, excellent terrain adaptability, and dependable operation during continuous field use. Its compact dimensions and balanced chassis design enable convenient transportation and effective deployment on both established access roads and undeveloped work sites.
| Model | SX4-VI, Four Wheel Drive |
| Max. Pulling | 100 KN |
| Traction Speed | 7-70 M/min |
| Power | 36.8 KW |
| Engine Speed | 2400 rpm |
| Dimension (L x W x H) | 3800*1800*1780 mm |
| Weight | 2200 kg |
| Note: Please check the hydraulic oil before use and change the hydraulic oil regularly | |
Heavy-Duty Traction Capability
Capable of producing up to 10tons of pulling force, the machine is suitable for demanding conductor installation tasks, cable hauling operations, and utility line construction activities requiring substantial traction power.
Precision Speed Adjustment
The continuously adjustable traction speed range of 7 to 70 m/min allows operators to match pulling performance to specific project conditions, helping maintain stable cable movement and installation quality.
Efficient Diesel Power System
Powered by a durable 36.8 kW diesel engine operating at 2400 rpm, the machine delivers strong torque characteristics and reliable performance during extended work cycles.

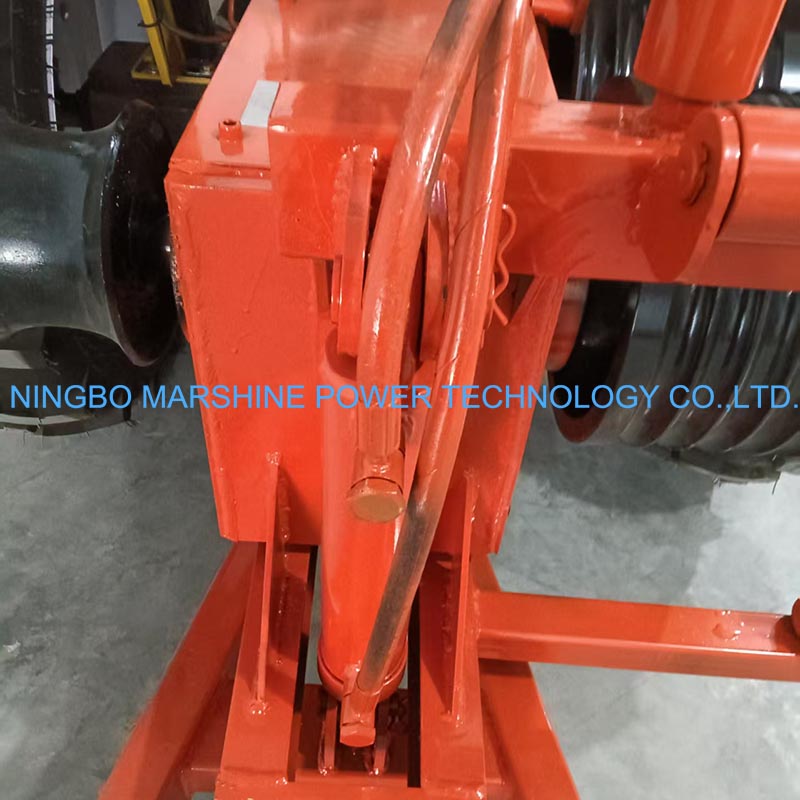

Integrated Winch-Based Pulling Mechanism
The built-in winch assembly enables controlled pulling operations and accurate load management, making the equipment suitable for applications where smooth tension control is essential.
Optimized Machine Dimensions
With an overall size of 3800 x 1800 x 1780 mm, the tractor offers an effective combination of maneuverability and operational capability, allowing access to construction areas with limited working space.
Balanced Structural Design
The MARSHINE Diesel Pulling Tractor For Sale Tractor Winch Machine’s operating weight of 2200 kg contributes to improved ground contact and operational stability, particularly when handling heavy pulling loads.
Adaptability to Various Site Conditions
Designed for utility construction environments, the tractor can operate efficiently across uneven terrain, temporary access roads, open fields, and infrastructure development sites.
Durable Construction for Field Operations
The reinforced chassis and industrial-grade components are engineered to withstand the mechanical demands associated with conductor stringing and cable installation projects.
The MARSHINE Diesel Pulling Tractor For Sale Tractor Winch Machine is widely utilized in:
Overhead conductor installation projects;
Electrical transmission network construction;
Distribution line development works;
Pilot rope and pulling rope operations;
OPGW deployment projects;
ADSS cable installation activities;
Underground utility cable construction;
Renewable energy transmission infrastructure;
Telecommunications network expansion;
General utility engineering and maintenance work.
Brand:MARSHINE.
Condition:New.
Lead Time:1Month.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
