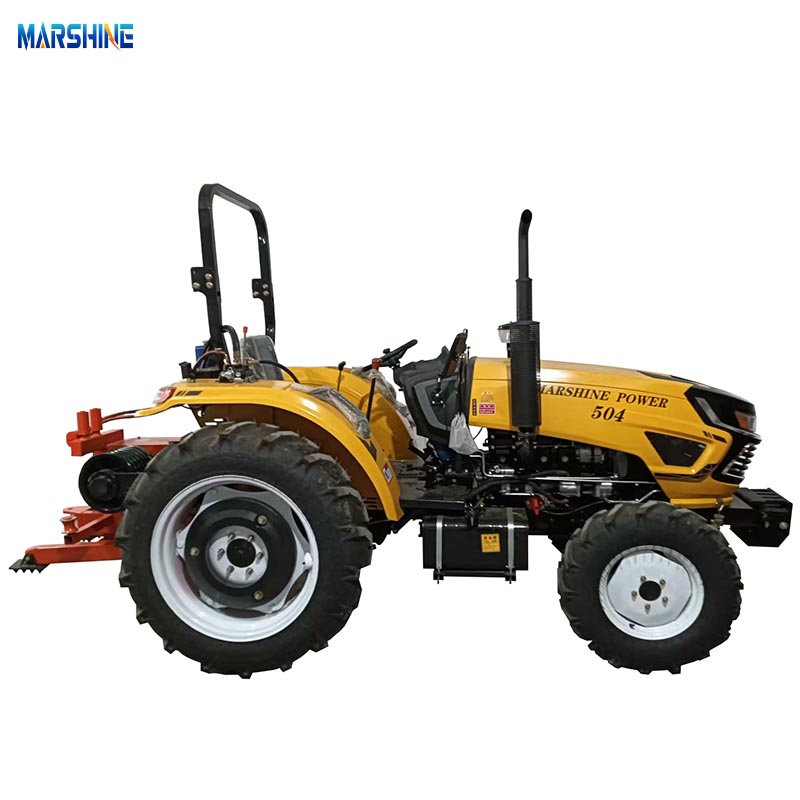

Four Wheel Drive Diesel Powered 504 Tractor Puller

Model:SX4-VI, Four Wheel Drive

We MARSHINE is a power line construction equipment manufacturing and trading company in China with 20 years experience, and is able to provide electricians and linemen worldwide with the efficient yet durable cable pulling machine for different constructions. This MARSHINE Four Wheel Drive Diesel Powered 504 Tractor Puller is our reliable tractor pulling machine with diesel power engine, can provide reliable pulling performance in tough area as well.

Send Inquiry

Product Description

Powered by a 36.8 kW diesel engine operating at 2400 rpm, the MARSHINE Four Wheel Drive Diesel Powered 504 Tractor Puller is able to delivers a maximum pulling force of 100 KN and adjustable traction speeds ranging from 7 to 70 m/min. Its robust four-wheel-drive system ensures excellent maneuverability and stable performance on rough terrain, mountainous areas, and off-road construction sites. Compact yet powerful, the machine is designed to improve construction efficiency while reducing labor intensity in demanding field environments.

Product Parameter

Model	SX4-VI, Four Wheel Drive
Max. Pulling	100 KN
Traction Speed	7-70 M/min
Power	36.8 KW
Engine Speed	2400 rpm
Dimension (L x W x H)	380018001780 mm
Weight	2200 kg
Note: Please check the hydraulic oil before use and change the hydraulic oil regularly

Product Feature

Powerful Pulling Capacity

With a maximum pulling force of 100 KN, the MARSHINE Four Wheel Drive Diesel Powered 504 Tractor Puller is capable of handling conductor stringing, cable pulling, and utility installation tasks in medium and large-scale transmission projects.

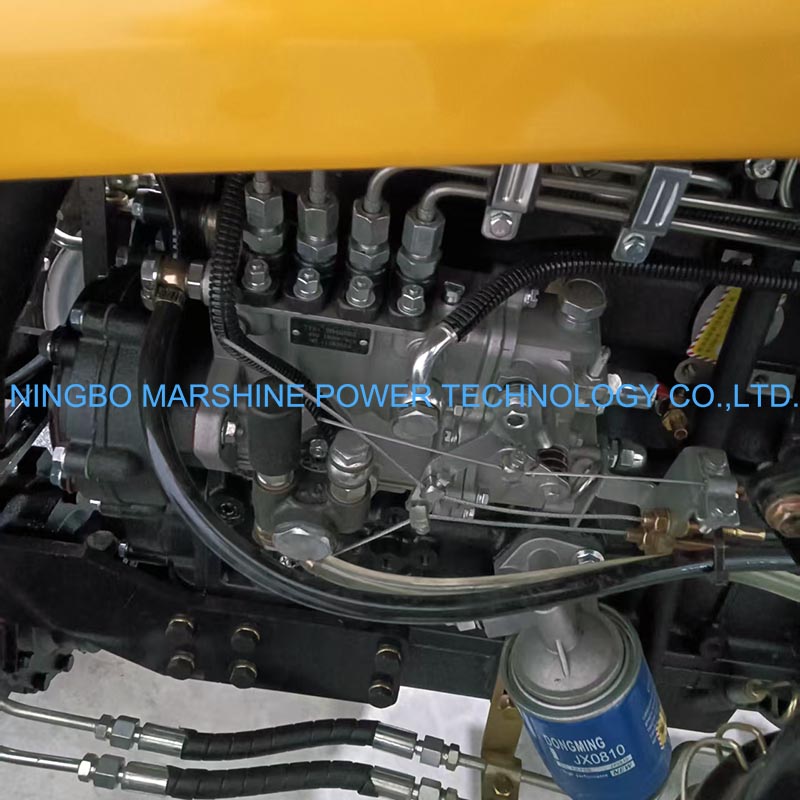

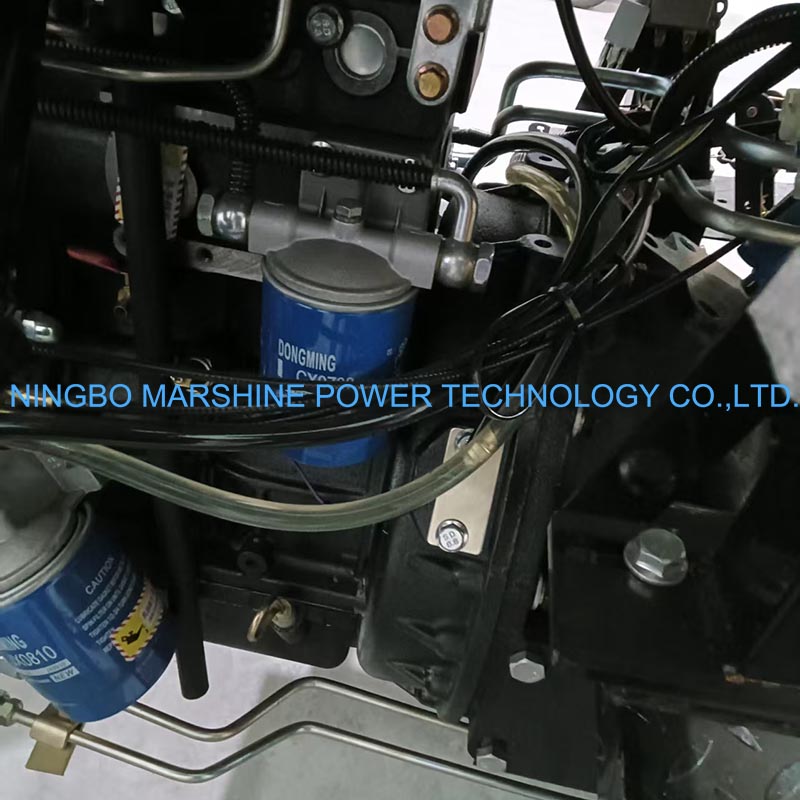

High-Performance Diesel Engine

Equipped with a reliable 36.8 kW diesel engine running at 2400 rpm, the machine delivers stable power output, fuel efficiency, and dependable operation under continuous working conditions.

Adjustable Traction Speed

The pulling speed can be adjusted from 7 to 70 m/min, allowing operators to select the optimal working speed according to different construction requirements and site conditions.

Four-Wheel Drive System

The advanced 4WD configuration provides superior traction and mobility on uneven terrain, muddy roads, steep slopes, and remote construction sites where conventional pulling equipment may struggle.

Compact and Rugged Design

With dimensions of 3800*1800*1780 mm, the tractor puller combines a compact footprint with a durable structure, making it suitable for transportation and operation in confined work areas.

Excellent Stability and Reliability

The machine's 2200 kg operating weight ensures excellent stability during pulling operations while maintaining flexibility for field deployment.

Easy Operation and Maintenance

Designed with user-friendly controls and a reliable mechanical structure, the MARSHINE 504 simplifies operation, maintenance, and servicing, helping reduce downtime and operating costs.

Multi-Purpose Construction Equipment

In addition to conductor stringing and cable pulling, the machine can be utilized for various utility construction, telecommunications, and infrastructure installation projects.
