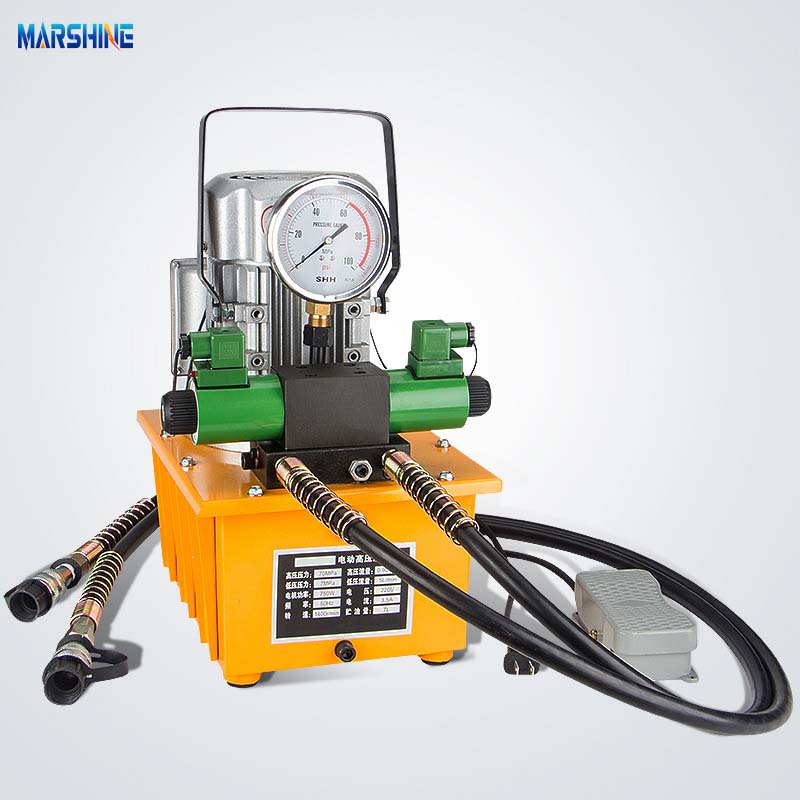

As a high-performance hydraulic power unit that was designed to drive the hydraulic tools with the higher efficiency and the reliability, this MARSHINE ZCB-700 Solenoid Valve Hydraulic Electric Pump features an integrated solenoid valve control system, is able to ensure the precise operation and the consistent hydraulic output for the operators. With its compact yet powerful design, this pump can be a good choice for the applications that requires for the stable hydraulic power, such as the cable cutting, crimping, and the other constructions or the maintenance tasks.
Product Parameter

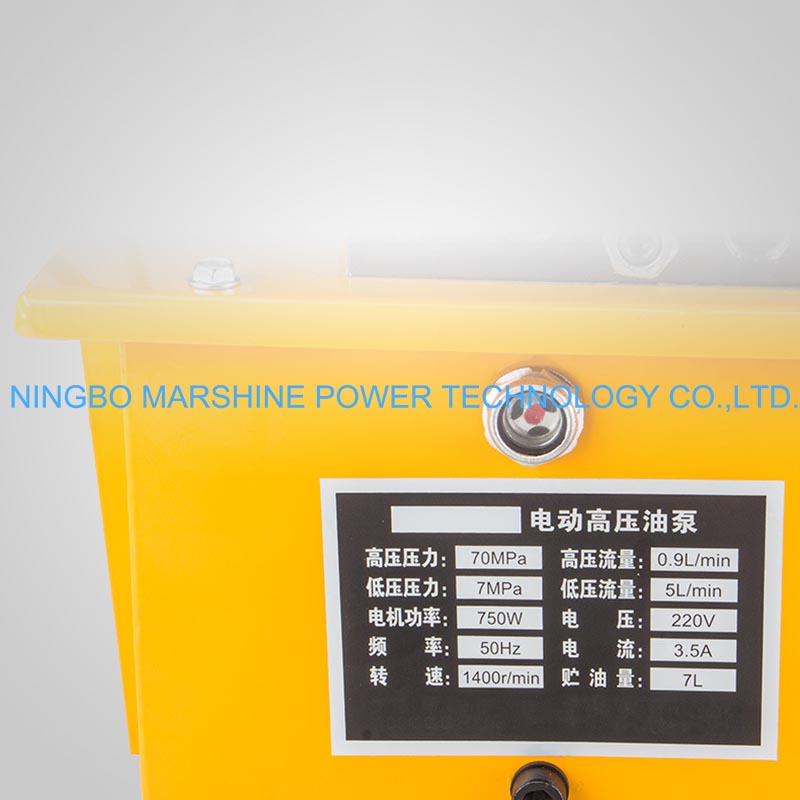

| Model | ZCB-700 | Power | 0.75KW |
| Voltage | 220V/380V | High pressure | 70MPa |
| Low pressure | 7MPa | High pressure flow | 0.9L/min (higher than 7Mpa) |
| Low pressure flow | 5L/min (less than 7Mpa) | Weight | 32kg (without oil) |

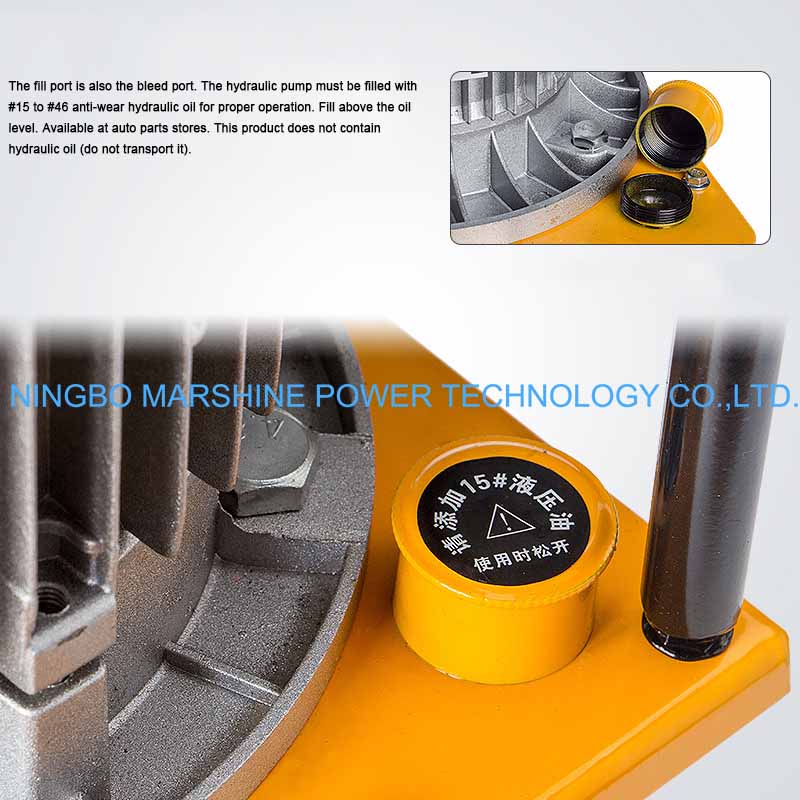

| Oil reserves | 7L (the fuel tank can be enlarged, and the oil pump uses 15# hydraulic oil. The thinner the better for 15# or below) | ||

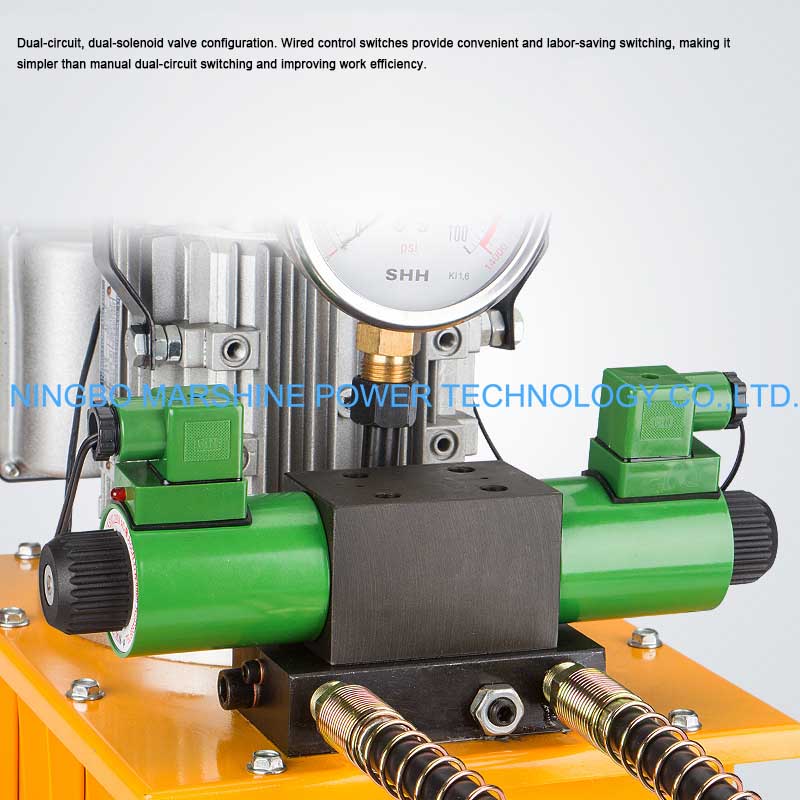

| How it works | With solenoid valve manual (foot) switch control; | ||
| Features | Suitable for split hydraulic products such as split hydraulic pliers, punching, bending, cutting tools, and jacks.The factory pressure is set to 70MPa, and the upper pressure limit can be adjusted to meet customer requirements within a range of 20-70MPa.The high-pressure oil hose can be extended to any length, and a 2-meter hose is standard.The electric hydraulic pump is a high- and low-pressure plunger pump (with both manual and foot switches).The hose connector has a ZG 3/8" thread. | ||
Product Feature
As a reliable hydraulic unit that with the solenoid valve control to ensure the accurate and responsive control of hydraulic flow, and the high pressure output that up to 70Mpa to provide the users with the outstanding power for the wide range of the hydraulic tools, this MARSHINE ZCB-700 Solenoid Valve Hydraulic Electric Pump which owns the compact yet portable design is allows for the easy handling and transport. And with its durable constructions that built with the high-strength alloy steel, this machine is able to offer the long service life in the demanding construction environments. Meanwhile, its efficient 0.75KW electric motor can deliver the stable power while maintaining the lower energy consumption, and the simple operation way can connect to hydraulic tools quickly for the fast setup.
Product Application
Our MARSHINE ZCB-700 Solenoid Valve Hydraulic Electric Pump is suitable for the powering the hydraulic crimping tools for the cable lugs and the connectors, and can be used to deal with the construction, power line installation, and the electrical maintenance projects, or for driving the hydraulic cable cutters for the overhead and the underground cables. In addition, it can also be applied for the industrial use where the reliable hydraulic power is required.
Product Details
As a compact, efficient, and reliable hydraulic unit for a wide range of hydraulic tools, our MARSHINE ZCB-700 Solenoid Valve Hydraulic Electric Pump can be your reliable partner.
Place Of Origin:China,Zhejiang.
Leading Time:12-14days.
Warranty:1year.
Certifications:CE,ISO.
